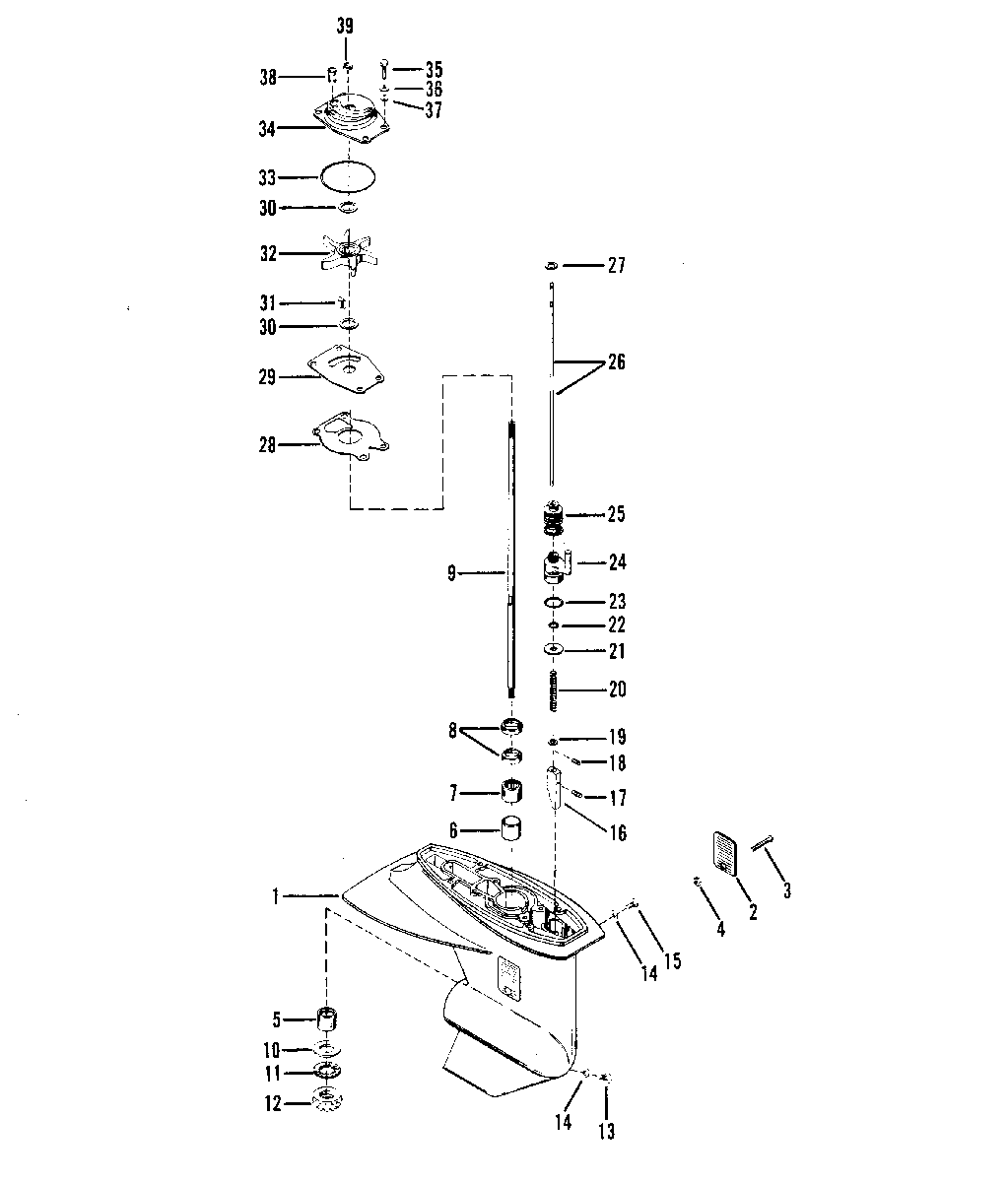

GEAR HOUSING (Drive Shaft) (Screw Inserted from Bottom) для Mercury - 18 9378116 THRU 9415100

  • №
    Артикул
    Название
  • -
    1665-8669T13 GEAR HOUSING ASSEMBLY, COMPLETE - SHORT SHAFT
    GEAR HOUSING ASSEMBLY, COMPLETE - SHORT SHAFT
  • -
    1665-8669T14 GEAR HOUSING ASSEMBLY, COMPLETE - LONG SHAFT
    GEAR HOUSING ASSEMBLY, COMPLETE - LONG SHAFT
  • 1
    1653-8157A6 GEAR HOUSING ASSEMBLY
    GEAR HOUSING ASSEMBLY
  • 2
    35-98488 SCREEN, WATER INLET - STARBOARD
    SCREEN, WATER INLET - STARBOARD
  • 2
    35-98487 SCREEN, WATER INLET - PORT
    SCREEN, WATER INLET - PORT
  • 3
    10-40031112 SCREW, SCREEN TO GEAR HOUSING (40MM)
    SCREW, SCREEN TO GEAR HOUSING (40MM)
  • 4
    11-400263 NUT, SCREEN SCREW
    NUT, SCREEN SCREW
  • 5
    31-85559 ROLLER BEARING, LOWER
    ?96524! THRUST WASHER (.234 THICK) IS SUPERSEDED BY ?98861A1! BUSHING KIT. ?31-85559! ROLLER BEARING AND ?31-85560! THRUST BEARING ARE NOT USED WITH THE BUSHING KIT.
    ROLLER BEARING, LOWER
    ?96524! THRUST WASHER (.234 THICK) IS SUPERSEDED BY ?98861A1! BUSHING KIT. ?31-85559! ROLLER BEARING AND ?31-85560! THRUST BEARING ARE NOT USED WITH THE BUSHING KIT.
  • 6
    23-85092 SLEEVE, UPPER ROLLER BEARING
    SLEEVE, UPPER ROLLER BEARING
  • 7
    31-85558 ROLLER BEARING, UPPER
    ROLLER BEARING, UPPER
  • 8
    26-897154 SEAL, GEAR HOUSING
    SEAL, GEAR HOUSING
  • 9
    45-98084 DRIVE SHAFT - SHORT SHAFT
    DRIVE SHAFT - SHORT SHAFT
  • 9
    45-98085 DRIVE SHAFT - LONG SHAFT
    DRIVE SHAFT - LONG SHAFT
  • 10
    12-94056 WASHER, THRUST - DRIVE SHAFT (.080 THICK)
    WASHER, THRUST - DRIVE SHAFT (.080 THICK)
  • 10
    98861A1 WASHER, THRUST - DRIVE SHAFT (.234 THICK)
    ?96524! THRUST WASHER (.234 THICK) IS SUPERSEDED BY ?98861A1! BUSHING KIT. ?31-85559! ROLLER BEARING AND ?31-85560! THRUST BEARING ARE NOT USED WITH THE BUSHING KIT
    WASHER, THRUST - DRIVE SHAFT (.234 THICK)
    ?96524! THRUST WASHER (.234 THICK) IS SUPERSEDED BY ?98861A1! BUSHING KIT. ?31-85559! ROLLER BEARING AND ?31-85560! THRUST BEARING ARE NOT USED WITH THE BUSHING KIT
  • 11
    31-85560 THRUST BEARING, DRIVE SHAFT
    ?96524! THRUST WASHER (.234 THICK) IS SUPERSEDED BY ?98861A1! BUSHING KIT. ?31-85559! ROLLER BEARING AND ?31-85560! THRUST BEARING ARE NOT USED WITH THE BUSHING KIT
    THRUST BEARING, DRIVE SHAFT
    ?96524! THRUST WASHER (.234 THICK) IS SUPERSEDED BY ?98861A1! BUSHING KIT. ?31-85559! ROLLER BEARING AND ?31-85560! THRUST BEARING ARE NOT USED WITH THE BUSHING KIT
  • 12
    43-85132 PINION GEAR
    PINION GEAR
  • 13
    22-8M0058389 SCREW, DRAIN - MAGNETIC
    SCREW, DRAIN - MAGNETIC
  • 14
    12-191833 WASHER, DRAIN AND FILLER SCREW
    WASHER, DRAIN AND FILLER SCREW
  • 15
    10-79953Q04 SCREW, GREASE FILLER
    SCREW, GREASE FILLER
  • 16
    85562A1 CAM ASSEMBLY, SHIFT
    CAM ASSEMBLY, SHIFT
  • 17
    17-85096 DRIVE PIN, SHIFT CAM
    DRIVE PIN, SHIFT CAM
  • 18
    17-85593 ROLL PIN, SHIFT SHAFT
    ROLL PIN, SHIFT SHAFT
  • 19
    12-29245 WASHER, SHIFT SHAFT
    WASHER, SHIFT SHAFT
  • 20
    24-93007 SPRING, SHIFT SHAFT
    SPRING, SHIFT SHAFT
  • 21
    12-85091 WASHER, SHIFT SHAFT
    WASHER, SHIFT SHAFT
  • 22
    25-85594 "O" RING, SHIFT SHAFT
    "O" RING, SHIFT SHAFT
  • 23
    25-35276 "O" RING, SHIFT SHAFT RETAINER
    "O" RING, SHIFT SHAFT RETAINER
  • 24
    93878 RETAINER, SHIFT SHAFT
    RETAINER, SHIFT SHAFT
  • 25
    85552001 BOOT, SHIFT SHAFT
    BOOT, SHIFT SHAFT
  • 26
    85126 SHIFT SHAFT - SHORT SHAFT
    SHIFT SHAFT - SHORT SHAFT
  • 26
    86293 SHIFT SHAFT - LONG SHAFT
    SHIFT SHAFT - LONG SHAFT
  • 27
    12-29245 WASHER, SHIFT SHAFT - UPPER
    WASHER, SHIFT SHAFT - UPPER
  • 28
    27-993261 GASKET, WATER PUMP
    GASKET, WATER PUMP
  • 29
    85083 FACE PLATE
    FACE PLATE
  • 30
    12-8M0027721 WASHER, IMPELLER
    WASHER, IMPELLER
  • 31
    28-8M0032838 KEY, IMPELLER DRIVE
    KEY, IMPELLER DRIVE
  • 32
    47-8508910 IMPELLER
    IMPELLER
  • 33
    25-69202 "O" RING
    "O" RING
  • 34
    46-99157A02 WATER PUMP
    WATER PUMP
  • 35
    10-400035 SCREW, WATER PUMP
    SCREW, WATER PUMP
  • 36
    12-89302 WASHER, WATER PUMP SCREW
    WASHER, WATER PUMP SCREW
  • 37
    23-85095 BUSHING, WATER PUMP SCREW
    BUSHING, WATER PUMP SCREW
  • 38
    26-85090001 SEAL, WATER TUBE
    SEAL, WATER TUBE
  • 39
    25-86203 RING, DRIVE SHAFT - RUBBER
    RING, DRIVE SHAFT - RUBBER
  • --
    46-99157T2 WATER PUMP REPAIR KIT
    CONTENTS INDICATED BY FOOTNOTE 11.
    WATER PUMP REPAIR KIT
    CONTENTS INDICATED BY FOOTNOTE 11.
  • --
    26-85090A1 SEAL REPAIR KIT
    CONTENTS INDICATED BY FOOTNOTE 12.
    SEAL REPAIR KIT
    CONTENTS INDICATED BY FOOTNOTE 12.
  • --
    27-41499A88 GASKET SET
    CONTENTS INDICATED BY FOOTNOTE 15.
    GASKET SET
    CONTENTS INDICATED BY FOOTNOTE 15.
