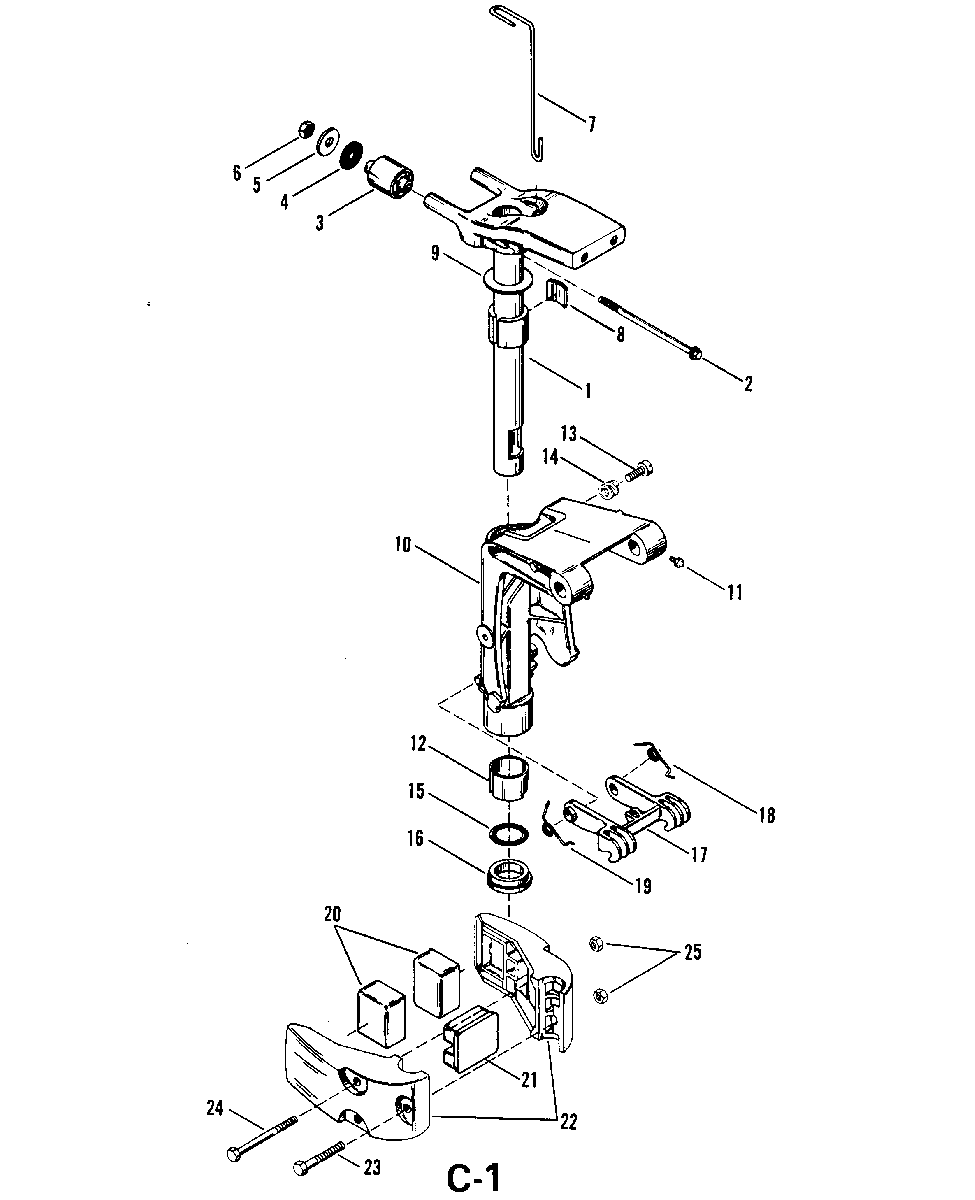

SWIVEL BRACKET ASSEMBLY для Mercury - 18 9378116 THRU 9415100

  • №
    Артикул
    Название
  • 1
    97544A5 SWIVEL TUBE ASSEMBLY
    SWIVEL TUBE ASSEMBLY
  • 2
    10-125161 SCREW, UPPER MOUNT (133MM)
    SCREW, UPPER MOUNT (133MM)
  • 3
    14894 MOUNT, UPPER
    MOUNT, UPPER
  • 4
    12-85172 WASHER, RUBBER - UPPER MOUNT SCREW
    WASHER, RUBBER - UPPER MOUNT SCREW
  • 5
    12-85106 WASHER, UPPER MOUNT SCREW
    WASHER, UPPER MOUNT SCREW
  • 6
    11-400213 NUT, UPPER MOUNT SCREW
    NUT, UPPER MOUNT SCREW
  • 7
    85157 ROD, REVERSE HOOK
    ROD, REVERSE HOOK
  • 8
    85173 PLATE, PILOT CONTROL
    PLATE, PILOT CONTROL
  • 9
    12-85104 WASHER, SWIVEL TUBE
    WASHER, SWIVEL TUBE
  • 10
    3415-822237A1 SWIVEL BRACKET ASSEMBLY
    SWIVEL BRACKET ASSEMBLY
  • 11
    22-74036 GREASE FITTING
    GREASE FITTING
  • 12
    23-95949 BUSHING, SWIVEL BRACKET
    BUSHING, SWIVEL BRACKET
  • 13
    10-91807 SCREW, PILOT CONTROL
    SCREW, PILOT CONTROL
  • 14
    24-96203 SPRING, PILOT CONTROL SCREW
    SPRING, PILOT CONTROL SCREW
  • 15
    25-86993 "O" RING, SWIVEL TUBE
    "O" RING, SWIVEL TUBE
  • 16
    23-85154 BUSHING SWIVEL TUBE (LOWER)
    BUSHING SWIVEL TUBE (LOWER)
  • 17
    98830A2 HOOK ASSEMBLY, REVERSE LOCK
    HOOK ASSEMBLY, REVERSE LOCK
  • 18
    24-96018 SPRING, REVERSE HOOK - PORT
    SPRING, REVERSE HOOK - PORT
  • 19
    24-97427 SPRING, REVERSE HOOK - STARBOARD
    SPRING, REVERSE HOOK - STARBOARD
  • 20
    85122001 MOUNT, LOWER
    MOUNT, LOWER
  • 21
    85123001 BUMPER, FRONT
    BUMPER, FRONT
  • 22
    95068A1 COVER, LOWER MOUNT
    COVER, LOWER MOUNT
  • 23
    10-1994360 SCREW, LOWER MOUNT COVER (60MM)
    SCREW, LOWER MOUNT COVER (60MM)
  • 24
    10-19943100 SCREW, LOWER MOUNT COVER (100MM)
    SCREW, LOWER MOUNT COVER (100MM)
  • 25
    11-400213 NUT, LOWER MOUNT COVER SCREW
    NUT, LOWER MOUNT COVER SCREW
  • --
    27-41499A88 GASKET SET
    CONTENTS INDICATED BY FOOTNOTE 15.
    GASKET SET
    CONTENTS INDICATED BY FOOTNOTE 15.
