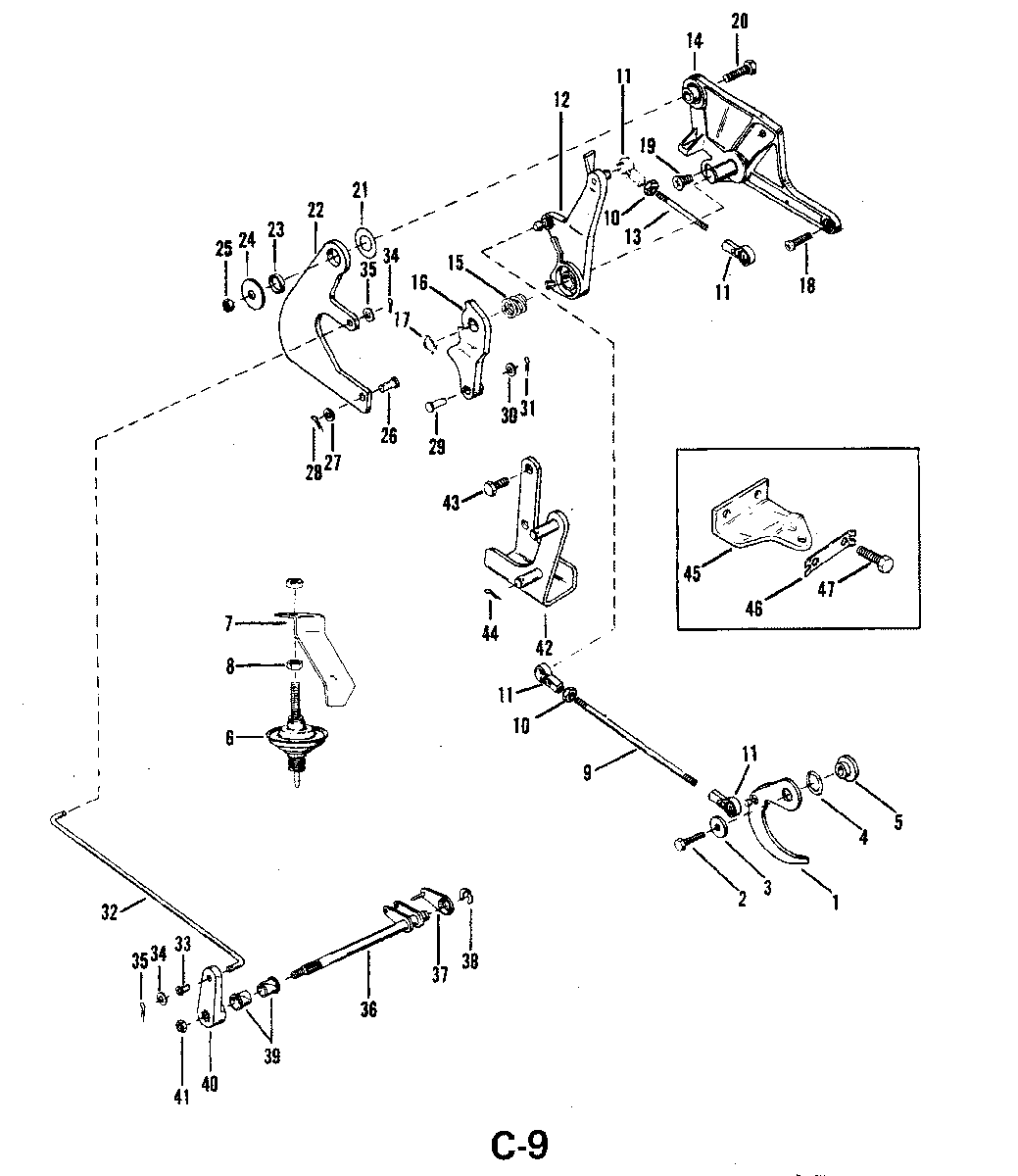

THROTTLE AND SHIFT LINKAGE (ELECTRIC) для Mercury - 18 9332837X THRU 9390058X

  • №
    Артикул
    Название
  • 1
    17764A2 THROTTLE CAM
    THROTTLE CAM
  • 2
    10-400035 SCREW,THROTTLE CAM TO CRANKCASE(16MM)
    SCREW,THROTTLE CAM TO CRANKCASE(16MM)
  • 3
    12-87791 WASHER,THROTTLE CAM SCREW
    WASHER,THROTTLE CAM SCREW
  • 4
    13-69150 WAVE WASHER,THROTTLE CAM SCREW
    WAVE WASHER,THROTTLE CAM SCREW
  • 5
    17764A2 BUSHING,THROTTLE CAM SCREW
    BUSHING,THROTTLE CAM SCREW
  • 6
    92425 DASHPOT
    DASHPOT
  • 7
    93001 BRACKET,DASHPOT
    BRACKET,DASHPOT
  • 8
    11-22053 NUT,DASHPOT TERMINAL
    NUT,DASHPOT TERMINAL
  • 9
    98463A2 THROTTLE ROD
    THROTTLE ROD
  • 10
    11-68219 NUT,LOCK-THROTTLE ROD
    NUT,LOCK-THROTTLE ROD
  • 11
    8M0084742 SOCKET,THROTTLE ROD
    SOCKET,THROTTLE ROD
  • 12
    92730 LEVER,CONTROL
    LEVER,CONTROL
  • 13
    817429 TIMING ROD
    TIMING ROD
  • 14
    44299 PLATFORM,CONTROL
    PLATFORM,CONTROL
  • 15
    24-89540 SPRING,SPARK ADVANCE
    SPRING,SPARK ADVANCE
  • 16
    95034 LEVER,ACTUATING
    LEVER,ACTUATING
  • 17
    53-46250 RETAINING RING,ACTUATING AND CONTROL LEVER
    RETAINING RING,ACTUATING AND CONTROL LEVER
  • 18
    10-40019108 SCREW,CONTROL PLATFORM(20MM)
    SCREW,CONTROL PLATFORM(20MM)
  • 19
    10-40037126 SCREW,CONTROL PLATFORM(13MM)
    SCREW,CONTROL PLATFORM(13MM)
  • 20
    10-40007128 SCREW,SHIFT LEVER TO PLATFORM(20MM)
    SCREW,SHIFT LEVER TO PLATFORM(20MM)
  • 21
    12-95093 WASHERMSHIFT LEVER TO PLATFORM
    WASHERMSHIFT LEVER TO PLATFORM
  • 22
    95035 LEVER,SHIFT
    LEVER,SHIFT
  • 23
    23-95091 SLEEVE,SHIFT LEVER TO PLATFORM
    SLEEVE,SHIFT LEVER TO PLATFORM
  • 24
    12-35280 WASHER,SHIFT LEVER SCREW
    WASHER,SHIFT LEVER SCREW
  • 25
    11-401386 NUT,SHIFT LEVER SCREW
    NUT,SHIFT LEVER SCREW
  • 26
    17-95029 PIN,SHIFT LEVER
    PIN,SHIFT LEVER
  • 27
    12-71055 WASHER,SHIFT LEVER PIN
    WASHER,SHIFT LEVER PIN
  • 28
    398-2171 COTTER PIN,SHIFT LEVER PIN
    COTTER PIN,SHIFT LEVER PIN
  • 29
    17-95784 PIN,ACTUATING LEVER
    PIN,ACTUATING LEVER
  • 30
    12-71055 WASHER,ACTUATING LEVER PIN
    WASHER,ACTUATING LEVER PIN
  • 31
    18-210711 COTTER PIN,ACTUATING LEVER PIN
    COTTER PIN,ACTUATING LEVER PIN
  • 32
    95025 SHIFT LINK
    SHIFT LINK
  • 33
    23-96202 BUSHING,NYLON-SHIFT LINK
    BUSHING,NYLON-SHIFT LINK
  • 34
    12-89302 WASHER,SHIFT LINK
    WASHER,SHIFT LINK
  • 35
    398-2171 COTTER PIN,SHIFT LINK
    COTTER PIN,SHIFT LINK
  • 36
    95027A6 SHIFT SHAFT ASSEMBLY,HORIZONTAL
    SHIFT SHAFT ASSEMBLY,HORIZONTAL
  • 37
    95023 LEVER,SHIFT SHAFT
    LEVER,SHIFT SHAFT
  • 38
    53-95019 RETAINING RING,LEVER TO SHIFT SHAFT
    RETAINING RING,LEVER TO SHIFT SHAFT
  • 39
    23-60762 BUSHING,SHIFT SHAFT
    BUSHING,SHIFT SHAFT
  • 40
    17724A1 LEVER,SHIFT SHAFT
    LEVER,SHIFT SHAFT
  • 41
    11-401385 NUT,SHIFT SHAFT
    NUT,SHIFT SHAFT
  • 42
    95033 BRACKET,REMOTE CONTROL
    BRACKET,REMOTE CONTROL
  • 43
    10-4000327 SCREW,REMOTE CONTROL BRACKET(14MM)
    SCREW,REMOTE CONTROL BRACKET(14MM)
  • 44
    18-210711 COTTER PIN,REMOTE CONTROL CABLES
    COTTER PIN,REMOTE CONTROL CABLES
  • 45
    96186A2 BRACKET ASSEMBLY,ATTACHING
    BRACKET ASSEMBLY,ATTACHING
  • 46
    96201 STRAP
    STRAP
  • 47
    10-1993325 SCREW,BRACKET (25MM)
    SCREW,BRACKET (25MM)
