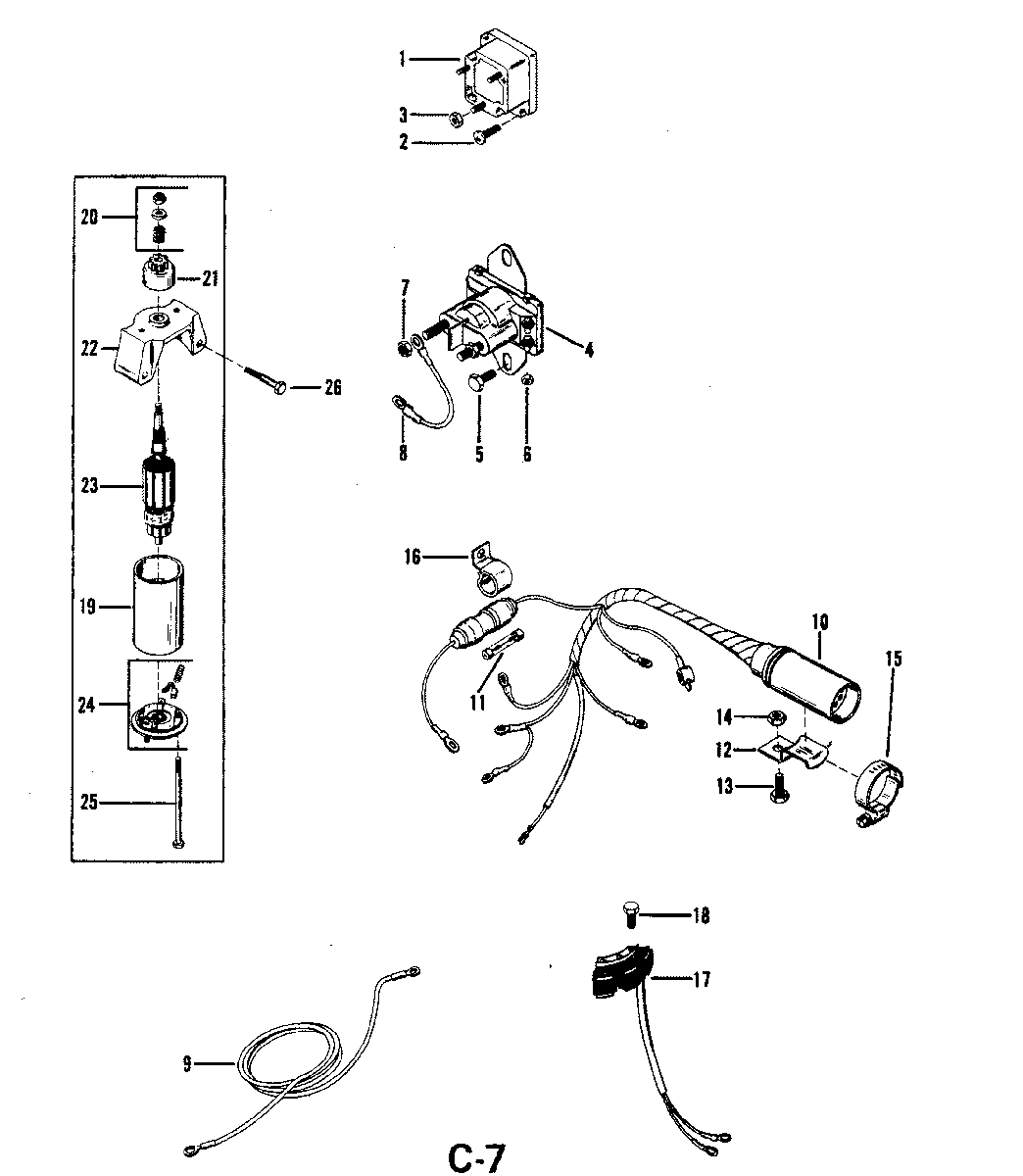

ELECTRIC COMPONENTS для Mercury - 18 9332837X THRU 9390058X

  • №
    Артикул
    Название
  • 1
    8M0058226 RECTIFIER ASSEMBLY
    RECTIFIER ASSEMBLY
  • 2
    10-48409 SCREW,RECTIFIER TO CYLINDER BLOCK
    SCREW,RECTIFIER TO CYLINDER BLOCK
  • 3
    11-45076 NUT,RECTIFIER TERMINALS
    NUT,RECTIFIER TERMINALS
  • 4
    89-96054T STARTER SOLENOID
    STARTER SOLENOID
  • 5
    10-4000327 SCREW,STARTER SOLENOID TO CRANKCASE(14MM)
    SCREW,STARTER SOLENOID TO CRANKCASE(14MM)
  • 6
    11-26419 NUT,STARTER SOLENOID TERMINAL(10-32)
    NUT,STARTER SOLENOID TERMINAL(10-32)
  • 7
    11-64015 NUT,STARTER SOLENOID TERMINAL(1/4-20)
    NUT,STARTER SOLENOID TERMINAL(1/4-20)
  • 8
    84-88809A5 WIRE ASSEMBLY,YELLOW
    WIRE ASSEMBLY,YELLOW
  • 9
    84-88439A27 BATTERY WIRE ASSEMBLY,RED
    BATTERY WIRE ASSEMBLY,RED
  • 9
    84-88439A28 BATTERY WIRE ASSEMBLY,BLACK
    BATTERY WIRE ASSEMBLY,BLACK
  • 10
    84-92436A5 WIRING HARNESS ASSEMBLY,ENGINE
    WIRING HARNESS ASSEMBLY,ENGINE
  • 11
    88-95085 FUSE
    FUSE
  • 12
    92439 BRACKET,WIRING HARNESS
    BRACKET,WIRING HARNESS
  • 13
    10-4000327 SCREW,BRACKET
    SCREW,BRACKET
  • 14
    11-400212 NUT,BRACKET SCREW
    NUT,BRACKET SCREW
  • 15
    54-815504310 CLAMP,WIRING HARNESS
    CLAMP,WIRING HARNESS
  • 16
    54-55098 CLAMP,WIRING HARNESS
    CLAMP,WIRING HARNESS
  • 17
    86704A10 STATOR ASSEMBLY,AUXILIARY
    STATOR ASSEMBLY,AUXILIARY
  • 18
    10-4000123 SCREW,STATOR ATTACHING(30MM)
    SCREW,STATOR ATTACHING(30MM)
  • 19
    50-8M0033984 STARTER MOTOR ASSEMBLY
    STARTER MOTOR ASSEMBLY
  • 20
    96561 DRIVER KIT
    DRIVER KIT
  • 21
    96562 DRIVE
    DRIVE
  • 22
    96563T DRIVE
    DRIVE
  • 23
    96563T ARMATURE
    ARMATURE
  • 24
    96564T END CAP,COMMUTATOR W/SPRINGS AND BRUSHES
    END CAP,COMMUTATOR W/SPRINGS AND BRUSHES
  • 25
    10-96566 THRU BOLT
    THRU BOLT
  • 26
    10-4000358 SCREW,STARTER MOTOR ATTACHING
    SCREW,STARTER MOTOR ATTACHING
