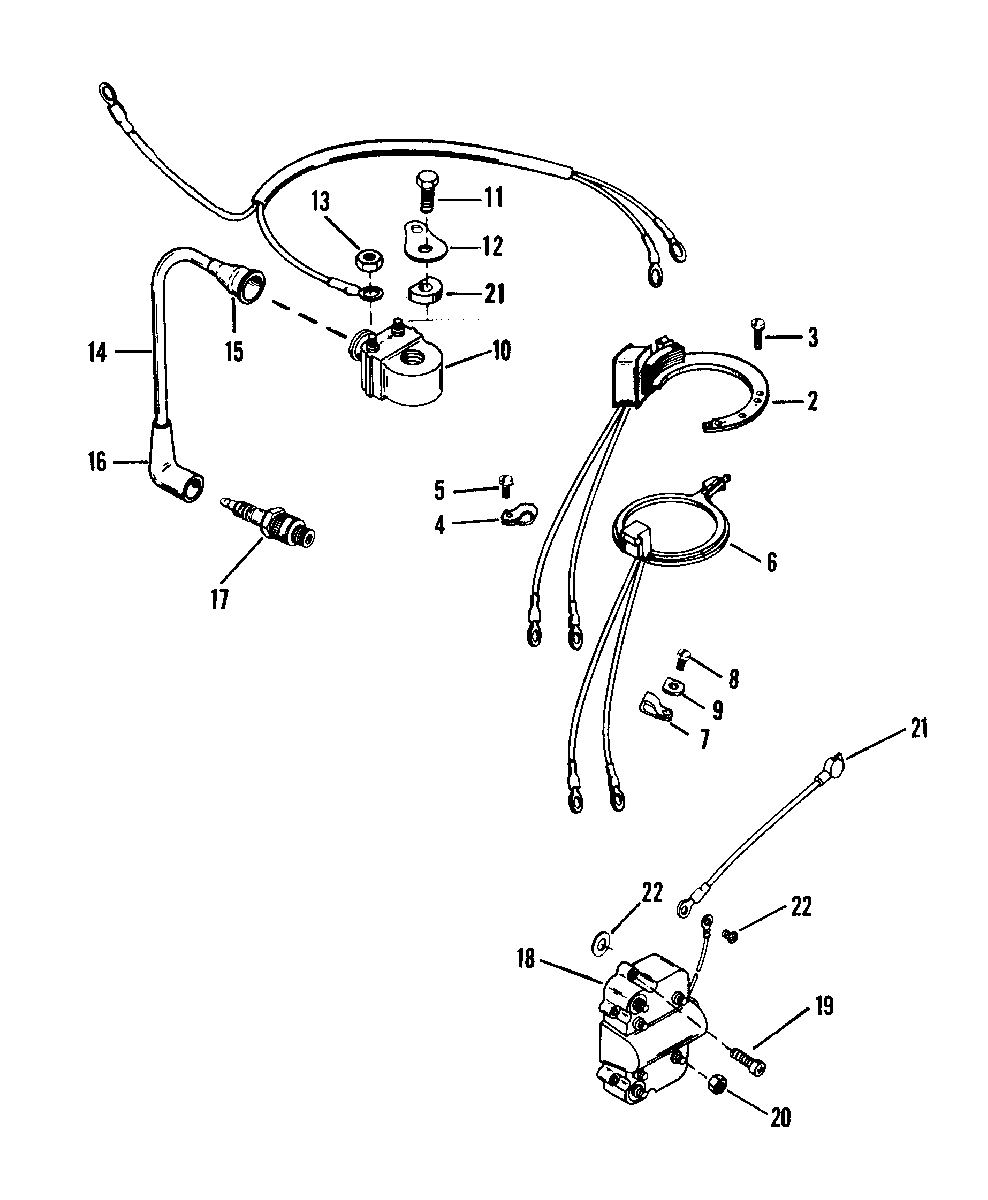

IGNITION COMPONENTS для Mercury - 18 9332837X THRU 9390058X

  • №
    Артикул
    Название
  • 1
    84-88891A1 HARNESS ASSEMBLY,PRIMARY
    HARNESS ASSEMBLY,PRIMARY
  • 2
    86617A20 STATOR ASSEMBLY
    STATOR ASSEMBLY
  • 3
    10-4000120 SCREW,STATOR ATTACHING (25MM)
    SCREW,STATOR ATTACHING (25MM)
  • 3
    10-400015 SCREW,STATOR ATTACHING (10MM)- MANUAL
    SCREW,STATOR ATTACHING (10MM)- MANUAL
  • 4
    54-24836 CLIP,STATOR LEADS
    CLIP,STATOR LEADS
  • 5
    10-40019108 SCREW,CLIP TO SWITCH BOX(20MM)
    SCREW,CLIP TO SWITCH BOX(20MM)
  • 6
    98450A10 TRIGGER ASSEMBLY
    TRIGGER ASSEMBLY
  • 7
    54-24836 CLIP,TRIGGER LEADS
    CLIP,TRIGGER LEADS
  • 8
    10-77137 SCRWE,CLIP TO CRANKCASE
    SCRWE,CLIP TO CRANKCASE
  • 9
    8M0084613 "C" WASHER,CLIP SCREW
    "C" WASHER,CLIP SCREW
  • 10
    339-832757A4 IGNITION COIL ASSEMBLY
    IGNITION COIL ASSEMBLY
  • 11
    10-4000189 SCREW, COIL TO CYLINDER BLOCK (45MM)
    SCREW, COIL TO CYLINDER BLOCK (45MM)
  • 12
    88173 TAB,COIL SCREW
    TAB,COIL SCREW
  • 13
    11-45076 NUT,COIL TERMINAL
    NUT,COIL TERMINAL
  • 14
    84-813715A1 LEAD ASSEMBLY, HIGH TENSION
    LEAD ASSEMBLY, HIGH TENSION
  • 15
    85-92308 BOOT,COIL
    BOOT,COIL
  • 16
    85-63709A1 BOOT ASSEMBLY,SPARK PLUG
    BOOT ASSEMBLY,SPARK PLUG
  • 17
    33-97180Q SPARK PLUG,(NGK-BUHW)
    SPARK PLUG,(NGK-BUHW)
  • 17
    33-896329828 SPARK PLUG,SHAMPION #QL-77J4-CANADA AND BELGIUM
    SPARK PLUG,SHAMPION #QL-77J4-CANADA AND BELGIUM
  • 18
    899883230 SWITCH BOX ASSEMBLY
    SWITCH BOX ASSEMBLY
  • 19
    10-40019108 SCREW,SWITCH BOX CYLINDER BLOCK(22MM)
    SCREW,SWITCH BOX CYLINDER BLOCK(22MM)
  • 20
    11-45076 NUT,SWITCH BOX TERMINALS
    NUT,SWITCH BOX TERMINALS
  • 21
    23-88171 BUSHING,COIL SCREW
    BUSHING,COIL SCREW
  • 22
    13-69432 LOCKWASHER,GROUND
    LOCKWASHER,GROUND
