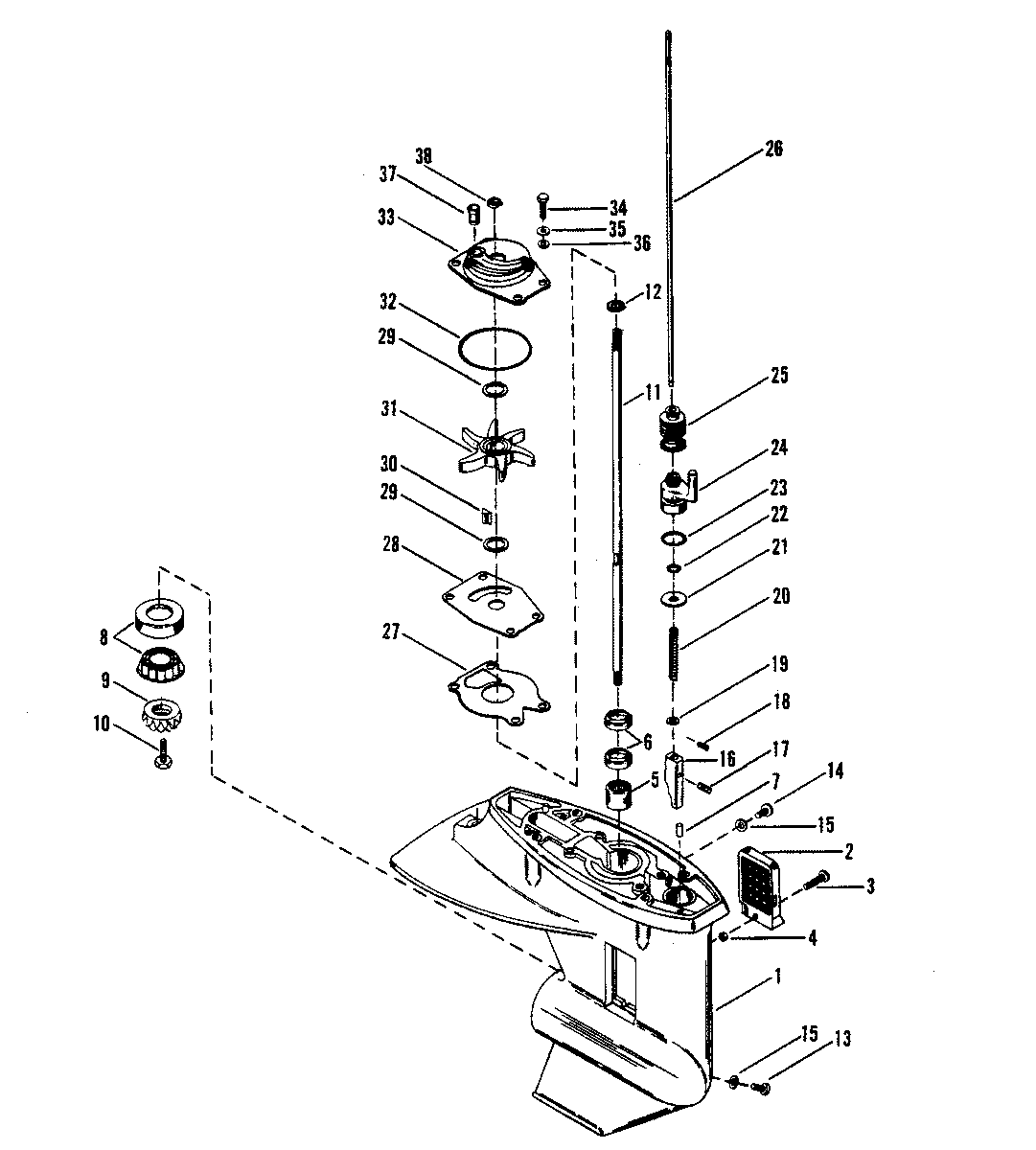

GEAR HOUSING (DRIVE SHAFT) для Mercury - 18 9332837X THRU 9390058X

  • №
    Артикул
    Название
  • -
    1665-8669T13 GEAR HOUSING ASSEMBLY,COMPLETE-SHORT SHAFT
    GEAR HOUSING ASSEMBLY,COMPLETE-SHORT SHAFT
  • -
    1665-8669T14 GEAR HOUSING ASSEMBLY,COMPLETE-LONG SHAFT
    GEAR HOUSING ASSEMBLY,COMPLETE-LONG SHAFT
  • 1
    1600-8M0083538 GEAR HOUSING ASSEMBLY
    GEAR HOUSING ASSEMBLY
  • 2
    35-41134 SCREEN,WATER INLET-STARBOARD
    SCREEN,WATER INLET-STARBOARD
  • 2
    35-41133 SCREEN,WATER INLET-PORT
    SCREEN,WATER INLET-PORT
  • 3
    10-40031112 SCREW,SCREEN TO GEAR HOUSING(40MM)
    SCREW,SCREEN TO GEAR HOUSING(40MM)
  • 4
    11-400263 NUT,SCREEN SCREW
    NUT,SCREEN SCREW
  • 5
    31-41326 ROLLER BEARING,UPPER
    ROLLER BEARING,UPPER
  • 6
    26-99325 SEAL,GEAR HOUSING
    SEAL,GEAR HOUSING
  • 7
    17-8M0084726 DOWEL PIN,GEAR HOUSING
    DOWEL PIN,GEAR HOUSING
  • 8
    31-98294A1 ROLLER BEARING ASSEMBLY
    ROLLER BEARING ASSEMBLY
  • 9
    43-98302 PINION GEAR
    PINION GEAR
  • 10
    10-49908 SCREW,PINION GEAR
    SCREW,PINION GEAR
  • 11
    45-99199 DRIVE SHAFT-SHORT SHAFT
    DRIVE SHAFT-SHORT SHAFT
  • 11
    45-99198 DRIVE SHAFT-LONG SHAFT
    DRIVE SHAFT-LONG SHAFT
  • 12
    25-99691 "O" RING
    "O" RING
  • 13
    22-8M0058389 SCREW,DRAIN-MAGNETIC
    SCREW,DRAIN-MAGNETIC
  • 14
    10-79953Q04 SCREW,GREASE FILLER
    SCREW,GREASE FILLER
  • 15
    12-191833 WASHER,DRAIN AND FILLER SCREW
    WASHER,DRAIN AND FILLER SCREW
  • 16
    85562A1 CAM ASSEMBLY,SHIFT
    CAM ASSEMBLY,SHIFT
  • 17
    17-85096 DRIVE PIN,SHIFT CAM
    DRIVE PIN,SHIFT CAM
  • 18
    17-85593 ROLL PIN,SHIFT SHAFT
    ROLL PIN,SHIFT SHAFT
  • 19
    12-29245 WASHER,SHIFT SHAFT
    WASHER,SHIFT SHAFT
  • 20
    24-93007 SPRING,SHIFT SHAFT
    SPRING,SHIFT SHAFT
  • 21
    12-85091 WASHER,SHIFT SHAFT
    WASHER,SHIFT SHAFT
  • 22
    25-85594 "O" RING,SHIFT SHAFT
    "O" RING,SHIFT SHAFT
  • 23
    25-35276 "O" RING,SHIFT SHAFT RETAINER
    "O" RING,SHIFT SHAFT RETAINER
  • 24
    93878 RETAINER,SHIFT SHAFT
    RETAINER,SHIFT SHAFT
  • 25
    85552001 BOOT,SHIFT SHAFT
    BOOT,SHIFT SHAFT
  • 26
    85126 SHIFT SHAFT-SHORT SHAFT
    SHIFT SHAFT-SHORT SHAFT
  • 26
    86293 SHIFT SHAFT-LONG SHAFT
    SHIFT SHAFT-LONG SHAFT
  • 27
    27-993261 GASKET,WATER PUMP
    GASKET,WATER PUMP
  • 28
    85083 FACE PLATE
    FACE PLATE
  • 29
    12-8M0027721 WASHER,IMPELLER
    WASHER,IMPELLER
  • 30
    28-8M0032838 KEY,IMPELLER DRIVE
    KEY,IMPELLER DRIVE
  • 31
    47-8508910 IMPELLER
    IMPELLER
  • 32
    25-69202 "O" RING,WATER PUMP
    "O" RING,WATER PUMP
  • 33
    46-99157A02 WATER PUMP ASSEMBLY
    WATER PUMP ASSEMBLY
  • 34
    10-400035 SCREW,WATER PUMP TO FEAR HOUSING (16MM)
    SCREW,WATER PUMP TO FEAR HOUSING (16MM)
  • 35
    12-89302 WASHER,WATER PUMP SCREW
    WASHER,WATER PUMP SCREW
  • 36
    23-85095 BUSHING,WATER PUMP SCREW
    BUSHING,WATER PUMP SCREW
  • 37
    26-85090001 SEAL,WATER TUBE
    SEAL,WATER TUBE
  • 38
    25-86203 RING,DRIVE SHAFT-RUBBER
    RING,DRIVE SHAFT-RUBBER
