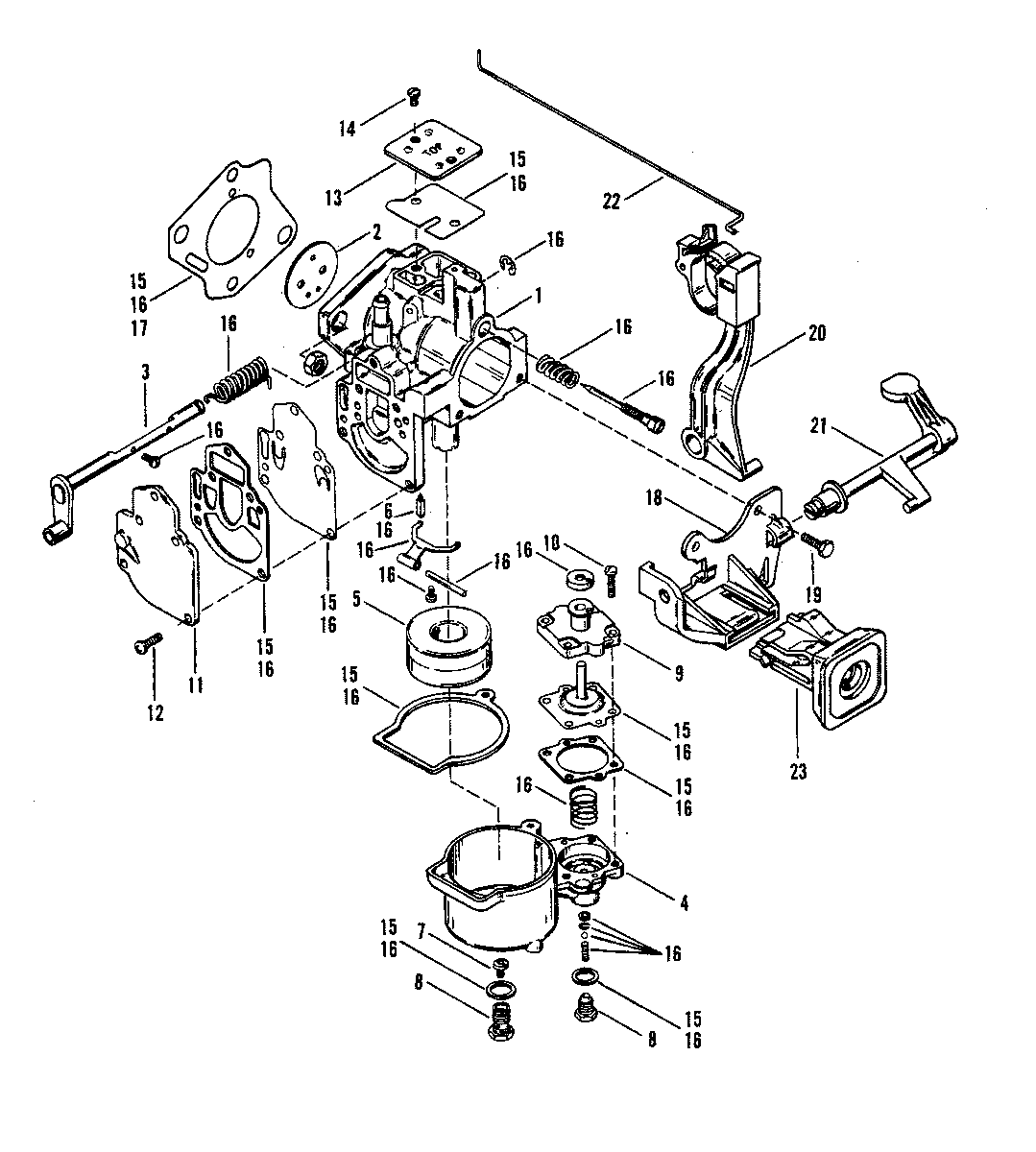

CARBURETOR ASSEMBLY (MERC 18) для Mercury - 18 9332837X THRU 9390058X

  • №
    Артикул
    Название
  • 1
    1390-8888A16 CARBURETOR ASSEMBLY (MANUAL)
    CARBURETOR ASSEMBLY (MANUAL)
  • 1
    1390-8888A16 CARBURETOR ASSEMBLY (ELECTRIC)
    CARBURETOR ASSEMBLY (ELECTRIC)
  • 2
    1395-9168 THROTTLE VALVE
    THROTTLE VALVE
  • 3
    1395-9695 THROTTLE SHAFT
    THROTTLE SHAFT
  • 4
    1395-9164 FUEL BOWL
    FUEL BOWL
  • 5
    1395-91691 FLOAT
    FLOAT
  • 6
    1395-803861 VALVE,INLET NEEDLE
    VALVE,INLET NEEDLE
  • 7
    1399-5317 JET,MAIN FUEL (.046)
    JET,MAIN FUEL (.046)
  • 8
    1395-9171 PLUG,JET RETAINER
    PLUG,JET RETAINER
  • 9
    813618 COVER,DIAPHRAGM
    COVER,DIAPHRAGM
  • 10
    1395-9697 SCREW,DIAPHRAGM COVER
    SCREW,DIAPHRAGM COVER
  • 11
    1395-9702 COVER,FUEL PUMP
    COVER,FUEL PUMP
  • 12
    1395-9173 SCREW,FUEL PUMP COVER
    SCREW,FUEL PUMP COVER
  • 13
    1395-9177 PLATE,COVER(MANUAL)
    PLATE,COVER(MANUAL)
  • 13
    1395-823433 PLATE,COVER(ELECTRIC)
    PLATE,COVER(ELECTRIC)
  • 14
    1395-9696 SCREW,COVER PLATE
    SCREW,COVER PLATE
  • 15
    1395-97611 GASKET/DIAPHRAGM KIT
    GASKET/DIAPHRAGM KIT
  • 16
    1395-96481 REPAIR PARTS KIT
    REPAIR PARTS KIT
  • 17
    27-192061 GASKET,CARBURETOR
    GASKET,CARBURETOR
  • 18
    41717T BRACKET,PRIMER
    BRACKET,PRIMER
  • 19
    10-400018 SCREW,BRACKET TO CARBURETOR
    SCREW,BRACKET TO CARBURETOR
  • 20
    42515A1 LEVER ASSEMBLY,FAST IDLE
    LEVER ASSEMBLY,FAST IDLE
  • 21
    41703 LEVER,PRIMER
    LEVER,PRIMER
  • 22
    12733 IDLE WIRE
    IDLE WIRE
  • 23
    110241 ACTUATOR,PRIMER
    ACTUATOR,PRIMER
