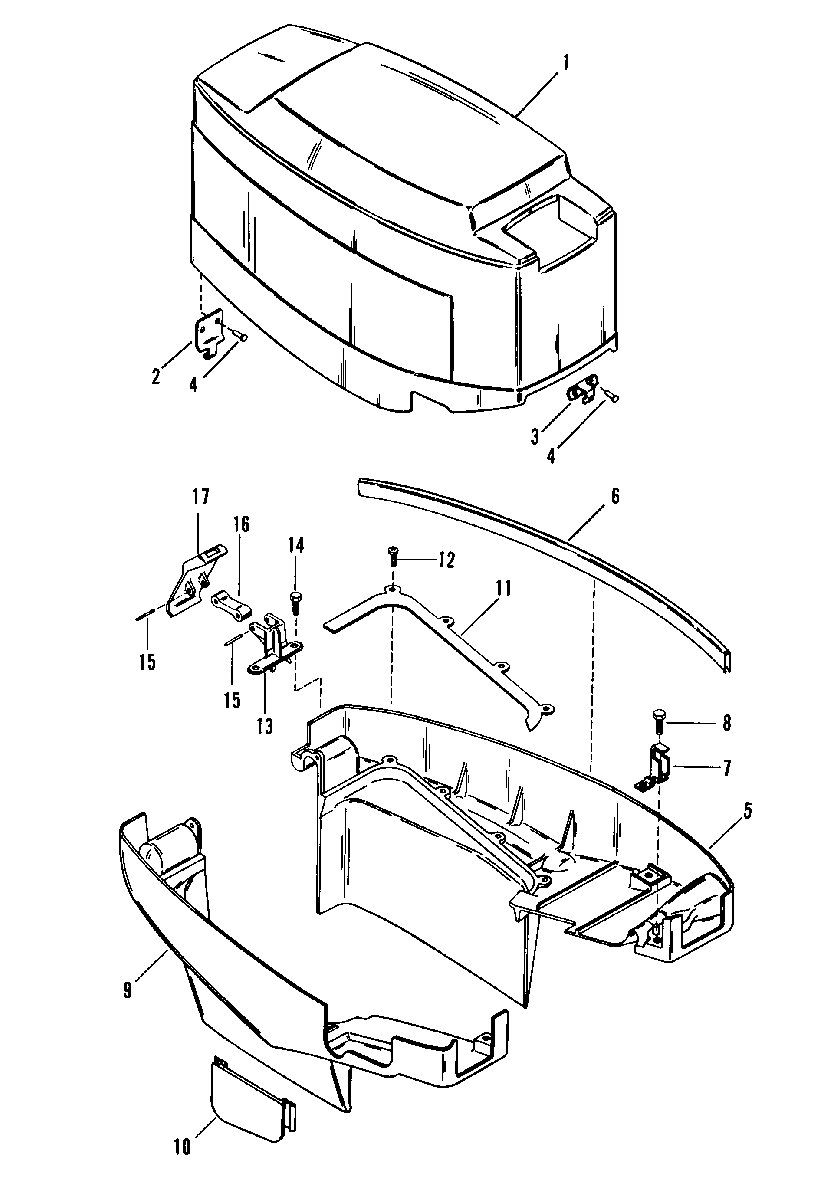

COWLS для Mercury - 18 9332837X THRU 9390058X

  • №
    Артикул
    Название
  • 1
    2190-9163A22 TOP COWL ASSEMBLY (WITHOUT DECALS)
    TOP COWL ASSEMBLY (WITHOUT DECALS)
  • 2
    43515 HINGE, COWL LATCH
    HINGE, COWL LATCH
  • 3
    43555 BRACKET,TOP COWL
    BRACKET,TOP COWL
  • 4
    10-400018 SCREW,HINGE TO TOP COWL
    SCREW,HINGE TO TOP COWL
  • 5
    2176-9107A2 BOTTOM COWL ASSEMBLY,PORT (WITHOUT DECALS)
    BOTTOM COWL ASSEMBLY,PORT (WITHOUT DECALS)
  • 6
    15067A1 SEAL,BOTTOM COWL
    SEAL,BOTTOM COWL
  • 7
    43514 LATCH,BOTTOM COWL
    LATCH,BOTTOM COWL
  • 8
    10-400018 SCREW, LATCH TO BOTTOM COWL
    SCREW, LATCH TO BOTTOM COWL
  • 9
    2176-9108A1 BOTTOM COWL ASSEMBLY,STARBOARD (WITHOUT DECALS)
    BOTTOM COWL ASSEMBLY,STARBOARD (WITHOUT DECALS)
  • 10
    25-41604 GROMMET,BOTTOM COWL
    GROMMET,BOTTOM COWL
  • 11
    15865 PLATE,BOTTOM COWL
    PLATE,BOTTOM COWL
  • 12
    10-95700 SCREW,PLATE TO BOTTOM COWL (1/2")
    SCREW,PLATE TO BOTTOM COWL (1/2")
  • 13
    43554A5 BRACKET,COWL LATCH
    BRACKET,COWL LATCH
  • 14
    10-400018 SCREW,BRACKET TO BOTTOM COWL (12MM)
    SCREW,BRACKET TO BOTTOM COWL (12MM)
  • 15
    17-25870 ROLL PIN,LINK
    ROLL PIN,LINK
  • 16
    43554A5 LINK,COWL LATCH
    LINK,COWL LATCH
  • 17
    43554A5 LATCH,COWL-REAR
    LATCH,COWL-REAR
