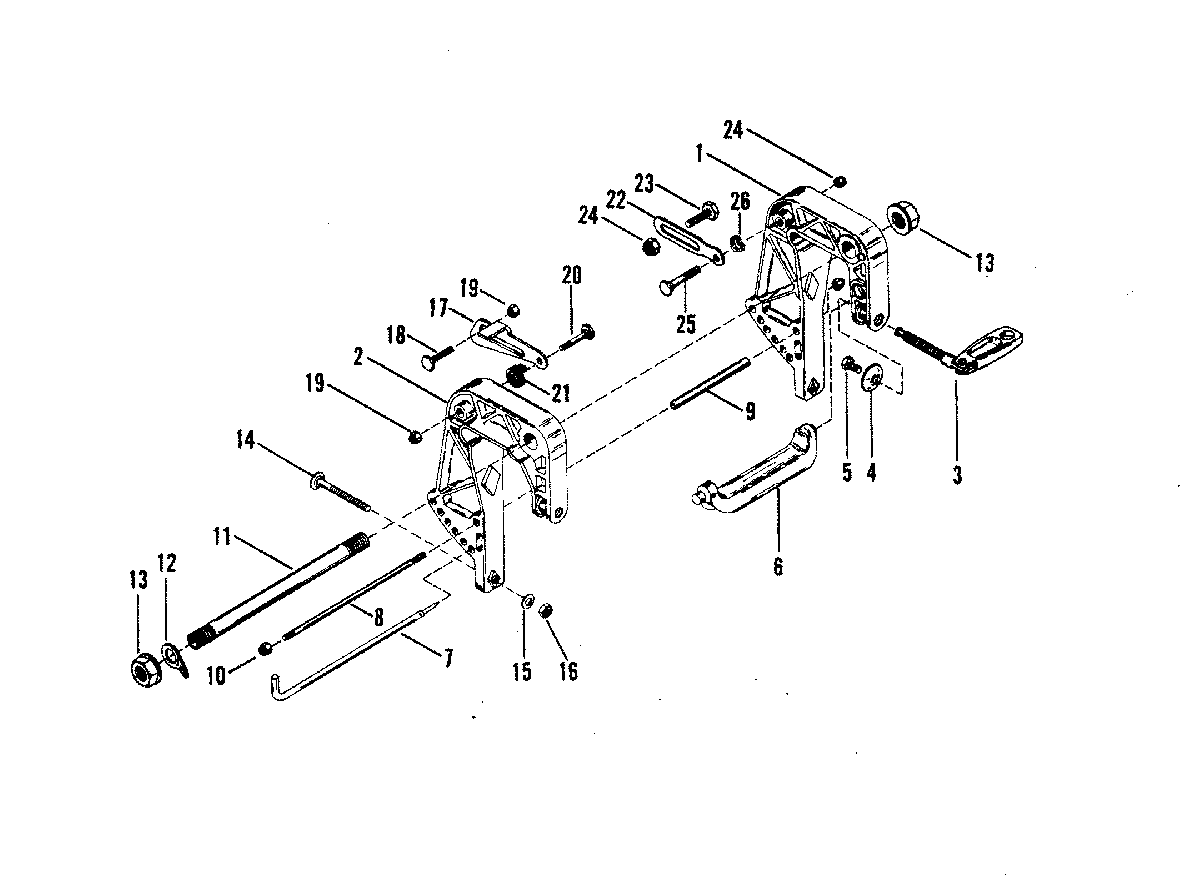

CLAMP BRACKET ASSEMBLY для Mercury - 18 9332837X THRU 9390058X

  • №
    Артикул
    Название
  • 1
    1497-8794A5 CLAMP BRACKET ASSEMBLY (PORT)
    CLAMP BRACKET ASSEMBLY (PORT)
  • 2
    1497-8794A5 CLAMP BRACKET ASSEMBLY (STARBOARD)
    CLAMP BRACKET ASSEMBLY (STARBOARD)
  • 3
    10-92767A1 THUMB SCREW ASSEMBLY
    THUMB SCREW ASSEMBLY
  • 4
    12-818884 WASHER,THUMB SCREW
    WASHER,THUMB SCREW
  • 5
    10-768042 SCREW,WASHER ATTACHING
    SCREW,WASHER ATTACHING
  • 6
    41042 HANDLE,CARRYING
    HANDLE,CARRYING
  • 7
    17-99929A1 TILT PIN ASSEMBLY
    TILT PIN ASSEMBLY
  • 8
    16-99928 STUD,CLAMP BRACKET
    STUD,CLAMP BRACKET
  • 9
    23-41041 SPACER,CLAMP BRACKET STUD
    SPACER,CLAMP BRACKET STUD
  • 10
    11-400213 NUT,CLAMP BRACKET STUD
    NUT,CLAMP BRACKET STUD
  • 11
    8M0035075 TILT TUBE
    TILT TUBE
  • 12
    54-8M0085928 CLIP,SAFETY
    CLIP,SAFETY
  • 13
    11-93164 NUT,TILT TUBE
    NUT,TILT TUBE
  • 14
    10-69064 BOLT,CLAMP BRACKET TO TRANSOM
    BOLT,CLAMP BRACKET TO TRANSOM
  • 15
    12-67981 WASHER,CLAMP BRACKET BOLT
    WASHER,CLAMP BRACKET BOLT
  • 16
    11-82670910 NUT,CLAMP BRACKET BOLT
    NUT,CLAMP BRACKET BOLT
  • 17
    96965 LEVER,TILT STOP-STARBOARD SIDE
    LEVER,TILT STOP-STARBOARD SIDE
  • 18
    10-41523 SCREW,LEVER TO SWIVEL BRACKET
    SCREW,LEVER TO SWIVEL BRACKET
  • 19
    11-36069 NUT,TILT STOP LEVER SCREW
    NUT,TILT STOP LEVER SCREW
  • 20
    10-41524 SCREW,LEVER TO CLAMP BRACKET
    SCREW,LEVER TO CLAMP BRACKET
  • 21
    24-44581 SPRING,TILT STOP LEVER SCREW
    SPRING,TILT STOP LEVER SCREW
  • 22
    90901 STRAP,TILT STOP-PORT SIDE
    STRAP,TILT STOP-PORT SIDE
  • 23
    10-41523 SCREW,STRAP TO SWIVEL BRACKET
    SCREW,STRAP TO SWIVEL BRACKET
  • 24
    11-36069 NUT,TILT STOP STRAP SCREW
    NUT,TILT STOP STRAP SCREW
  • 25
    10-41524 SCREW,STRAP TO CLAMP BRACKET
    SCREW,STRAP TO CLAMP BRACKET
  • 26
    13-31030 WAVE WASHER,TILT STOP STRAP SCREW
    WAVE WASHER,TILT STOP STRAP SCREW
