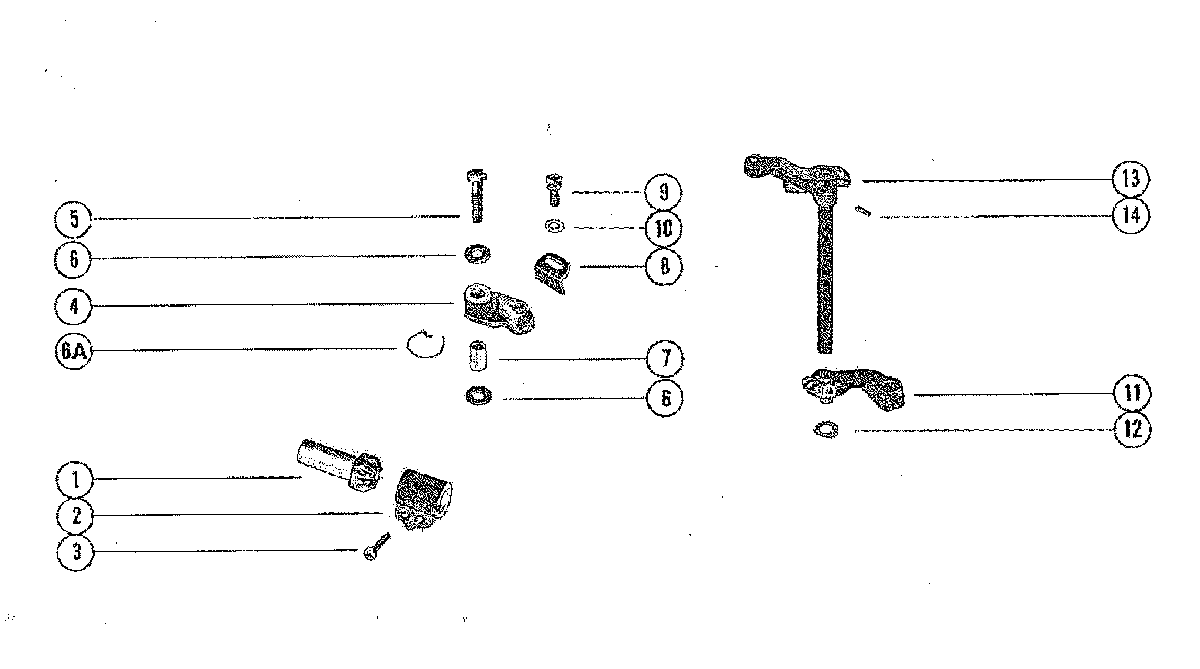

THROTTLE CONTROL LINKAGE для Mercury - 110 8050625 THRU 8057544

  • №
    Артикул
    Название
  • 1
    43-60856 GEAR, HORIZONTAL - THROTTLE CONTROL SOCKET
    GEAR, HORIZONTAL - THROTTLE CONTROL SOCKET
  • 2
    60885T HOUSING, THROTTLE CONTROL
    HOUSING, THROTTLE CONTROL
  • 3
    10-69069 SCREW, THROTTLE CONTROL HOUSING
    TO BOTTOM COWL (3/4")
    SCREW, THROTTLE CONTROL HOUSING
    TO BOTTOM COWL (3/4")
  • 4
    63308A1 FOLLOWER ASSEMBLY, NUETRAL SPEED LIMITER
    FOLLOWER ASSEMBLY, NUETRAL SPEED LIMITER
  • 5
    10-20653 SCREW, LIMITER FOLLOWER TO BOTTOM COWL
    (1 1/8")
    SCREW, LIMITER FOLLOWER TO BOTTOM COWL
    (1 1/8")
  • 6
    12-29245 WASHER, SPEED LIMITER FOLLOWER SCREW
    WASHER, SPEED LIMITER FOLLOWER SCREW
  • 6A
    24-39042 SPRING, NEUTRAL SPEED LIMITER FOLLOWER
    SPRING, NEUTRAL SPEED LIMITER FOLLOWER
  • 7
    23-63320 BUSHING, SPEED LIMITER FOLLOWER SCREW
    BUSHING, SPEED LIMITER FOLLOWER SCREW
  • 8
    36017 STOP, NEUTRAL SPEED LIMITER
    STOP, NEUTRAL SPEED LIMITER
  • 9
    10-28710 SCREW, NUETRAL SPEED LIMITER STOP TO FOLLOWER
    (5/8")
    SCREW, NUETRAL SPEED LIMITER STOP TO FOLLOWER
    (5/8")
  • 10
    12-24676 WASHER, NEUTRAL SPEED LIMITER STOP SCREW
    WASHER, NEUTRAL SPEED LIMITER STOP SCREW
  • 11
    43-60858 GEAR, THROTTLE CONTROL
    GEAR, THROTTLE CONTROL
  • 12
    15-64653A1 SHIM ASSEMBLY, GEAR AND SHAFT (LOWER)
    SHIM ASSEMBLY, GEAR AND SHAFT (LOWER)
  • 13
    66374A2 LEVER ASSEMBLY, THROTTLE CONTROL
    LEVER ASSEMBLY, THROTTLE CONTROL
  • 14
    17-76207 PIN, ROLL
    THROTTLE CONTROL LEVER TO CONTROL SHAFT
    PIN, ROLL
    THROTTLE CONTROL LEVER TO CONTROL SHAFT
