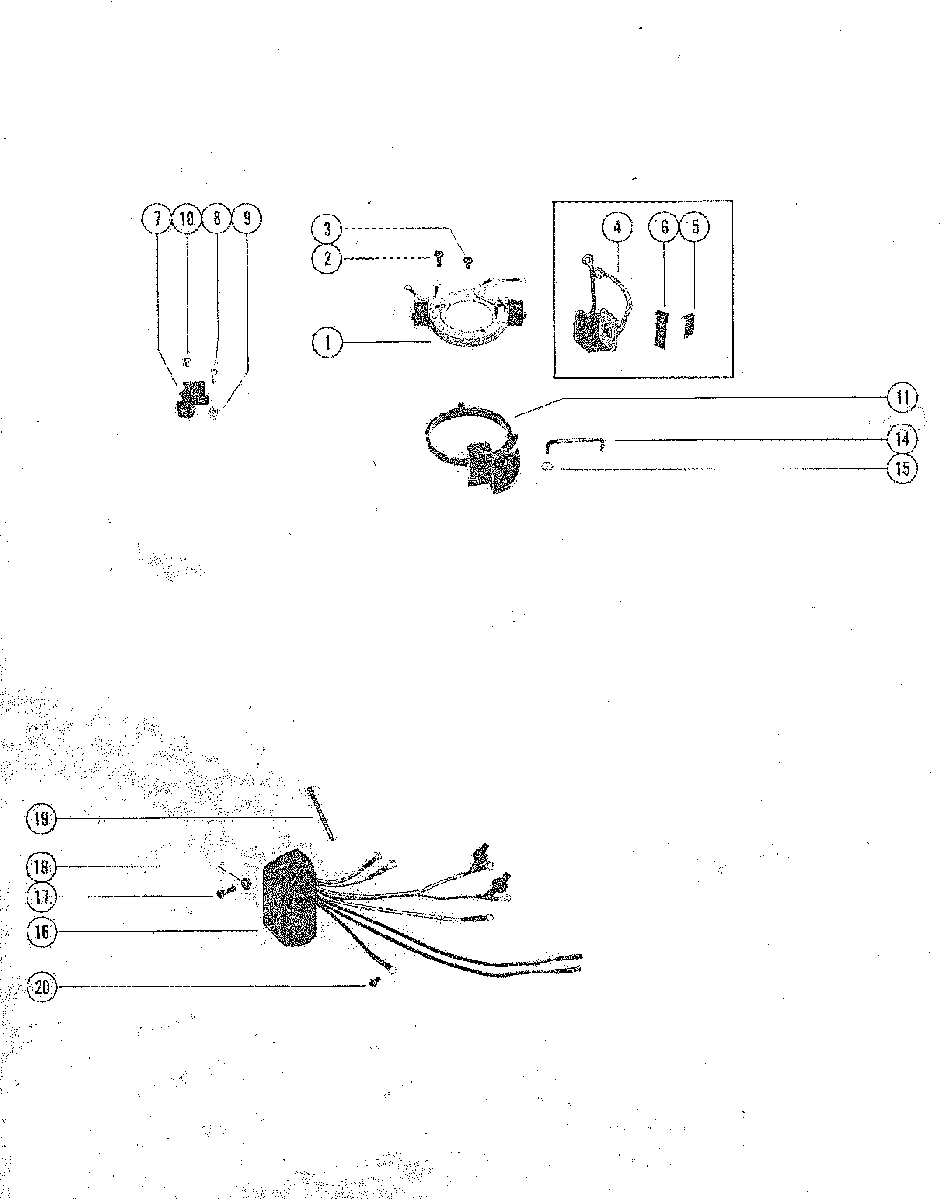

IGNITION COMPONENTS для Mercury - 110 8050625 THRU 8057544

  • №
    Артикул
    Название
  • 1
    339-5209A9 STATOR ASSEMBLY
    STATOR ASSEMBLY
  • 2
    10-66707 SCREW, STATOR TO END CAP (7/8")
    SCREW, STATOR TO END CAP (7/8")
  • 3
    10-35400 SCREW, STATOR TO END CAP (3/8")
    SCREW, STATOR TO END CAP (3/8")
  • 4
    339-6119A1 COIL ASSEMBLY (5 1/2" AND 6 3/8" LEADS)
    COIL ASSEMBLY (5 1/2" AND 6 3/8" LEADS)
  • 4
    339-6120A1 COIL ASSEMBLY (1 3/4" AND 3 1/2" LEADS)
    COIL ASSEMBLY (1 3/4" AND 3 1/2" LEADS)
  • 5
    54-59538T CLIP, COIL RETAINING
    CLIP, COIL RETAINING
  • 6
    54-65927 CLIP, COIL RETAINING
    CLIP, COIL RETAINING
  • 7
    86-85365 TERMINAL BLOCK, STATOR
    TERMINAL BLOCK, STATOR
  • 8
    10-38055 SCREW, TERMINAL BLOCK TO STATOR (5/8")
    SCREW, TERMINAL BLOCK TO STATOR (5/8")
  • 9
    11-46438 NUT, TERMINAL BLOCK SCREW
    NUT, TERMINAL BLOCK SCREW
  • 10
    10-22654 SCREW, LEADS TO TERMINAL BLOCK (3/8")
    SCREW, LEADS TO TERMINAL BLOCK (3/8")
  • 11
    338-7283A3 TRIGGER HOUSING ASSEMBLY
    TRIGGER HOUSING ASSEMBLY
  • 14
    42501 LINK, TRIGGER HOUSING TO THROTTLE LEVER
    LINK, TRIGGER HOUSING TO THROTTLE LEVER
  • 15
    11-65110 NUT, PUSH - LINK TO TRIGGER HOUSING
    NUT, PUSH - LINK TO TRIGGER HOUSING
  • 16
    899883229 SWITCH BOX
    SWITCH BOX
  • 17
    10-69022 SCREW, SWITCH ATTACHING (1/2")
    SCREW, SWITCH ATTACHING (1/2")
  • 18
    12-56681 WASHER, SWITCH BOX ATTACHING SCREW
    WASHER, SWITCH BOX ATTACHING SCREW
  • 19
    61990 STA-STRAP
    STA-STRAP
  • 20
    10-45218 SCREW, GROUND LEAD TO CYLINDER BLOCK
    SCREW, GROUND LEAD TO CYLINDER BLOCK
