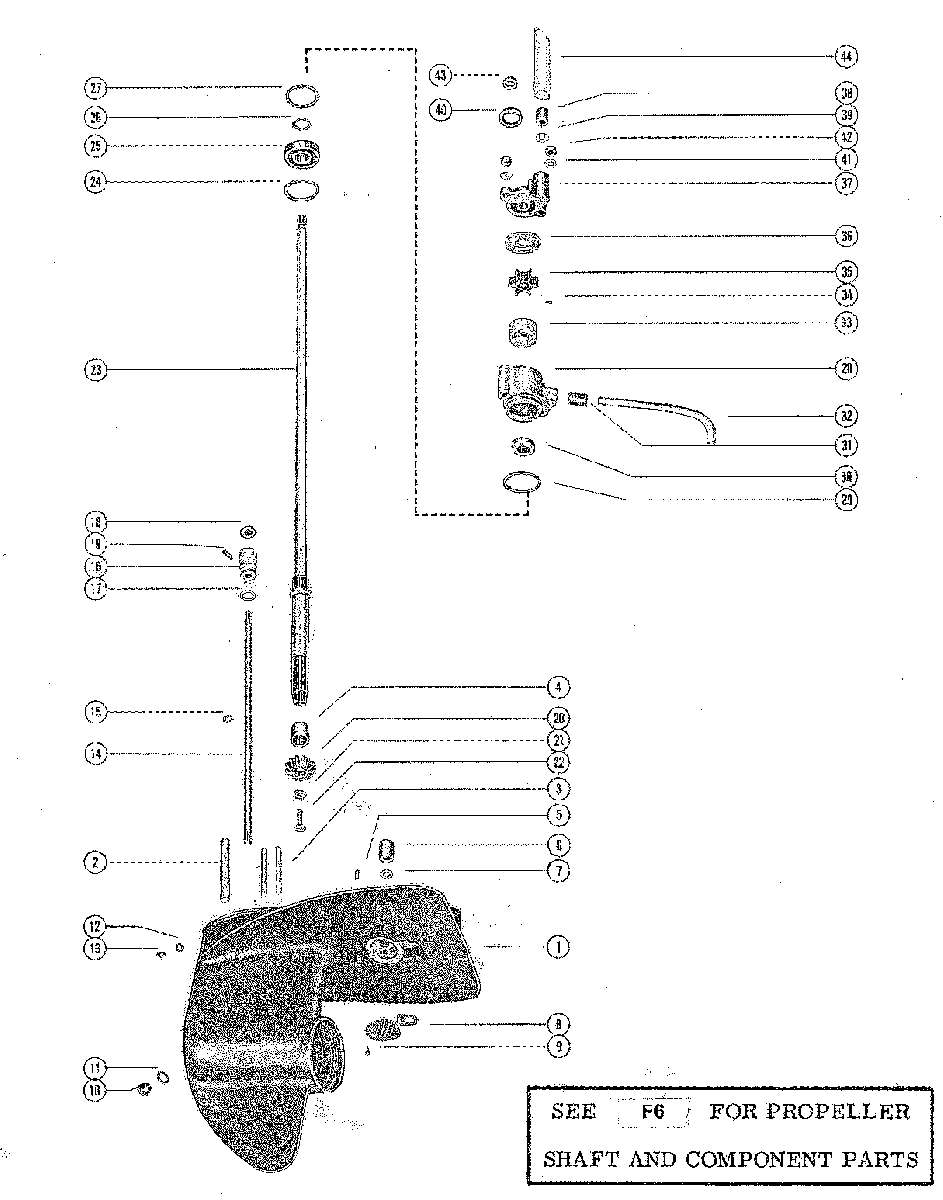

GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 1) для Mercury - 110 8050625 THRU 8057544

  • №
    Артикул
    Название
  • -
    1630-7360A12 GEAR HOUSING ASS'Y, COMP. (SHORT SHAFT)
    NOT MACHINED FOR ANODE KIT SEE NOTE BELOW
    GEAR HOUSING ASS'Y, COMP. (SHORT SHAFT)
    NOT MACHINED FOR ANODE KIT SEE NOTE BELOW
  • -
    1630-7360A13 GEAR HOUSING ASS'Y, COMP. (LONG SHAFT)
    NOT MACHINED FOR ANODE KIT SEE NOTE BELOW
    GEAR HOUSING ASS'Y, COMP. (LONG SHAFT)
    NOT MACHINED FOR ANODE KIT SEE NOTE BELOW
  • 90-8M0143356 GEAR HOUSING ASS'Y, COMP. (SHORT SHAFT)
    MACHINED FOR ANIDE KIT SEE NOTE BELOW
    GEAR HOUSING ASS'Y, COMP. (SHORT SHAFT)
    MACHINED FOR ANIDE KIT SEE NOTE BELOW
  • -
    1630-7360A13 GEAR HOUSING ASS"Y, COMOP. (LONG SHAFT)
    MACHINED FOR ANIDE KIT SEE NOTE BELOW
    GEAR HOUSING ASS"Y, COMOP. (LONG SHAFT)
    MACHINED FOR ANIDE KIT SEE NOTE BELOW
  • 1
    1630-7360A11 GEAR HOUSING ASS'Y
    NOT MACHINED FOR ANODE KIT
    GEAR HOUSING ASS'Y
    NOT MACHINED FOR ANODE KIT
  • 1
    1630-7360A11 GEAR HOUSING ASS'Y
    MACHINED FOR ANODE KIT
    GEAR HOUSING ASS'Y
    MACHINED FOR ANODE KIT
  • 2
    16-58138 STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING
    (3 7/16")
    STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING
    (3 7/16")
  • 3
    16-58136 STUD, WATER PUMP HOUSING TO GEAR HOUSING
    (2 3/4")
    STUD, WATER PUMP HOUSING TO GEAR HOUSING
    (2 3/4")
  • 4
    31-22756 BEARING, ROLLER - DRIVE SHAFT
    BEARING, ROLLER - DRIVE SHAFT
  • 5
    17-20032 PIN, DOWEL - LOCATING
    PIN, DOWEL - LOCATING
  • 6
    26-33613 SEAL, RUBBER - WATER INTAKE TUBE
    SEAL, RUBBER - WATER INTAKE TUBE
  • 7
    23-86215 WASHER, NYLON - INTAKE TUBE SEAL
    WASHER, NYLON - INTAKE TUBE SEAL
  • 8
    35-33425 SCREEN, WATER INTAKE
    SCREEN, WATER INTAKE
  • 9
    10-28642 SCREW, WATER INTAKE SCREEN TO GEAR HOUSING
    SCREW, WATER INTAKE SCREEN TO GEAR HOUSING
  • 10
    10-79953Q04 SCREW, GREASE FILLER HOLE
    SCREW, GREASE FILLER HOLE
  • 11
    12-191833 WASHER, GREASE FILLER HOLE SCREW
    WASHER, GREASE FILLER HOLE SCREW
  • 12
    19643 WASHER, GREASE VENT HOLE SCREW
    WASHER, GREASE VENT HOLE SCREW
  • 13
    10-28653 SCREW, GREASE VENT HOLE
    SCREW, GREASE VENT HOLE
  • 14
    71659A1 SHAFT ASSEMBLY, SHIF (SHORT SHAFT)
    SHAFT ASSEMBLY, SHIF (SHORT SHAFT)
  • 14
    71658A1 SHAFT ASSEMBLY, SHIFT (LONG SHAFT)
    SHAFT ASSEMBLY, SHIFT (LONG SHAFT)
  • 15
    53-22899 RING, RETAINING - SHIFT SHAFT
    RING, RETAINING - SHIFT SHAFT
  • 16
    23-30676A1 BUSHING ASSEMBLY, SHIFT SHAFT
    BUSHING ASSEMBLY, SHIFT SHAFT
  • 17
    25-26802 "O" RING, SHIFT SHAFT BUSHING
    "O" RING, SHIFT SHAFT BUSHING
  • 18
    26-30696 OIL SEAL, SHIFT SHAFT BUSHING
    OIL SEAL, SHIFT SHAFT BUSHING
  • 19
    10-39149 SCREW, SHIFT SHAFT BUSHING
    SCREW, SHIFT SHAFT BUSHING
  • 20
    43-98696 GEAR, PINION
    GEAR, PINION
  • 21
    14-30377 TAB WASHER, PINION GEAR TO DRIVE SHAFT SCREW
    TAB WASHER, PINION GEAR TO DRIVE SHAFT SCREW
  • 22
    10-30376 SCREW, PINION GEAR TO DRIVE SHAFT
    SCREW, PINION GEAR TO DRIVE SHAFT
  • 23
    45-75034 DRIVE SHAFT (SHORT SHAFT)
    DRIVE SHAFT (SHORT SHAFT)
  • 23
    45-75033 DRIVE SHAFT (LONG SHAFT)
    DRIVE SHAFT (LONG SHAFT)
  • 24
    15-30527A1 SHIM ASSEMLBY, BALL BEARING TO GEAR HOUSING
    (.002-3-5-10)
    SHIM ASSEMLBY, BALL BEARING TO GEAR HOUSING
    (.002-3-5-10)
  • 25
    30-70944 BEARING, BALL - DRIVE SHAFT
    BEARING, BALL - DRIVE SHAFT
  • 26
    53-30523 RING, RETIANING - BALL BEARING TO DRIVE SHAFT
    RING, RETIANING - BALL BEARING TO DRIVE SHAFT
  • 27
    15-30527A1 SHIM ASSEMLBY, BALL BEARING TO GEAR HOUSING
    (.002-3-5-10)
    SHIM ASSEMLBY, BALL BEARING TO GEAR HOUSING
    (.002-3-5-10)
  • 28
    46-70941T01 WATER PUMP HOUSING ASSEMBLY
    WATER PUMP HOUSING ASSEMBLY
  • 29
    25-29439 "O" RING, WATER PUMP HOUSING
    "O" RING, WATER PUMP HOUSING
  • 30
    26-30900T OIL SEAL, WATER PUMP HOUSING
    OIL SEAL, WATER PUMP HOUSING
  • 31
    26-33613 SEAL, WATER INTAKE TUBE
    SEAL, WATER INTAKE TUBE
  • 32
    32-34293 TUBE, WATER INTAKE
    TUBE, WATER INTAKE
  • 33
    70977T INSERT, WATER PUMP HOUSING
    INSERT, WATER PUMP HOUSING
  • 34
    28-8M0032835 KEY, IMPELLER DRIVE
    KEY, IMPELLER DRIVE
  • 35
    47-89981 IMPELLER, WATER PUMP
    IMPELLER, WATER PUMP
  • 36
    46895 PLATE, FACE - WATER PUMP HOUSING TO WATER PUMP COVER
    PLATE, FACE - WATER PUMP HOUSING TO WATER PUMP COVER
  • 37
    93224A1 WATER PUMP COVER ASSEMBLY
    WATER PUMP COVER ASSEMBLY
  • 38
    26-36558 SEAL, WATER PUMP COVER
    SEAL, WATER PUMP COVER
  • 39
    23-13127 WASHER, NYLON - WATER PUMP COVER
    WASHER, NYLON - WATER PUMP COVER
  • 40
    26-30913 OIL SEAL, WATER PUMP COVER
    OIL SEAL, WATER PUMP COVER
  • 41
    12-20533 WASHER, WATER PUMP HOUSING AND COVER STUDS
    WASHER, WATER PUMP HOUSING AND COVER STUDS
  • 42
    11-35888 NUT, WATER PUMP HOSUING AND COVER STUDS
    NUT, WATER PUMP HOSUING AND COVER STUDS
  • 43
    25-30526 RING, RUBBER - CENTRIFUGAL SLINGER (DRIVE SHAFT)
    RING, RUBBER - CENTRIFUGAL SLINGER (DRIVE SHAFT)
  • 44
    23-31792T SLEEVE, GUIDE - WATER INLET TUBE
    SLEEVE, GUIDE - WATER INLET TUBE
