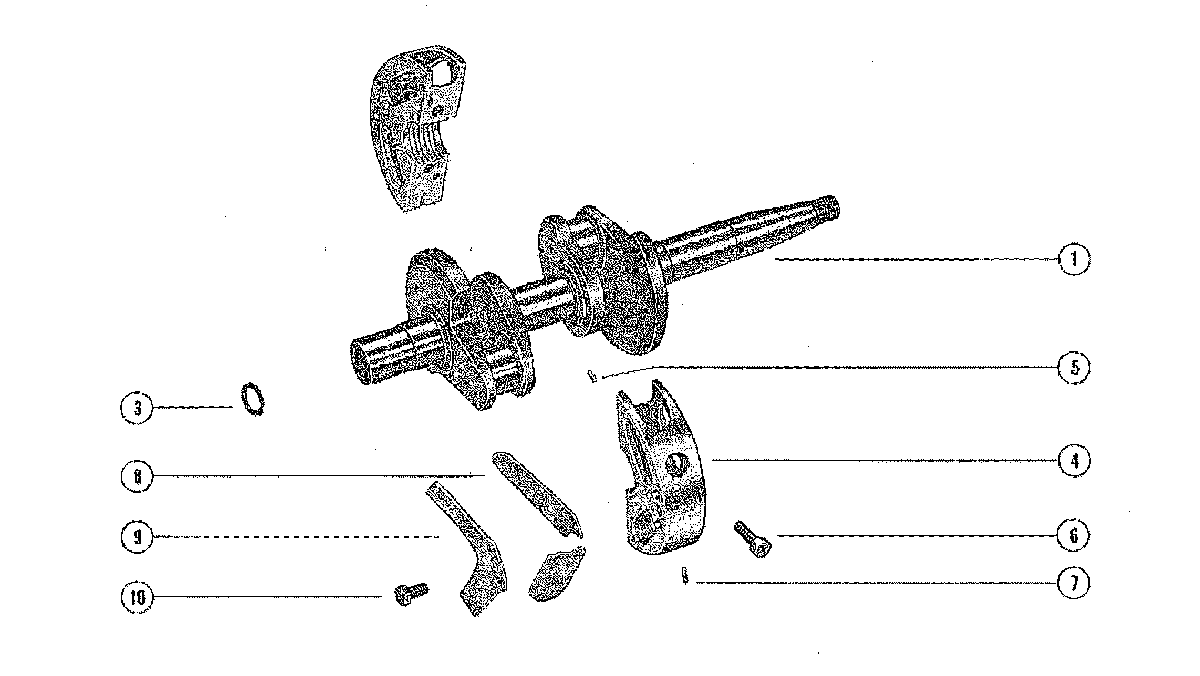

CRANKSHAFT AND MAIN BEARING ASSEMBLY для Mercury - 110 8050625 THRU 8057544
-
№АртикулНазвание
-
1421-5275 CRANKSHAFTCRANKSHAFT
-
326-72793 SEAL, CRANKSHAFTSEAL, CRANKSHAFT
-
4550-8122A5 MAIN BEARING ASSEMBLY (VALVE TYPE)MAIN BEARING ASSEMBLY (VALVE TYPE)
-
517-20032 PIN, DOWEL- MAIN BEARINGPIN, DOWEL- MAIN BEARING
-
517-65855 PIN, DOWEL- REED LOCATINGPIN, DOWEL- REED LOCATING
-
610-56781 SCREW, MAIN BEARING CLAMPINGSCREW, MAIN BEARING CLAMPING
-
717-20032 PIN, DOWEL - MAIN BEARING TO BLOCKPIN, DOWEL - MAIN BEARING TO BLOCK
-
834-31942A1 REED SET, MATCHED- MAIN BEARINGREED SET, MATCHED- MAIN BEARING
-
934-20053 REED STOP, MAIN BEARING REED VALVESREED STOP, MAIN BEARING REED VALVES
-
1010-27304 SCREW, REED STOP MOUNTINGSCREW, REED STOP MOUNTING
