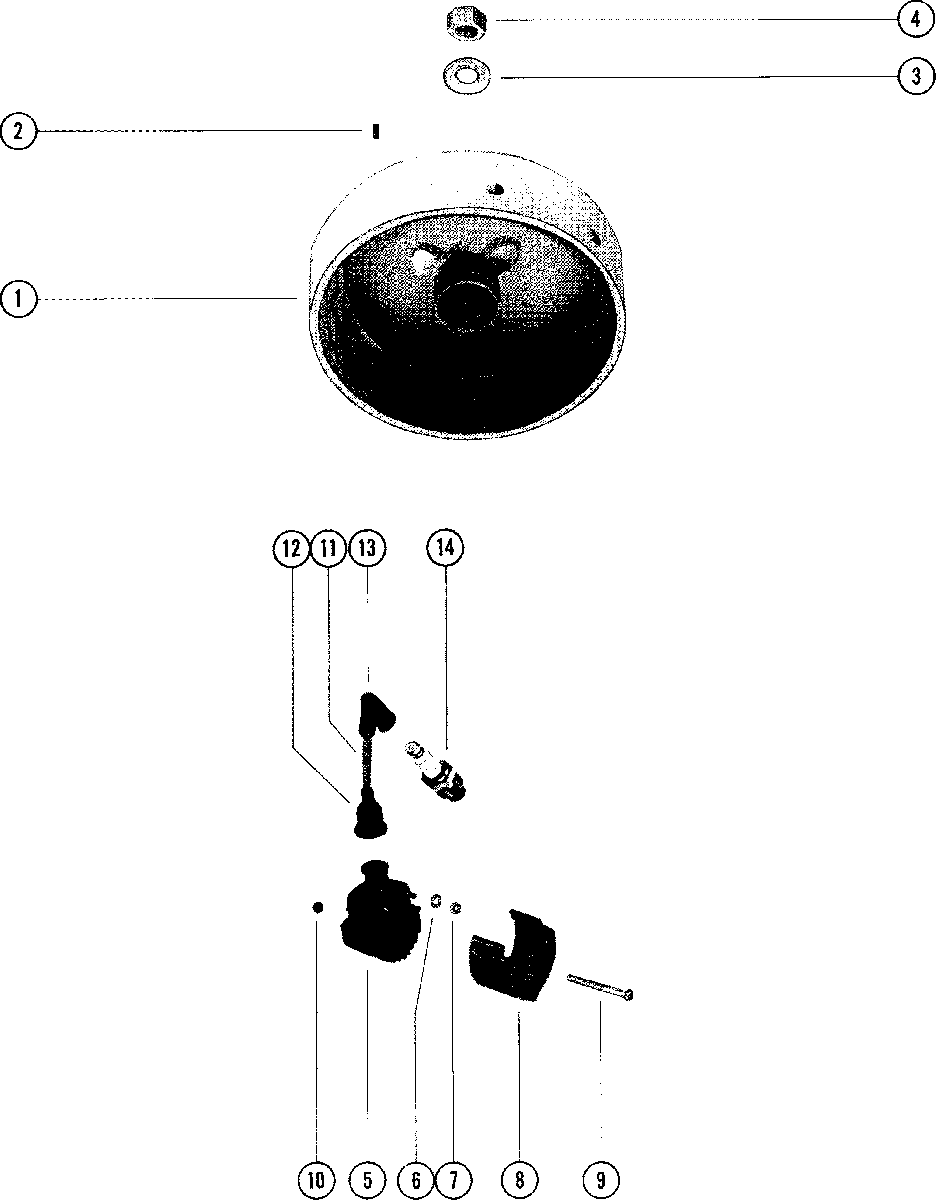

FLYWHEEL AND IGNITION COIL для Mercury - 110 8050625 THRU 8057544

  • №
    Артикул
    Название
  • 1
    251-6105A1 FLYWHEEL ASSEMBLY (MANUAL)
    FLYWHEEL ASSEMBLY (MANUAL)
  • 1
    251-6105A1 FLYWHEEL ASSEMBLY (ELECTRIC)
    FLYWHEEL ASSEMBLY (ELECTRIC)
  • 1
    251-6105A1 FLYWHEEL ASSEMBLY (BELGIUM)
    FLYWHEEL ASSEMBLY (BELGIUM)
  • 2
    28-20094 KEY, FLYWHEEL DRIVE
    KEY, FLYWHEEL DRIVE
  • 3
    12-36245 WASHER, FLYWHEEL NUT
    WASHER, FLYWHEEL NUT
  • 4
    11-20696 NUT, FLYWHEEL
    NUT, FLYWHEEL
  • 5
    339-5288T2 COIL ASSEMBLY, IGNITION
    COIL ASSEMBLY, IGNITION
  • 6
    13-26996 LOCKWASHER, IGNITION COIL TERMINAL
    LOCKWASHER, IGNITION COIL TERMINAL
  • 7
    11-45076 NUT, IGNITION COIL TERMINAL
    NUT, IGNITION COIL TERMINAL
  • 8
    66355 COVER, IGNITION COIL
    COVER, IGNITION COIL
  • 9
    10-72074 SCREW, COIL COVER TO REAR SUPPORT BRACKET (4 5/8")
    SCREW, COIL COVER TO REAR SUPPORT BRACKET (4 5/8")
  • 10
    11-20110 NUT, COIL COVER SCREW
    NUT, COIL COVER SCREW
  • 11
    84-813715A1 LEAD ASSEMBLY, HIGH TENSION
    LEAD ASSEMBLY, HIGH TENSION
  • 12
    332-2854T01 NIPPLE, IGNITION COIL
    NIPPLE, IGNITION COIL
  • 13
    85-63709A1 PROTECTOR ASSEMBLY, SPARK PLUG
    PROTECTOR ASSEMBLY, SPARK PLUG
  • 14
    33-97182Q SPARK PLUG (AC#V40FFK)
    BELGIUM AND CANADA USE C-33-75739 SPARK PLUG.
    SPARK PLUG (AC#V40FFK)
    BELGIUM AND CANADA USE C-33-75739 SPARK PLUG.
