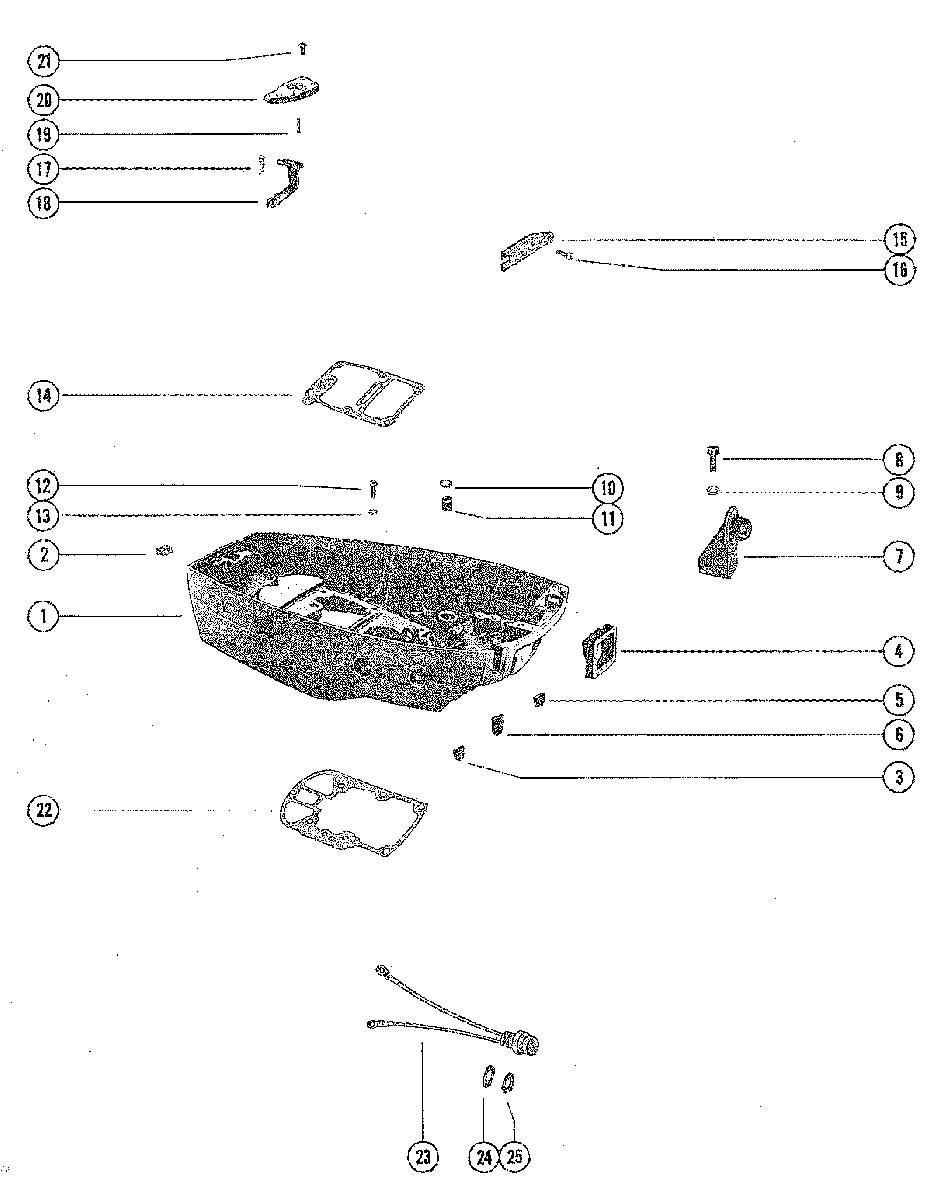

BOTTOM COWL AND STOP SWITCH ASSEMBLY для Mercury - 110 8050625 THRU 8057544

  • №
    Артикул
    Название
  • 1
    2159-6681A2 COWL, BOTTOM
    COWL, BOTTOM
  • 2
    79300 MOLDING, BOTTOM COWL
    MOLDING, BOTTOM COWL
  • 3
    74360 PLUG, BOTTOM COWL
    MANUAL
    PLUG, BOTTOM COWL
    MANUAL
  • 4
    39778 GROMMET, CHOKE SHAFT- BOTTOM COWL
    GROMMET, CHOKE SHAFT- BOTTOM COWL
  • 5
    66353 COVER, ACCESS HOLE
    COVER, ACCESS HOLE
  • 6
    65479 COVER, ACCESS HOLE
    COVER, ACCESS HOLE
  • 7
    39474 ANCHOR, LATCH - BOTTOM COWL
    ANCHOR, LATCH - BOTTOM COWL
  • 8
    10-22483 SCREW, LATCH ANCHOR TO BOTTOM COWL
    (1 1/8")
    SCREW, LATCH ANCHOR TO BOTTOM COWL
    (1 1/8")
  • 9
    13-26992 LOCKWASHER, LATCH ANCHOR SCREW
    LOCKWASHER, LATCH ANCHOR SCREW
  • 10
    23-13127 WASHER, NYLON- WATER OUTLET TUBE
    WASHER, NYLON- WATER OUTLET TUBE
  • 11
    26-36556 SEAL, RUBBER - WATER OUTLET TUBE
    SEAL, RUBBER - WATER OUTLET TUBE
  • 12
    10-38111 SCREW, BOTTOM COWL TO DRIVE SHAFT HOUSING
    (3/4")
    SCREW, BOTTOM COWL TO DRIVE SHAFT HOUSING
    (3/4")
  • 13
    13-26992 LOCKWASHER,BOTTOM COWL SCREW
    LOCKWASHER,BOTTOM COWL SCREW
  • 14
    27-89937 GASKET,POWERHEAD TO ADAPTOR PLATE
    GASKET,POWERHEAD TO ADAPTOR PLATE
  • 15
    74354 RETAINER, WIRING HARNESS (BOTTOM COWL)
    ELECTRIC
    RETAINER, WIRING HARNESS (BOTTOM COWL)
    ELECTRIC
  • 16
    10-48408 SCREW, RETAINER TO BOTTOM COWL
    ELECTRIC
    SCREW, RETAINER TO BOTTOM COWL
    ELECTRIC
  • 17
    24-78810 SPRING, CABLE TO ARM LATCH
    SPRING, CABLE TO ARM LATCH
  • 18
    78809 LATCH, ARM- BOTTOM COWL
    LATCH, ARM- BOTTOM COWL
  • 19
    29-714221 PIN, ARM LOCATING
    PIN, ARM LOCATING
  • 20
    78808 LATCH, BODY- BOTTOM COWL
    LATCH, BODY- BOTTOM COWL
  • 21
    10-32228 SCREW, LATCH TO BOTTOM COWL
    SCREW, LATCH TO BOTTOM COWL
  • 22
    27-39050 GASKET, BOTTOM COWL TO DRIVE SHAFT HOUSING
    GASKET, BOTTOM COWL TO DRIVE SHAFT HOUSING
  • 23
    87-69508A31 STOP SWITCH ASSEMBLY
    MANUAL
    STOP SWITCH ASSEMBLY
    MANUAL
  • 24
    13-69845 LOCKWASHER,STOP SWITCH
    MANUAL
    LOCKWASHER,STOP SWITCH
    MANUAL
  • 25
    11-69844 NUT, STOP SWITCH -MANUAL
    NUT, STOP SWITCH -MANUAL
