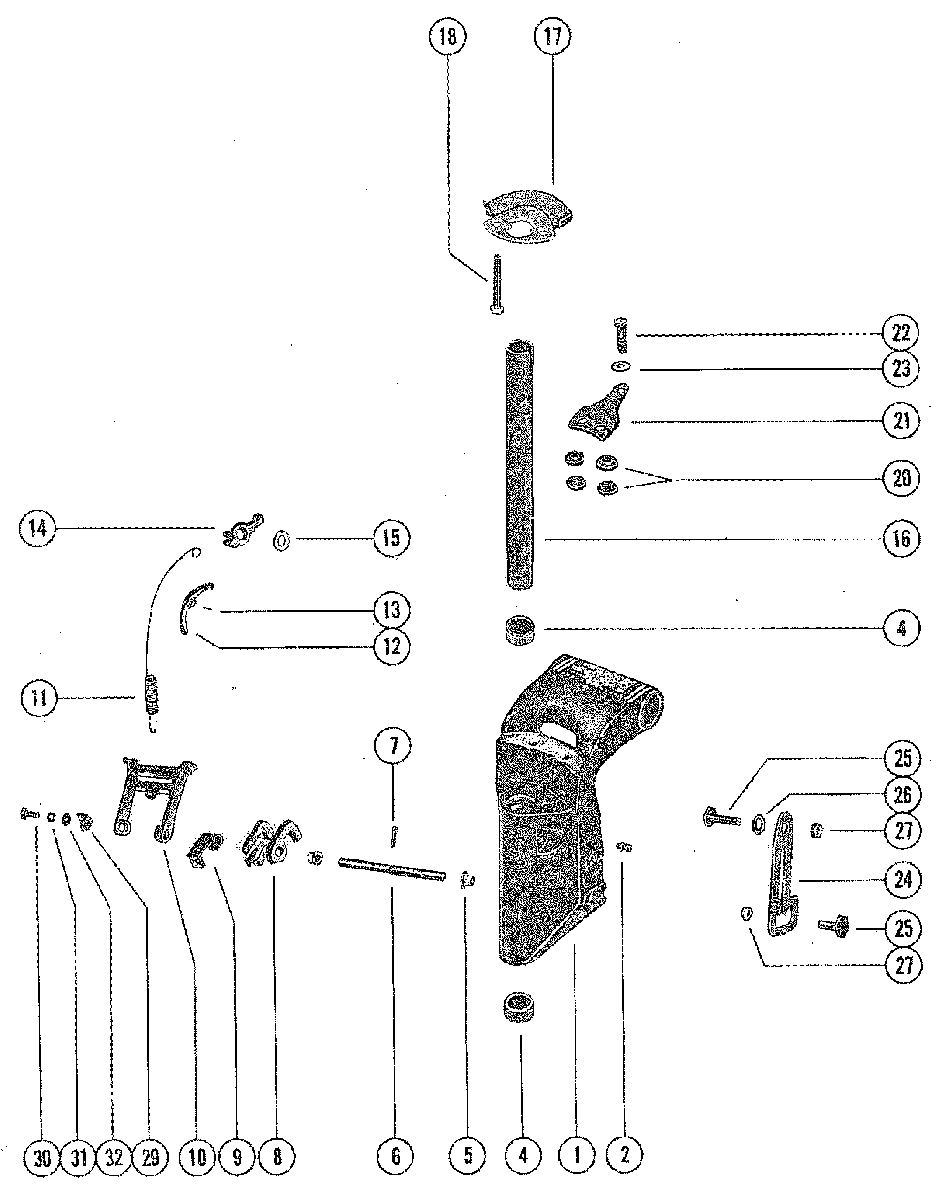

SWIVEL BRACKET ASSEMBLY для Mercury - 110 8050625 THRU 8057544

  • №
    Артикул
    Название
  • 1
    1471-7324A1 SWIVEL BRACKET ASSEMBLY
    SWIVEL BRACKET ASSEMBLY
  • 2
    22-74036 FITTING, GREASE - SWIVEL BRACKET
    FITTING, GREASE - SWIVEL BRACKET
  • 4
    23-64028 BUSHING, SWIVEL BRACKET
    BUSHING, SWIVEL BRACKET
  • 5
    23-26841 BUSHING, NYLON - REVERSE LOCK LEVER ROD
    BUSHING, NYLON - REVERSE LOCK LEVER ROD
  • 6
    71419 ROD, REVERSE LOCK TO SWIVEL BRACKET
    ROD, REVERSE LOCK TO SWIVEL BRACKET
  • 7
    18-45882 COTTER PIN, REVERSE LOCK LEVER TO ROD
    COTTER PIN, REVERSE LOCK LEVER TO ROD
  • 8
    63628T LEVER, REVERSEL LOCK
    LEVER, REVERSEL LOCK
  • 9
    61007 RETAINER, ROD - REVERSE LOCK
    RETAINER, ROD - REVERSE LOCK
  • 10
    63559T BRACKET, TROLL
    BRACKET, TROLL
  • 11
    24-63630 SPRING, EXTENSION - TROLL BRACKET
    SPRING, EXTENSION - TROLL BRACKET
  • 12
    63554 GUIDE, SPRING
    GUIDE, SPRING
  • 13
    17-25319 ROLL PIN, SPRING GUIDE
    ROLL PIN, SPRING GUIDE
  • 14
    79744 LEVER, CONTROL- TROLL BRACKET
    LEVER, CONTROL- TROLL BRACKET
  • 15
    13-63631 WASHER, WAVE - TROLL BRACKET LEVER
    WASHER, WAVE - TROLL BRACKET LEVER
  • 16
    66559 TUBE, SWIVEL BRACKET TO SADDLE
    TUBE, SWIVEL BRACKET TO SADDLE
  • 17
    77334 CO-PILOT DISC
    CO-PILOT DISC
  • 18
    10-78038 SCREW, CO-PILOT DISC TO SADDLE
    SCREW, CO-PILOT DISC TO SADDLE
  • 20
    20203 DISC,FRICTION-CLAMP PLATE AND SWIVEL BRACKET
    DISC,FRICTION-CLAMP PLATE AND SWIVEL BRACKET
  • 21
    72845A1 PLATE ASSEMBLY, CLAMP - CO-PILOT
    PLATE ASSEMBLY, CLAMP - CO-PILOT
  • 22
    10-36154 SCREW, CLAMP PLATE ADJUSTING
    SCREW, CLAMP PLATE ADJUSTING
  • 23
    12-35462 WASHER, CLAMP PLATE ADJUSTING SCREW
    WASHER, CLAMP PLATE ADJUSTING SCREW
  • 24
    63310A1 LEVER ASSEMBLY, TILT STOP
    LEVER ASSEMBLY, TILT STOP
  • 25
    10-41433 SCREW, TILT STOP LEVER
    SCREW, TILT STOP LEVER
  • 26
    13-31030 WASHER, WAVE - LEVER ANCHOR SCREW
    WASHER, WAVE - LEVER ANCHOR SCREW
  • 27
    11-35888 NUT, TILT STOP LEVER SCREW
    NUT, TILT STOP LEVER SCREW
  • 29
    72794 STOP, REVERSE LOCK
    STOP, REVERSE LOCK
  • 30
    10-71056 SCREW, REVERSE STOP TO SWIVEL BRACKET
    SCREW, REVERSE STOP TO SWIVEL BRACKET
  • 31
    13-26992 LOCKWASHER, REVERSE STOP SCREW
    LOCKWASHER, REVERSE STOP SCREW
  • 32
    12-71055 WASHER, REVERSE STOP SCREW
    WASHER, REVERSE STOP SCREW
