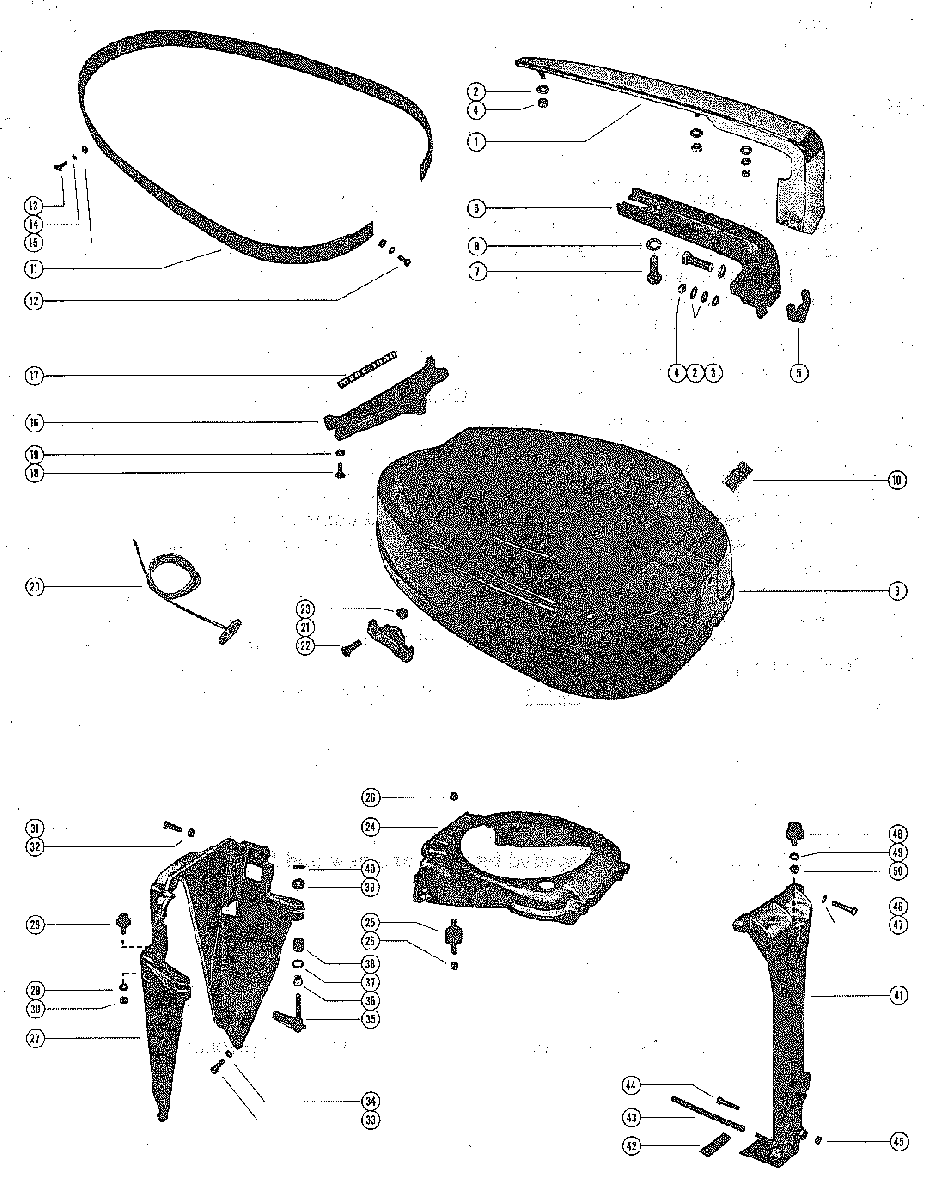

TOP COWL AND SUPPORT BRACKETS для Mercury - 1000 1768404 THRU 2318585

  • №
    Артикул
    Название
  • 1
    37408 HANDLE, CHROME - TOP COWL
    HANDLE, CHROME - TOP COWL
  • 2
    12-20533 WASHER, CHROME HANDLE TO INSIDE HANDLE STUD
    WASHER, CHROME HANDLE TO INSIDE HANDLE STUD
  • 3
    12-69056 WASHER, CHROME HANDLE TO INSIDE HANDLE STUD (FRONT)
    WASHER, CHROME HANDLE TO INSIDE HANDLE STUD (FRONT)
  • 4
    11-8267089 NUT, CHROME HANDLE TO INSIDE HANDLE STUD
    NUT, CHROME HANDLE TO INSIDE HANDLE STUD
  • 5
    35496 PAD, BUMPER - TOP COWL HANDLE
    PAD, BUMPER - TOP COWL HANDLE
  • 6
    37434 HANDLE, INSIDE - TOP COWL
    HANDLE, INSIDE - TOP COWL
  • 7
    10-35386 SCREW, HANDLE TO TOPCOWL (1")
    SCREW, HANDLE TO TOPCOWL (1")
  • 8
    13-26993 LOCKWASHER, HANDLE TO TOP COWL SCREW
    LOCKWASHER, HANDLE TO TOP COWL SCREW
  • 9
    2114-3806A1 COWL, TIP
    COWL, TIP
  • 10
    37-37953 DECAL, TOP COWL - MANUAL STARTING INSTRUCTIONS
    DECAL, TOP COWL - MANUAL STARTING INSTRUCTIONS
  • 11
    37410A1 TRIM MOULDING ASSEMBLY, TO COWL
    TRIM MOULDING ASSEMBLY, TO COWL
  • 12
    10-29227 SCREW, BRASS - MOULDING TO TOP COWL
    SCREW, BRASS - MOULDING TO TOP COWL
  • 13
    10-29226 SCREW, DECORATIVE - MOULDING TO TOP COWL
    SCREW, DECORATIVE - MOULDING TO TOP COWL
  • 14
    13-26995 LOCKWASHER, MOULDING FASTENING SCREW
    LOCKWASHER, MOULDING FASTENING SCREW
  • 15
    11-26419 NUT, MOULDING FASTENING SCREW
    NUT, MOULDING FASTENING SCREW
  • 16
    76370 SHIELD, TOP COWL - REAR
    SHIELD, TOP COWL - REAR
  • 17
    37-37863 DECAL, TOP COWL SHIELD - "MERC 1000"
    DECAL, TOP COWL SHIELD - "MERC 1000"
  • 18
    10-37370 SCREW, SHIELD TO TOP COWL (5/8")
    SCREW, SHIELD TO TOP COWL (5/8")
  • 19
    13-37371 LOCKWASHER, SHIELD SCREW
    LOCKWASHER, SHIELD SCREW
  • 20
    47341A11 ROPE, STARTER (F6OR MANUAL STARTING ONLY)
    ROPE, STARTER (F6OR MANUAL STARTING ONLY)
  • 21
    37411 BRACKET, COWL LATCH - TOP COWL FASTENING
    BRACKET, COWL LATCH - TOP COWL FASTENING
  • 22
    10-37560 SCREW, COWL LATCH BRACKET TO TOP COWL
    SCREW, COWL LATCH BRACKET TO TOP COWL
  • 23
    11-37556 NUT, COWL LATCH BRACKET SCREW
    NUT, COWL LATCH BRACKET SCREW
  • 24
    79897A4 FRAME, TOP COWL SUPPORT
    FRAME, TOP COWL SUPPORT
  • 25
    90435 MOUNT, RUBBER - TOP COWL FRAME
    MOUNT, RUBBER - TOP COWL FRAME
  • 26
    11-8267089 NUT, RUBBER MOUNT TO TOP COWL FRAME
    NUT, RUBBER MOUNT TO TOP COWL FRAME
  • 27
    37714 BRACKET, TOP COWL SUPPORT - REAR
    BRACKET, TOP COWL SUPPORT - REAR
  • 28
    31014 MOUNT, RUBBER - REAR SUPPORT BRACKET
    MOUNT, RUBBER - REAR SUPPORT BRACKET
  • --
    12-69057 WASHER, RUBBER MOUNT
    WASHER, RUBBER MOUNT
  • 29
    13-26992 LOCKWASHER, RUBBER MOUNT TO REAR SUPPORT BRACKET
    LOCKWASHER, RUBBER MOUNT TO REAR SUPPORT BRACKET
  • 30
    11-20088 NUT, RUBBER MOUNT TO REAR SUPPORT BRACKET
    NUT, RUBBER MOUNT TO REAR SUPPORT BRACKET
  • 31
    10-26065 SCREW, REAR SUPPORT BRACKET TO TOP COWL FRAME (1")
    SCREW, REAR SUPPORT BRACKET TO TOP COWL FRAME (1")
  • 32
    11-29250 NUT, REAR SUPPORT BRACKET SCREW
    NUT, REAR SUPPORT BRACKET SCREW
  • 33
    10-74824 SCREW, REAR SUPPORT BRACKET TO BOTTOM COWL (1 1/4")
    SCREW, REAR SUPPORT BRACKET TO BOTTOM COWL (1 1/4")
  • 34
    13-26993 LOCKWASHER, REAR SUPPORT BRACKET SCREW
    LOCKWASHER, REAR SUPPORT BRACKET SCREW
  • 35
    37412 LEVER, CLAMPING - TOP COWL MOUNTING
    LEVER, CLAMPING - TOP COWL MOUNTING
  • 36
    23-26819 BUSHING, NYLON - CLAMPING LEVER
    BUSHING, NYLON - CLAMPING LEVER
  • 37
    12-38006 WASHER, CLAMPING LEVER
    WASHER, CLAMPING LEVER
  • 38
    23-31293 BUSHING, RUBBER - CLAMPING LEVER
    BUSHING, RUBBER - CLAMPING LEVER
  • 39
    11-30428 FASTENER, CLAMPING LEVER
    FASTENER, CLAMPING LEVER
  • 40
    17-29077 PIN, ROLL - CLAMPING LEVER
    PIN, ROLL - CLAMPING LEVER
  • 41
    45883A2 BRACKET ASSEMBLY, TOP COWL SUPPORT - FRONT
    BRACKET ASSEMBLY, TOP COWL SUPPORT - FRONT
  • 42
    37903 FLANGE, RUBBER - FRONT TOP COWL SUPPORT BRACKET
    FLANGE, RUBBER - FRONT TOP COWL SUPPORT BRACKET
  • 43
    32-8M0108355 HOSE, FRONT SUPPORT BRACKET TO BOTTOM COWL
    HOSE, FRONT SUPPORT BRACKET TO BOTTOM COWL
  • 44
    10-78841 SCREW, FRONT SUPPORT BRACKET TO BOTTOM COWL (1 1/2")
    SCREW, FRONT SUPPORT BRACKET TO BOTTOM COWL (1 1/2")
  • 45
    11-29250 NUT, FRONT SUPPORT BRACKET SCREW
    NUT, FRONT SUPPORT BRACKET SCREW
  • 46
    10-73657 SCREW, FRONT SUPPORT BRACKET TO TOP COWL FRAME (1 1/2")
    SCREW, FRONT SUPPORT BRACKET TO TOP COWL FRAME (1 1/2")
  • 47
    13-26993 LOCKWASHER, FRONT SUPPORT BRACKET SCREW
    LOCKWASHER, FRONT SUPPORT BRACKET SCREW
  • 48
    37640 MOUNT, RUBBER FRONT SUPPORT BRACKET
    MOUNT, RUBBER FRONT SUPPORT BRACKET
  • 49
    13-26993 LOCKWASHER, RUBBER MOUNT TO FRONT SUPPORT BRACKET
    LOCKWASHER, RUBBER MOUNT TO FRONT SUPPORT BRACKET
  • 50
    11-22053 NUT, RUBBER MOUNT TO FRONT SUPPORT BRACKET
    NUT, RUBBER MOUNT TO FRONT SUPPORT BRACKET
