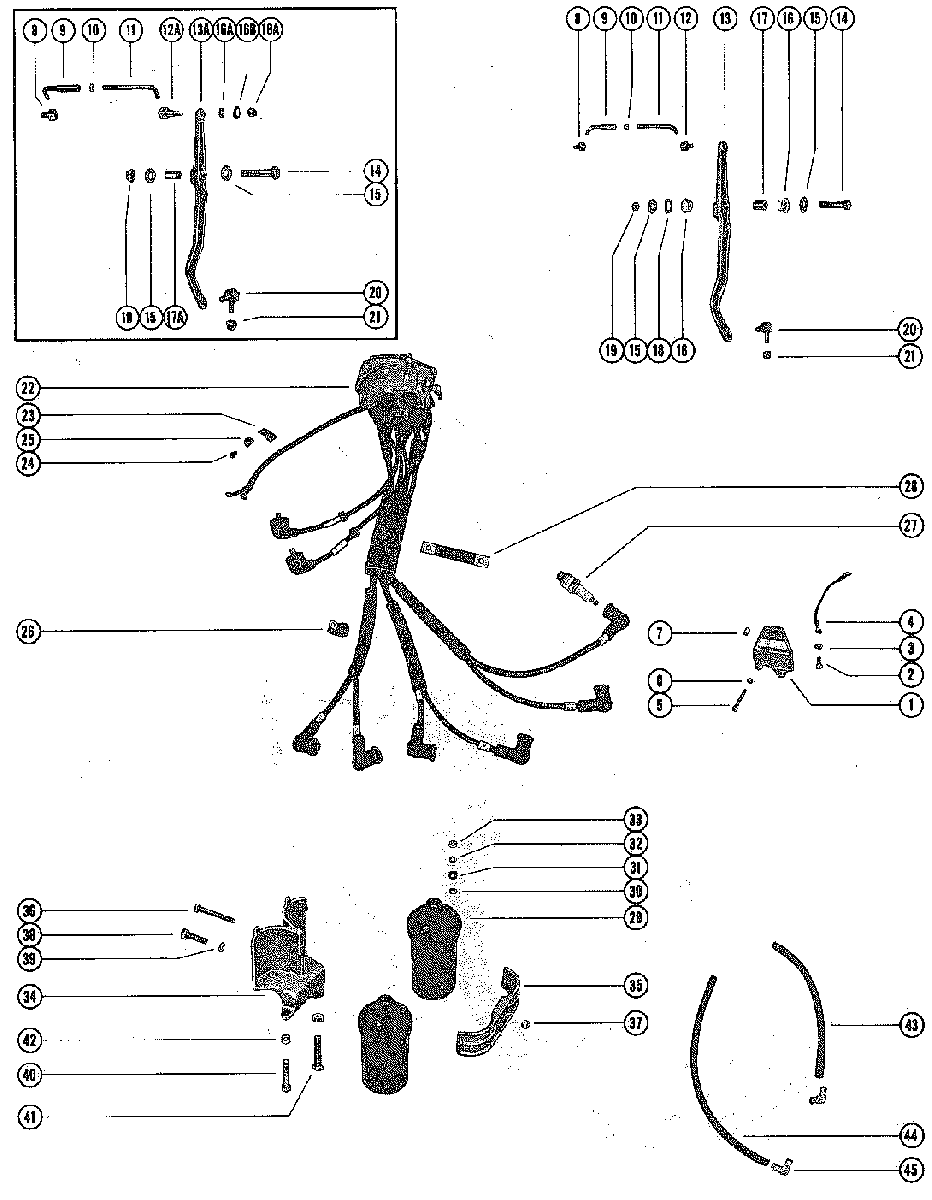

DISTRIBUTOR VERTICAL LINKAGE AND IGNITION COILS для Mercury - 1000 1768404 THRU 2318585

  • №
    Артикул
    Название
  • 1
    55805 BRACKET, STOP
    BRACKET, STOP
  • 2
    10-28636 SCREW, STOP BRACKET TO DISTRIBUTOR ADAPTOR
    SCREW, STOP BRACKET TO DISTRIBUTOR ADAPTOR
  • 3
    12-20533 WASHER, STOP BRACKET FASTENING SCREW
    WASHER, STOP BRACKET FASTENING SCREW
  • 4
    37747 GROUND STRAP, STOP BRACKET TO FRONT SUPPORT BRACKET
    GROUND STRAP, STOP BRACKET TO FRONT SUPPORT BRACKET
  • 5
    10-24228 SCREW, STOP BRACKET ADJUSTING
    SCREW, STOP BRACKET ADJUSTING
  • 6
    11-20890 NUT, STOP BRACKET ADJUSTING SCREW
    NUT, STOP BRACKET ADJUSTING SCREW
  • 7
    26852 CAP, NYLON - ADJUSTING SCREW
    CAP, NYLON - ADJUSTING SCREW
  • 8
    27947 SWIVEL, LINKAGE - ECONOMIZER COLLAR
    SWIVEL, LINKAGE - ECONOMIZER COLLAR
  • 9
    25996A1 SWIVEL AND LINK ROD ASSEMBLY
    SWIVEL AND LINK ROD ASSEMBLY
  • 10
    11-25168 NUT, UPPER LINK ROD ADJUSTING
    NUT, UPPER LINK ROD ADJUSTING
  • 11
    37931 ROD, LINK - UPPER
    ROD, LINK - UPPER
  • 12
    27947 SWIVEL, UPPER LINK ROD TO THROTTLE CONTROL LEVER
    SERIAL 00000000-01852623
    SWIVEL, UPPER LINK ROD TO THROTTLE CONTROL LEVER
    SERIAL 00000000-01852623
  • 13
    48856 LEVER, THROTTLE CONTROL
    SERIAL 00000000-01852623
    LEVER, THROTTLE CONTROL
    SERIAL 00000000-01852623
  • 14
    10-31830 SCREW, THROTTLE LEVER TO EXHAUST MANIFOLD COVER (1 3/4")
    SERIAL 00000000-01852623
    SCREW, THROTTLE LEVER TO EXHAUST MANIFOLD COVER (1 3/4")
    SERIAL 00000000-01852623
  • 15
    12-8M0042641 WASHER, THROTTLE CONTROL LEVER SCREW
    SERIAL 00000000-01852623
    WASHER, THROTTLE CONTROL LEVER SCREW
    SERIAL 00000000-01852623
  • 16
    23-37643 BUSHING, NYLON - THROTTLE CONTROL LEVER SCREW
    SERIAL 00000000-01852623
    BUSHING, NYLON - THROTTLE CONTROL LEVER SCREW
    SERIAL 00000000-01852623
  • 17
    23-29529 BUSHING, STEEL - THROTTLE CONTROL LEVER SCREW
    SERIAL 00000000-01852623
    BUSHING, STEEL - THROTTLE CONTROL LEVER SCREW
    SERIAL 00000000-01852623
  • 18
    13-37642 WASHER, WAVE - THROTTLE CONTROL LEVER SCREW
    SERIAL 00000000-01852623
    WASHER, WAVE - THROTTLE CONTROL LEVER SCREW
    SERIAL 00000000-01852623
  • 19
    11-8M0042636 NUT, THROTTLE CONTROL LEVER SCREW
    SERIAL 00000000-01852623
    NUT, THROTTLE CONTROL LEVER SCREW
    SERIAL 00000000-01852623
  • 12A
    27948 SWIVEL, UPPER LINK ROD TO THROTTLE CONTROL LEVER
    SERIAL 01852624-09999999
    SWIVEL, UPPER LINK ROD TO THROTTLE CONTROL LEVER
    SERIAL 01852624-09999999
  • 13A
    48856 LEVER, THROTTLE CONTROL
    SERIAL 01852624-09999999
    LEVER, THROTTLE CONTROL
    SERIAL 01852624-09999999
  • 14
    10-31830 SCREW, THROTTLE LEVER TO EXHAUST MANIFOLD COVER (1 3/4")
    SERIAL 01852624-09999999
    SCREW, THROTTLE LEVER TO EXHAUST MANIFOLD COVER (1 3/4")
    SERIAL 01852624-09999999
  • 15
    12-8M0042641 WASHER, THROTTLE CONTROL LEVER SCREW
    SERIAL 01852624-09999999
    WASHER, THROTTLE CONTROL LEVER SCREW
    SERIAL 01852624-09999999
  • 16A
    12-29245 WASHER, THROTTLE CONTROL LEVER SWIVEL
    SERIAL 01852624-09999999
    WASHER, THROTTLE CONTROL LEVER SWIVEL
    SERIAL 01852624-09999999
  • 16B
    13-25806 WASHER, WAVE - THROTTLE CONTROL LEVER SWIVEL
    SERIAL 01852624-09999999
    WASHER, WAVE - THROTTLE CONTROL LEVER SWIVEL
    SERIAL 01852624-09999999
  • 17A
    23-38994 BUSHING, STEEL- THROTTLE CONTROL LEVER
    SERIAL 01852624-09999999
    BUSHING, STEEL- THROTTLE CONTROL LEVER
    SERIAL 01852624-09999999
  • 18A
    11-8267089 NUT, UPPER LINK ROD SWIVEL TO THROTTLE CONTROL
    SERIAL 01852624-09999999
    NUT, UPPER LINK ROD SWIVEL TO THROTTLE CONTROL
    SERIAL 01852624-09999999
  • 19
    11-8M0042636 NUT, THROTTLE CONTROL LEVER SCREW
    SERIAL 01852624-09999999
    NUT, THROTTLE CONTROL LEVER SCREW
    SERIAL 01852624-09999999
  • 20
    37587 SWIVEL, LOWER - THROTTLE CONTROL LEVER TO THROTTLE CABLE
    SWIVEL, LOWER - THROTTLE CONTROL LEVER TO THROTTLE CABLE
  • 21
    11-8267089 NUT, THROTTLE CABLE TO LOWER SWIVEL
    NUT, THROTTLE CABLE TO LOWER SWIVEL
  • 22
    393-1282A17 DISTRIBUTOR ASSEMBLY, COMPLETE
    DISTRIBUTOR ASSEMBLY, COMPLETE
  • 23
    54-22875 CLIP, DISTRIBUTOR PRIMARY GROUND LEAD
    CLIP, DISTRIBUTOR PRIMARY GROUND LEAD
  • 24
    10-62568 SCREW, DISTRIBUTOR PRIMARY GROUND LEAD CLIP FASTENING
    SCREW, DISTRIBUTOR PRIMARY GROUND LEAD CLIP FASTENING
  • 25
    8M0084613 "D" WASHER, DISTRIBUTOR PRIMARY GROUND LEAD CLIP SCREW
    "D" WASHER, DISTRIBUTOR PRIMARY GROUND LEAD CLIP SCREW
  • 26
    54-52905 CLAMP, HIGH TENSION LEADS TO CYLINDER BLOCK COVER
    CLAMP, HIGH TENSION LEADS TO CYLINDER BLOCK COVER
  • 27
    33-813413 SPARK PLUG (CHAMPION - J4J)
    SPARK PLUG (CHAMPION - J4J)
  • 27
    33-31390 SPARK PLUG (AC-K421)
    SPARK PLUG (AC-K421)
  • 28
    54-37811 CLAMP, HIGH TENSION LEAD TO MANIFOLD COVER
    CLAMP, HIGH TENSION LEAD TO MANIFOLD COVER
  • 29
    898253T24 COIL, IGNITION
    COIL, IGNITION
  • 30
    25-26543 "O" RING, IGNITION COIL
    "O" RING, IGNITION COIL
  • 31
    13-20554 LOCKWASHER, IGNITION COIL TERMINALS
    LOCKWASHER, IGNITION COIL TERMINALS
  • 32
    13-26996 LOCKWASHER, IGNITION COIL TERMINALS
    LOCKWASHER, IGNITION COIL TERMINALS
  • 33
    11-68219 NUT, IGNITION COIL TERMINALS
    NUT, IGNITION COIL TERMINALS
  • 34
    26514 BRACKET, COIL FSTENING
    BRACKET, COIL FSTENING
  • 35
    32229 CLAMP, COIL BRACKET
    CLAMP, COIL BRACKET
  • 36
    10-26889 SCREW, COIL CLAMP TO BRACKET
    SCREW, COIL CLAMP TO BRACKET
  • 37
    11-20184 NUT, COIL CLAMP SCREW
    NUT, COIL CLAMP SCREW
  • 38
    10-74824 SCREW, COIL BRACKET TO BOTTOM COWL (1 1/4") - SIDE
    SCREW, COIL BRACKET TO BOTTOM COWL (1 1/4") - SIDE
  • 39
    13-26993 LOCKWASHER, COIL BRACKET SCREW
    LOCKWASHER, COIL BRACKET SCREW
  • 40
    10-21937 SCREW, COIL BRACKET TO BOTTOM COWL (2")
    SCREW, COIL BRACKET TO BOTTOM COWL (2")
  • 41
    10-37742 SCREW, COIL BRACKET TO BOTTOM COWL (1 3/4") - TOP
    SCREW, COIL BRACKET TO BOTTOM COWL (1 3/4") - TOP
  • 42
    11-20184 NUT, COIL BRACKET SCREW
    NUT, COIL BRACKET SCREW
  • 43
    32-8M0108355 HOSE, VENT- DISTRIBUTOR ELBOW (13")
    HOSE, VENT- DISTRIBUTOR ELBOW (13")
  • 44
    32-8M0108355 HOSE, VENT - DISTRIBUTOR TO ELBOW (18 1/2")
    HOSE, VENT - DISTRIBUTOR TO ELBOW (18 1/2")
  • 45
    22-31521 ELBOW, VENT HOSE TO BOTTOM COWL
    ELBOW, VENT HOSE TO BOTTOM COWL
