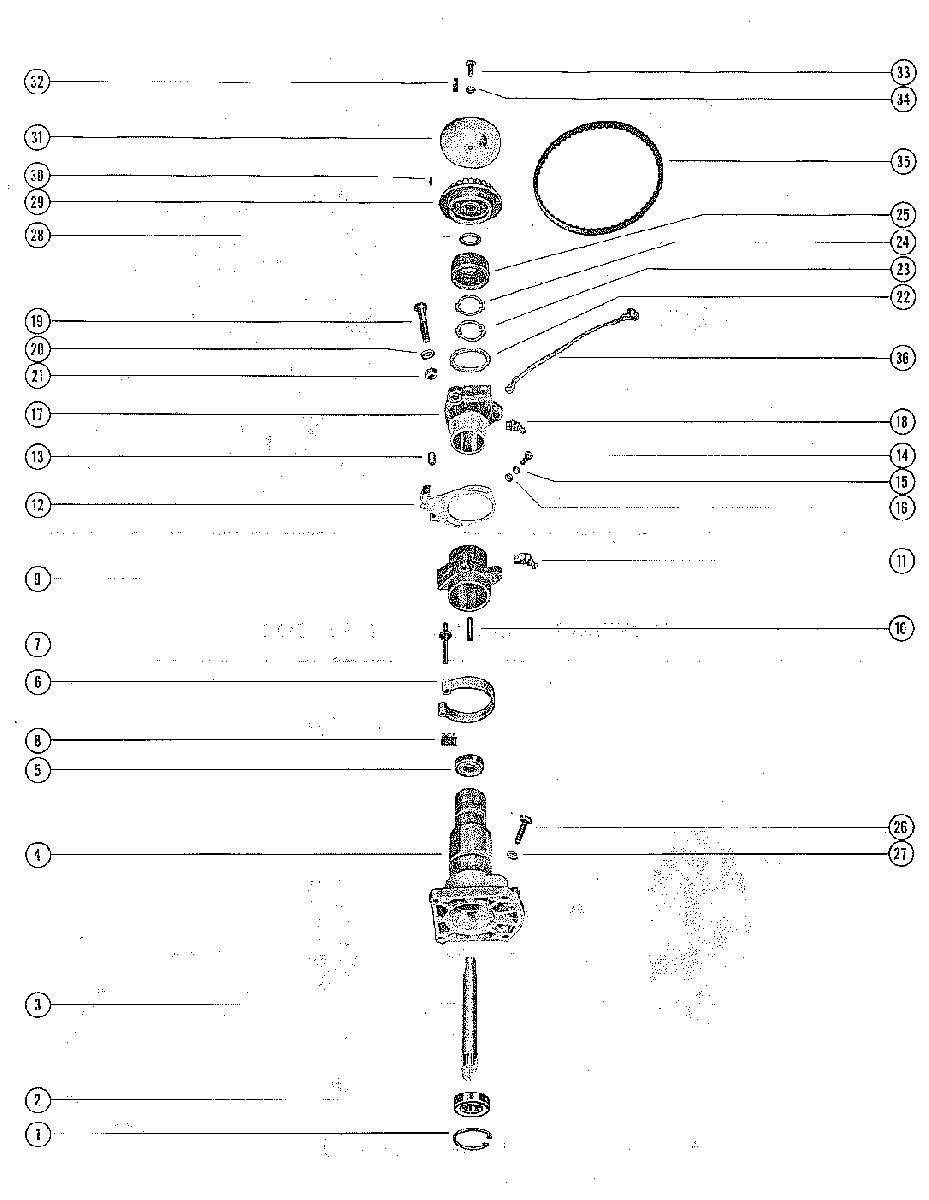

DISTRIBUTOR ADAPTOR AND PILOT ASSEMBLY для Mercury - 1000 1768404 THRU 2318585
-
№АртикулНазвание
-
153-26406 RING, SNAP - BALL BEARING RETAININGRING, SNAP - BALL BEARING RETAINING
-
230-26379 BEARING, BALL - DRIVE SHAFTBEARING, BALL - DRIVE SHAFT
-
345-30573 DRIVE SHAFT, DISTRIBUTORDRIVE SHAFT, DISTRIBUTOR
-
445960A1 PILOT ASSEMBLY, DISTRIBUTORPILOT ASSEMBLY, DISTRIBUTOR
-
530-20066 BEARING, BALL - DISTRIBUTOR PILOTBEARING, BALL - DISTRIBUTOR PILOT
-
624-29275 SPRING, HORSESHOESPRING, HORSESHOE
-
717-27962 PIN, SPRING TERMINALPIN, SPRING TERMINAL
-
832197 STOP, SPRING TERMINAL PINSTOP, SPRING TERMINAL PIN
-
955804A1 ECONOMIZER COLLAR AND PIN ASSEMBLYECONOMIZER COLLAR AND PIN ASSEMBLY
-
1017-27961 PIN, SPRING RETAINERPIN, SPRING RETAINER
-
1122-25094 FITTING, GREASE - ECONOMIZER COLLARFITTING, GREASE - ECONOMIZER COLLAR
-
1232044A1 THROTTLE ACTUATOR ASSEMBLYTHROTTLE ACTUATOR ASSEMBLY
-
1323-26602 BUSHING, NYLON - THROTTLE ACTUATORBUSHING, NYLON - THROTTLE ACTUATOR
-
1410-69022 SCREW, THROTTLE ACTUATOR TO SECTOR GEARSCREW, THROTTLE ACTUATOR TO SECTOR GEAR
-
1513-26996 LOCKWASHER, THROTTLE ACTUATOR FASTENING SCREWLOCKWASHER, THROTTLE ACTUATOR FASTENING SCREW
-
1612-847883 WASHER, THROTTLE ACTUATOR FASTENING SCREWWASHER, THROTTLE ACTUATOR FASTENING SCREW
-
1730645 ADAPTOR, DISTRIBUTORADAPTOR, DISTRIBUTOR
-
1822-25094 FITTING, GREASE - ADAPTORFITTING, GREASE - ADAPTOR
-
1910-78841 SCREW, ADAPTOR AND PILOT TO CRANKCASE FLANGESCREW, ADAPTOR AND PILOT TO CRANKCASE FLANGE
-
2012-20084 WASHER, ADAPTOR AND PILOT FASTENING SCREWWASHER, ADAPTOR AND PILOT FASTENING SCREW
-
2111-22053 NUT, ADAPTOR AND PILOT FASTENING SCREWNUT, ADAPTOR AND PILOT FASTENING SCREW
-
2212-27939 WASHER, THRUST - DISTRIBUTOR PILOTWASHER, THRUST - DISTRIBUTOR PILOT
-
2314-27960 TAB WASHER, CAP LOCKINGTAB WASHER, CAP LOCKING
-
2413-27959 WASHER, WAVE - TAB WASHER TENSIONWASHER, WAVE - TAB WASHER TENSION
-
2527955 CAP, ADAPTOR AND PILOT FASTENINGCAP, ADAPTOR AND PILOT FASTENING
-
2610-28668 SCREW, ADAPTOR AND PILOT TO DISTRIBUTORSCREW, ADAPTOR AND PILOT TO DISTRIBUTOR
-
2713-26992 LOCKWASHER, ADAPTOR AND PILOT TO DISTRIBUTOR SCREWLOCKWASHER, ADAPTOR AND PILOT TO DISTRIBUTOR SCREW
-
2823-29909 SPACER, DRIVEN PULLEYSPACER, DRIVEN PULLEY
-
2929906A1 DRIVEN PULLEY ASSEMBLYDRIVEN PULLEY ASSEMBLY
-
3017-29908 PIN, DRIVEN PULLEYPIN, DRIVEN PULLEY
-
3129907 FLANGE, DRIVEN PULLEYFLANGE, DRIVEN PULLEY
-
3228-29910 KEY, MAGNETO DRIVINGKEY, MAGNETO DRIVING
-
3310-41506 SCREW, PULLEY CLAMPINGSCREW, PULLEY CLAMPING
-
3413-26996 LOCKWASHER, PULLEY CLAMPING SCREWLOCKWASHER, PULLEY CLAMPING SCREW
-
3520140 BLET, TIMINGBLET, TIMING
-
3630109 GROUND STRAP ASSEMBLY, ADAPTOR TO CRANKCASEGROUND STRAP ASSEMBLY, ADAPTOR TO CRANKCASE
