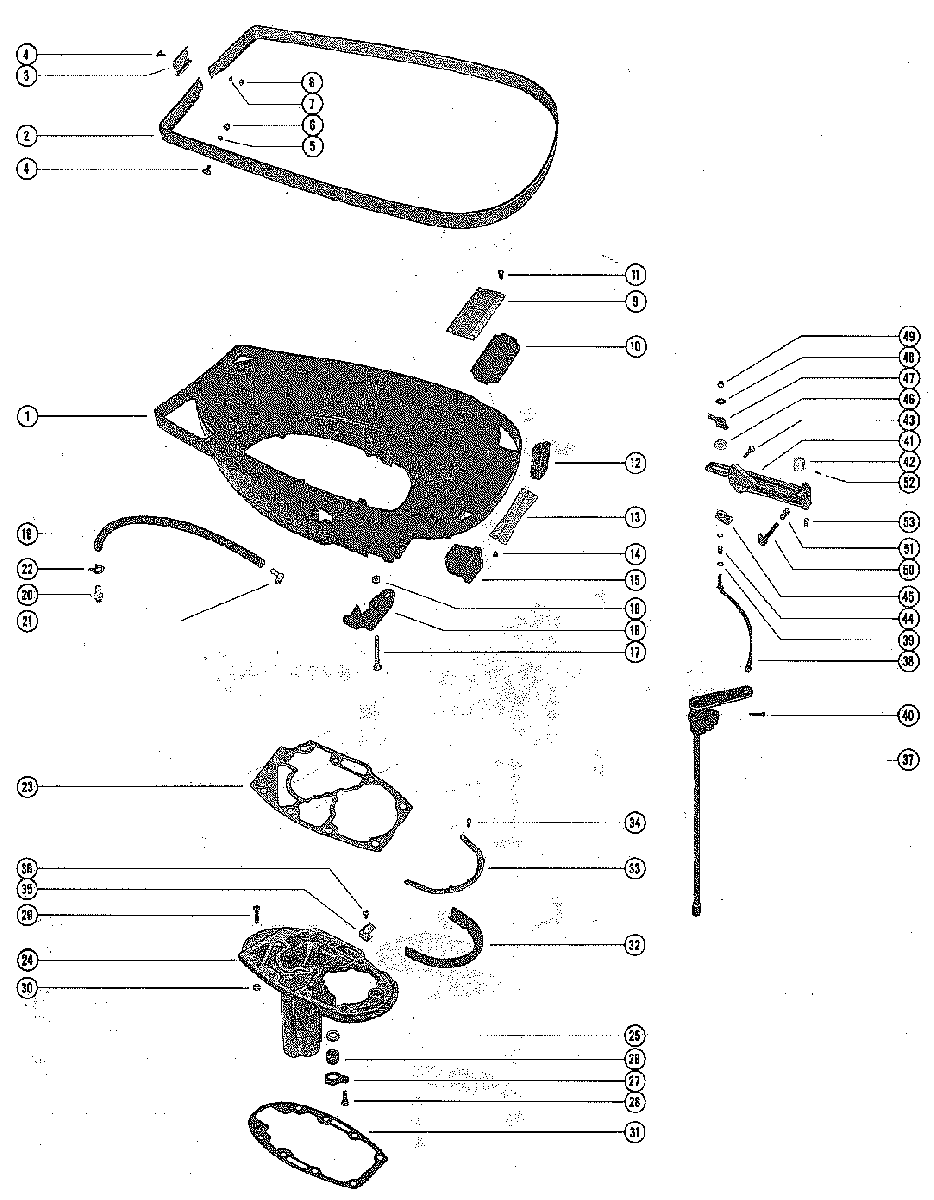

BOTTOM COWL AND SHIFT LINKAGE для Mercury - 1000 1768404 THRU 2318585
-
№АртикулНазвание
-
12115-3807 COWL, BOTTOMCOWL, BOTTOM
-
237415A1 TRIM MOULDING ASSEMBLY, BOTTOM COWLTRIM MOULDING ASSEMBLY, BOTTOM COWL
-
338046 SPLICER, TRIM MOULDING - REARSPLICER, TRIM MOULDING - REAR
-
410-29226 SCREW, DECORATIVE - MOULDING TO BOTTOM COWLSCREW, DECORATIVE - MOULDING TO BOTTOM COWL
-
512-24671 SCREW, DECORATIVE - MOULDING FASTENING SCREWSCREW, DECORATIVE - MOULDING FASTENING SCREW
-
611-29225 NUT, NYLON CAP - MOULDING FASTENING SCREWNUT, NYLON CAP - MOULDING FASTENING SCREW
-
713-26995 LOCKWASHER, MOULDING FASTENING SCREWLOCKWASHER, MOULDING FASTENING SCREW
-
811-26419 NUT, BRASS - MOULDING FASTENING SCREWNUT, BRASS - MOULDING FASTENING SCREW
-
937920A1 COVER PLATE ASSEMBLY, BOTTOM COWLCOVER PLATE ASSEMBLY, BOTTOM COWL
-
1037940 PAD, SOUND - COVER PLATEPAD, SOUND - COVER PLATE
-
1110-8M0113176 SCREW, COVER PLAT TO BOTTOM COWLSCREW, COVER PLAT TO BOTTOM COWL
-
1237638 BOOT, CONTROL CABLES - BOTTOM COWLBOOT, CONTROL CABLES - BOTTOM COWL
-
1323760 BAGGLE, BOTTOM COWLBAGGLE, BOTTOM COWL
-
1410-21106 SCREW, BAFFLE TO BOTTOM COWLSCREW, BAFFLE TO BOTTOM COWL
-
1537637 BOOT, FUEL CONNECTOR - BOWWOM COWLBOOT, FUEL CONNECTOR - BOWWOM COWL
-
1637445 SUPPORT, WIRING HARNESS - BOTTOM COWLSUPPORT, WIRING HARNESS - BOTTOM COWL
-
1710-37561 SCREW, WIRING HARNESS SUPPORT TO BOTTOM COWLSCREW, WIRING HARNESS SUPPORT TO BOTTOM COWL
-
1811-20184 NUT, WIRING HARNESS SUPPORT SCREWNUT, WIRING HARNESS SUPPORT SCREW
-
1932-8M0108355 HOSE, TELL TEAL - EXHAUST COVER TO BOTTOM COWL (16")HOSE, TELL TEAL - EXHAUST COVER TO BOTTOM COWL (16")
-
2022-291112 CONNECTOR, TELL TALE HOSE TO BOTTOM COWLCONNECTOR, TELL TALE HOSE TO BOTTOM COWL
-
2122-996642 ELBOW, TELL TALE HOSE TO EXHAUST COVERELBOW, TELL TALE HOSE TO EXHAUST COVER
-
2254-22976 CLAMP, TELL TALE HOSE TO CONNECTOR AND ELBOWCLAMP, TELL TALE HOSE TO CONNECTOR AND ELBOW
-
2327-47257 GASKET, POWERHEAD TO EXHAUST EXTENSION PLATEGASKET, POWERHEAD TO EXHAUST EXTENSION PLATE
-
2456306A2 PLATE ASSEMBLY, EXHAUST EXTENSIONPLATE ASSEMBLY, EXHAUST EXTENSION
-
2512-36446 WASHER, NYLON - WATER INLET TUBEWASHER, NYLON - WATER INLET TUBE
-
2626-36557 SEAL, RUBBER - WATER INLET TUBESEAL, RUBBER - WATER INLET TUBE
-
2738448 RETAINER, WATER TUBE SEAL
SERIAL 01809704-09999999RETAINER, WATER TUBE SEAL
SERIAL 01809704-09999999 -
2810-69069 SCREW, RETAINER TO EXHAUST EXTENSION PLATE (3/4")
SERIAL 01809704-09999999SCREW, RETAINER TO EXHAUST EXTENSION PLATE (3/4")
SERIAL 01809704-09999999 -
2910-56500 SCREW, EXHAUST EXTENSION PLATE TO DRIVE SHAFT HOUSING
SERIAL 01809704-09999999SCREW, EXHAUST EXTENSION PLATE TO DRIVE SHAFT HOUSING
SERIAL 01809704-09999999 -
3011-20184 NUT, EXHAUST EXTENSION PLATE SCREW
SERIAL 01809704-09999999NUT, EXHAUST EXTENSION PLATE SCREW
SERIAL 01809704-09999999 -
3127-38471 GASKET, EXHAUST EXTENSION PLATE TO DRIVE SHAFT HOUSINGGASKET, EXHAUST EXTENSION PLATE TO DRIVE SHAFT HOUSING
-
3237918 SEAL, EXHAUST EXTENSION PLATESEAL, EXHAUST EXTENSION PLATE
-
3399358 STRIP, RETAINING - EXHAUST EXTENSION PLATE SEALSTRIP, RETAINING - EXHAUST EXTENSION PLATE SEAL
-
3410-37571 SCREW, SEAL AND RETAINING STRIP TO EXHAUST EXTENSION PLATESCREW, SEAL AND RETAINING STRIP TO EXHAUST EXTENSION PLATE
-
3537824 BRACKET, SHIFT SHAFT HOLD DOWNBRACKET, SHIFT SHAFT HOLD DOWN
-
3610-8M0113176 SCREW, HOLD DOWN BRACKET TO EXHAUST EXTENSION PLATESCREW, HOLD DOWN BRACKET TO EXHAUST EXTENSION PLATE
-
3749904A2 SHIFT SHAFT ASSEMBLY, UPPERSHIFT SHAFT ASSEMBLY, UPPER
-
3846069A1 LINK ROD, SHIFTLINK ROD, SHIFT
-
3913-29720 WASHER, WAVE - LINK RODWASHER, WAVE - LINK ROD
-
4018-25191 COTTER PIN, LINK ROD TO SHIFT SHAFTCOTTER PIN, LINK ROD TO SHIFT SHAFT
-
4152732A6 BRACKET, ANCHOR - CONTROL CABLESBRACKET, ANCHOR - CONTROL CABLES
-
4238802 CAP, BRASS BARREL OF THROTTLE CABLE
SERIAL 01850449-09999999CAP, BRASS BARREL OF THROTTLE CABLE
SERIAL 01850449-09999999 -
4310-35386 SCREW, ANCHOR BRACKET TO CYLINDER BLOCK (1")SCREW, ANCHOR BRACKET TO CYLINDER BLOCK (1")
-
4424-20099 SPRING, LINK ROD TO GUIDE BLOCKSPRING, LINK ROD TO GUIDE BLOCK
-
4537896 GUIDE BLOCK, LINK RODGUIDE BLOCK, LINK ROD
-
4612-37905 WASHER, NYLON - LINK RODWASHER, NYLON - LINK ROD
-
478M0036768 LATCH, CONTROL CABLE FASTENING - ANCHOR BRACKETLATCH, CONTROL CABLE FASTENING - ANCHOR BRACKET
-
4812-69056 WASHER, PLAIN - LINK RODWASHER, PLAIN - LINK ROD
-
4911-8267089 NUT, LINK RODNUT, LINK ROD
-
5049932A1 LEVER, CONTROL CABLE LOCKING - ANCHOR BRACKETLEVER, CONTROL CABLE LOCKING - ANCHOR BRACKET
-
5124-37911 SPRING, CONTROL CABLE LOCKING LEVERSPRING, CONTROL CABLE LOCKING LEVER
-
5217-239281 PIN, ROLL - CONTROL CABLE LOCKING LEVERPIN, ROLL - CONTROL CABLE LOCKING LEVER
-
5324-38472 SPRING, CONTROL CABLE TENSION - ANCHOR BRACKETSPRING, CONTROL CABLE TENSION - ANCHOR BRACKET
