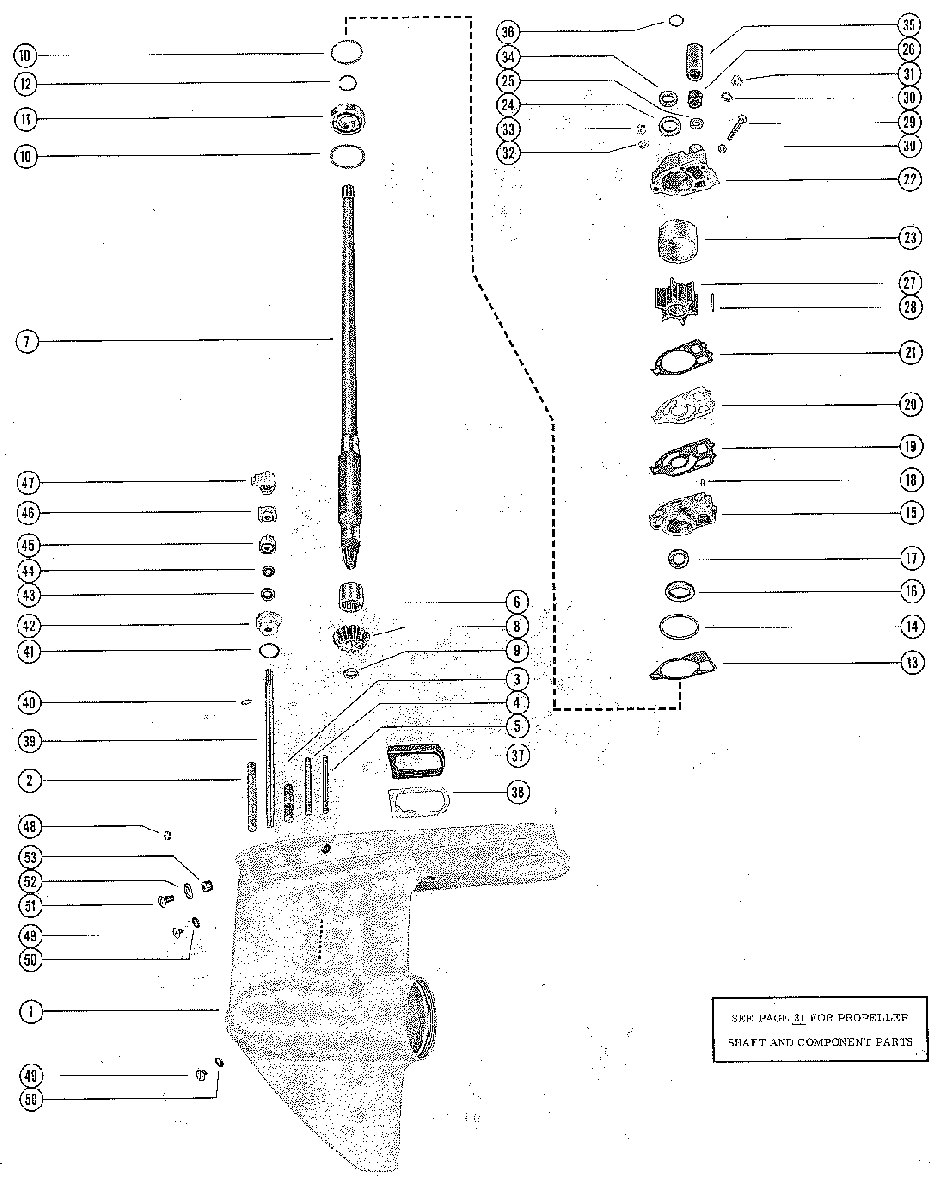

GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 1) для Mercury - 1000 1768404 THRU 2318585

  • №
    Артикул
    Название
  • -
    1623-3912A8 GEAR HOUSING ASSEMBLY, COMPLETE (STANDARD)
    A-1623-2460A11 GEAR HOUSING ASSEMBLY, COMPLETE INCLUDES ALL PARTS FROM REFERENCE #1 THRU REFERENCE #77 AS LISTED ON PAGES 30 AND 31
    GEAR HOUSING ASSEMBLY, COMPLETE (STANDARD)
    A-1623-2460A11 GEAR HOUSING ASSEMBLY, COMPLETE INCLUDES ALL PARTS FROM REFERENCE #1 THRU REFERENCE #77 AS LISTED ON PAGES 30 AND 31
  • 1
    1623-5244A14 GEAR HOUSING ASSEMBLY
    GEAR HOUSING ASSEMBLY
  • 2
    16-57921 STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (3 15/16")
    STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (3 15/16")
  • 3
    16-8M0133358 STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (1 31/32")
    STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (1 31/32")
  • 4
    16-8M0034463 STUD, WATER PUMP BASE AND BODY TO GEAR HOUSING (3 15/16")
    STUD, WATER PUMP BASE AND BODY TO GEAR HOUSING (3 15/16")
  • 5
    16-57919 STUD, WATER PUMP BASE AND BODY TO GEAR HOUSING (1 31/32")
    STUD, WATER PUMP BASE AND BODY TO GEAR HOUSING (1 31/32")
  • 6
    31-32898T BEARING, ROLLER - DRIVE SHAFT
    BEARING, ROLLER - DRIVE SHAFT
  • 7
    45-38459 DRIVE SHAFT (STANDARD)
    DRIVE SHAFT (STANDARD)
  • 8
    43-31419 GEAR, PINION - DRIVE SHAFT
    GEAR, PINION - DRIVE SHAFT
  • 9
    11-30932 NUT, PINION GEAR TO DRIVE SHAFT
    NUT, PINION GEAR TO DRIVE SHAFT
  • 10
    15-30278A1 SHIM, DRIVE SHAFT BALL BEARING TO GEAR HOUSING
    SHIM, DRIVE SHAFT BALL BEARING TO GEAR HOUSING
  • 11
    30-63326T BEARING, BALL - DRIVE SHAFT
    BEARING, BALL - DRIVE SHAFT
  • 12
    53-30726 RING, RETAINING - BALL BEARING
    RING, RETAINING - BALL BEARING
  • 10
    15-30278A1 SHIM, WATER PUMP BSAE TO GEAR HOUSING
    SHIM, WATER PUMP BSAE TO GEAR HOUSING
  • 13
    27-32438 GASKET, WATER PUMP BASE TO GEAR HOUSING
    GASKET, WATER PUMP BASE TO GEAR HOUSING
  • 14
    25-30224 "O" RING, WATER PUMP BASE
    "O" RING, WATER PUMP BASE
  • 15
    46-48758A1 WATER PUMP BASE ASSEMBLY
    SERIAL 00000000-01852623
    WATER PUMP BASE ASSEMBLY
    SERIAL 00000000-01852623
  • 15
    46-48758A1 WATER PUMP BASE ASSEMBLY
    SERIAL 01852624-09999999
    WATER PUMP BASE ASSEMBLY
    SERIAL 01852624-09999999
  • 16
    26-94038 OIL SEAL, WATER PUMP BASE
    OIL SEAL, WATER PUMP BASE
  • 17
    26-16977 OIL SEAL, WATER PUMP BASE
    OIL SEAL, WATER PUMP BASE
  • 18
    17-8M0084627 DOWEL PIN, WATER PUMP BASE TO WATER PUMP BODY
    DOWEL PIN, WATER PUMP BASE TO WATER PUMP BODY
  • 19
    27-8M0090319 GASKET, LOWER - WATER PUMP BASE TO FACE PLATE
    GASKET, LOWER - WATER PUMP BASE TO FACE PLATE
  • 20
    324351 PLATE, FACE - WATER PUMP BASE TO WATER PUMP BODY
    PLATE, FACE - WATER PUMP BASE TO WATER PUMP BODY
  • 21
    27-858524 GASKET, UPPER - FACE PLATE TO WATER PUMP BODY
    GASKET, UPPER - FACE PLATE TO WATER PUMP BODY
  • 22
    46-96148A8 WATER PUMP BODY ASSEMBLY
    WATER PUMP BODY ASSEMBLY
  • 23
    30915 INSERT, WATER PUMP BODY
    INSERT, WATER PUMP BODY
  • 24
    26-16977 OIL SEAL, WATER PUMP BODY
    OIL SEAL, WATER PUMP BODY
  • 25
    12-36446 WASHER, NYLON - WATER INLET TUBE
    WASHER, NYLON - WATER INLET TUBE
  • 26
    26-36557 SEAL, RUBBER - WATER INLET TUBE
    SEAL, RUBBER - WATER INLET TUBE
  • 27
    47-89984T4 IMPELLER, WATER PUMP
    IMPELLER, WATER PUMP
  • 28
    17-8M0034466 PIN, IMPELLER DRIVE
    PIN, IMPELLER DRIVE
  • 29
    10-30720 SCREW, WATER PUMP BODY TO GEAR HOUSING (1/4)
    SCREW, WATER PUMP BODY TO GEAR HOUSING (1/4)
  • 30
    13-26992 LOCKWASHER, WATER PUMP BODY FASTENING SCREW AND STUDS (1/4)
    LOCKWASHER, WATER PUMP BODY FASTENING SCREW AND STUDS (1/4)
  • 31
    11-29598 NUT, WATER PUMP BODY FASTENING STUDS (1/4)
    NUT, WATER PUMP BODY FASTENING STUDS (1/4)
  • 32
    13-26993 LOCKWASHER, WATER PUMP BODY FASTENING STUD (5/16)
    LOCKWASHER, WATER PUMP BODY FASTENING STUD (5/16)
  • 33
    11-28770 NUT, WATER PUMP BODY FASTENING STUD (5/16)
    NUT, WATER PUMP BODY FASTENING STUD (5/16)
  • 34
    25-30271 RING, RUBBER - CENTRIFUGAL SLINGER (DRIVE SHAFT)
    RING, RUBBER - CENTRIFUGAL SLINGER (DRIVE SHAFT)
  • 35
    23-29804T SLEEVE, GUIDE - WATER INLET TUBE
    SLEEVE, GUIDE - WATER INLET TUBE
  • 36
    25-30613 "O" RING, UPPER - DRIVE SHAFT
    "O" RING, UPPER - DRIVE SHAFT
  • 37
    37641001 SEAL, EXHAUST TUBE
    SEAL, EXHAUST TUBE
  • 38
    38051 PLATE, SUPPORT - EXHAUST TUBE SEAL
    PLATE, SUPPORT - EXHAUST TUBE SEAL
  • 39
    76062A1 SHAFT, SHIFT - LOWER
    SHAFT, SHIFT - LOWER
  • 40
    53-29641 CLIP, RETAINING - SHIFT SHAFT
    CLIP, RETAINING - SHIFT SHAFT
  • 41
    25-25439 "O" RING, SHIFT SHAFT BUSHING
    "O" RING, SHIFT SHAFT BUSHING
  • 42
    23-77631A2 BUSHING ASSEMBLY, SHIFT SHAFT
    BUSHING ASSEMBLY, SHIFT SHAFT
  • 43
    26-892361 OIL SEAL, SHIFT SHAFT BUSHING
    OIL SEAL, SHIFT SHAFT BUSHING
  • 44
    12-31266 WASHER, RUBBER - SHIFT SHAFT BUSHING
    WASHER, RUBBER - SHIFT SHAFT BUSHING
  • 45
    37422 CAM, LOWER - REVERSE LOCKING
    CAM, LOWER - REVERSE LOCKING
  • 46
    37421 CAM, DRIVE - REVERSE LOCKING
    CAM, DRIVE - REVERSE LOCKING
  • 47
    37420 CAM, UPPER - REVERSE LOCKING
    CAM, UPPER - REVERSE LOCKING
  • 48
    22-390721 PLUG, PIPE - SHIFT SHAFT GREASE FILLER HOLE
    PLUG, PIPE - SHIFT SHAFT GREASE FILLER HOLE
  • 49
    10-79953Q04 SCREW, GREASE FILLER AND VENT HOLE
    SCREW, GREASE FILLER AND VENT HOLE
  • 50
    12-191833 WASHER, GREASE FILLER AND VENT HOLE SCREW
    WASHER, GREASE FILLER AND VENT HOLE SCREW
  • 51
    10-29608 SCREW, GEAR HOUSING FLUSHING HOLE
    SCREW, GEAR HOUSING FLUSHING HOLE
  • 52
    27-29586 GASKET, GEAR HOUSING FLUSHING HOLE SCREW
    GASKET, GEAR HOUSING FLUSHING HOLE SCREW
  • 53
    26-29612 SEAL, GEAR HOUSING FLUSHING HOLE
    SEAL, GEAR HOUSING FLUSHING HOLE
