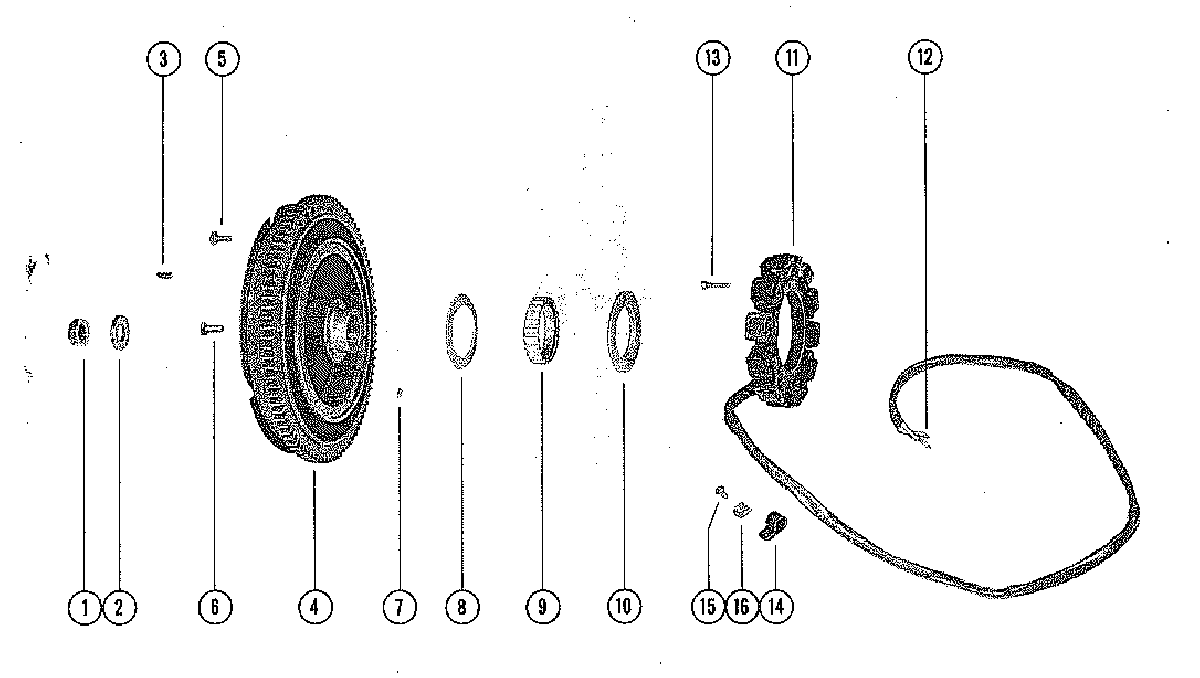

FLYWHEEL ASSEMBLY AND STATOR для Mercury - 1000 1768404 THRU 2318585
-
№АртикулНазвание
-
111-22339 NUT, FLYWHEELNUT, FLYWHEEL
-
212-33001 WASHER, FLYWHEEL NUTWASHER, FLYWHEEL NUT
-
328-45554 KEY, FLYWHEEL DRIVEKEY, FLYWHEEL DRIVE
-
4225-2494A15 FLYWHEEL ASSEMBLY, COMPLETEFLYWHEEL ASSEMBLY, COMPLETE
-
510-32156 SCREW, FLEXIBLE PLATE TO FLYWHEELSCREW, FLEXIBLE PLATE TO FLYWHEEL
-
610-32417 SCREW, PLATE AND HUB TO FLEXIBLE PLATESCREW, PLATE AND HUB TO FLEXIBLE PLATE
-
717-26618 PIN, DOWEL- PULLEY TO FLYWHEELPIN, DOWEL- PULLEY TO FLYWHEEL
-
829788 FLANG,E FLYWHEEL PULLEYFLANG,E FLYWHEEL PULLEY
-
930306 PULLEY, FLYWHEELPULLEY, FLYWHEEL
-
1029787 HUB, FLYWHEEL PULLEYHUB, FLYWHEEL PULLEY
-
11398-2188 STATOR, ALTERNATORSTATOR, ALTERNATOR
-
1230050 TERMINAL, STATOR LEAD WIRETERMINAL, STATOR LEAD WIRE
-
1310-57021 SCREW, STATOR TO UPPER END CAPSCREW, STATOR TO UPPER END CAP
-
1454-22740 CLIP, STATOR LEAD FASTENING (3/8")CLIP, STATOR LEAD FASTENING (3/8")
-
1454-22875 CLIP, STATOR LEAD FASTENING (7/16")CLIP, STATOR LEAD FASTENING (7/16")
-
1510-8M0113176 SCREW, STATOR LEAD CLIP FASTENING (10 - 24 X 3/8")SCREW, STATOR LEAD CLIP FASTENING (10 - 24 X 3/8")
-
1510-62568 SCREW, STATOR LEAD CLIP FASTENING (10)SCREW, STATOR LEAD CLIP FASTENING (10)
-
168M0084613 "D" WASHER, CLIP FASTENING SCREW"D" WASHER, CLIP FASTENING SCREW
