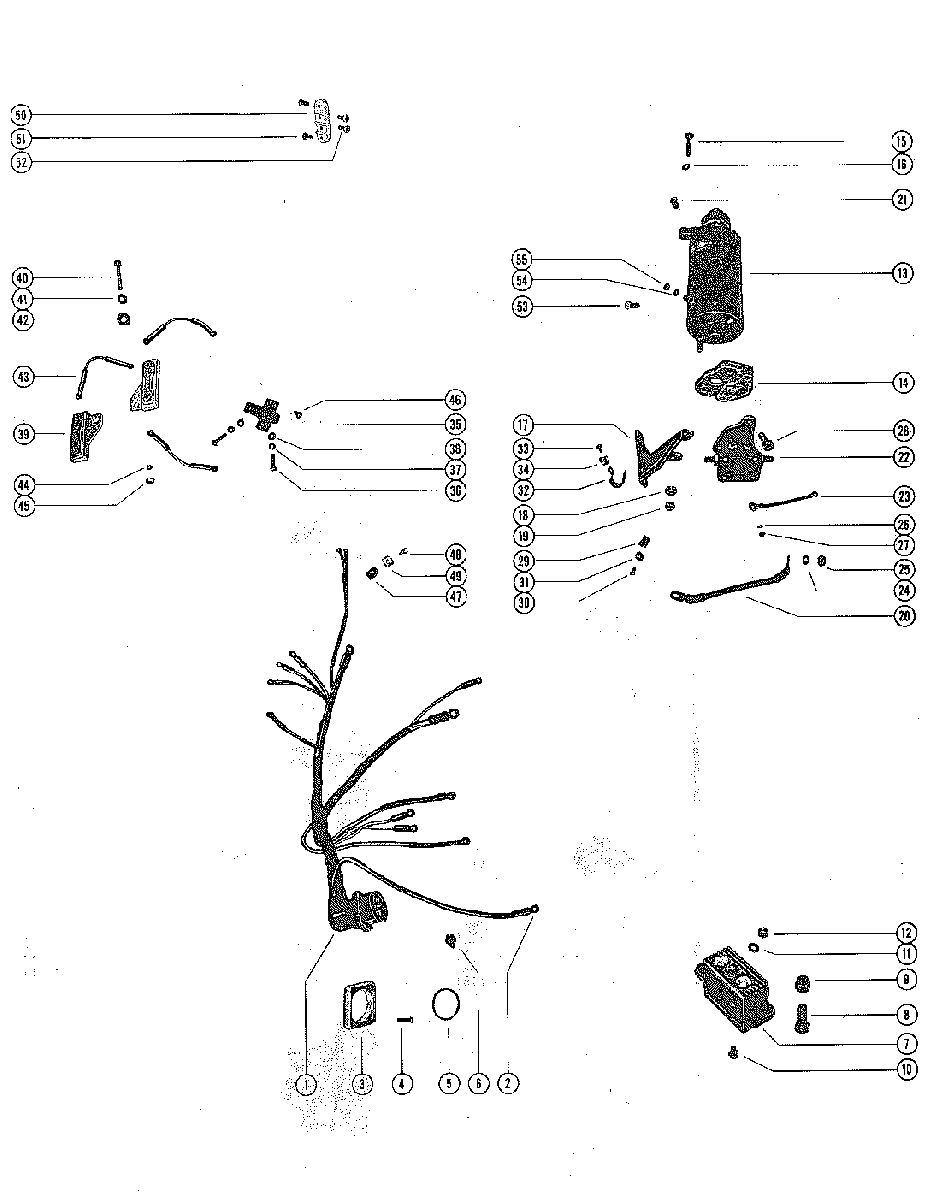

STARTER MOTOR, STARTER SOLINOID, RECTIFIER & WIRING HARNESS для Mercury - 1000 1768404 THRU 2318585
-
№АртикулНазвание
-
137817 WIRING HARNESS, INTERNALWIRING HARNESS, INTERNAL
-
230050 TERMINAL, HARNESS AND MERCURY SWITCH LEADSTERMINAL, HARNESS AND MERCURY SWITCH LEADS
-
326079A2 PLATE, WIRING HARNESS TO BOTTO COWLPLATE, WIRING HARNESS TO BOTTO COWL
-
410-45893 SCREW, HARNESS PLATE FASTENINGSCREW, HARNESS PLATE FASTENING
-
524-28975 SPRING, GARTER- INTERNAL WIRING HARNESSSPRING, GARTER- INTERNAL WIRING HARNESS
-
654-22783 "S" CLIP, RECTIFIER HARNESS LEAD TO BOTTOM COWL"S" CLIP, RECTIFIER HARNESS LEAD TO BOTTOM COWL
-
732177A2 RECTIFIER ASSEMBLYRECTIFIER ASSEMBLY
-
810-26065 SCREW, RECTIFIER TO MOUNTING BRACKETSCREW, RECTIFIER TO MOUNTING BRACKET
-
911-29250 NUT, RECTIFIER MOUNTING SCREWNUT, RECTIFIER MOUNTING SCREW
-
1010-35400 SCREW, HARNESS TERMINAL LEAD TO RECTIFIERSCREW, HARNESS TERMINAL LEAD TO RECTIFIER
-
1113-26996 LOCKWASHER, RECTIFIER STATOR LEAD TERMINALSLOCKWASHER, RECTIFIER STATOR LEAD TERMINALS
-
1211-68219 NUT, FASTENING - RECTIFIER STATOR LEADSNUT, FASTENING - RECTIFIER STATOR LEADS
-
1350-45822A1 STARTER MOTOR ASSEMLBYSTARTER MOTOR ASSEMLBY
-
1445125 PLATE, SPACER- STARTER MOTORPLATE, SPACER- STARTER MOTOR
-
1510-22698 SCREW, STARTER MOTOR TO CRANKCASE FLANGESCREW, STARTER MOTOR TO CRANKCASE FLANGE
-
1510-22698 SCREW, STARTER MOTOR TO CRANKCASE FLANGESCREW, STARTER MOTOR TO CRANKCASE FLANGE
-
1613-26993 LOCKWASHER, STARTER MOTOR FASTENING SCREWLOCKWASHER, STARTER MOTOR FASTENING SCREW
-
1738747 BRACKET, SUPPORT - STARTER MOTORBRACKET, SUPPORT - STARTER MOTOR
-
1813-24669 LOCKWASHER, THRU BOLTLOCKWASHER, THRU BOLT
-
1911-20890 NUT, THRU BOLT - BRACKET TO STARTER MOTORNUT, THRU BOLT - BRACKET TO STARTER MOTOR
-
2084-93388A14 CABLE, WIRE - STARTER MOTOR TO SOLENOIDCABLE, WIRE - STARTER MOTOR TO SOLENOID
-
2110-69035 SCREW, HARNESS GROUND LEAD TO STARTER MOTORSCREW, HARNESS GROUND LEAD TO STARTER MOTOR
-
2232082 SOLENOID, STARTERSOLENOID, STARTER
-
2332278A1 GROUND STRAP ASSEMBLY, STARTER SOLENOIDGROUND STRAP ASSEMBLY, STARTER SOLENOID
-
2413-26993 NUT, SOLENOID TERMINAL (5/16)NUT, SOLENOID TERMINAL (5/16)
-
2613-26996 LOCKWASHER, SOLENOID TERMINAL (10)LOCKWASHER, SOLENOID TERMINAL (10)
-
2711-68219 NUT, SOLENOID TERMINAL (10)NUT, SOLENOID TERMINAL (10)
-
2810-29282 SCREW, SOLENOID TO STARTER MOTORSCREW, SOLENOID TO STARTER MOTOR
-
2954-24836 CLIP, LEAD WIRES TO SUPPORT BRACKETCLIP, LEAD WIRES TO SUPPORT BRACKET
-
3010-62568 SCREW, LEAD WIRE CLIP FASTENINGSCREW, LEAD WIRE CLIP FASTENING
-
318M0084613 "D" WASHER, CLIP FSTENING SCREW"D" WASHER, CLIP FSTENING SCREW
-
3254-24871 CLAMP, WIRING HARNESS TO SUPPORT BRACKETCLAMP, WIRING HARNESS TO SUPPORT BRACKET
-
3310-62568 SCREW, HARNESS CLAMP FASTENINGSCREW, HARNESS CLAMP FASTENING
-
348M0084613 "D" WASHER, HARNESS CLAMP"D" WASHER, HARNESS CLAMP
-
3529714 BLOCK, TERMINAL - UPPER FUEL PUMP PADBLOCK, TERMINAL - UPPER FUEL PUMP PAD
-
3610-22245 SCREW, TERMINAL BLOCK FSTENINGSCREW, TERMINAL BLOCK FSTENING
-
3713-26996 LOCKWASHER, TERMINAL BLOCK FASTENING SCREWLOCKWASHER, TERMINAL BLOCK FASTENING SCREW
-
3812-26014 WASHER, TERMINAL BLOCK FASTENING SCREWWASHER, TERMINAL BLOCK FASTENING SCREW
-
3982-72878A1 BALLAST, IGNITION COILBALLAST, IGNITION COIL
-
4010-28666 SCREW, BALLAST AND PORT COVER MOUNTING (1")SCREW, BALLAST AND PORT COVER MOUNTING (1")
-
4113-26992 LOCKWASHER, BALLAST AND PORT COVER MOUNTING SCREWLOCKWASHER, BALLAST AND PORT COVER MOUNTING SCREW
-
4212-69057 WASHER, BALLAST AND PORT COVER MOUNTING SCREWWASHER, BALLAST AND PORT COVER MOUNTING SCREW
-
4329112 JUMPER, BALLAST TO BALLAST AND BALLAST TO BLOCKJUMPER, BALLAST TO BALLAST AND BALLAST TO BLOCK
-
4413-26995 LOCKWASHER, BALLAST JUMPER LEAD TERMINALSLOCKWASHER, BALLAST JUMPER LEAD TERMINALS
-
4511-21923T NUT, BALLAST JUMPER LEADS FASTENINGNUT, BALLAST JUMPER LEADS FASTENING
-
4610-35400 SCREW, HARNESS AND JUMPER LEADS TO TERMINAL BLOCKSCREW, HARNESS AND JUMPER LEADS TO TERMINAL BLOCK
-
4754-24836 CLIP, WIRING HARNESS TO CRANKCASE FLANGECLIP, WIRING HARNESS TO CRANKCASE FLANGE
-
4810-8M0113176 SCREW, HARNESS CLIP FASTENINGSCREW, HARNESS CLIP FASTENING
-
498M0084613 "D" WASHER, HARNESS CLIP"D" WASHER, HARNESS CLIP
-
5030212 BLOCK, TERMINAL - EXHAUST COVERBLOCK, TERMINAL - EXHAUST COVER
-
5110-62568 SCREW, HARNESS LEADS TO TERMINAL BLOCKSCREW, HARNESS LEADS TO TERMINAL BLOCK
-
5210-72169 SCREW, TERMINAL BLOCK TO EXHAUST MANIFOLD COVERSCREW, TERMINAL BLOCK TO EXHAUST MANIFOLD COVER
-
5310-32471 SCREW, SOLENOID MOUNTING HOLES IN STARTER MOTORSCREW, SOLENOID MOUNTING HOLES IN STARTER MOTOR
-
5413-26992 LOCKWASHER, STARTER MOTOR TERMINALLOCKWASHER, STARTER MOTOR TERMINAL
-
5511-20890 NUT, STARTER MOTOR TERMINALNUT, STARTER MOTOR TERMINAL
