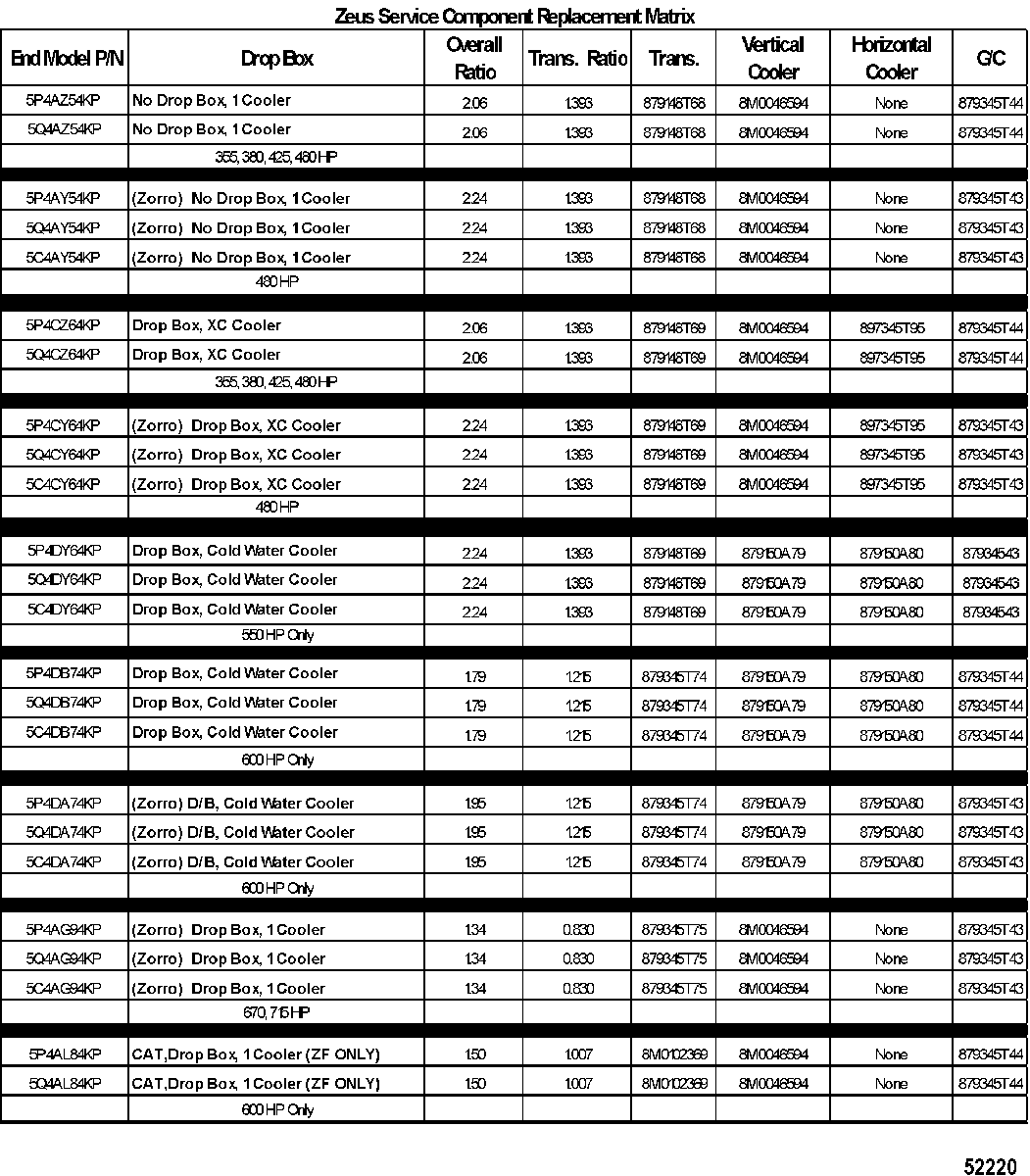

Zeus Service Component Replacement Matrix для Mercruiser - ZEUS 3000 0M968828 THRU 0M968852
-
№АртикулНазвание
-
-879148T68 TRANSMISSION, (1.393:1 Gear Ratio)(No Drop Box)TRANSMISSION, (1.393:1 Gear Ratio)(No Drop Box)
-
-879148T69 TRANSMISSION, (1.393:1 Gear Ratio)(With Drop Box)TRANSMISSION, (1.393:1 Gear Ratio)(With Drop Box)
-
-879345T74 TRANSMISSION, (1.215:1 Gear Ratio)(With Drop Box)TRANSMISSION, (1.215:1 Gear Ratio)(With Drop Box)
-
-879345T75 TRANSMISSION, (.831:1 Gear Ratio)(With Drop Box)TRANSMISSION, (.831:1 Gear Ratio)(With Drop Box)
-
-8M0102369 TRANSMISSION, (1.007:1 Gear Ratio)(With Drop Box)TRANSMISSION, (1.007:1 Gear Ratio)(With Drop Box)
-
-8M0046594 COOLER, OilCOOLER, Oil
-
-879150A79 COOLERCOOLER
-
-897345T95 COOLERCOOLER
-
-879150A80 COOLERCOOLER
-
-879345T43 GEARCASE ASSEMBLY, 1.611 RatioGEARCASE ASSEMBLY, 1.611 Ratio
-
-879345T44 GEARCASE ASSEMBLY, 1.478 RatioGEARCASE ASSEMBLY, 1.478 Ratio
-
-5-5P4AZ54KP ZEUS DR SC2.5, NO DBX PORT 2.06ZEUS DR SC2.5, NO DBX PORT 2.06
-
-5-5Q4AZ54KP ZEUS DR SC2.5, NO DBX STBD 2.06ZEUS DR SC2.5, NO DBX STBD 2.06
-
-5-5P4AY54KP ZEUS DR SC2.5, NO DBX PORT 2.24ZEUS DR SC2.5, NO DBX PORT 2.24
-
-5-5Q4AY54KP ZEUS DR SC2.5, NO DBX STBD 2.24ZEUS DR SC2.5, NO DBX STBD 2.24
-
-5-5C4AY54KP ZEUS DR SC2.5, NO DBX CENTER 2.24ZEUS DR SC2.5, NO DBX CENTER 2.24
-
-5-5P4CZ64KP ZEUS DR SC2.5, W/ DBX PORT 2.06ZEUS DR SC2.5, W/ DBX PORT 2.06
-
-5-5Q4CZ64KP ZEUS DR SC2.5, W/ DBX STBD 2.06ZEUS DR SC2.5, W/ DBX STBD 2.06
-
-5-5P4CY64KP ZEUS DR SC2.5, W/ DBX PORT 2.24ZEUS DR SC2.5, W/ DBX PORT 2.24
-
-5-5Q4CY64KP ZEUS DR SC2.5, W/ DBX STBD 2.24ZEUS DR SC2.5, W/ DBX STBD 2.24
-
-5-5C4CY64KP ZEUS DR SC2.5, W/ DBX CENTER 2.24ZEUS DR SC2.5, W/ DBX CENTER 2.24
-
-5-5P4DB74KP ZEUS DR SC2.5, W/ DBX PORT 1.79ZEUS DR SC2.5, W/ DBX PORT 1.79
-
-5-5Q4DB74KP ZEUS DR SC2.5, W/ DBX STBD 1.79ZEUS DR SC2.5, W/ DBX STBD 1.79
-
-5-5C4DB74KP ZEUS DR SC2.5, W/ DBX CENTER 1.79ZEUS DR SC2.5, W/ DBX CENTER 1.79
-
-5-5P4DA74KP ZEUS DR SC2.5, W/ DBX PORT 1.95ZEUS DR SC2.5, W/ DBX PORT 1.95
-
-5-5Q4DA74KP ZEUS DR SC2.5, W/ DBX STBD 1.95ZEUS DR SC2.5, W/ DBX STBD 1.95
-
-5-5C4DA74KP ZEUS DR SC2.5, W/ DBX CENTER 1.95ZEUS DR SC2.5, W/ DBX CENTER 1.95
-
-5-5P4AG94KP ZEUS DR SC2.5, W/ DBX PORT 1.34ZEUS DR SC2.5, W/ DBX PORT 1.34
-
-5-5Q4AG94KP ZEUS DR SC2.5, W/ DBX STBD 1.34ZEUS DR SC2.5, W/ DBX STBD 1.34
-
-5-5C4AG94KP ZEUS DR SC2.5, W/ DBX CENTER 1.34ZEUS DR SC2.5, W/ DBX CENTER 1.34
-
-5-5P4AL84KP ZEUS DR SC2.5, W/ DBX PORT 1.5ZEUS DR SC2.5, W/ DBX PORT 1.5
-
-5-5Q4AL84KP ZEUS DR SC2.5, W/ DBX STBD 1.5ZEUS DR SC2.5, W/ DBX STBD 1.5
-
-5-5P4DY64KP ZEUS DR SC2.5, W/ DBX PORT 2.24ZEUS DR SC2.5, W/ DBX PORT 2.24
-
-5-5C4DY64KP ZEUS DR SC2.5, W/ DBX CENTER 2.24ZEUS DR SC2.5, W/ DBX CENTER 2.24
-
-5-5Q4DY64KP ZEUS DR SC2.5, W/ DBX STBD 2.24ZEUS DR SC2.5, W/ DBX STBD 2.24
Все узлы модели:
- Cooling System(Cold Water Cooler)
- Cooling System(Single Cooler)
- Cooling System(XC Cooler)
- Driveshaft, QSB, QSC
- Driveshaft, QSM
- Elbow, POD Exhaust, With Scavenging Hose Bib
- Elbow, POD Exhaust, Without Scavenging Hose Bib
- Electrical
- Exhaust Tube, QSB 5.9
- Exhaust Tube, QSB 6.7, Design-I, 0-Degree Offset Bib
- Exhaust Tube, QSB 6.7, Design-II, 19-Degree Offset Bib
- Exhaust Tube, QSC, Design-I, 5 Inch
- Exhaust Tube, QSC, Design-II, Center, 6 Inch
- Exhaust Tube, QSC, Design-II, Port & Stbd, 6 Inch
- Exhaust Tube, QSM
- Gear Housing
- Harnesses
- Hydraulic Filter Assembly, High Pressure
- Hydraulic Pump, Primary
- Hydraulic System, Port
- Hydraulic System, Starboard
- Lube Bottle
- Midsection, Lower
- Midsection, Upper
- Propellers, H-Series
- Propellers, M-Series
- Propellers, Z-Series
- Riser, Exhaust, QSB 5.9
- Riser, Exhaust, QSB 6.7
- Riser, Exhaust, QSC, Center, Design-II Stamped 8M6002616
- Riser, Exhaust, QSC, Port & Stbd, Design-I Stamped 8M0068886
- Riser, Exhaust, QSC, Port & Stbd,Design-II Stamped 8M6002617
- Riser, Exhaust, QSM
- Service/Support Material
- Shaft Guard, Engine
- Shaft Guard, POD, QSB, QSC
- Shaft Guard, POD, QSM
- Shroud Assembly
- Steering System, Actuator
- Steering System, Lower King Pin Adaptor (14mm Fasteners)
- Tools
- Tools(Continued)
- Transmission Oil Lines, No Drop Box
- Transmission Oil Lines, With Drop Box
- Transmission Oil Lines, With Drop Box Cold Water Cooler
- Transmissions
- Trim Components
- • Zeus Service Component Replacement Matrix
- Zeus Service Model Replacement Chart
