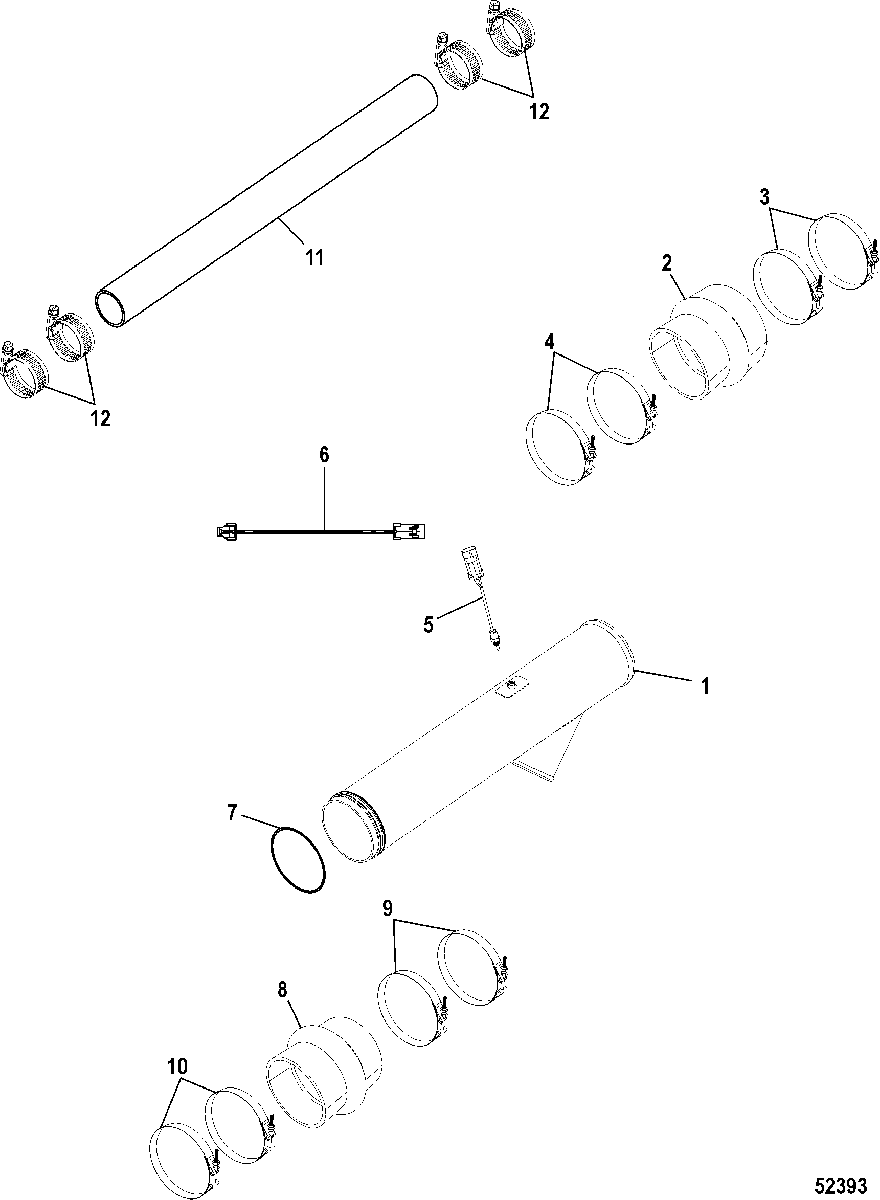

Exhaust Tube, QSC, Design-I, 5 Inch для Mercruiser - ZEUS 3000 0M968828 THRU 0M968852
-
№АртикулНазвание
-
-8M0077197 EXHAUST TUBE KIT
PORTEXHAUST TUBE KIT
PORT -
-8M0077197 EXHAUST TUBE KIT
STARBOARDEXHAUST TUBE KIT
STARBOARD -
1NSS NOT SOLD SEPARATE, EXHAUST TUBENOT SOLD SEPARATE, EXHAUST TUBE
-
232-8M0068867 HOSE, 127 x 152.4mmHOSE, 127 x 152.4mm
-
354-8M0068909 CLAMP, 160-168mmCLAMP, 160-168mm
-
454-8M0068908 CLAMP, 134-142mmCLAMP, 134-142mm
-
58M0039116 SENSOR, TemperatureSENSOR, Temperature
-
684-8M0068874 HARNESS, Exhaust TemperatureHARNESS, Exhaust Temperature
-
725-8M0068905 SEAL, O RINGSEAL, O RING
-
832-8M0068866 HOSE, Exhaust, 127 x 139.7mmHOSE, Exhaust, 127 x 139.7mm
-
954-8M0068908 CLAMP, 134-142mmCLAMP, 134-142mm
-
1054-8M0068907 CLAMP, 148-155mmCLAMP, 148-155mm
-
1132-8M0068897 HOSE, 38.1 x 1067mmHOSE, 38.1 x 1067mm
-
1254-8M0068823 CLAMP, HOSE, 27-51mmCLAMP, HOSE, 27-51mm
