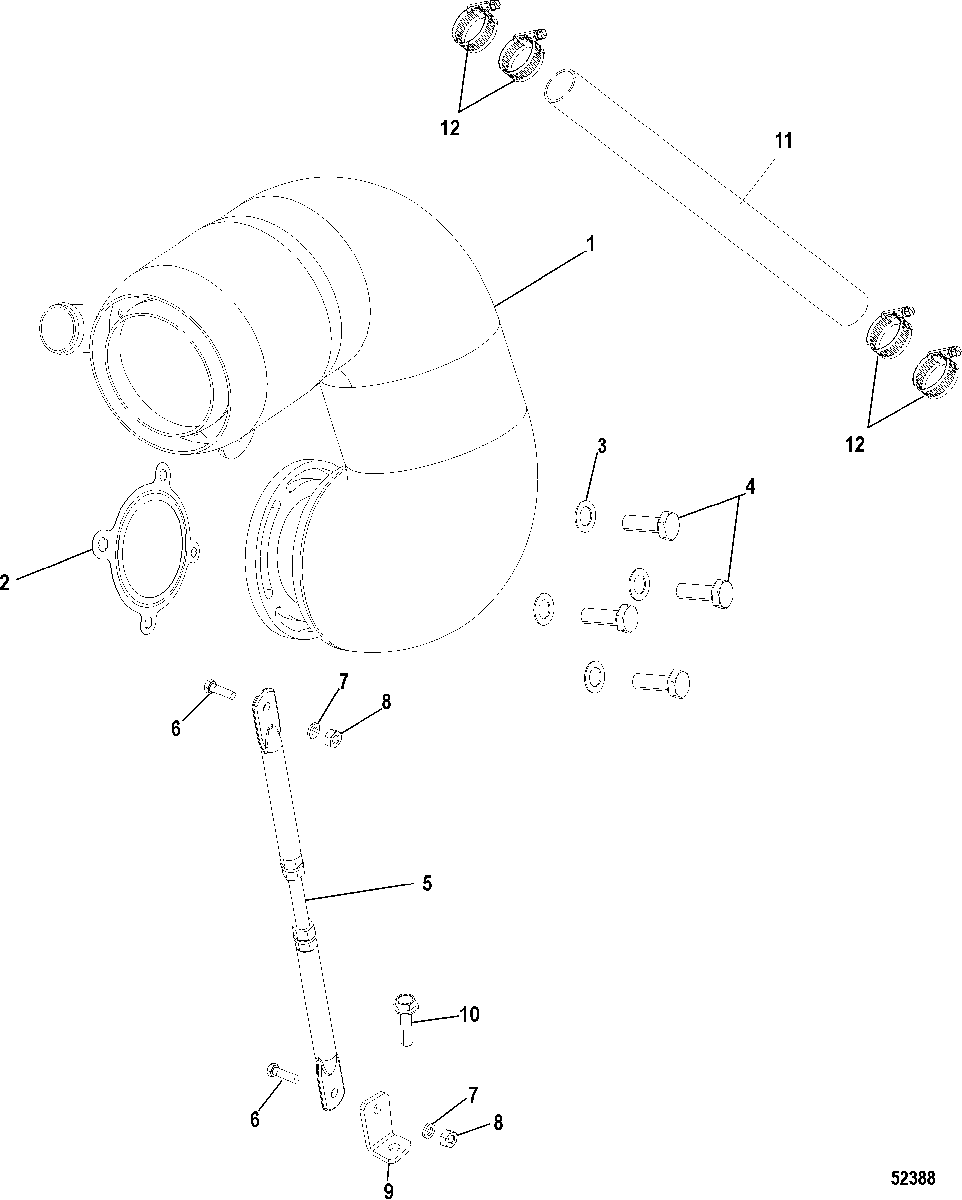

Riser, Exhaust, QSC, Port & Stbd, Design-I Stamped 8M0068886 для Mercruiser - ZEUS 3000 0M968828 THRU 0M968852

  • №
    Артикул
    Название
  • -
    8M0077220 RISER KIT, Exhaust Elbow
    RISER KIT, Exhaust Elbow
  • 1
    NSS NOT SOLD SEPARATE, RISER
    NOT SOLD SEPARATE, RISER
  • 2
    27-8M0068859 GASKET
    GASKET
  • 3
    12-8M0068831 WASHER
    WASHER
  • 4
    10-853219 SCREW, (M8 x 25)
    SCREW, (M8 x 25)
  • 5
    8M0068856 BRACE
    BRACE
  • 6
    10-35047 SCREW, (.375-16 x 1.250) Stainless Steel
    SCREW, (.375-16 x 1.250) Stainless Steel
  • 7
    12-34931 WASHER, (.406 x .734 x .063) Stainless Steel
    WASHER, (.406 x .734 x .063) Stainless Steel
  • 8
    11-82670912 NUT, (.375-16) Stainless Steel
    NUT, (.375-16) Stainless Steel
  • 9
    8M0068904 BRACE
    BRACE
  • 10
    10-8M0068824 SCREW, (M12 x 1.75)
    SCREW, (M12 x 1.75)
  • 11
    32-8M0068899 HOSE, 50.8 x 711.2mm
    HOSE, 50.8 x 711.2mm
  • 12
    54-8M0068822 CLAMP, HOSE, 46-70mm
    CLAMP, HOSE, 46-70mm
