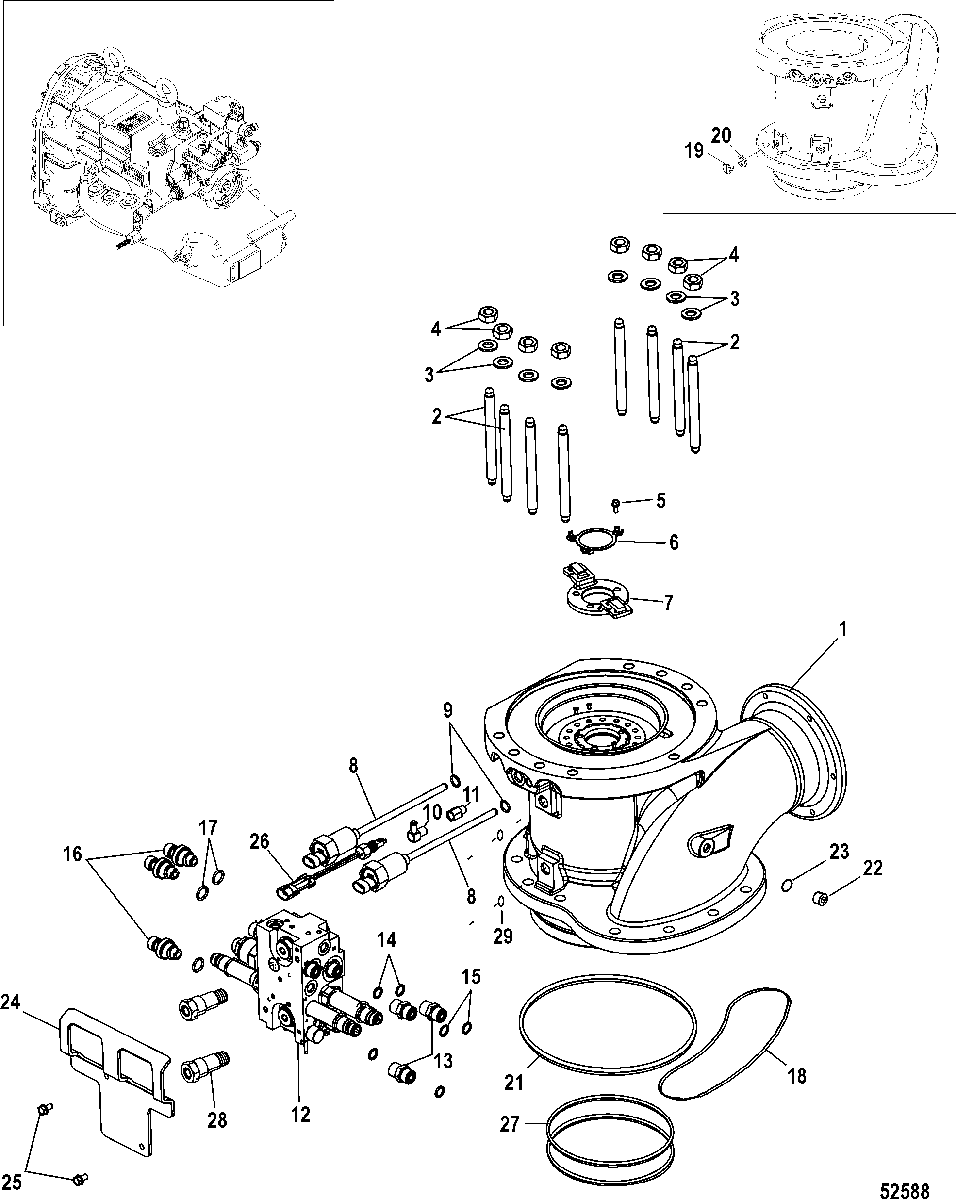

Steering System, Actuator для Mercruiser - ZEUS 3000 0M968828 THRU 0M968852

  • №
    Артикул
    Название
  • 1
    8M8025206 ACTUATOR
    ACTUATOR
  • 2
    16-8M0090589 STUD, (M12 x 140)
    SN# 0M972208 & Below
    STUD, (M12 x 140)
    SN# 0M972208 & Below
  • 2
    16-8M0090589 STUD, (M12 x 140)
    SN# 0M972209 & Up
    STUD, (M12 x 140)
    SN# 0M972209 & Up
  • 3
    12-4002321 WASHER, (12.80 mm x 24.0 mm x 2.4 mm) Stainless Steel
    WASHER, (12.80 mm x 24.0 mm x 2.4 mm) Stainless Steel
  • 4
    11-896895 NUT, (M12)
    NUT, (M12)
  • 5
    10-4000327 SCREW, (M6 x 14)
    SCREW, (M6 x 14)
  • 6
    8M0007700 PLATE
    PLATE
  • 7
    8M0007666 BRACKET
    BRACKET
  • 8
    8M0050825 SENSOR
    SENSOR
  • 9
    25-831985 O-RING, (.468 x .078)
    O-RING, (.468 x .078)
  • 10
    22-196881 FITTING, (90 Degree)
    FITTING, (90 Degree)
  • 11
    22-28586 FITTING, Adapter
    FITTING, Adapter
  • 12
    8M0079529 MANIFOLD
    MANIFOLD
  • 13
    22-8M0033226 FITTING, (11/16 - 16)Straight (Stainless Steel)
    FITTING, (11/16 - 16)Straight (Stainless Steel)
  • 14
    25-8M0047401 O-RING, (.468 X .078)
    O-RING, (.468 X .078)
  • 15
    25-8M0047399 O-RING
    O-RING
  • 16
    8M6001897 TRANSDUCER
    TRANSDUCER
  • 17
    25-8M0024307 O-RING, (8.92 x 1.83)
    O-RING, (8.92 x 1.83)
  • 18
    25-8M0007558 O RING, (152.07 x 2.62)
    O RING, (152.07 x 2.62)
  • 19
    10-79953A04 PLUG ASSEMBLY, (.375-16 x .250)
    PLUG ASSEMBLY, (.375-16 x .250)
  • 20
    26-830749 SEAL
    SEAL
  • 21
    25-8M0007701 O-RING, (183.74 x 3.53)
    O-RING, (183.74 x 3.53)
  • 22
    22-8M0042546 PLUG, (M10 x 15)
    PLUG, (M10 x 15)
  • 23
    25-896699 O-RING, (1.78 mm x .08 mm)
    O-RING, (1.78 mm x .08 mm)
  • 24
    8M8025203 BRACKET
    BRACKET
  • 25
    10-40011126 SCREW, (M6 x 13) Stainless Steel
    SCREW, (M6 x 13) Stainless Steel
  • 26
    8M0021043 SENSOR ASSEMBLY, Fuel and Water
    SENSOR ASSEMBLY, Fuel and Water
  • 27
    26-8M0045622 SEAL, Oscillating
    SEAL, Oscillating
  • 28
    8M6002550 BANJO BOLT
    BANJO BOLT
  • 29
    25-8M0094507 O-RING, (17.93 x 2.46)
    O-RING, (17.93 x 2.46)
