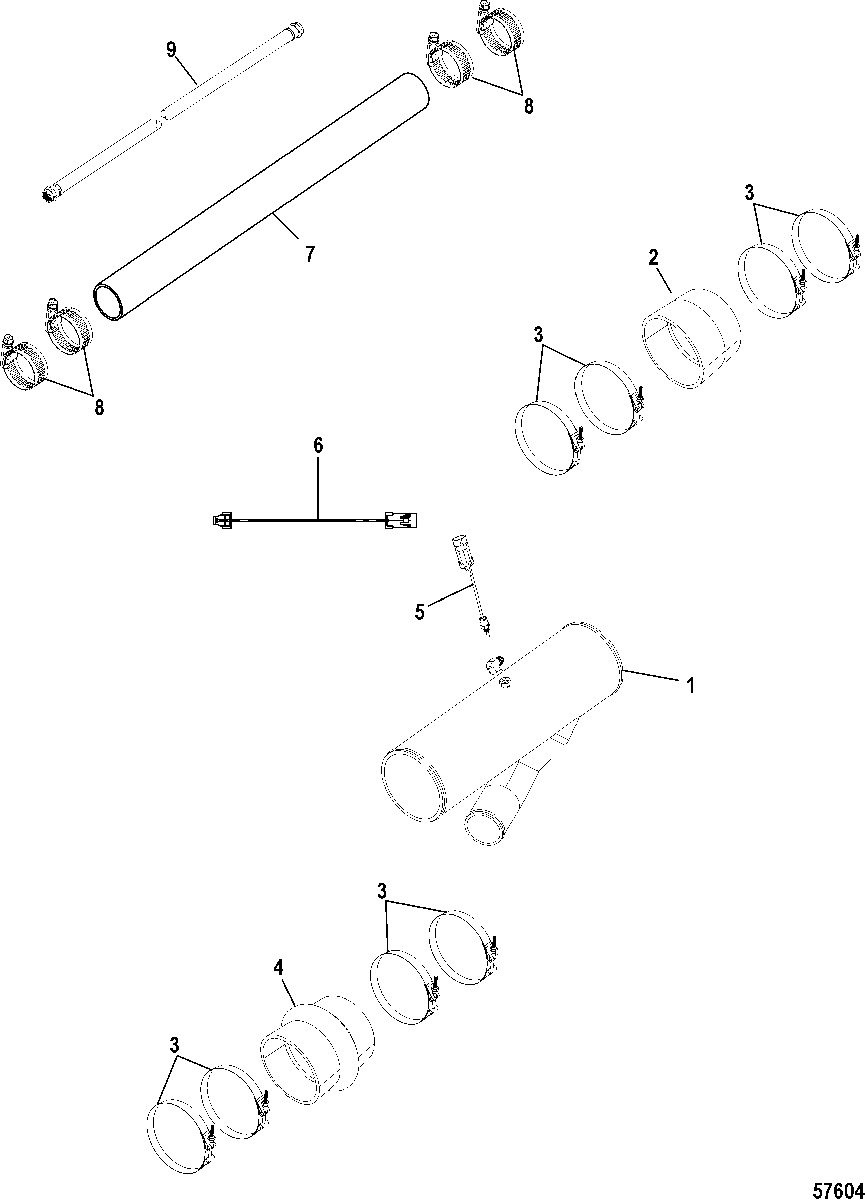

Exhaust Tube, QSC, Design-II, Center, 6 Inch для Mercruiser - ZEUS 3000 0M968828 THRU 0M968852
-
№АртикулНазвание
-
-8M0087908 EXHAUST TUBE KITEXHAUST TUBE KIT
-
1NSS NOT SOLD SEPARATE, EXHAUST TUBENOT SOLD SEPARATE, EXHAUST TUBE
-
232-8M0072141 HOSE, Exhaust, 165.1 x 165.1mmHOSE, Exhaust, 165.1 x 165.1mm
-
354-8M0068909 CLAMP, 160-168mmCLAMP, 160-168mm
-
432-8M0072140 HOSE, Exhaust, 152.4 x 152.4mmHOSE, Exhaust, 152.4 x 152.4mm
-
58M0039116 SENSOR, TemperatureSENSOR, Temperature
-
684-8M0068874 HARNESS, Exhaust TemperatureHARNESS, Exhaust Temperature
-
732-8M0069089 HOSE, 38.1 x 889mmHOSE, 38.1 x 889mm
-
854-8M0068823 CLAMP, HOSE, 27-51mmCLAMP, HOSE, 27-51mm
-
932-8M0079382 HOSEHOSE
