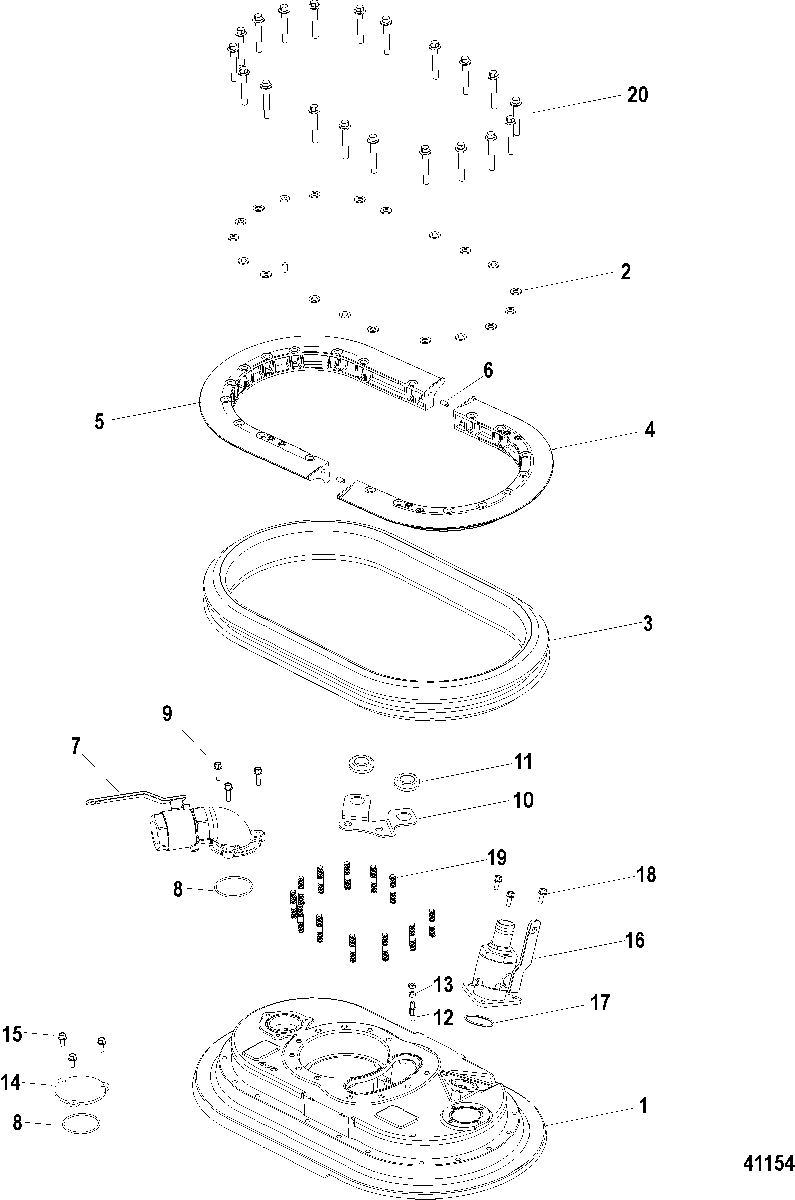

Midsection, Upper для Mercruiser - ZEUS 3000 0M968828 THRU 0M968852

  • №
    Артикул
    Название
  • 1
    8M0094678 MID SECTION PLATE
    MID SECTION PLATE
  • 1
    8M0094678 MID SECTION PLATE
    SN# 0M971958 & Up
    MID SECTION PLATE
    SN# 0M971958 & Up
  • 2
    12-4002321 WASHER, (12.80 mm x 24.0 mm x 2.4 mm) Stainless Steel
    WASHER, (12.80 mm x 24.0 mm x 2.4 mm) Stainless Steel
  • 3
    25-8M0083321 GROMMET
    GROMMET
  • 4
    879148T61 CLAMP RING, Rear
    CLAMP RING, Rear
  • 5
    879148T60 CLAMP RING, Front
    CLAMP RING, Front
  • 6
    17-43044 PIN, Dowel - Without Hole (.375 x .625)
    PIN, Dowel - Without Hole (.375 x .625)
  • 7
    20-8M0089447 BALL VALVE ASSEMBLY, Short Neck, 2.0 Inch
    BALL VALVE ASSEMBLY, Short Neck, 2.0 Inch
  • 7
    20-8M0089449 BALL VALVE ASSEMBLY, 2.5 Inch
    BALL VALVE ASSEMBLY, 2.5 Inch
  • 8
    25-38106 O-RING
    O-RING
  • 9
    10-8M0041198 SCREW, (M8 x 30)
    SCREW, (M8 x 30)
  • 10
    8M0007662 BRACKET
    BRACKET
  • 11
    25-8M0007663 GROMMET
    GROMMET
  • 12
    16-865326 STUD, (M8 x 30)
    STUD, (M8 x 30)
  • 13
    11-400213 NUT, (M8) Stainless Steel
    NUT, (M8) Stainless Steel
  • 14
    8M0037194 COVER PLATE
    COVER PLATE
  • 15
    10-8M0039671 SCREW, (M8 x 20)
    SCREW, (M8 x 20)
  • 16
    879345T58 BALL VALVE ASSMBLY, 1.5 Inch
    BALL VALVE ASSMBLY, 1.5 Inch
  • 17
    25-20826 O-RING, (2.230 x .139)
    O-RING, (2.230 x .139)
  • 18
    10-8M0039671 SCREW, (M8 x 20)
    SCREW, (M8 x 20)
  • 19
    16-8M0007531 STUD, (M12 x 63)
    STUD, (M12 x 63)
  • 20
    10-879150A86 SCREW KIT
    SCREW KIT
  • -
    8M0074256 BRONZE REPAIR KIT
    BRONZE REPAIR KIT
  • -
    8M0082937 CERAMIC REPAIR KIT
    CERAMIC REPAIR KIT
  • -
    37-8M0077475 DECAL, Do Not Power Wash
    DECAL, Do Not Power Wash
