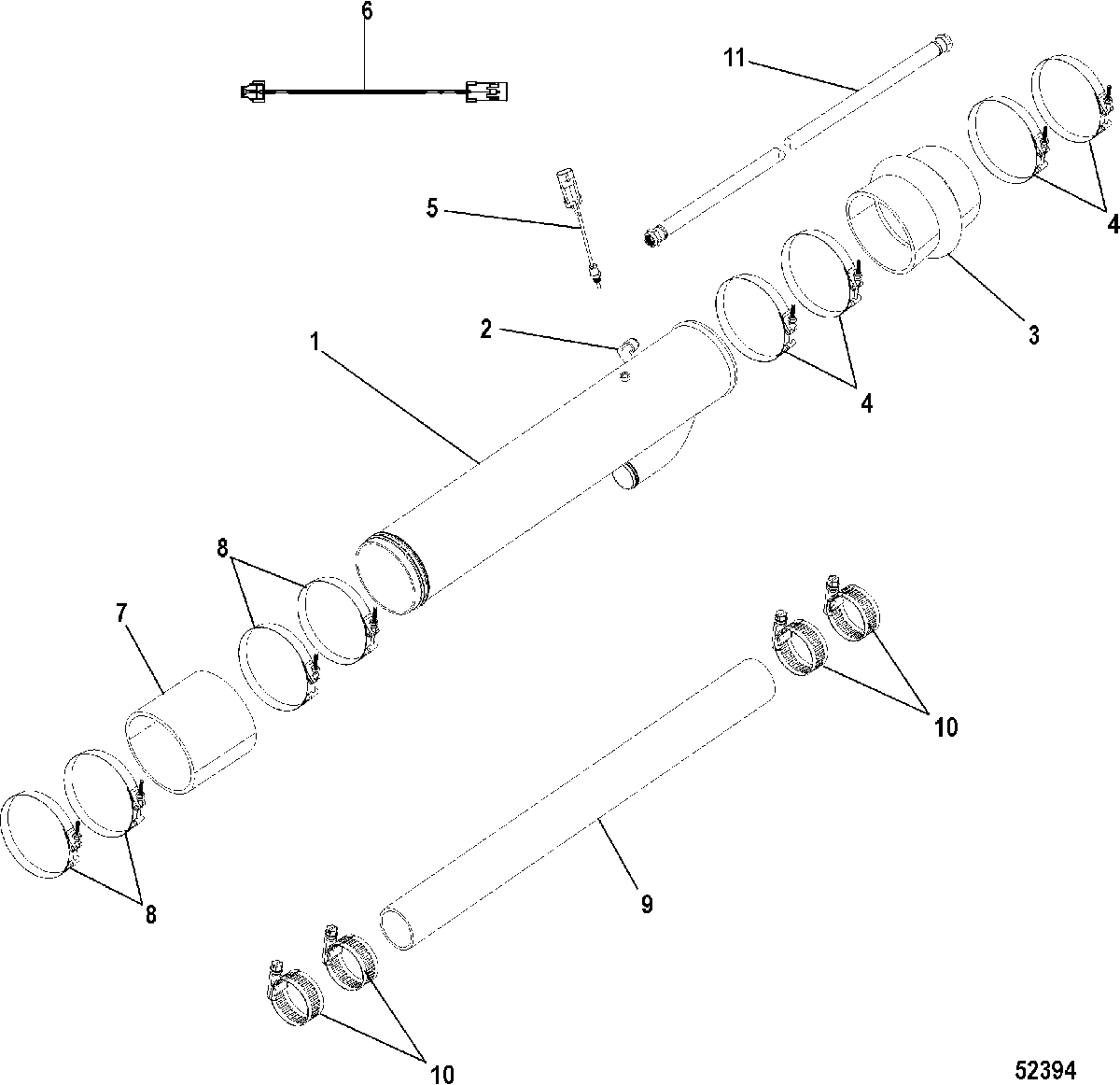

Exhaust Tube, QSB 6.7, Design-I, 0-Degree Offset Bib для Mercruiser - ZEUS 3000 0M968828 THRU 0M968852

  • №
    Артикул
    Название
  • -
    8M0098001 EXHAUST TUBE KIT
    18.75 inch Shaft, Without Drop Box
    EXHAUST TUBE KIT
    18.75 inch Shaft, Without Drop Box
  • -
    8M0098002 EXHAUST TUBE KIT
    18.75 inch Shaft, With Drop Box
    EXHAUST TUBE KIT
    18.75 inch Shaft, With Drop Box
  • -
    8M0098003 EXHAUST TUBE KIT
    Use with 28.37 inch Driveshaft
    EXHAUST TUBE KIT
    Use with 28.37 inch Driveshaft
  • 1
    NSS NOT SOLD SEPARATE, Exhaust Tube
    NOT SOLD SEPARATE, Exhaust Tube
  • 2
    22-841079 CONNECTOR
    CONNECTOR
  • 3
    32-8M0072140 HOSE, Exhaust, 152.4 x 152.4mm
    HOSE, Exhaust, 152.4 x 152.4mm
  • 4
    54-8M0068909 CLAMP, 160-168mm
    CLAMP, 160-168mm
  • 5
    8M0039116 SENSOR, Temperature
    SENSOR, Temperature
  • 6
    84-8M0068874 HARNESS, Exhaust Temperature
    HARNESS, Exhaust Temperature
  • 7
    32-8M0072141 HOSE, Exhaust, 165.1 x 165.1mm
    HOSE, Exhaust, 165.1 x 165.1mm
  • 8
    54-8M0068909 CLAMP, 160-168mm
    CLAMP, 160-168mm
  • 9
    32-8M0068897 HOSE, 38.1 x 1067mm
    Use with 28.37 inch Driveshaft
    HOSE, 38.1 x 1067mm
    Use with 28.37 inch Driveshaft
  • 9
    32-8M0069089 HOSE, 38.1 x 889mm
    Use with 18.75 inch Driveshaft
    HOSE, 38.1 x 889mm
    Use with 18.75 inch Driveshaft
  • 10
    54-8M0068823 CLAMP, HOSE, 27-51mm
    CLAMP, HOSE, 27-51mm
  • 11
    32-8M0079382 HOSE, Siphon Circuit
    HOSE, Siphon Circuit
