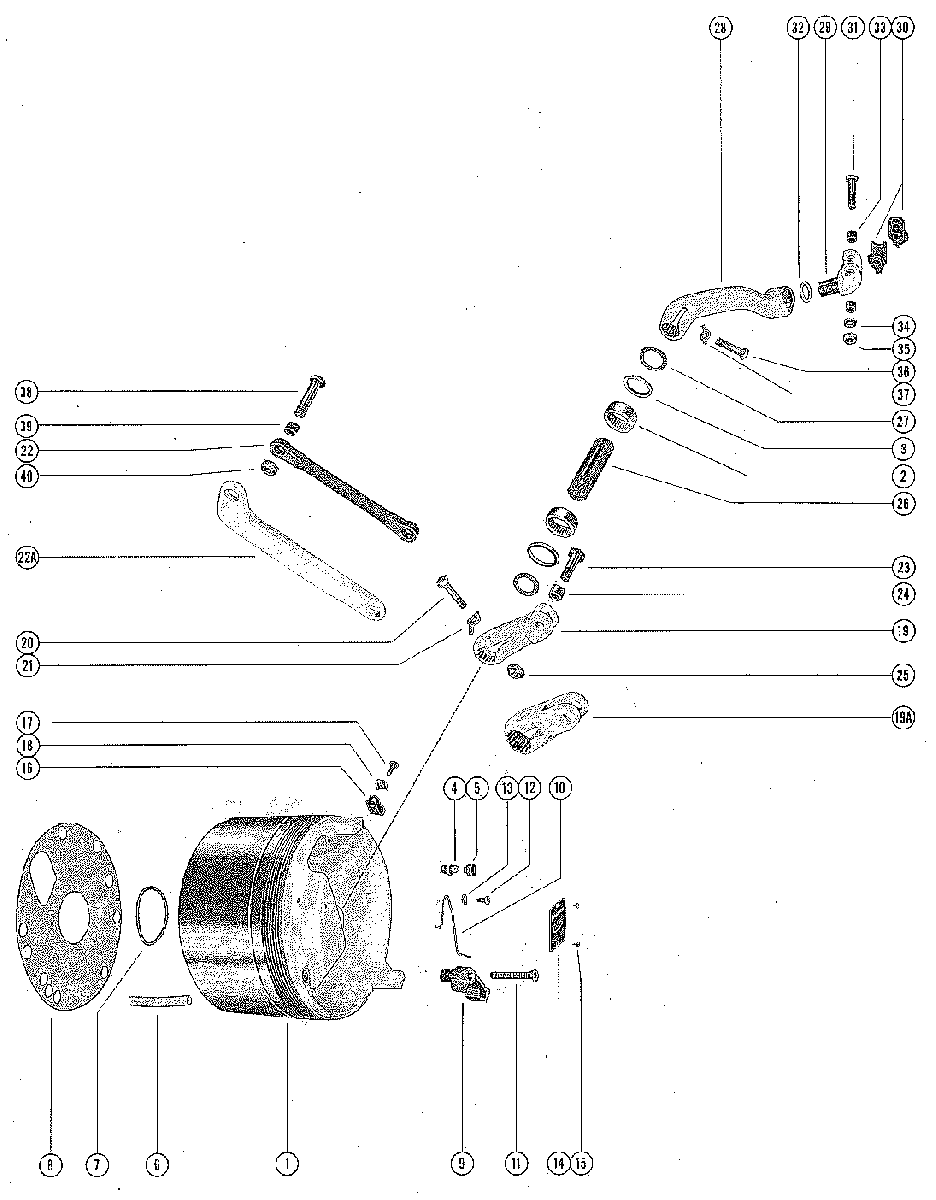

STEERING LEVER HOUSING ASSEMBLY для Mercruiser - II 1962-1963 1474909 THRU 1602185

  • №
    Артикул
    Название
  • 1
    32353A1 STEERING LEVER HOUSING ASSEMBLY (3" BORE)
    STEERING LEVER HOUSING ASSEMBLY (3" BORE)
  • 1
    32760A3 STEERING LEVER HOUSING ASSEMBLY 2 5/8" BORE
    STEERING LEVER HOUSING ASSEMBLY 2 5/8" BORE
  • 1
    32760A3 STEERING LEVER HOUSING ASSEMBLY (2 5/8" BORE)
    STEERING LEVER HOUSING ASSEMBLY (2 5/8" BORE)
  • 2
    31-30457 BEARING, ROLLER - STEERING LEVER HOUSING
    BEARING, ROLLER - STEERING LEVER HOUSING
  • 3
    26-31851 OIL SEAL, STEERING LEVER HOUSING
    OIL SEAL, STEERING LEVER HOUSING
  • 4
    22-69059 FITTING, GREASE - STEERING LEVER HOUSING
    FITTING, GREASE - STEERING LEVER HOUSING
  • 5
    19-77633Q LUBRICAP, STEERING LEVER HOUSING GREASE FITTING
    LUBRICAP, STEERING LEVER HOUSING GREASE FITTING
  • 6
    32-31879 TUBE, NYLON - SHIFT ACTUATING CABLE GUIDE
    TUBE, NYLON - SHIFT ACTUATING CABLE GUIDE
  • 7
    25-34128 "O" RING, STEERING LEVER HOUSING
    "O" RING, STEERING LEVER HOUSING
  • 8
    27-32354 GASKET, STEERING LEVER HOUSING TO GIMBAL HOUSING
    GASKET, STEERING LEVER HOUSING TO GIMBAL HOUSING
  • 8
    27-31876 GASKET, STEERING LEVER HOUSING TO GIMBAL HOUSING
    GASKET, STEERING LEVER HOUSING TO GIMBAL HOUSING
  • 9
    32416A1 LATCH ASSEMBLY, STEERING LEVER HOUSING
    LATCH ASSEMBLY, STEERING LEVER HOUSING
  • 10
    24-31966 SPRING, TORSION - LATCH
    SPRING, TORSION - LATCH
  • --
    33639 CATCH, CLAMP NUT (A6 REFERENCE NO. 2)
    CATCH, CLAMP NUT (A6 REFERENCE NO. 2)
  • 9
    32416A1 LATCH ASSEMBLY, STEERING LEVER HOUSING
    (PART OF B-32760A3 STEERING ASSEMBLY)
    LATCH ASSEMBLY, STEERING LEVER HOUSING
    (PART OF B-32760A3 STEERING ASSEMBLY)
  • 10
    24-34381 SPRING, TORSION - LATCH
    SPRING, TORSION - LATCH
  • --
    33639 CATCH, CLAMP NUT (A6 REFERENCE NO. 2)
    CATCH, CLAMP NUT (A6 REFERENCE NO. 2)
  • 11
    10-31972 SCREW, LATCH TO STEERING LEVER HOUSING
    SCREW, LATCH TO STEERING LEVER HOUSING
  • 12
    10-29762 SCREW, TORSION SPRING TO STEERING LEVER HOUSING
    SCREW, TORSION SPRING TO STEERING LEVER HOUSING
  • 13
    12-28001 WASHER, TORSION SPRING TO STEERING LEVER HOUSING SCREW
    WASHER, TORSION SPRING TO STEERING LEVER HOUSING SCREW
  • 14
    38-31042 SEROAL PLATE
    SEROAL PLATE
  • 15
    10-22290 SCREW, DRIVE - SERIAL PLATE TO STEERING LEVER HOUSING
    SCREW, DRIVE - SERIAL PLATE TO STEERING LEVER HOUSING
  • 16
    54-24836 CLIP, TILT STOP SWITCH LEADS TO STEERING LEVER HOUSING
    CLIP, TILT STOP SWITCH LEADS TO STEERING LEVER HOUSING
  • 17
    10-32031 SCREW, TILT STOP SWITCH LEADS CLIP TO STEERING LEVER HOUSING
    SCREW, TILT STOP SWITCH LEADS CLIP TO STEERING LEVER HOUSING
  • 18
    8M0084613 "D" WASHER, TILT STOP SWITCH LEADS CLIP SCREW
    "D" WASHER, TILT STOP SWITCH LEADS CLIP SCREW
  • 19
    31849 ARM, STEERING - LOWER
    ARM, STEERING - LOWER
  • 19A
    34006 ARM, STEERING - LOWER
    ARM, STEERING - LOWER
  • 20
    35848 SCREW, LOWER STEERING ARM TO STEERING SHAFT
    SCREW, LOWER STEERING ARM TO STEERING SHAFT
  • 21
    14-43589 TAB WASHER, LOWER STEERING ARM TO STEERING SHAFT SCREW
    TAB WASHER, LOWER STEERING ARM TO STEERING SHAFT SCREW
  • 22
    31850 LINK ROD, LOWER STEERING ARM TO GIMBAL RING
    LINK ROD, LOWER STEERING ARM TO GIMBAL RING
  • 22A
    34009 LINK ROD, LOWER STEERING ARM TO GIMBAL RING
    LINK ROD, LOWER STEERING ARM TO GIMBAL RING
  • 23
    10-31845 BOLT, LINK ROD TO LOWER STEERING ARM
    BOLT, LINK ROD TO LOWER STEERING ARM
  • 24
    23-31853 BUSHING, LINK ROD TO LOWER STEERING ARM BOLT
    BUSHING, LINK ROD TO LOWER STEERING ARM BOLT
  • 25
    11-826709117 NUT, LINK ROD TO LOWER STEERING ARM BOLT
    NUT, LINK ROD TO LOWER STEERING ARM BOLT
  • 26
    31844 SHAFT, STEERING - STEERING LEVER HOUSING
    SHAFT, STEERING - STEERING LEVER HOUSING
  • 27
    12-31829 WASHER, NYLON - UPPER AND LOWER STEERING ARMS TO SHAFT
    WASHER, NYLON - UPPER AND LOWER STEERING ARMS TO SHAFT
  • 28
    31910 ARM, STEERING - UPPER
    SERIAL 00000000-01602077
    ARM, STEERING - UPPER
    SERIAL 00000000-01602077
  • 29
    31911 YOKE, UPPER STEERING ARM - RIGHT HAND THREAD
    SERIAL 00000000-01602077
    YOKE, UPPER STEERING ARM - RIGHT HAND THREAD
    SERIAL 00000000-01602077
  • 28
    33775 ARM, STEERING - UPPER
    SERIAL 01602078-01602185
    ARM, STEERING - UPPER
    SERIAL 01602078-01602185
  • 29
    33776 YOKE, UPPER STEERING ARM - LEFT HAND THREAD
    SERIAL 01602078-01602185
    YOKE, UPPER STEERING ARM - LEFT HAND THREAD
    SERIAL 01602078-01602185
  • 30
    25888 COUPLER HALVES, UPPER STEERING ARM YOKE
    COUPLER HALVES, UPPER STEERING ARM YOKE
  • 31
    10-31834 SCREW, COUPLER HALVRES TO UPPER STEERING ARM YOKE
    SCREW, COUPLER HALVRES TO UPPER STEERING ARM YOKE
  • 32
    12-32620 WASHER, COUPLER HALVES SCREW
    SERIAL 00000000-01602077
    WASHER, COUPLER HALVES SCREW
    SERIAL 00000000-01602077
  • 33
    23-31831 BUSHING, COUPLER HALVES SCREW
    BUSHING, COUPLER HALVES SCREW
  • 34
    12-20084 WASHER, COUPLER HALVES SCREW
    WASHER, COUPLER HALVES SCREW
  • 35
    11-826709111 NUT, COUPLER HALVES TO UPPER STEERING ARM YOKE SCREW
    NUT, COUPLER HALVES TO UPPER STEERING ARM YOKE SCREW
  • 36
    10-31830 SCREW, UPPER STEERING ARM TO STEERING SHAFT
    SCREW, UPPER STEERING ARM TO STEERING SHAFT
  • 37
    14-43589 TAB WASHER, UPPER STEERING ARM TO STEERING SHAFT SCREW
    TAB WASHER, UPPER STEERING ARM TO STEERING SHAFT SCREW
  • 38
    10-31846 BOLT, LINK ROD TO GIMBAL RING
    BOLT, LINK ROD TO GIMBAL RING
  • 39
    23-31853 BUSHING, LINK ROD TO GIMABL RING BOLT
    BUSHING, LINK ROD TO GIMABL RING BOLT
  • 40
    11-826709117 NUT, LINK ROD TO GIMBAL RING BOLT
    NUT, LINK ROD TO GIMBAL RING BOLT
  • --
    37-33737 DECAL, NAME PLATE
    DECAL, NAME PLATE
