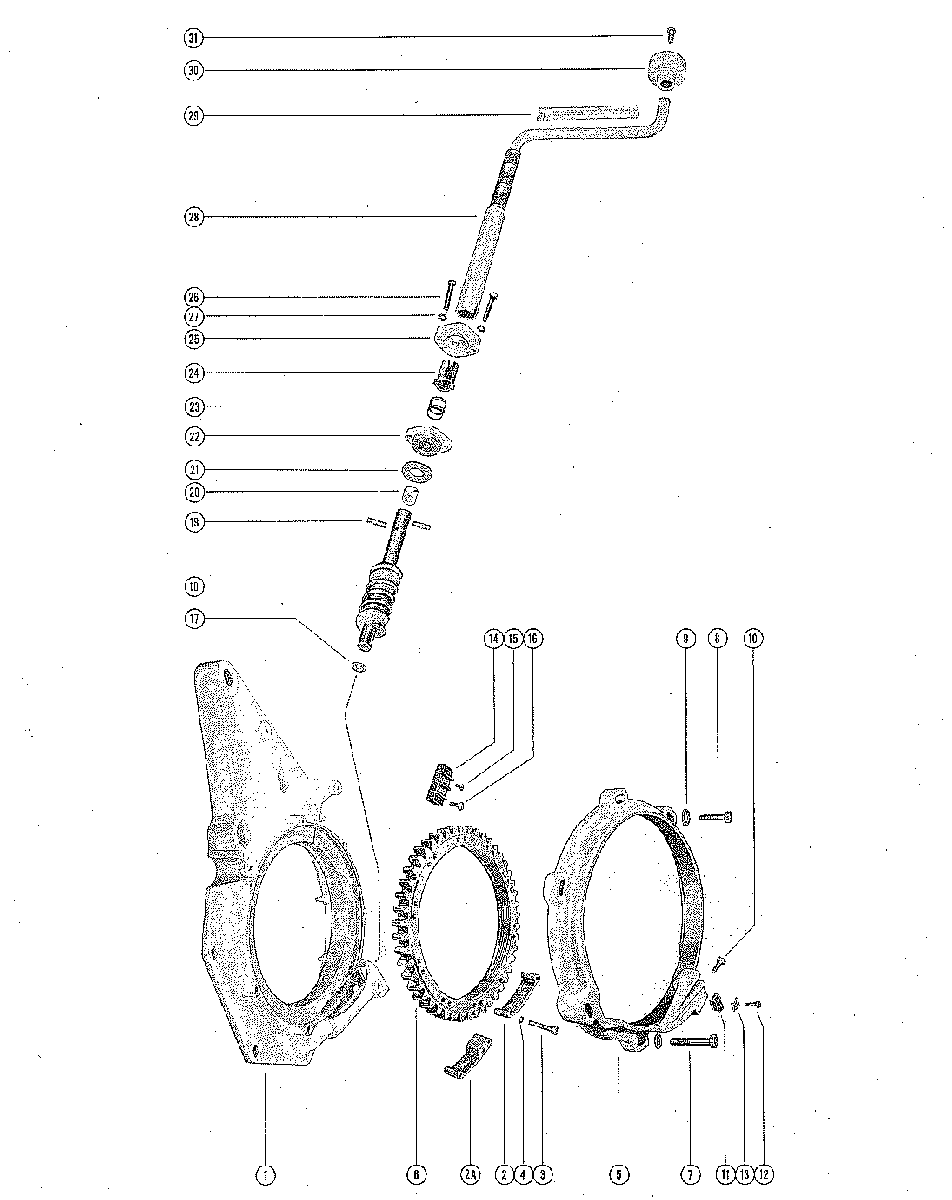

INNER TRANSOM PLATE, CLAMP NUT AND CRANK ASSEMBLY для Mercruiser - II 1962-1963 1474909 THRU 1602185

  • №
    Артикул
    Название
  • 1
    34193 PALTE, TRANSOM - INNER
    PALTE, TRANSOM - INNER
  • 2
    33639 CATCH, CLAMP NUT (PART OF B-32416A1 LATCH ASSEMBLY)
    CATCH, CLAMP NUT (PART OF B-32416A1 LATCH ASSEMBLY)
  • 2A
    33639 CATH, CLAMP NUT ( PART OF B-33638A1 LATCH ASSEMBLY)
    CATH, CLAMP NUT ( PART OF B-33638A1 LATCH ASSEMBLY)
  • 3
    10-21365 SCREW, CATCH TO CLAMP NUT
    SCREW, CATCH TO CLAMP NUT
  • 3
    10-32759 SCREW, CATCH TO CLAMP NUT
    SCREW, CATCH TO CLAMP NUT
  • 4
    13-21547 LOCKWASHER, CATCH TO CLAMP NUT SCREW
    LOCKWASHER, CATCH TO CLAMP NUT SCREW
  • 4
    13-21547 LOCKWASHER, CATCH TO CLAMP NUT SCREW
    LOCKWASHER, CATCH TO CLAMP NUT SCREW
  • -
    32300A1 COVER ASSEMBLY, CLAMP NUT - INNER TRANSOM PLATE
    COVER ASSEMBLY, CLAMP NUT - INNER TRANSOM PLATE
  • 5
    32300 COVER, CLAMP NUT - INNER TRANSOM PLATE
    COVER, CLAMP NUT - INNER TRANSOM PLATE
  • 6
    32761 NUT,CLAMP -STEERING LEVER HOUSING TO INNER TRANSOM PLATE
    NUT,CLAMP -STEERING LEVER HOUSING TO INNER TRANSOM PLATE
  • 7
    10-815549 SCREW, CLAMP NUT COVER TO INNER TRANSMOM PLATE (2")
    SCREW, CLAMP NUT COVER TO INNER TRANSMOM PLATE (2")
  • 8
    10-31984 SCREW, CLAMP NUT COVER TO INNER TRANSOM PLATE (1 3/8")
    SCREW, CLAMP NUT COVER TO INNER TRANSOM PLATE (1 3/8")
  • 9
    12-26168 WASHER, CLAMP NUT COVER TO INNER TRANSOM PLATE SCREW
    WASHER, CLAMP NUT COVER TO INNER TRANSOM PLATE SCREW
  • 10
    10-31983 SCREW, STEERING LEVEL HOUSING STOP - CLAMP NUT COVER
    SCREW, STEERING LEVEL HOUSING STOP - CLAMP NUT COVER
  • 11
    54-24836 CLIP, TILT STOP SWITCH LEADS TO CLAMP NUT COVER
    CLIP, TILT STOP SWITCH LEADS TO CLAMP NUT COVER
  • 12
    10-32031 SCREW, TILT STOP SWITCH LEADS CLIP TO CLAMP NUT COVER
    (10-32 SELF TAPPING THREAD)
    SCREW, TILT STOP SWITCH LEADS CLIP TO CLAMP NUT COVER
    (10-32 SELF TAPPING THREAD)
  • 12
    10-25764 SCREW, TILT STOP SWITCH LEADS CLIP TO CLAMP NUT COVER
    (10-32 STANDARD THREAD)
    SCREW, TILT STOP SWITCH LEADS CLIP TO CLAMP NUT COVER
    (10-32 STANDARD THREAD)
  • 13
    8M0084613 "D" WASHER, TILT STOP SWITCH LEADS CLIP SCREW
    "D" WASHER, TILT STOP SWITCH LEADS CLIP SCREW
  • 14
    32169 TERMINAL BLOCK, INNER TRANSOM PLATE
    TERMINAL BLOCK, INNER TRANSOM PLATE
  • 14
    30212 TERMINAL BLOCK, INNER TRANSOM PLATE (NOT SHOWN)
    TERMINAL BLOCK, INNER TRANSOM PLATE (NOT SHOWN)
  • 15
    10-28739 SCREW, TILT STOP SWITCH TO TERMINAL BLOCK
    SCREW, TILT STOP SWITCH TO TERMINAL BLOCK
  • 15
    10-62568 SCREW, TILT STOP SWITCH TO TERMINAL BLOCK
    SCREW, TILT STOP SWITCH TO TERMINAL BLOCK
  • 16
    10-48409 SCREW, TERMINAL BLOCK TO INNER TRANSOM PLATE
    SCREW, TERMINAL BLOCK TO INNER TRANSOM PLATE
  • 17
    12-31855 WASHER, THRUST - WORM GEAR (LOWER)
    WASHER, THRUST - WORM GEAR (LOWER)
  • 18
    43-31605 GEAR, WORM - INNER TRANSOM PLATE
    GEAR, WORM - INNER TRANSOM PLATE
  • 19
    17-31728 PIN, WORM GEAR - SLEEVE AND CRANK LOCKING
    PIN, WORM GEAR - SLEEVE AND CRANK LOCKING
  • 20
    23-31857 BUSHING, NYLON - WORM GEAR (UPPER)
    BUSHING, NYLON - WORM GEAR (UPPER)
  • 21
    12-31727 WASHER, THRUST - WORM GEAR TO RETAINING COVER (UPPER)
    WASHER, THRUST - WORM GEAR TO RETAINING COVER (UPPER)
  • 22
    31631 COVER, RETAINING - WORM GEAR TO INNER TRANSOM PLATE
    COVER, RETAINING - WORM GEAR TO INNER TRANSOM PLATE
  • 23
    24-31729 SPRING, COMPRESSION - WORM GEAR LOCKING SLEEVE
    SPRING, COMPRESSION - WORM GEAR LOCKING SLEEVE
  • 24
    23-31726 SLEEVE, WORM GEAR LOCKING
    SLEEVE, WORM GEAR LOCKING
  • 25
    31730 LOCK, SPLINED - WORM GEAR LOCKING SLEEVE
    LOCK, SPLINED - WORM GEAR LOCKING SLEEVE
  • 26
    10-70602 SCREW, WORM GEAR COVER AND LOCK TO INNER TRANSOM PLATE
    SCREW, WORM GEAR COVER AND LOCK TO INNER TRANSOM PLATE
  • 27
    13-26992 LOCKWASHER, WORM GEAR COVER AND LOCK TO INNER TRANSOM PLATE
    LOCKWASHER, WORM GEAR COVER AND LOCK TO INNER TRANSOM PLATE
  • 28
    33923A10 CRANK ASSEMBLY (10")
    CRANK ASSEMBLY (10")
  • 28
    33923A16 CRANK ASSEMBLY (16")
    CRANK ASSEMBLY (16")
  • 28
    33923A22 CRANK ASSEMBLY (22")
    CRANK ASSEMBLY (22")
  • 28
    33923A28 CRANK ASSEMBLY
    CRANK ASSEMBLY
  • 28
    33923A34 CRANK ASSEMBLY (34")
    CRANK ASSEMBLY (34")
  • 29
    37-32187 LABEL, DIRECTIONAL AND INSTRUCTIONAL - CRANK
    LABEL, DIRECTIONAL AND INSTRUCTIONAL - CRANK
  • 30
    31842 KNOB, CRANK
    KNOB, CRANK
  • 31
    10-21356 SCREW, KNOB TO CRANK
    SCREW, KNOB TO CRANK
