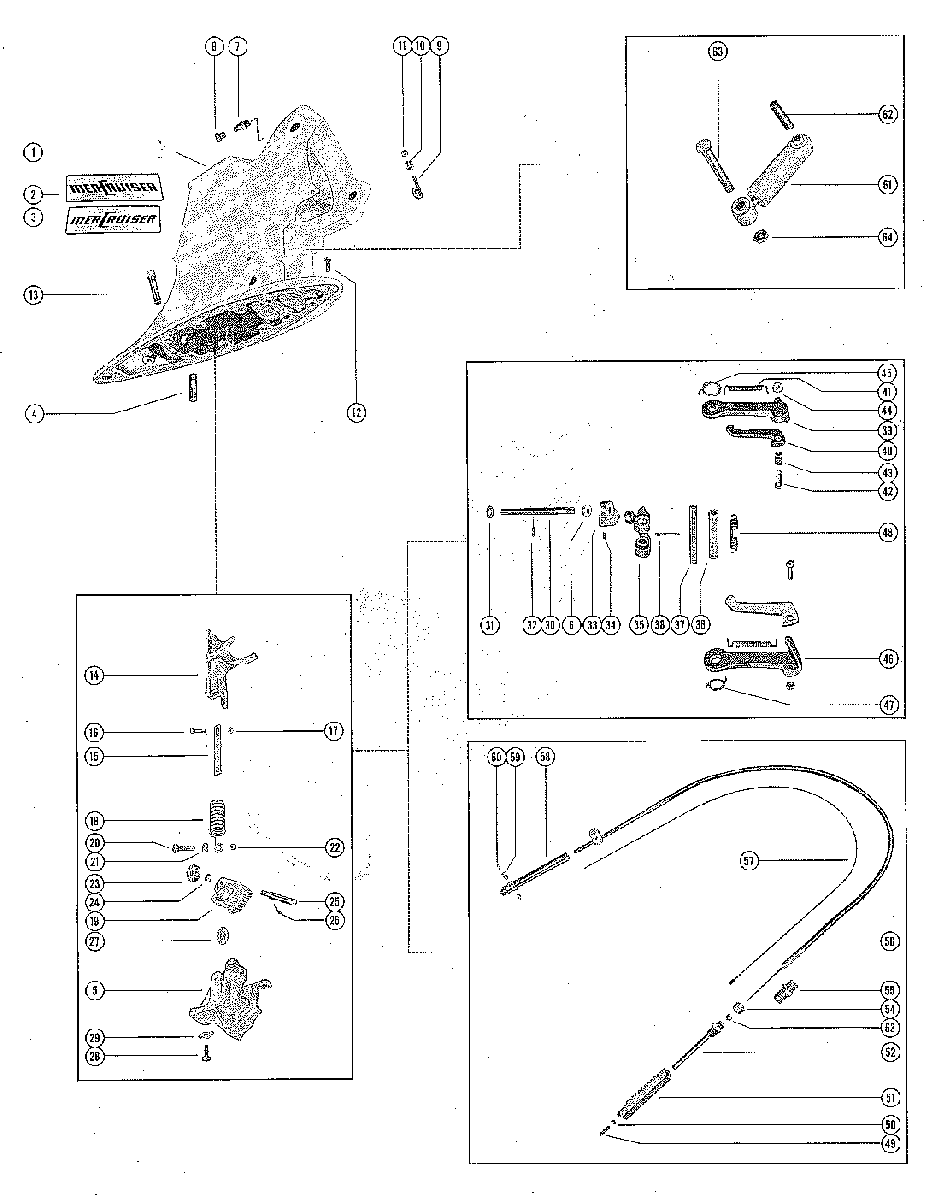

DRIVE SHAFT HOUSING ASSEMBLY AND REVERSE LOCK для Mercruiser - II 1962-1963 1474909 THRU 1602185

  • №
    Артикул
    Название
  • 1
    1544-1976A3 DRIVE SHAFT HOUSING ASSEMBLY
    DRIVE SHAFT HOUSING ASSEMBLY
  • 1
    1544-1981A3 DRIVE SHAFT HOUSING ASSEMBLY
    DRIVE SHAFT HOUSING ASSEMBLY
  • 1
    1544-2008A8 DRIVE SHAFT HOUSING ASSEMBLY
    DRIVE SHAFT HOUSING ASSEMBLY
  • 2
    37-56036A2 DECAL, DRIVE SHAFT HOUSING - PORT (NOT AS SHOWN)
    DECAL, DRIVE SHAFT HOUSING - PORT (NOT AS SHOWN)
  • 2
    37-56036A2 DECAL, DRIVE SHAFT HOUSING - PORT
    DECAL, DRIVE SHAFT HOUSING - PORT
  • 3
    37-56036A2 DECAL, DRIVE SHAFT HOUSING - STARTBOARD (NOT AS SHOWN)
    DECAL, DRIVE SHAFT HOUSING - STARTBOARD (NOT AS SHOWN)
  • 3
    37-56036A2 DECAL, DRIVE SHAFT HOUSING - STARTBOARD
    DECAL, DRIVE SHAFT HOUSING - STARTBOARD
  • 4
    16-32129 STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING
    STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING
  • 5
    31655 GUIDE, GEAR RACK - DRIVE SHAFT HOUSING
    GUIDE, GEAR RACK - DRIVE SHAFT HOUSING
  • 6
    26-892361 OIL SEAL, REVERSE LOCK ACTUATING CAM SHAFT - DRIVE SHAFT HO
    OIL SEAL, REVERSE LOCK ACTUATING CAM SHAFT - DRIVE SHAFT HO
  • 7
    22-74036 FITTING, GREASE - DRIVE SHAFT HOUSING
    FITTING, GREASE - DRIVE SHAFT HOUSING
  • 8
    19-77633Q LUBRICAP, DRIVE SHAFT HOUSING GRESE FITTING
    LUBRICAP, DRIVE SHAFT HOUSING GRESE FITTING
  • 9
    34057A1 EYE ASSEMBLY, SHAFT ACTUATING CABLE GUIDE
    (PART OF B-1544-2008A8 DRIVE SHAFT HOUSING ASSEMBLY)
    EYE ASSEMBLY, SHAFT ACTUATING CABLE GUIDE
    (PART OF B-1544-2008A8 DRIVE SHAFT HOUSING ASSEMBLY)
  • 10
    23-34058 SPACER, SHIFT ACTUATING CABLE GUIDE EYE
    SPACER, SHIFT ACTUATING CABLE GUIDE EYE
  • 11
    11-8267096 NUT, SHIFT ACTUATING CABLE GUIDE EYE
    NUT, SHIFT ACTUATING CABLE GUIDE EYE
  • 12
    10-28668 SCREW, DRIVE SHAFT HOUSING TO GEAR HOUSING (7/8")
    SCREW, DRIVE SHAFT HOUSING TO GEAR HOUSING (7/8")
  • 13
    10-32064 SCREW, DRIVE SHAFT HOUSING TO GEAR HOUSING (2 3/8")
    SCREW, DRIVE SHAFT HOUSING TO GEAR HOUSING (2 3/8")
  • 14
    31595 FORK, SHIFT SLIDING CLUTCH ACTUATING
    FORK, SHIFT SLIDING CLUTCH ACTUATING
  • 15
    31754 LINK, SECTOR GEAR TO SHIFT FORK (RIGHT HAND ROTATION)
    LINK, SECTOR GEAR TO SHIFT FORK (RIGHT HAND ROTATION)
  • 15
    31692 LINK, SECTOR GEAR TO SHIFT FORK (LEFT HAND ROTATION)
    LINK, SECTOR GEAR TO SHIFT FORK (LEFT HAND ROTATION)
  • 16
    10-31856 SCREW, LINK TO SHIFT FORK
    SCREW, LINK TO SHIFT FORK
  • 17
    11-826709109 NUT, LINK TO SHIFT FORK SCREW
    NUT, LINK TO SHIFT FORK SCREW
  • 18
    24-31703 SPRING, SECTOR GEAR TO SHIFT FORK (RINGHT HAND ROTATION)
    SPRING, SECTOR GEAR TO SHIFT FORK (RINGHT HAND ROTATION)
  • 18
    24-31702 SPRING, SECTOR GEAR SHIFT FORK (LEFT HAND ROTATION)
    SPRING, SECTOR GEAR SHIFT FORK (LEFT HAND ROTATION)
  • 19
    43-31603 GEAR, SECTOR - GEAR RACK GUIDE
    GEAR, SECTOR - GEAR RACK GUIDE
  • 20
    10-31401 SCREW, SPRING AND LINK TO SECTOR GEAR
    SCREW, SPRING AND LINK TO SECTOR GEAR
  • 21
    12-69056 WASHER, SPRING AND LINK TO SECTOR GEAR SCREW
    WASHER, SPRING AND LINK TO SECTOR GEAR SCREW
  • 22
    11-20061 NUT, SPRING AND LINK TO SECTOR GEAR SCREW
    NUT, SPRING AND LINK TO SECTOR GEAR SCREW
  • 23
    43-31719 GEAR, REVERSE, LOCK - SECTOR GEAR PIVOT SHFT
    GEAR, REVERSE, LOCK - SECTOR GEAR PIVOT SHFT
  • 24
    12-30283 WASHER, SECTOR GEAR PIVOT SHAFT
    WASHER, SECTOR GEAR PIVOT SHAFT
  • 25
    31722 SHAFT, SPLINED - SECTOR GEAR PIVOT
    SHAFT, SPLINED - SECTOR GEAR PIVOT
  • 26
    18-210711 COTTER PIN, SECTOR GEAR PIVOT SHAFT
    COTTER PIN, SECTOR GEAR PIVOT SHAFT
  • 27
    43-31719 GEAR, REVERSE LOCK ACTUATING CAM SHAFT
    GEAR, REVERSE LOCK ACTUATING CAM SHAFT
  • 28
    10-28668 SCREW, GEAR RACK TO DRIVE SHAFT HOUSING
    SCREW, GEAR RACK TO DRIVE SHAFT HOUSING
  • 29
    14-31651 TAB WASHER, GEAR RACK GUIDE TO DRIVE SHAFT HOUSING SCREW
    TAB WASHER, GEAR RACK GUIDE TO DRIVE SHAFT HOUSING SCREW
  • 30
    38329A1 SHAFT, SPLINED - REVERSE LOCK ACTUATING CAM
    SHAFT, SPLINED - REVERSE LOCK ACTUATING CAM
  • 31
    12-29629 WASHER, REVERSE LOCK ACTUATING CAM SHAFT
    WASHER, REVERSE LOCK ACTUATING CAM SHAFT
  • 32
    18-31839 COTTER PIN, REVERSE LOCK ACTUATING CAM SHAFT
    COTTER PIN, REVERSE LOCK ACTUATING CAM SHAFT
  • 33
    31681 CAM, REVERSE LOCK ACTUATING
    (PART OF B-1544-2008A8 DRIVE SHAFT)
    CAM, REVERSE LOCK ACTUATING
    (PART OF B-1544-2008A8 DRIVE SHAFT)
  • 34
    10-31685 SCREW, SET -CAM TO REVERSE LOCK ACTUATING SHAFT
    SCREW, SET -CAM TO REVERSE LOCK ACTUATING SHAFT
  • 35
    31959A1 STOP ASSEMBLY, REVERSE LOCK
    STOP ASSEMBLY, REVERSE LOCK
  • 36
    32195 TUBE, REVERSE LOCK PIVOT SHAFT
    TUBE, REVERSE LOCK PIVOT SHAFT
  • 37
    31652 SHAFT, PIVOT - REVERSE LOCK
    SHAFT, PIVOT - REVERSE LOCK
  • 38
    18-45882 COTTER PIN, REVERSE LOCK PIVOT SHAFT AND TUBE
    COTTER PIN, REVERSE LOCK PIVOT SHAFT AND TUBE
  • 39
    38383 ARM, REVERSE LOCK - RIGHT
    ARM, REVERSE LOCK - RIGHT
  • 39
    35157 ARM, REVERSE LOCK -RIGHT
    ARM, REVERSE LOCK -RIGHT
  • 40
    38382 HOOK, REVERSE LOCK - RIGHT AND LEFT
    HOOK, REVERSE LOCK - RIGHT AND LEFT
  • 41
    24-31963 SPRING, TENSION - REVERSE LOCK HOOK TO REVERSE LOCK ARM
    SERIAL 00000000-01576065
    SPRING, TENSION - REVERSE LOCK HOOK TO REVERSE LOCK ARM
    SERIAL 00000000-01576065
  • 41
    24-34011 SPRING, TENSION - REVERSE LOCK HOOK TO REVERSE LOCK ARM
    SERIAL 01576066-01602185
    SPRING, TENSION - REVERSE LOCK HOOK TO REVERSE LOCK ARM
    SERIAL 01576066-01602185
  • 42
    10-32155 SCREW, REVERSE LOCK HOOK TO REVERSE LOCK ARM
    SCREW, REVERSE LOCK HOOK TO REVERSE LOCK ARM
  • 43
    23-31962 SPACER.,REVERSE LOCK HOOK TO REVERSE LOCK ARM SCREW
    SPACER.,REVERSE LOCK HOOK TO REVERSE LOCK ARM SCREW
  • 44
    11-30506 NUT, REVRSE LOCK HOOK TO REVERSE LOCK ARM SCREW
    SERIAL 00000000-01534386
    NUT, REVRSE LOCK HOOK TO REVERSE LOCK ARM SCREW
    SERIAL 00000000-01534386
  • 44
    11-826709109 NUT, REVERSE LOCK HOOK TO REVRSE LOCK ARM SCREW
    SERIAL 01534387-01602185
    NUT, REVERSE LOCK HOOK TO REVRSE LOCK ARM SCREW
    SERIAL 01534387-01602185
  • 45
    24-31965 SPRING, TORSION - REVERSE LOCK ARM TO STOP ASSEMBLY (RIGHT)
    SPRING, TORSION - REVERSE LOCK ARM TO STOP ASSEMBLY (RIGHT)
  • 45
    24-34210 SPRING, TENSION - REVERSE LOCK ARM TO STOP ASSEMBLY (RIGHT)
    SPRING, TENSION - REVERSE LOCK ARM TO STOP ASSEMBLY (RIGHT)
  • 46
    38381 ARM, REVERSE LOCK - LEFT
    ARM, REVERSE LOCK - LEFT
  • 46
    38381 ARM REVERSE LOCK - LEFT
    ARM REVERSE LOCK - LEFT
  • 47
    24-31964 SPRING, TORSION - REVERSE LOCK ARM TO STOP ASSEMBLY (LEFT)
    SPRING, TORSION - REVERSE LOCK ARM TO STOP ASSEMBLY (LEFT)
  • 47
    24-34211 SPRING, TORSION - REVERSE LOCK ARM TO STOP ASSEMBLY (LEFT)
    SPRING, TORSION - REVERSE LOCK ARM TO STOP ASSEMBLY (LEFT)
  • 48
    24-34154 SPRING, TENSION - REVERSE LOCK ARM TO REVERSE LOCK ARM
    SPRING, TENSION - REVERSE LOCK ARM TO REVERSE LOCK ARM
  • 49
    10-31700 SCREW, SET - SHIFT ACTUATING CABLE TO GEAR RACK
    SCREW, SET - SHIFT ACTUATING CABLE TO GEAR RACK
  • 50
    12-31690 WASHER, SHIFT ACTUATING CABLE - GEAR RACK
    WASHER, SHIFT ACTUATING CABLE - GEAR RACK
  • 51
    31573 RACK, GEAR - SHIFT ACTUATING CABLE
    RACK, GEAR - SHIFT ACTUATING CABLE
  • 52
    31638A1 SUPPORT ASSEMBLY, SHIFT ACTUATING CABLE
    N.L.A. - ORDER B-22-32125 CONNECTOR AND B-31720A1 CABLE ASSEMBLY
    SUPPORT ASSEMBLY, SHIFT ACTUATING CABLE
    N.L.A. - ORDER B-22-32125 CONNECTOR AND B-31720A1 CABLE ASSEMBLY
  • 53
    22-31723 SLEEVE, COMPRESSION - SHIFT ACTUATING CABLE
    N.L.A. - ORDER B-22-32125 CONNECTOR AND B-31720A1 CABLE ASSEMBLY
    SLEEVE, COMPRESSION - SHIFT ACTUATING CABLE
    N.L.A. - ORDER B-22-32125 CONNECTOR AND B-31720A1 CABLE ASSEMBLY
  • 54
    22-31724 NUT, COMPRESSION - SHIFT ACTUATING CABLE TO SUPPORT
    N.L.A. - ORDER B-22-32125 CONNECTOR AND B-31720A1 CABLE ASSEMBLY
    NUT, COMPRESSION - SHIFT ACTUATING CABLE TO SUPPORT
    N.L.A. - ORDER B-22-32125 CONNECTOR AND B-31720A1 CABLE ASSEMBLY
  • 55
    22-32125 CONNECTOR, SHIFT ACTUATING CABLE
    CONNECTOR, SHIFT ACTUATING CABLE
  • 56
    31720A1 CABLE ASSEMBLY, SHIFT ACTUATING
    CABLE ASSEMBLY, SHIFT ACTUATING
  • 57
    33075A2 COR WIRE AND ANCHOR ASSEMBLY, INNER SHIFT ACTUATING CABLE
    COR WIRE AND ANCHOR ASSEMBLY, INNER SHIFT ACTUATING CABLE
  • 58
    43433 GUIDE, SHIFT ACTUATING CABLE END
    GUIDE, SHIFT ACTUATING CABLE END
  • 59
    20007 ANCHOR, SHIFT ACTUATING END
    ANCHOR, SHIFT ACTUATING END
  • 60
    10-20518 SCREW, SET - ANCHOR TO SHIFT ACTUATING CABLE END
    SCREW, SET - ANCHOR TO SHIFT ACTUATING CABLE END
  • 61
    55-64266A2 SHOCK ABSORBER
    SHOCK ABSORBER
  • 62
    17-31630 PIN, SHOCK ABSORBER TO GIMBAL RING (UPPER)
    PIN, SHOCK ABSORBER TO GIMBAL RING (UPPER)
  • 63
    10-32196 BOLT, SHOCK ABSORBER TO DRIVE SHAFT HOUSING (LOWER)
    BOLT, SHOCK ABSORBER TO DRIVE SHAFT HOUSING (LOWER)
  • 64
    11-22339 NUT, SHOCK ABSORBERS TO DRIVE SHAFT HOUSING BOLT
    NUT, SHOCK ABSORBERS TO DRIVE SHAFT HOUSING BOLT
