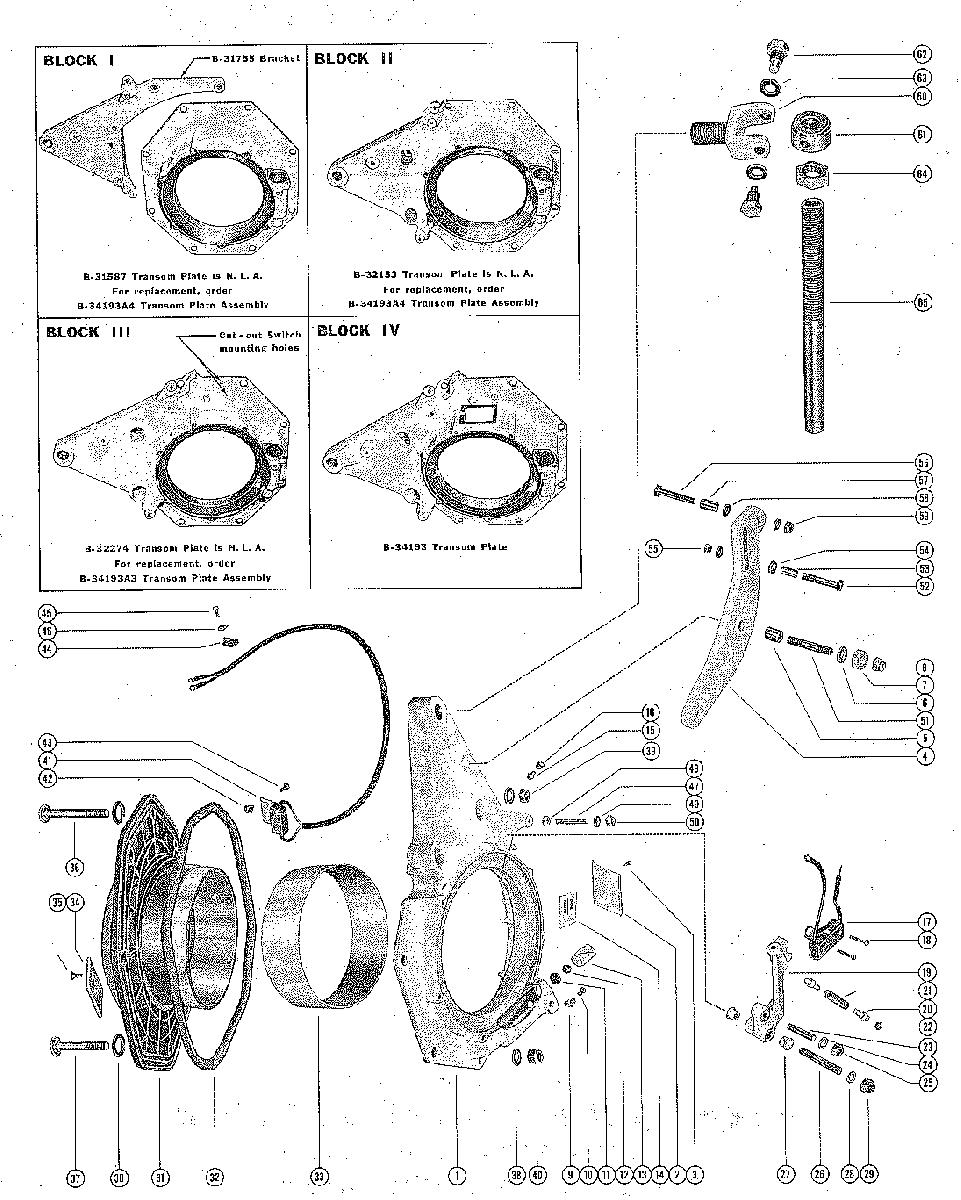

INNER AND OUTER TRANSOM PLATE AND SHIFT ARM для Mercruiser - II 1962-1963 1474909 THRU 1602185

  • №
    Артикул
    Название
  • -
    34193A4 PLATE ASSEMBLY, TRANSOM - INNER
    PLATE ASSEMBLY, TRANSOM - INNER
  • -
    34193A3 PLATE ASSEMBLY, TRANSOM - INNER
    PLATE ASSEMBLY, TRANSOM - INNER
  • 1
    34193 PLATE, TRANSOM - INNER
    PLATE, TRANSOM - INNER
  • 2
    34056 COVER,LOCK - IN LIMIT SWITCH - INNER TRANSOM PLATE
    COVER,LOCK - IN LIMIT SWITCH - INNER TRANSOM PLATE
  • 3
    10-26668 SCREW, COVER TO INNER TRANSOM PLATE
    SCREW, COVER TO INNER TRANSOM PLATE
  • 4
    49406A1 ARM, SHIFT CABLE MOUNTING - STEERING BRACKET
    ARM, SHIFT CABLE MOUNTING - STEERING BRACKET
  • 5
    23-31758 SPACER, SHIFT CABLE MOUNTING ARM STUD
    SPACER, SHIFT CABLE MOUNTING ARM STUD
  • 6
    12-26825 WASHER, SHIFT CABLE MOUNTING STUD
    WASHER, SHIFT CABLE MOUNTING STUD
  • 7
    23-27818 SPACER, SHIFT CABLE MOUNTING ARM STUD
    SPACER, SHIFT CABLE MOUNTING ARM STUD
  • 8
    11-82670911 NUT, SHIFT CABLE MOUNTING ARM TO STEERING CABLE BRACKET
    STUD
    NUT, SHIFT CABLE MOUNTING ARM TO STEERING CABLE BRACKET
    STUD
  • 9
    22-25094 FITTING, GREASE (45) - INNER TRANSOM PLATE
    FITTING, GREASE (45) - INNER TRANSOM PLATE
  • 10
    19-77633Q LUBRICAP, INNER TRANSOM PLATE GREASE FITTING
    LUBRICAP, INNER TRANSOM PLATE GREASE FITTING
  • 11
    32788 DISC, THRUST - WORM GEAR (LOWER)
    DISC, THRUST - WORM GEAR (LOWER)
  • 12
    22834 BALL, WORM GEAR (LOWER)
    BALL, WORM GEAR (LOWER)
  • 13
    23-31757 BUSHING, NYLON - WORM GEAR (LOWER)
    BUSHING, NYLON - WORM GEAR (LOWER)
  • 14
    37-32049 LABEL, ENGINE ROTATION - INNER TRANSOM PLATE
    LABEL, ENGINE ROTATION - INNER TRANSOM PLATE
  • 15
    22-69059 FITTING, GREASE - INNER TRANSOM PLATE
    FITTING, GREASE - INNER TRANSOM PLATE
  • 16
    19-77633Q LUBRICAP, INNER TRANSOM PLATE GREASE FITTING
    LUBRICAP, INNER TRANSOM PLATE GREASE FITTING
  • 17
    30866A2 SWITCH ASSEMBLY, CUT-OUT - INNER TRANSOM PLATE
    SWITCH ASSEMBLY, CUT-OUT - INNER TRANSOM PLATE
  • 18
    10-30902 SCREW, CUT-OUT SWITCH TO INNER PLATE
    SCREW, CUT-OUT SWITCH TO INNER PLATE
  • 19
    32463A2 ARM ASSEMBLY, CUT-OUT SWITCH ACTUATING
    - INNER TRANSOM PLATE
    ARM ASSEMBLY, CUT-OUT SWITCH ACTUATING
    - INNER TRANSOM PLATE
  • 20
    32464 PLUNGER, SWITCH ACTUATING ARM
    PLUNGER, SWITCH ACTUATING ARM
  • 21
    24-32922 SPRING, COMPRESSION - SWITCH ACTUATING ARM PLUNGER
    ARM TENSION
    SPRING, COMPRESSION - SWITCH ACTUATING ARM PLUNGER
    ARM TENSION
  • 22
    33501 RETAINER, SPRING AND PLUNGER TO SWITCH ACTUATING ARM
    RETAINER, SPRING AND PLUNGER TO SWITCH ACTUATING ARM
  • 23
    16-20075 STUD, SHIFT ACTUATING CABLE TO SWITCH ACTUATING ARM
    STUD, SHIFT ACTUATING CABLE TO SWITCH ACTUATING ARM
  • 24
    12-29245 WASHER, SWITCH ACTUATING ARM CABLE STUD
    WASHER, SWITCH ACTUATING ARM CABLE STUD
  • 25
    11-8267089 NUT, SWITCH ACTUATING ARM CABLE STUD
    NUT, SWITCH ACTUATING ARM CABLE STUD
  • 26
    16-66373 STUD, SWITCH ACTUATING ARM TO INNER TRANSOM PLATE (2 1/4")
    STUD, SWITCH ACTUATING ARM TO INNER TRANSOM PLATE (2 1/4")
  • 27
    23-26841 BUSHING, SWITCH ACTUATING ARM TO INNER TRANSOM PLATE STUD
    BUSHING, SWITCH ACTUATING ARM TO INNER TRANSOM PLATE STUD
  • 28
    12-20546 WASHER, SWITCH ACTUATING ARM TO INNER TRANSOM PLATE STUD
    WASHER, SWITCH ACTUATING ARM TO INNER TRANSOM PLATE STUD
  • 29
    11-82670911 NUT, SWITCH ACTUATING ARM TO INNER TRANSOM STUD
    NUT, SWITCH ACTUATING ARM TO INNER TRANSOM STUD
  • 30
    12-32620 WASHER, OUTER TRANSOM PLATE TO INNER TRANSOM PLATE SCREW
    WASHER, OUTER TRANSOM PLATE TO INNER TRANSOM PLATE SCREW
  • 31
    32276A2 PLATE ASSEMBLY, TRANSOM - OUTER
    PLATE ASSEMBLY, TRANSOM - OUTER
  • 32
    31636 SEAL, RUBBER - OUTER TRANSOM PLATE TRANSOM
    SEAL, RUBBER - OUTER TRANSOM PLATE TRANSOM
  • 33
    32795 LINER, OUTER TRANSOM PLATE
    LINER, OUTER TRANSOM PLATE
  • 34
    34762A1 PLATE ASSEMBLY, INHIBITOR - OUTER TRANSOM PLATE
    PLATE ASSEMBLY, INHIBITOR - OUTER TRANSOM PLATE
  • 35
    10-34763 SCREW, INHIBITOR PLATE TO OUTER TRANSOM PLATE
    SCREW, INHIBITOR PLATE TO OUTER TRANSOM PLATE
  • 36
    10-31852 SCREW, OUTER TRANSOM PLATE TO INNER TRANSOM PLATE (5")
    SCREW, OUTER TRANSOM PLATE TO INNER TRANSOM PLATE (5")
  • 37
    10-31600 SCREW, OUTER TRANSOM PLATE TO INNER TRANSOM PLATE
    (1/2-20 X 3 3/4") - EARLY STYLE
    SCREW, OUTER TRANSOM PLATE TO INNER TRANSOM PLATE
    (1/2-20 X 3 3/4") - EARLY STYLE
  • 37
    10-31600 SCREW, OUTER TRANSOM PLATE TO INNER TRANSOM PLATE
    (1/2-20 X 3 3/4") - EARLY STYLE
    SCREW, OUTER TRANSOM PLATE TO INNER TRANSOM PLATE
    (1/2-20 X 3 3/4") - EARLY STYLE
  • 37
    10-43691 SCREW, OUTER TRANSOM PLATE TO INNER TRANSOM PLATE
    (1/2-13 X 3 3/4") - LATER STYLE
    SCREW, OUTER TRANSOM PLATE TO INNER TRANSOM PLATE
    (1/2-13 X 3 3/4") - LATER STYLE
  • 38
    12-21900 WASHER, OUTER TRANSOM PLATE TO INNER TRANSOM PLATE SREW
    WASHER, OUTER TRANSOM PLATE TO INNER TRANSOM PLATE SREW
  • 39
    11-826709117 NUT, OUTER TRANSOM PLATE TO INNER TRANSOM PLATE SCREW
    NUT, OUTER TRANSOM PLATE TO INNER TRANSOM PLATE SCREW
  • 40
    11-898832 NUT, OUTER TRANSOM PLATE TO INNER TRANSOM PLATE SCREW
    (1/2-20) - EARLY STYLE
    NUT, OUTER TRANSOM PLATE TO INNER TRANSOM PLATE SCREW
    (1/2-20) - EARLY STYLE
  • 40
    11-898832 NUT, OUTER TRANSOM PLATE TO INNER TRANSOM PLATE SCREW (1/2-2)
    (1/2-20) - EARLY STYLE
    NUT, OUTER TRANSOM PLATE TO INNER TRANSOM PLATE SCREW (1/2-2)
    (1/2-20) - EARLY STYLE
  • 40
    11-34087 NUT, OUTER TRANSOM PLATE TO INNER TRANSOM PLATE SCREW
    (1/2-13) - LATER STYLE
    NUT, OUTER TRANSOM PLATE TO INNER TRANSOM PLATE SCREW
    (1/2-13) - LATER STYLE
  • 41
    34051A3 SWITCH ASSEMBLY, LOCK-IN LIMIT - OUTER TRANSOM PLATE
    SWITCH ASSEMBLY, LOCK-IN LIMIT - OUTER TRANSOM PLATE
  • 42
    34060 PLUNGER, OUTER TRANSOM PLATE
    PLUNGER, OUTER TRANSOM PLATE
  • 43
    10-20665 SCREW, LOCK-IN LIMIT SWITCH TO OUTER TRANSOM PLATE
    SCREW, LOCK-IN LIMIT SWITCH TO OUTER TRANSOM PLATE
  • 44
    54-24836 CLIP, LOCK-IN LIMIT SWITCH LEADS TO INNER TRANSOM PLATE
    CLIP, LOCK-IN LIMIT SWITCH LEADS TO INNER TRANSOM PLATE
  • 45
    10-32031 SCREW, LOCK-IN LIMIT SWITCH LEADS CLIP
    TO INNER TRANSOM PLATE
    SCREW, LOCK-IN LIMIT SWITCH LEADS CLIP
    TO INNER TRANSOM PLATE
  • 46
    8M0084613 "D" WASHER, LOCK-IN LIMIT SWITCH LEADS CLIP SCREW
    "D" WASHER, LOCK-IN LIMIT SWITCH LEADS CLIP SCREW
  • 47
    16-32292 STUD, CABLE MOUNTING BRACKET TO SHIFT CABLE AND GUIDE
    STUD, CABLE MOUNTING BRACKET TO SHIFT CABLE AND GUIDE
  • 48
    11-29031 NUT, CABLE MOUNTING BRACKET TO SHIFT CABLE AND GUIDE STUD
    (1/4-20)
    NUT, CABLE MOUNTING BRACKET TO SHIFT CABLE AND GUIDE STUD
    (1/4-20)
  • 49
    12-29245 WASHER, SHIFT CABLE END GUIDE STUD
    WASHER, SHIFT CABLE END GUIDE STUD
  • 50
    11-8267089 NUT, CABLE MOUNTING BRACKET TO SHIFT CABLE END GUIDE STUD
    (1/4-28)
    NUT, CABLE MOUNTING BRACKET TO SHIFT CABLE END GUIDE STUD
    (1/4-28)
  • 51
    16-23166 STUD, SHIFT CABLE MOUNTING ARM TO STEERING CABLE BRACKET
    STUD, SHIFT CABLE MOUNTING ARM TO STEERING CABLE BRACKET
  • 51
    16-68201 STUD, SHIFT CABLE MOUNTING ARM TO STEERING CABLE BRACKET
    PART OF B-34193A3 TRANSOM PLATE ASSEMBLY)
    STUD, SHIFT CABLE MOUNTING ARM TO STEERING CABLE BRACKET
    PART OF B-34193A3 TRANSOM PLATE ASSEMBLY)
  • 52
    10-22659 SCREW, SHIFT ACTUATINGCABLE TO SHIFT CABLE MOUNTING ARM
    SCREW, SHIFT ACTUATINGCABLE TO SHIFT CABLE MOUNTING ARM
  • 53
    23-31866 SPACER, SHIFT ACTUATING CABLE SCREW
    SPACER, SHIFT ACTUATING CABLE SCREW
  • 54
    12-39143 WASHER, SHIFT ACTUATING CABLE SCREW 2
    WASHER, SHIFT ACTUATING CABLE SCREW 2
  • 55
    11-8267089 NUT, SHIFT ACTUATING CABLE TO SHIFT CABLE MOUNTING ARM SCREW
    NUT, SHIFT ACTUATING CABLE TO SHIFT CABLE MOUNTING ARM SCREW
  • 56
    10-22659 SCREW, SHIFT CABLE ASSEMBLY TO SHIFT CABLE MOUNTING ARM
    SCREW, SHIFT CABLE ASSEMBLY TO SHIFT CABLE MOUNTING ARM
  • 57
    23-31866 SPACER,SHIFT CABLE ASSEMBLY SCREW
    SPACER,SHIFT CABLE ASSEMBLY SCREW
  • 58
    12-39143 WASHER, SHIFT CABLE ASSEMBLY SCREW
    WASHER, SHIFT CABLE ASSEMBLY SCREW
  • 59
    11-8267089 NUT, SHIFT CABLE ASSEMBLY TO SHIFT CABLE MOUNTING ARM SCREW
    NUT, SHIFT CABLE ASSEMBLY TO SHIFT CABLE MOUNTING ARM SCREW
  • 60
    31912 YOKE, CABLE GUIDE TUBE PIVOT - STEERING CABLE BRACKET
    YOKE, CABLE GUIDE TUBE PIVOT - STEERING CABLE BRACKET
  • 60
    34125 YOKE, CABLE GUIDE TUBE PIVOT - STEERING CABLE BRACKET
    PART OF B-34193A3 TRANSOM PLATE ASSEMBLY)
    YOKE, CABLE GUIDE TUBE PIVOT - STEERING CABLE BRACKET
    PART OF B-34193A3 TRANSOM PLATE ASSEMBLY)
  • 61
    31833 RING, SWIVEL - CABLE GUIDE TUBE PIVOT YOKE
    RING, SWIVEL - CABLE GUIDE TUBE PIVOT YOKE
  • 62
    10-31832 BOLT, PIVOT - CABLE TUBE PIVOT YOKE TO SWIVEL RING
    BOLT, PIVOT - CABLE TUBE PIVOT YOKE TO SWIVEL RING
  • 63
    13-31848 LOCKWASHER, PIVOT YOKE TO SWIVEL RING PIVOT BOLT
    LOCKWASHER, PIVOT YOKE TO SWIVEL RING PIVOT BOLT
  • 64
    11-8M0041651 NUT, JAM - STEERING CABLE GUIDE TIBE
    NUT, JAM - STEERING CABLE GUIDE TIBE
  • 65
    71565A2 TUBE,STEERING CABLE GUIDE (7/8" OD)
    TUBE,STEERING CABLE GUIDE (7/8" OD)
