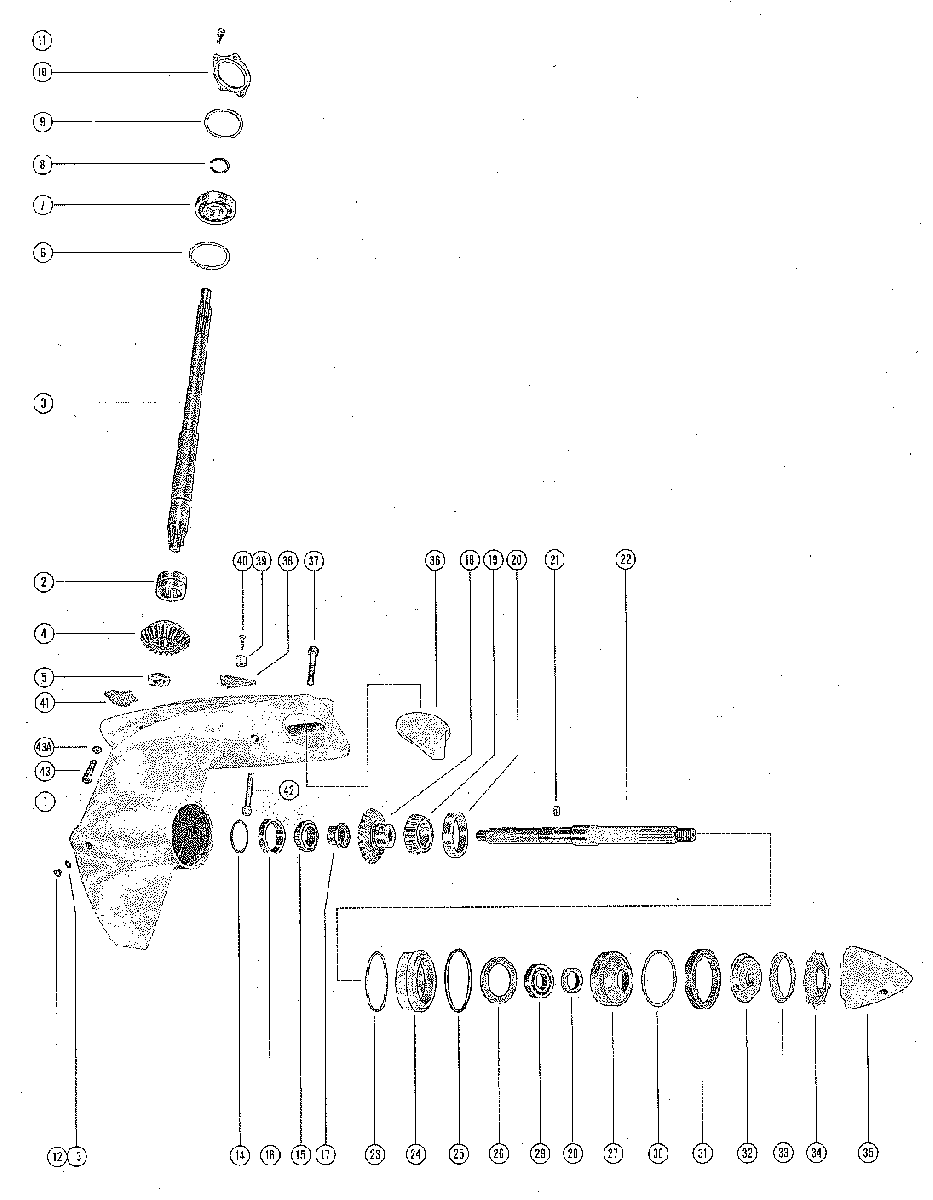

GEAR HOUSING ASSEMBLY, COMPLETE для Mercruiser - II 1962-1963 1474909 THRU 1602185

  • №
    Артикул
    Название
  • -
    1625-1929A2 GEAR HOUSING ASSEMBLY, COMPLETE
    GEAR HOUSING ASSEMBLY, COMPLETE
  • -
    1625-1982A2 GEAR HOUSING ASSEMBLY, COMPLETE
    GEAR HOUSING ASSEMBLY, COMPLETE
  • -
    16252007A GEAR HOUSING ASSEMBLY, COMPLETE
    GEAR HOUSING ASSEMBLY, COMPLETE
  • 1
    1625-1929A1 GEAR HOUSING ASSEMBLY
    GEAR HOUSING ASSEMBLY
  • 1
    1625-1982A1 GEAR HOUSING ASSEMBLY
    GEAR HOUSING ASSEMBLY
  • 1
    1625-2007A1 GEAR HOUSING ASSEMBLY
    GEAR HOUSING ASSEMBLY
  • 2
    31-31544 BEARING, ROLLER - DRIVE SHAFT
    BEARING, ROLLER - DRIVE SHAFT
  • 3
    45-37253 DRIVE SHAFT
    DRIVE SHAFT
  • 4
    43-31527 GEAR, PINION - DRIVE SHAFT
    GEAR, PINION - DRIVE SHAFT
  • 5
    11-31538 NUT, PINION GEAR TO DRIVE SHAFT
    NUT, PINION GEAR TO DRIVE SHAFT
  • 6
    15-20928A1 SHIM, DRIVE SHAFT BALL BEARING TO GEAR HOUSING (.002-3-5-10)
    SHIM, DRIVE SHAFT BALL BEARING TO GEAR HOUSING (.002-3-5-10)
  • 7
    30-32165 BEARING, BALL - DRIVE SHAFT
    BEARING, BALL - DRIVE SHAFT
  • 8
    53-31539 RING. SNAP - BALL BEARING TO GEAR HOUSING
    RING. SNAP - BALL BEARING TO GEAR HOUSING
  • 9
    15-20928A1 SHIM, DRIVE SHAFT BALL BEARING TO RETAINER (.002-3-5-10)
    SHIM, DRIVE SHAFT BALL BEARING TO RETAINER (.002-3-5-10)
  • 10
    31541 RETAINER, BALL BEARING - DRIVE SHAFT
    RETAINER, BALL BEARING - DRIVE SHAFT
  • 11
    10-30225 SCREW, BALL BEARING RETAINER TO GEAR HOUSING
    SCREW, BALL BEARING RETAINER TO GEAR HOUSING
  • 12
    10-79953Q04 SCREW, GEAR HOUSING GREASE FILLER HOLE
    SCREW, GEAR HOUSING GREASE FILLER HOLE
  • 13
    12-191833 WASHER, GEAR HOUSING GREASE FILLER HOLE SCSREW
    WASHER, GEAR HOUSING GREASE FILLER HOLE SCSREW
  • 14
    15-31154A1 SHIM, TAPERED ROLLER BEARING CUP TO GEAR HSG. (.002-3-5-10)
    SHIM, TAPERED ROLLER BEARING CUP TO GEAR HSG. (.002-3-5-10)
  • 15
    31-31215A1 TAPERED ROLLER BEARING ASSEMBLY, PROPELLER SHAFT
    TAPERED ROLLER BEARING ASSEMBLY, PROPELLER SHAFT
  • 16
    31-31216 CUP, TAPERED ROLLER
    CUP, TAPERED ROLLER
  • 17
    31556 ADAPTOR, TAPERED ROLLER BEARING TO PROPELLER SHAFT
    ADAPTOR, TAPERED ROLLER BEARING TO PROPELLER SHAFT
  • 18
    43-31526 GEAR, PROPELLER - PROPELLER SHAFT
    GEAR, PROPELLER - PROPELLER SHAFT
  • 19
    31-30894A1 TAPERED ROLLER BEARING ASSEMBLY, PROPELLER GEAR
    TAPERED ROLLER BEARING ASSEMBLY, PROPELLER GEAR
  • 20
    31-31092 CUP, TAPERED ROLLER BEARING
    CUP, TAPERED ROLLER BEARING
  • 21
    17-31537 PIN DOWEL - PROPELLER GEAR TP PROPELLER SHAFT
    PIN DOWEL - PROPELLER GEAR TP PROPELLER SHAFT
  • 22
    44-32245 SHAFT, PROPPELLER
    SHAFT, PROPPELLER
  • 23
    15-31535A1 SHIM, BEARING CARRIER TO GEAR HOUSING (>002-3-5-10_)
    SHIM, BEARING CARRIER TO GEAR HOUSING (>002-3-5-10_)
  • 24
    31533 CARRIER, BEARING - PROPELLER GEAR TAPERED ROLLER BEARING
    CARRIER, BEARING - PROPELLER GEAR TAPERED ROLLER BEARING
  • 25
    25-31534 >"O" RING, BEARING CARRIER TO GEAR HOUSING COVER
    >"O" RING, BEARING CARRIER TO GEAR HOUSING COVER
  • 26
    32248 RING, BALL BEARING TO GEAR HOUSING COVER
    RING, BALL BEARING TO GEAR HOUSING COVER
  • 27
    32244A1 COVER ASSEMBLY, GEAR HOUSING
    COVER ASSEMBLY, GEAR HOUSING
  • 28
    26-31554 OIL SEAL, GEAR HOUSING COVER
    OIL SEAL, GEAR HOUSING COVER
  • 29
    30-20840 BEARING, BALL - GEAR HOUSING COVER
    BEARING, BALL - GEAR HOUSING COVER
  • 30
    12-31536 WASHER, GEAR HOUSING COVER TO RETSAINER
    WASHER, GEAR HOUSING COVER TO RETSAINER
  • 31
    32247 RETAINER, GEAR HOUSING COVER
    RETAINER, GEAR HOUSING COVER
  • 32
    31643A1 THRUST HUB AND WASHER ASSEMBLY, PROPELLER SHAFT
    THRUST HUB AND WASHER ASSEMBLY, PROPELLER SHAFT
  • 33
    12-31642 WASHER, CUPPED - THRUST HUB
    WASHER, CUPPED - THRUST HUB
  • 34
    14-31644 TAB WASHER, PROPPELLER SHAFT
    TAB WASHER, PROPPELLER SHAFT
  • 35
    11-31608 NUT, PROPELLER - PROPELLER SHAFT
    NUT, PROPELLER - PROPELLER SHAFT
  • 36
    97-31640Q4 TRIM TAB, GEAR HOUSING
    TRIM TAB, GEAR HOUSING
  • 37
    10-41350 SCREW, TRIM TAB TO GEAR HOUSING
    SCREW, TRIM TAB TO GEAR HOUSING
  • 38
    35-32200 SCREEN FILTER - GEAR HOUSING (REAR)
    SERIAL 01475090-01602185
    SCREEN FILTER - GEAR HOUSING (REAR)
    SERIAL 01475090-01602185
  • 39
    32209 MAGNET, GEAR HOUSING
    SERIAL 01475090-01602185
    MAGNET, GEAR HOUSING
    SERIAL 01475090-01602185
  • 40
    10-28667 SCREW, MAGNET TO GEAR HOUSING
    SERIAL 01475090-01602185
    SCREW, MAGNET TO GEAR HOUSING
    SERIAL 01475090-01602185
  • 41
    35-32250 SCREEN, FILTER - GEAR HOUSING (FRONT)
    SERIAL 01475090-01602185
    SCREEN, FILTER - GEAR HOUSING (FRONT)
    SERIAL 01475090-01602185
  • 42
    10-31717 SCREW, GEAR HOUSING TO DRIVE SHAFT HOUSING
    SCREW, GEAR HOUSING TO DRIVE SHAFT HOUSING
  • 43
    10-31718 SCREW, GEAR HOUSING TO DRIVE SHAFT HOUSING
    SCREW, GEAR HOUSING TO DRIVE SHAFT HOUSING
  • 43
    10-31718 SCREW, GEAR HOUSING TO DRIVE SHAFT HOUSING
    SCREW, GEAR HOUSING TO DRIVE SHAFT HOUSING
  • 43
    11-34933 NUT, DRIVE SHAFT HOUSING TO GEAR HOUSING STUDS
    NUT, DRIVE SHAFT HOUSING TO GEAR HOUSING STUDS
