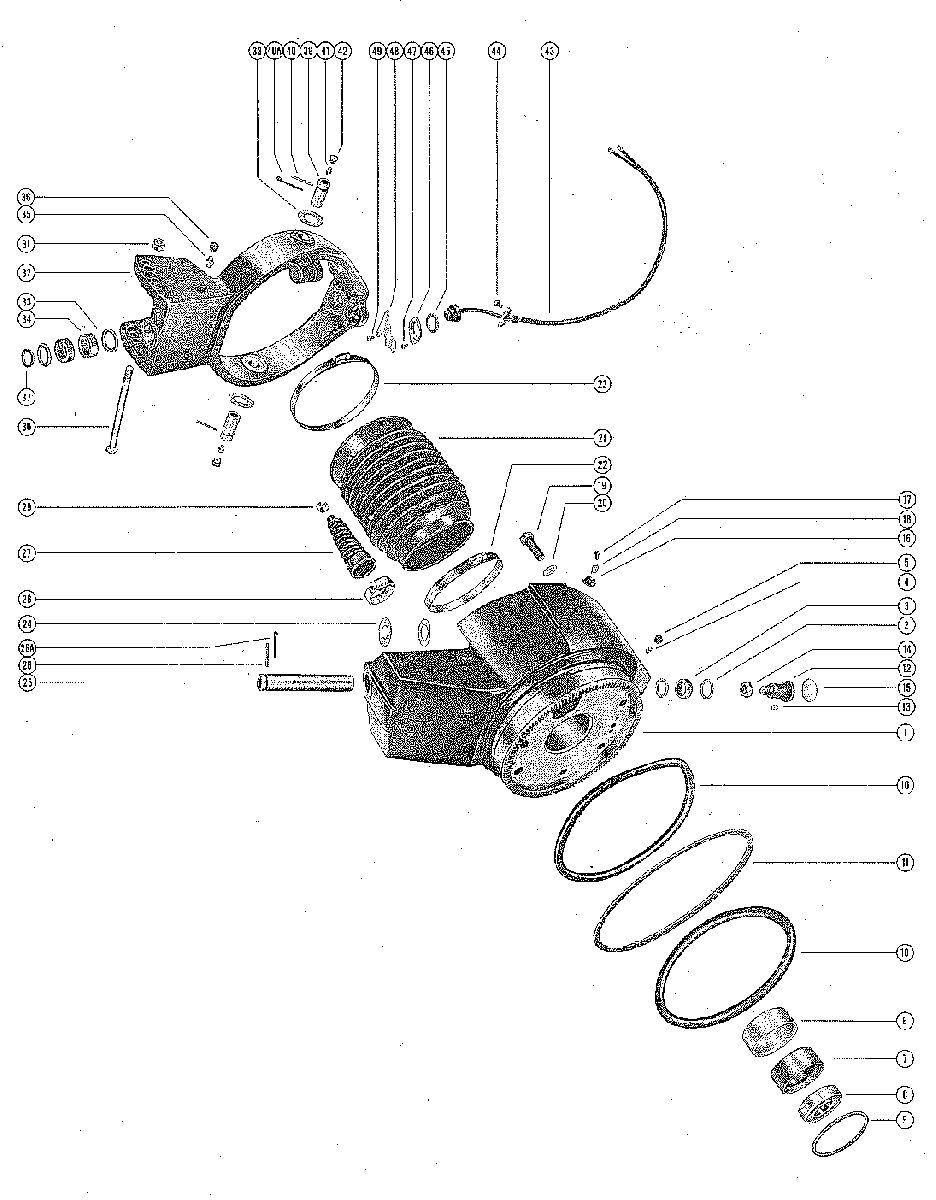

GIMBAL HOUSING AND GIMBAL RING ASSEMBLY для Mercruiser - II 1962-1963 1474909 THRU 1602185

№

Артикул

Название
1

37267A3 GIMBAL HOUSING ASSEMBLY (3" BORE)

GIMBAL HOUSING ASSEMBLY (3" BORE)
1

37267A3 GIMBAL HOUSING ASSEMBLY (2 5/8" BORE)

GIMBAL HOUSING ASSEMBLY (2 5/8" BORE)
2

26-32911 OIL SEAL, GIMBAL HOUSING

OIL SEAL, GIMBAL HOUSING
3

31-31559T BEARING, ROLLER - GIMBAL HOUSING

BEARING, ROLLER - GIMBAL HOUSING
4

22-74036 FITTING, GREASE - GIMBAL HOUSING

FITTING, GREASE - GIMBAL HOUSING
5

19-77633Q LUBRICAP, GIMBAL HOUSING GREASE FITTING

LUBRICAP, GIMBAL HOUSING GREASE FITTING
6

30-31561 BEARING, BALL - GIMBAL HOUSING RUBBER MOUNT

BEARING, BALL - GIMBAL HOUSING RUBBER MOUNT
7

31578 MOUNT, RUBBER - GIMBAL HOUSING BALL BEARING

MOUNT, RUBBER - GIMBAL HOUSING BALL BEARING
8

23-32290 SLEEVE, GIMBAL HOUSING RUBBER MOUNT AND BALL BEARING

SLEEVE, GIMBAL HOUSING RUBBER MOUNT AND BALL BEARING
9

25-20081 "O" RING, GIMBAL HOUSING TO STEERING LEVER HOUSING

"O" RING, GIMBAL HOUSING TO STEERING LEVER HOUSING
10

31635 SEAL, RUBBER - GIMBAL HOUSING TO OUTER TRANSOM PLATE

SEAL, RUBBER - GIMBAL HOUSING TO OUTER TRANSOM PLATE
11

12-31653 WASHER, SEPARATING - GIMBAL HOUSING TO OUTER TRANSOM PLATE

WASHER, SEPARATING - GIMBAL HOUSING TO OUTER TRANSOM PLATE
12

10-31628 BOLT, PIVOT - GIMBAL HOISING TO GIMBAL RING (UPPER)

BOLT, PIVOT - GIMBAL HOISING TO GIMBAL RING (UPPER)
13

17-31627 PIN, UPPER PIVOT BOLT LOCKING

PIN, UPPER PIVOT BOLT LOCKING
14

11-22339 NUT, GIMBAL HOUSING RING UPPER PIVOT BOLT

NUT, GIMBAL HOUSING RING UPPER PIVOT BOLT
15

19-31843 WELCH PLUG, UPPER PIVOT BOLT COVER - GIMBAL HOUSING

WELCH PLUG, UPPER PIVOT BOLT COVER - GIMBAL HOUSING
16

54-24836 CLIP, TILT STOP SWITCH TO GIMBAL HOUSING

CLIP, TILT STOP SWITCH TO GIMBAL HOUSING
17

10-31903 SCREW, TILT STOP SWITCH LEADS CLIP TO GIMBAL HOUSING

SCREW, TILT STOP SWITCH LEADS CLIP TO GIMBAL HOUSING
18

8M0084613 "D" WASHER, TILT STOP SWITCH LEADS CLIP SCREW

"D" WASHER, TILT STOP SWITCH LEADS CLIP SCREW
19

10-31877 SCREW, GIMBAL HOUSING TO STEERING LEVER HOUSING

SCREW, GIMBAL HOUSING TO STEERING LEVER HOUSING
20

12-20959 WASHER, GIMBAL HOUSING TO STEERING LEVER HOUSING SCREW

WASHER, GIMBAL HOUSING TO STEERING LEVER HOUSING SCREW
21

34088A1 BELLOWS, UNIVERSAL JOINT COVERING
SERIAL 00000000-01534386

BELLOWS, UNIVERSAL JOINT COVERING
SERIAL 00000000-01534386
21

34088A1 BELLOWS, UNIVERSAL JOINT COVERING
SERIAL 01534387-01602185

BELLOWS, UNIVERSAL JOINT COVERING
SERIAL 01534387-01602185
22

54-815504372 CLAMP. UNIVERSAL JOINT BELLOWS TO GIMBAL HOUSING (SMALL)

CLAMP. UNIVERSAL JOINT BELLOWS TO GIMBAL HOUSING (SMALL)
23

54-815504396 CLAMP, UNIVERSAL JOINT BELLOWS TO DRIVE SHAFT HOUSING (LARGE)

CLAMP, UNIVERSAL JOINT BELLOWS TO DRIVE SHAFT HOUSING (LARGE)
24

12-31581 WASHER, GIMBAL HOUSING TO GIMBAL RING LOWER SWIVEL PIN

WASHER, GIMBAL HOUSING TO GIMBAL RING LOWER SWIVEL PIN
25

17-31634 PIN, SWIVEL - GIMBEL HOUSING TO GIMBAL RING (LOWER)

PIN, SWIVEL - GIMBEL HOUSING TO GIMBAL RING (LOWER)
26

17-31769 PIN, RETAINING - LOWER SWIVEL PIN
SERIAL 00000000-01576065

PIN, RETAINING - LOWER SWIVEL PIN
SERIAL 00000000-01576065
26A

18-34212 COTTER PIN, RETAINING - LOWER SWIVEL PIN

COTTER PIN, RETAINING - LOWER SWIVEL PIN
27

74639A2 BELLOWS, SHIFT ACTUACTING CABLE COVERING

BELLOWS, SHIFT ACTUACTING CABLE COVERING
28

54-815504320 CLAMP, SHIFT ACTUACTING CABLE BELLOWS TO GIMBAL HOUSING

CLAMP, SHIFT ACTUACTING CABLE BELLOWS TO GIMBAL HOUSING
29

54-20386 CLAMP, SHIFT ACTUATING CABLE BELLOWS TO SHIFT
ACTUATING CABLE

CLAMP, SHIFT ACTUATING CABLE BELLOWS TO SHIFT
ACTUATING CABLE
30

10-31626 BOLT, TILT ADJUSTMENT - GIMBAL RING

BOLT, TILT ADJUSTMENT - GIMBAL RING
31

11-34933 NUT, TILT ADJUSTMENT BOLT

NUT, TILT ADJUSTMENT BOLT
32

49223A1 GIMBAL RING ASSEMBLY

GIMBAL RING ASSEMBLY
32

49223A1 GIMBAL RING ASSEMBLY

GIMBAL RING ASSEMBLY
33

26-32911 OIL SEAL, GIMBAL RING

OIL SEAL, GIMBAL RING
34

31-31559T BEARING, ROLLER - GIMBAL RING

BEARING, ROLLER - GIMBAL RING
35

22-69059 FITTING, GREASE - GIMBAL RING

FITTING, GREASE - GIMBAL RING
36

19-77633Q LUBRICAP, GIMBAL RING GREASE FITTING

LUBRICAP, GIMBAL RING GREASE FITTING
37

23-34417 SPACER, GIMBAL RING TO GIMBAL HOUSING

SPACER, GIMBAL RING TO GIMBAL HOUSING
38

12-31633 WASHER, GIMBAL RING TO DRIVE SGAFT HOUSING HINGE PIN

WASHER, GIMBAL RING TO DRIVE SGAFT HOUSING HINGE PIN
39

17-31579 PIN, HINGE - GIMBAL RING TO HOUSING
SERIAL 00000000-01576130

PIN, HINGE - GIMBAL RING TO HOUSING
SERIAL 00000000-01576130

17-34295 *PIN, HINGE - GIMBAL RING TO HOUSING
B-17-34295 HINGE PIN (2) IS PART OF B-1544-2008A8 DRIVE SHAFT ASSEMBLY. SERIAL 01576131-01602185

*PIN, HINGE - GIMBAL RING TO HOUSING
B-17-34295 HINGE PIN (2) IS PART OF B-1544-2008A8 DRIVE SHAFT ASSEMBLY. SERIAL 01576131-01602185

Производитель

Mercury-Mercruiser

40

17-31769 PIN, PIN RETAINING - GIMBAL RING
SERIAL 00000000-01576065

PIN, PIN RETAINING - GIMBAL RING
SERIAL 00000000-01576065
40A

18-34212 COTTER PIN, PIN RETAINING - GIMBAL RING
SERIAL 01576066-01602185

COTTER PIN, PIN RETAINING - GIMBAL RING
SERIAL 01576066-01602185
41

22-74036 FITTING, GREASE - GIMBSAL RING HINGE PIN
SERIAL 00000000-01576130

FITTING, GREASE - GIMBSAL RING HINGE PIN
SERIAL 00000000-01576130
42

19-77633Q LUBRICAP, HINGE PIN GREASE FITTING
SERIAL 00000000-01576130

LUBRICAP, HINGE PIN GREASE FITTING
SERIAL 00000000-01576130
43

32676A1 TILT STOP SWITCH ASSEMBLY, GIMBAL RING

TILT STOP SWITCH ASSEMBLY, GIMBAL RING
44

10-22469 SCREW, TILT STOP SWITCH COVER TO GIMBAL HOUSING

SCREW, TILT STOP SWITCH COVER TO GIMBAL HOUSING
45

23-31902 SPACER, TILT STOP SWITCH TO RETAINING PLATE

SPACER, TILT STOP SWITCH TO RETAINING PLATE
46

31899 PLATE, RETAINING - TILT STOP SWITCH TO GIMBAL RING

PLATE, RETAINING - TILT STOP SWITCH TO GIMBAL RING
47

10-31903 SCREW, RETAINING PLATE TO GIMBAL RING

SCREW, RETAINING PLATE TO GIMBAL RING
48

49343 LEVER, TILT STOP SWITCH ACTUATING - GIMBAL RING

LEVER, TILT STOP SWITCH ACTUATING - GIMBAL RING
49

10-31903 SCREW, TILT STOP SWITCH ACTUATING LEVER TO GIMBAL RING

SCREW, TILT STOP SWITCH ACTUATING LEVER TO GIMBAL RING
