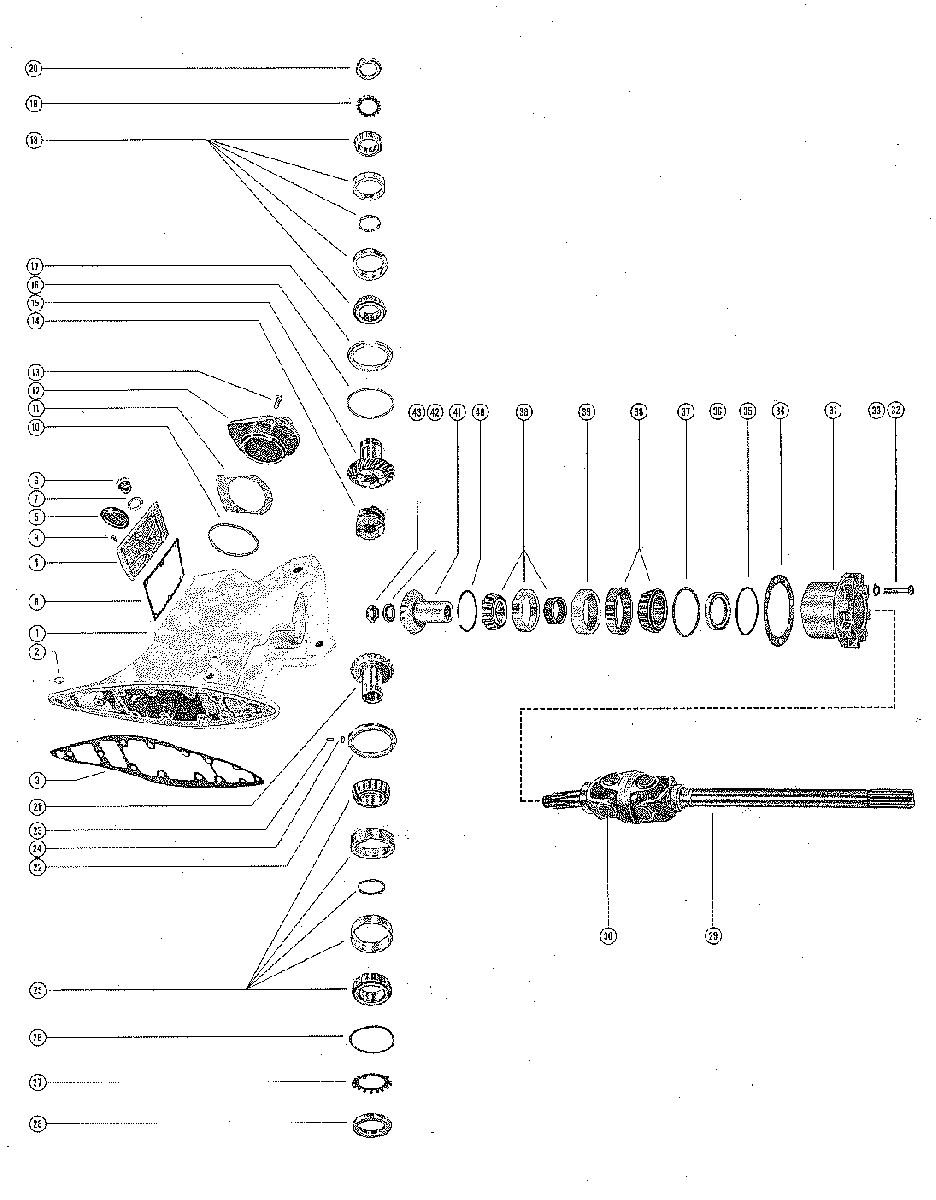

DRIVE SHAFT HOUSING ASSEMBLY AND GEAR ASSEMBLY для Mercruiser - II 1962-1963 1474909 THRU 1602185

  • №
    Артикул
    Название
  • 1
    1544-1976A3 DRIVE SHAFT HOUSING ASSEMBLY
    A12 FOR PARTS BREAKDOWN
    DRIVE SHAFT HOUSING ASSEMBLY
    A12 FOR PARTS BREAKDOWN
  • 1
    1544-1981A3 DRIVE SHAFT HOUSING ASSEMBLY
    A12 FOR PARTS BREAKDOWN
    DRIVE SHAFT HOUSING ASSEMBLY
    A12 FOR PARTS BREAKDOWN
  • 1
    1544-2008A8 DRIVE SHAFT HOUSING
    A12 FOR PARTS BREAKDOWN
    DRIVE SHAFT HOUSING
    A12 FOR PARTS BREAKDOWN
  • 2
    19-29850 PLUG, TRIM TAB HOLE - DRIVE SHAFT HOUSING
    PLUG, TRIM TAB HOLE - DRIVE SHAFT HOUSING
  • 3
    27-31662 GASKET, DRIVE SHAFT HOUSING TO GEAR HOUSING
    GASKET, DRIVE SHAFT HOUSING TO GEAR HOUSING
  • 3
    27-32858 GASKET, DRIVE SHAFT HOUSING TO GEAR HOUSING
    GASKET, DRIVE SHAFT HOUSING TO GEAR HOUSING
  • 3
    27-32277 GASKET, DRIVE SHAFT HOUSING TO GEAR HOUSING
    GASKET, DRIVE SHAFT HOUSING TO GEAR HOUSING
  • 4
    31596A1 COVER ASSEMBLY, SHIFT FORK
    COVER ASSEMBLY, SHIFT FORK
  • 4
    32365A1 COVER ASSEMBLY, SHIFT FORK
    COVER ASSEMBLY, SHIFT FORK
  • 5
    26183A5 EMBLEM, SHIFT FORK COVER
    EMBLEM, SHIFT FORK COVER
  • 6
    22-320181 PLUG, OIL FILLER - SHIFT FORK COVER
    PLUG, OIL FILLER - SHIFT FORK COVER
  • 7
    27-32019 GASKET, OIL FILTER PLUG - SHIFT FOLK COVER
    GASKET, OIL FILTER PLUG - SHIFT FOLK COVER
  • 8
    27-31637 GASKET, SHIFT FORK COVER TO DRIVE SHAFT HOUSING
    GASKET, SHIFT FORK COVER TO DRIVE SHAFT HOUSING
  • 8
    27-32366 GASKET, SHIFT FORK COVER TO DRIVE SHAFT HOUSING
    GASKET, SHIFT FORK COVER TO DRIVE SHAFT HOUSING
  • 9
    10-31716 SCREW, SHIFT FORK COVER TO DRIVE SHAFT HOUSING
    SCREW, SHIFT FORK COVER TO DRIVE SHAFT HOUSING
  • 10
    25-32068 "O" RING TOP COVER SEALING
    "O" RING TOP COVER SEALING
  • 11
    15-32058A1 SHIM, TOP COVER TO DRIVE SHAFT HOUSING (.002-3-5-10)
    SHIM, TOP COVER TO DRIVE SHAFT HOUSING (.002-3-5-10)
  • 11
    15-32363A1 SHIM, TOP COVER TO DRIVE SHAFT HOUSING (.002-3-5-10)
    SHIM, TOP COVER TO DRIVE SHAFT HOUSING (.002-3-5-10)
  • 12
    32056 COVER, TOP - DRIVE SHAFT HOUSING
    COVER, TOP - DRIVE SHAFT HOUSING
  • 12
    32367 COVER, TOP - DRIVE SHAFT HOUSING
    (PART OF B-1544-2008A8 DRIVE SHAFT HOUSING)
    COVER, TOP - DRIVE SHAFT HOUSING
    (PART OF B-1544-2008A8 DRIVE SHAFT HOUSING)
  • 13
    10-31985 SCREW, TOP COVER TO DRIVE SHAFT HOUSING
    SCREW, TOP COVER TO DRIVE SHAFT HOUSING
  • 14
    52-31530 CLUTCH, SLIDINMG - SHIFT FORK
    CLUTCH, SLIDINMG - SHIFT FORK
  • 15
    43-32261 GEAR, FORWARD
    GEAR, FORWARD
  • 16
    15-846353A1 SHIM, ROLLER BEARING WASHER TO DRIVE SHAFT HOUSING
    (.002-3-5-10-25)
    SHIM, ROLLER BEARING WASHER TO DRIVE SHAFT HOUSING
    (.002-3-5-10-25)
  • 17
    12-32161 WASHER, FORWARD GEAR TAPERED ROLLER BEARING
    WASHER, FORWARD GEAR TAPERED ROLLER BEARING
  • 18
    31-30894A4 TAPERED ROLLER BEARING ASSEMBLY, FORWARD GEAR
    TAPERED ROLLER BEARING ASSEMBLY, FORWARD GEAR
  • 19
    14-32054 TAB WASHER, TAPERED ROLLER BEARING TO FORWARD GEAR NUT
    TAB WASHER, TAPERED ROLLER BEARING TO FORWARD GEAR NUT
  • 20
    11-32060 NUT, TAPERED TROLLER BEARING TO FORWARD GEAR
    NUT, TAPERED TROLLER BEARING TO FORWARD GEAR
  • 21
    43-32262 GEAR, REVERESE
    GEAR, REVERESE
  • 22
    32087 RETAINER, REVERSE GEAR TAPERED ROLLER BEARING CUP
    RETAINER, REVERSE GEAR TAPERED ROLLER BEARING CUP
  • --
    32108 BALL, TAPERED ROLLER BEARING CUP RETAINER LOCKING
    BALL, TAPERED ROLLER BEARING CUP RETAINER LOCKING
  • --
    10-32106 SCREW, SET - TAPERED ROLLER BEARING CUP RETAINER LOCKING
    SCREW, SET - TAPERED ROLLER BEARING CUP RETAINER LOCKING
  • 23
    10-32130 SCREW, SET - TAPERED ROLLER BEARING CUP RETAINER
    SCREW, SET - TAPERED ROLLER BEARING CUP RETAINER
  • 24
    11-26484 NUT, JAM TAPERED ROLLER BEARING CUP RETAINER SCREW
    NUT, JAM TAPERED ROLLER BEARING CUP RETAINER SCREW
  • 25
    31-30894A4 TAPERED ROLLER BEARING ASSEMBLY, REVERSSE GEAR
    TAPERED ROLLER BEARING ASSEMBLY, REVERSSE GEAR
  • 26
    15-32057A1 SHIM, REVERSE GEAR BEING CUP TO DRIVE SHAFT HOUSING
    (.002-3-5-10-25)
    SHIM, REVERSE GEAR BEING CUP TO DRIVE SHAFT HOUSING
    (.002-3-5-10-25)
  • 27
    14-32054 TAB WASHER, TAPERED ROLLER BEARING TO REVERSE GEAR NUT
    TAB WASHER, TAPERED ROLLER BEARING TO REVERSE GEAR NUT
  • 28
    11-32060 NUT, TAPERED ROLLER BEARING TO REVERSE GEAR
    NUT, TAPERED ROLLER BEARING TO REVERSE GEAR
  • 29
    32051 UNIVERSAL JOINT, PINION GEAR
    UNIVERSAL JOINT, PINION GEAR
  • 30
    75832T1 CROSS AND BEARING ASSEMBLY, UNIVERSAL JOINT
    CROSS AND BEARING ASSEMBLY, UNIVERSAL JOINT
  • 31
    31576 RETAINER,PONION GEAR ROLLER BEARING
    RETAINER,PONION GEAR ROLLER BEARING
  • 32
    10-32132 SCREW, ROLLER BEARING RETAINER TO DRIVE SHAFT HOUSING
    SCREW, ROLLER BEARING RETAINER TO DRIVE SHAFT HOUSING
  • 33
    14-43589 TAB WASHER, ROLLER BEARING RETAINER
    TO DRIVE SHAFT HOUSING SCREW
    TAB WASHER, ROLLER BEARING RETAINER
    TO DRIVE SHAFT HOUSING SCREW
  • 34
    15-32062A1 SHIM, PINION GEAR BEARING RETAINER TO DRIVE SHAFT HSG.
    (002-3-5-10-25)
    SHIM, PINION GEAR BEARING RETAINER TO DRIVE SHAFT HSG.
    (002-3-5-10-25)
  • 35
    25-32069 "O" RING, PINION GEAR ROLLER BEARING RETAINER
    "O" RING, PINION GEAR ROLLER BEARING RETAINER
  • 36
    26-823894 OIL SEAL, PINION GEAR ROLLER BEARING RETAINER
    OIL SEAL, PINION GEAR ROLLER BEARING RETAINER
  • 37
    15-32057A1 SHIM, PINION GEAR ROLLER BEARING CUP TO RETAINER
    (002-3-5-10-25)
    SHIM, PINION GEAR ROLLER BEARING CUP TO RETAINER
    (002-3-5-10-25)
  • 38
    31-30894A3 TAPERED ROLLER BEARING ASSEMBLY PINION GEAR
    TAPERED ROLLER BEARING ASSEMBLY PINION GEAR
  • 39
    23-32066 SPACER, PINION GEAR ROLLER BEARING CUPS
    SPACER, PINION GEAR ROLLER BEARING CUPS
  • 40
    53-32185 RING, RETAINER - PINION GEAR ROLLER BEARING CUP TO RETAINER
    RING, RETAINER - PINION GEAR ROLLER BEARING CUP TO RETAINER
  • 41
    43-39377A3 GEAR, PINION - UNIVERSAL JOINT
    GEAR, PINION - UNIVERSAL JOINT
  • 42
    12-32073 WASHER, PINION GEAR TO UNIVERSAL JOINT NUT
    WASHER, PINION GEAR TO UNIVERSAL JOINT NUT
  • 43
    11-858869 NUT, PINION GEAR TO UNIVERSAL JOINT
    NUT, PINION GEAR TO UNIVERSAL JOINT
  • --
    92-271091 ADHESIVE COMPOUND, (3 1/2 OUNCE KIT) - EMBLEM FASTENING
    ADHESIVE COMPOUND, (3 1/2 OUNCE KIT) - EMBLEM FASTENING
