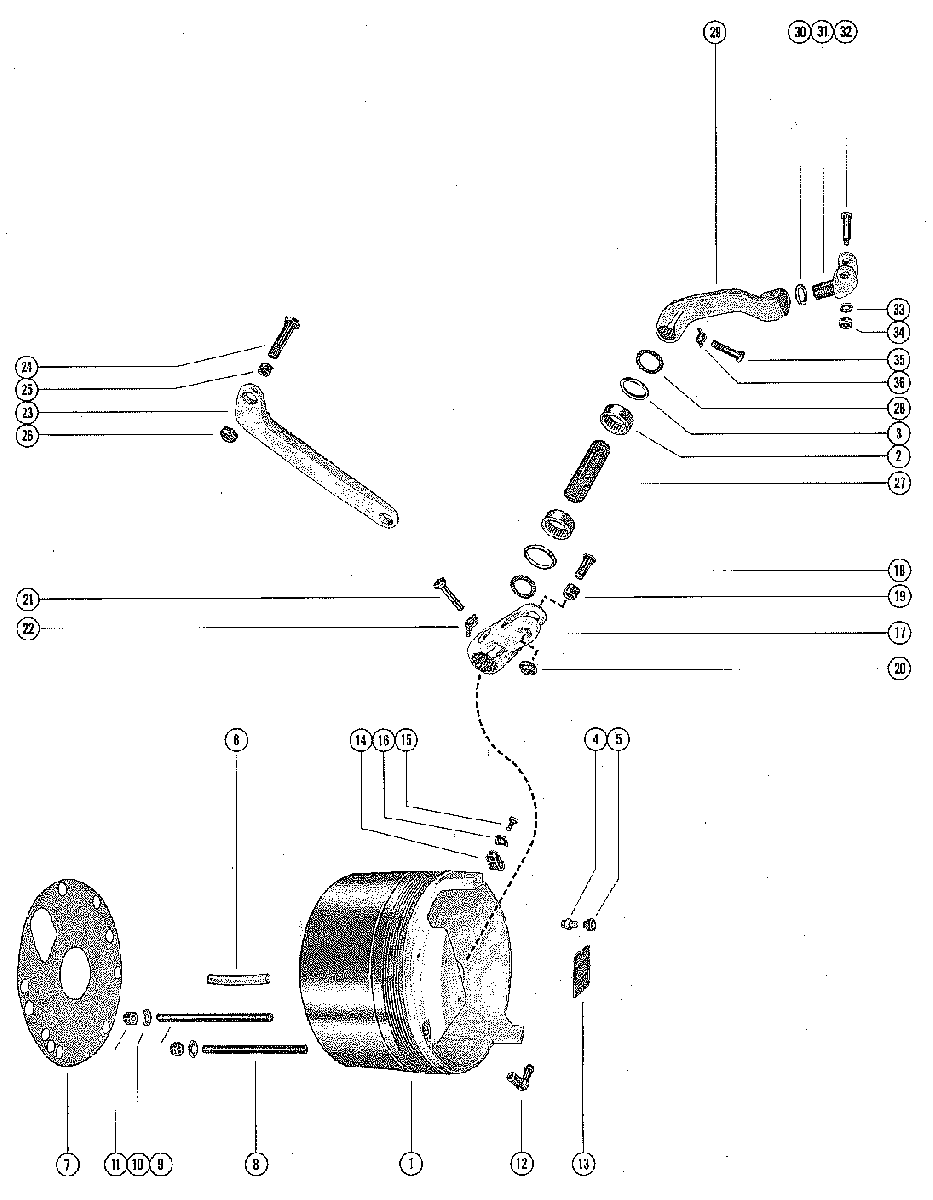

STEERING LEVER HOUSING ASSEMBLY для Mercruiser - II (1.78:1) 1968-1969 2398798 THRU 2671321

  • №
    Артикул
    Название
  • 1
    32420A2 STEERING LEVER HOUSING ASSEMBLY
    15 1/2" "U" JOINT COUPLING YOKE
    STEERING LEVER HOUSING ASSEMBLY
    15 1/2" "U" JOINT COUPLING YOKE
  • 1
    52756A2 STEERING LEVER HOUSING ASSEMBLY
    11 1/2" "U" JOINT COUPLING YOKE
    STEERING LEVER HOUSING ASSEMBLY
    11 1/2" "U" JOINT COUPLING YOKE
  • 2
    31-30457 BEARING, ROLLER - STEERING LEVER HOUSING
    BEARING, ROLLER - STEERING LEVER HOUSING
  • 3
    26-31851 OIL SEAL, STEERING LEVER HOUSING
    OIL SEAL, STEERING LEVER HOUSING
  • 4
    22-69059 FITTING, GREASE - STEERING LEVER HOUSING
    FITTING, GREASE - STEERING LEVER HOUSING
  • 5
    19-77633Q LUBRICAPM, STEERING LEVER HOUSING GREASE FITTING
    LUBRICAPM, STEERING LEVER HOUSING GREASE FITTING
  • 6
    32-31879 TUBE, NYLON - SHIFT ACTUATING CABLE GUIDE
    TUBE, NYLON - SHIFT ACTUATING CABLE GUIDE
  • 7
    27-32423 GASKET, STEERING LEVER HOUSING TO GIMBAL HOUSING
    GASKET, STEERING LEVER HOUSING TO GIMBAL HOUSING
  • 8
    16-32422 STUD, STEERING LEVER HOUSING TO GIMBAL HOUSING (6 5/8")
    STUD, STEERING LEVER HOUSING TO GIMBAL HOUSING (6 5/8")
  • 9
    16-32421 STUD, STEERING LEVER HOUSING TO GIMBAL HOUSING (7 1/4")
    STUD, STEERING LEVER HOUSING TO GIMBAL HOUSING (7 1/4")
  • 10
    12-20959 WASHER, STEERING LEVER HOUSING STUD
    WASHER, STEERING LEVER HOUSING STUD
  • 11
    11-898832 NUT, STEERING LEVER HOUSING STUD
    NUT, STEERING LEVER HOUSING STUD
  • 12
    22-996642 ELBOW, STEERING LEVER HOUSING STUD
    ELBOW, STEERING LEVER HOUSING STUD
  • 13
    37-39395 DECAL, SERIAL NUMBER
    DECAL, SERIAL NUMBER
  • 14
    54-24836 CLIP, TILT STOP SWITCH LEADS TO STEERING LEVER HOUSING
    CLIP, TILT STOP SWITCH LEADS TO STEERING LEVER HOUSING
  • 15
    10-62568 SCREW, TILT STOP SWITCH LEADS CLIP TO STEERING LEVER HOUSING
    SCREW, TILT STOP SWITCH LEADS CLIP TO STEERING LEVER HOUSING
  • 16
    8M0084613 "D" WASHER, TILT STOP SWITCH LEADS CLIP SCREW
    "D" WASHER, TILT STOP SWITCH LEADS CLIP SCREW
  • 17
    34903 ARM, STEERING - LOWER
    ARM, STEERING - LOWER
  • 18
    10-31846 BOLT, LINK ROD TO LOWER STEERING ARM (2 1/16")
    BOLT, LINK ROD TO LOWER STEERING ARM (2 1/16")
  • 19
    23-31853 BUSHING, LINK ROD BOLT
    BUSHING, LINK ROD BOLT
  • 20
    11-826709117 NUT, LINK ROD BOLT
    NUT, LINK ROD BOLT
  • 21
    10-31830 SCREW, LOWER STEERING ARM TO STEERING SHAFT (1 3/4")
    SCREW, LOWER STEERING ARM TO STEERING SHAFT (1 3/4")
  • 22
    14-43589 TAB WASHER, LOWER STEERING ARM SCREW
    TAB WASHER, LOWER STEERING ARM SCREW
  • 23
    34009 LINK ROD, LOWER STEERING ROD TO GIMBAL RING
    LINK ROD, LOWER STEERING ROD TO GIMBAL RING
  • 24
    10-34954 BOLT, LINK ROD TO GIMBAL RING
    BOLT, LINK ROD TO GIMBAL RING
  • 25
    23-31853 BUSHING, LINK ROD BOLT
    BUSHING, LINK ROD BOLT
  • 26
    31844 NUT, LINK ROD BOLT
    NUT, LINK ROD BOLT
  • 27
    31844 SHAFT, STEERING - LEVER HOUSING
    SHAFT, STEERING - LEVER HOUSING
  • 28
    12-31829 WASHER, NYLON - UPPER AND LOWER STEERING ARMS TO SHAFT
    WASHER, NYLON - UPPER AND LOWER STEERING ARMS TO SHAFT
  • 29
    33775 ARM, STEERING - UPPER (15 1/2" "U" JOINT COUPLING YOKE)
    ARM, STEERING - UPPER (15 1/2" "U" JOINT COUPLING YOKE)
  • 29
    53355 ARM, STEERING - UPPER (11 1/2" "U" JOINT COUPLING YOKE)
    ARM, STEERING - UPPER (11 1/2" "U" JOINT COUPLING YOKE)
  • 29
    53355 ARM, STEERING - UPPER (TRANSOM MOUNTED ENGINE)
    ARM, STEERING - UPPER (TRANSOM MOUNTED ENGINE)
  • 30
    12-35685 WASHER, UPPER STEERING ARM YOKE
    WASHER, UPPER STEERING ARM YOKE
  • 31
    53213A1 YOKE, UPPER STEERING ARM
    SERIAL 00000000-02558100
    YOKE, UPPER STEERING ARM
    SERIAL 00000000-02558100
  • 32
    10-35095 SCREW, STEERING CABLE TO YOKE
    SERIAL 00000000-02558100
    SCREW, STEERING CABLE TO YOKE
    SERIAL 00000000-02558100
  • 33
    12-20084 WASHER, STEERING CABLE SCREW
    SERIAL 00000000-02558100
    WASHER, STEERING CABLE SCREW
    SERIAL 00000000-02558100
  • 34
    11-826709111 NUT, STEERING CABLE SCREW
    SERIAL 00000000-02558100
    NUT, STEERING CABLE SCREW
    SERIAL 00000000-02558100
  • 31
    53213A1 YOKE ASSEMBLY, UPPER STEERING ARM
    SERIAL 02558101-09999999
    YOKE ASSEMBLY, UPPER STEERING ARM
    SERIAL 02558101-09999999
  • 32
    10-24644 SCREW, STEERING CABLE TO YOKE
    SERIAL 02558101-09999999
    SCREW, STEERING CABLE TO YOKE
    SERIAL 02558101-09999999
  • 33
    23-47643 BUSHING, STEERING CABLE SCREW
    SERIAL 02558101-09999999
    BUSHING, STEERING CABLE SCREW
    SERIAL 02558101-09999999
  • 34
    11-8267089 NUT, STEERING CABLE SCREW
    SERIAL 02558101-09999999
    NUT, STEERING CABLE SCREW
    SERIAL 02558101-09999999
  • 35
    10-31830 SCREW, UPPER STEERING ARM TO STEERING SHAFT (1 3/4")
    SCREW, UPPER STEERING ARM TO STEERING SHAFT (1 3/4")
  • 36
    14-43589 TAB WASHER, UPPER STEERING ARM SCREW
    TAB WASHER, UPPER STEERING ARM SCREW
