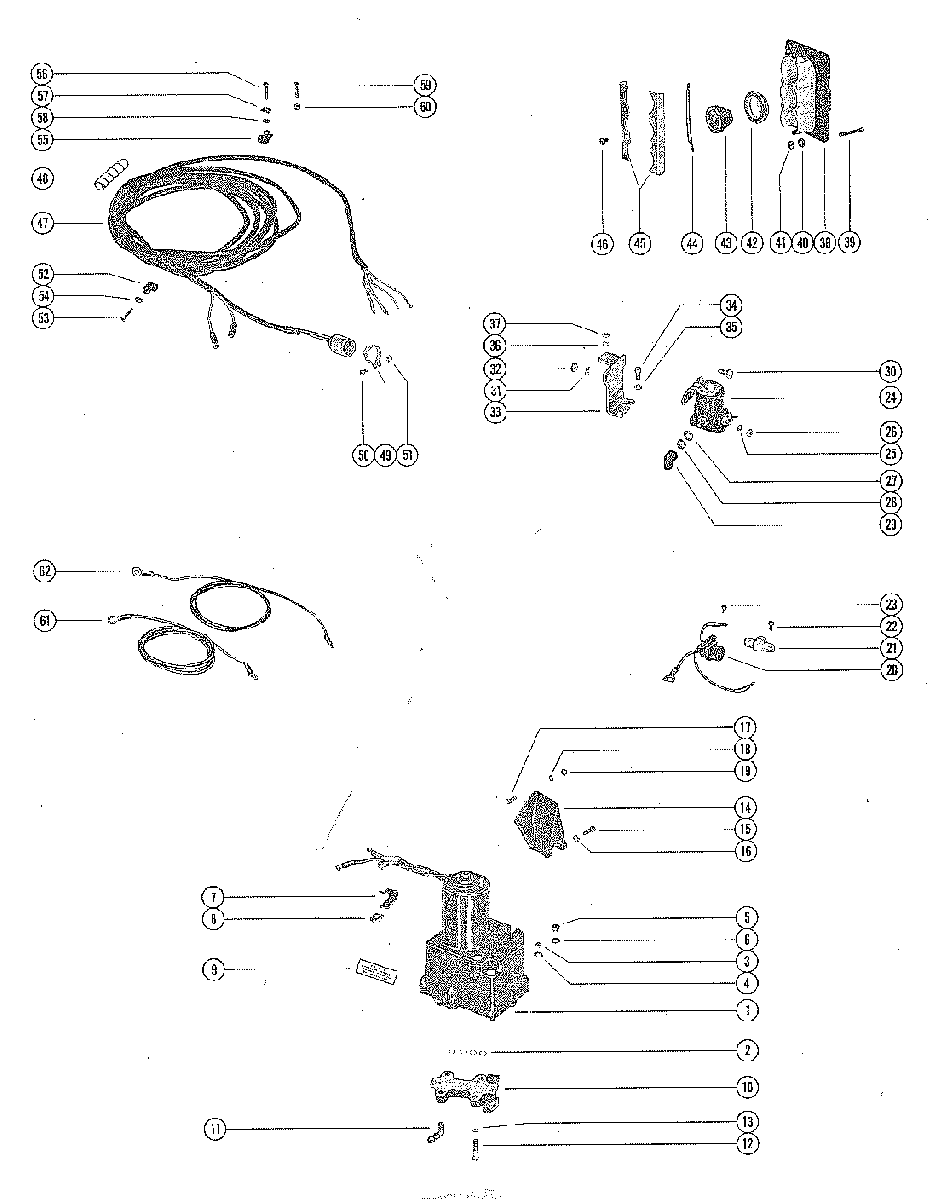

HYDRAULIC PUMP AND CONTROL PANEL для Mercruiser - II (1.78:1) 1968-1969 2398798 THRU 2671321

  • №
    Артикул
    Название
  • 1
    45060A7 HYDRAULIC PUMP ASSEMBLY
    HYDRAULIC PUMP ASSEMBLY
  • 2
    25-48171 "O" RING, HYDRAULIC PUMP TO CONTROL VALVE
    "O" RING, HYDRAULIC PUMP TO CONTROL VALVE
  • 3
    10-22028 SCREW, VENT-HYDRAULIC PUMP
    SCREW, VENT-HYDRAULIC PUMP
  • 4
    13-46917 LOCKWASHER, SEALING-VENT SCREW
    LOCKWASHER, SEALING-VENT SCREW
  • 5
    10-79953Q04 SCREW, FILLER-HYDRAULIC PUMP
    SCREW, FILLER-HYDRAULIC PUMP
  • 6
    12-191833 WASHER, SEALING-HYDRAULIC PUMP FILLER SCREW
    WASHER, SEALING-HYDRAULIC PUMP FILLER SCREW
  • 7
    54-37282 CLAMP, HYDRAULIC PUMP HARNESS
    CLAMP, HYDRAULIC PUMP HARNESS
  • 8
    37281 "D" WASHER, HYDRAULIC PUMP HARNESS CLAMP
    "D" WASHER, HYDRAULIC PUMP HARNESS CLAMP
  • 9
    38-55823 DECAL, INSTRUCTIONS-HYDRAULIC PUMP
    DECAL, INSTRUCTIONS-HYDRAULIC PUMP
  • 10
    48077A6 CONTROL VALVE ASSEMBLY (NON-TRANSOM MOUNTED ENGINE)
    CONTROL VALVE ASSEMBLY (NON-TRANSOM MOUNTED ENGINE)
  • 10
    48077A8 CONTROL VALVE ASSEMBLY (TRANSOM MOUNTED ENGINE)
    CONTROL VALVE ASSEMBLY (TRANSOM MOUNTED ENGINE)
  • --
    25-48171 "O" RING, HYDRAULIC PUMP TO CONTROL VALVE (SEE REFERENCE #2)
    "O" RING, HYDRAULIC PUMP TO CONTROL VALVE (SEE REFERENCE #2)
  • 11
    22-48169 ELBOW, CONTROL VALVE
    ELBOW, CONTROL VALVE
  • 12
    10-21091 SCREW, CONTROL VALVE TO HYDRAULIC PUMP (1 1/8")
    SCREW, CONTROL VALVE TO HYDRAULIC PUMP (1 1/8")
  • 13
    13-26992 LOCKWASHER, CONTROL VALVE SCREW
    LOCKWASHER, CONTROL VALVE SCREW
  • 14
    49405 BRACKET, MOUNTING-HYDRAULIC PUMP (NOT AS SHOWN)
    BRACKET, MOUNTING-HYDRAULIC PUMP (NOT AS SHOWN)
  • 15
    10-31984 SCREW, MOUNTING BRACKET TO TRANSOM PLATE (1 3/8")
    SCREW, MOUNTING BRACKET TO TRANSOM PLATE (1 3/8")
  • 16
    13-20305 LOCKWASHER, MOUNTING BRACKET SCREW
    LOCKWASHER, MOUNTING BRACKET SCREW
  • 17
    10-26066 SCREW, HYDRAULIC PUMP TO MOUNTING BRACKET (1 1/4")
    SCREW, HYDRAULIC PUMP TO MOUNTING BRACKET (1 1/4")
  • 18
    12-20546 WASHER, HYDRAULIC PUMP SCREW
    WASHER, HYDRAULIC PUMP SCREW
  • 19
    11-82670911 NUT, HYDRAULIC PUMP SCREW
    NUT, HYDRAULIC PUMP SCREW
  • 20
    45325A1 CONNECTOR AND HARNESS
    CONNECTOR AND HARNESS
  • 21
    45559 TERMINAL BLOCK, HYDRAULIC PUMP
    TERMINAL BLOCK, HYDRAULIC PUMP
  • 22
    10-72169 SCREW, TERMINAL BLOCK TO HYDRAULIC PUMP (1/2")
    SCREW, TERMINAL BLOCK TO HYDRAULIC PUMP (1/2")
  • 23
    10-62568 SCREW, HARNESS LEADS TO TERMINAL BLOCK (3/8")
    SCREW, HARNESS LEADS TO TERMINAL BLOCK (3/8")
  • 24
    25661T1 STARTER SOLENOID
    STARTER SOLENOID
  • 25
    13-26996 LOCKWASHER, STARTER SOLENOID TERMINAL (#10)
    LOCKWASHER, STARTER SOLENOID TERMINAL (#10)
  • 26
    11-68219 NUT, STARTER SOLENOID TERMINAL (#10)
    NUT, STARTER SOLENOID TERMINAL (#10)
  • 27
    13-26993 LOCKWASHER, STARTER SOLENOID TERMINAL (5/16")
    LOCKWASHER, STARTER SOLENOID TERMINAL (5/16")
  • 28
    11-22053 NUT, STARTER SOLENOID TERMINAL (5/16")
    NUT, STARTER SOLENOID TERMINAL (5/16")
  • 29
    46265 BOOT, RUBBER-STARTER SOLENOID TERMINAL
    BOOT, RUBBER-STARTER SOLENOID TERMINAL
  • 30
    10-34290 SCREW, STARTER SOLENOID TO MOUNTING BRACKET (5/8")
    SCREW, STARTER SOLENOID TO MOUNTING BRACKET (5/8")
  • 31
    13-26992 LOCKWASHER, STARTER SOLENOID SCREW
    LOCKWASHER, STARTER SOLENOID SCREW
  • 32
    11-21825 NUT, STARTER SOLENOID SCREW
    NUT, STARTER SOLENOID SCREW
  • 33
    74407T BRACKET, MOUNTING-STARTER SOLENOID
    BRACKET, MOUNTING-STARTER SOLENOID
  • 34
    10-21140 SCREW, MOUNTING BRACKET TO HYDRAULIC PUMP (1/2")
    SCREW, MOUNTING BRACKET TO HYDRAULIC PUMP (1/2")
  • 35
    13-26992 LOCKWASHER, MOUNTING BRACKET SCREW
    LOCKWASHER, MOUNTING BRACKET SCREW
  • 36
    13-27660 LOCKWASHER, HYDRAULIC PUMP THRU BOLT
    LOCKWASHER, HYDRAULIC PUMP THRU BOLT
  • 37
    11-68219 NUT, MOUNTING BRACKET TO HYDRAULIC PUMP THRU BOLT
    NUT, MOUNTING BRACKET TO HYDRAULIC PUMP THRU BOLT
  • --
    48413A5 CONTROL PANEL ASSEMBLY
    COMPLETE (GREEN, WHITE AND YELLOW PUSH BUTTONS
    CONTROL PANEL ASSEMBLY
    COMPLETE (GREEN, WHITE AND YELLOW PUSH BUTTONS
  • --
    48413A5 CONTROL PANEL ASSEMBLY
    COMPLETE (RED/GREEN, WHITE AND RED PUSH BUTTONS
    CONTROL PANEL ASSEMBLY
    COMPLETE (RED/GREEN, WHITE AND RED PUSH BUTTONS
  • 38
    48413 PANEL, CONTROL
    PANEL, CONTROL
  • 39
    10-32866 SCREW, CONTROL PANEL TO BOAT (2")
    SCREW, CONTROL PANEL TO BOAT (2")
  • 40
    12-24676 WASHER, CONTROL PANEL SCREW
    WASHER, CONTROL PANEL SCREW
  • 41
    11-8267086 NUT, CONTROL PANEL SCREW
    NUT, CONTROL PANEL SCREW
  • 42
    48055 PUSH BUTTON, CONTROL PANEL (OUT-GREEN)
    PUSH BUTTON, CONTROL PANEL (OUT-GREEN)
  • 42
    48056 PUSH BUTTON, CONTROL PANEL (DOWN/IN-WHITE)
    PUSH BUTTON, CONTROL PANEL (DOWN/IN-WHITE)
  • 42
    48057 PUSH BUTTON, CONTROL PANEL (UP-YELLOW)
    PUSH BUTTON, CONTROL PANEL (UP-YELLOW)
  • 42
    53108 PUSH BUTTON, CONTROL PANEL (UP/OUT-RED/GREEN)
    PUSH BUTTON, CONTROL PANEL (UP/OUT-RED/GREEN)
  • 42
    53109 PUSH BUTTON, CONTROL PANEL (IN-WHITE)
    PUSH BUTTON, CONTROL PANEL (IN-WHITE)
  • 42
    53110 PUSH BUTTON, CONTROL PANEL (UP-RED)
    PUSH BUTTON, CONTROL PANEL (UP-RED)
  • --
    53517 ANCHOR STRIP
    ANCHOR STRIP
  • 43
    29759 SWITCH, PUSH BUTTON-CONTROL PANEL
    SWITCH, PUSH BUTTON-CONTROL PANEL
  • 44
    48078 JUMPER WIRE, PUSH BUTTON SWITCH (RED)
    JUMPER WIRE, PUSH BUTTON SWITCH (RED)
  • 44
    53107 JUMPER WIRE, PUSH BUTTON SWITCH (PURPLE)
    JUMPER WIRE, PUSH BUTTON SWITCH (PURPLE)
  • 45
    48438 RETAINER, PUSH BUTTON SWITCH
    RETAINER, PUSH BUTTON SWITCH
  • 46
    10-48409 SCREW, SWITCH RETAINER TO CONTROL PANEL (5/8")
    SCREW, SWITCH RETAINER TO CONTROL PANEL (5/8")
  • 47
    84-87394A20 HARNESS, CONTROL PANEL
    HARNESS, CONTROL PANEL
  • 48
    33865 BINDER, NYLON-CONTROL PANEL HARNESS
    BINDER, NYLON-CONTROL PANEL HARNESS
  • 49
    95814 CLAMP, HARNESS ATTACHING
    CLAMP, HARNESS ATTACHING
  • 50
    10-29227 SCREW, HARNESS ATTACHING CLAMP (1/2")
    SCREW, HARNESS ATTACHING CLAMP (1/2")
  • 51
    11-34388 NUT, HARNESS ATTACHING CLAMP SCREW
    NUT, HARNESS ATTACHING CLAMP SCREW
  • 52
    54-23567 CLAMP, HARNESS TO BOAT (9/16")
    CLAMP, HARNESS TO BOAT (9/16")
  • 52
    54-22875 CLAMP, HARNESS TO BOAT (7/16")
    CLAMP, HARNESS TO BOAT (7/16")
  • 53
    10-35401 SCREW, WOOD-HARNESS TO BOAT (1")
    SCREW, WOOD-HARNESS TO BOAT (1")
  • 54
    8M0084613 "D" WASHER, HARNESS CLAMP SCREW
    "D" WASHER, HARNESS CLAMP SCREW
  • 55
    54-22875 CLAMP, HARNESS TO BOAT
    CLAMP, HARNESS TO BOAT
  • 56
    10-35401 SCREW, WOOD-HARNESS CLAMP TO BOAT (1")
    SCREW, WOOD-HARNESS CLAMP TO BOAT (1")
  • 57
    8M0084613 "D" WASHER, HARNESS CLAMP SCREW
    "D" WASHER, HARNESS CLAMP SCREW
  • 58
    12-24676 WASHER, HARNESS CLAMP SCREW
    WASHER, HARNESS CLAMP SCREW
  • 59
    10-20644 SCREW, HARNESS CLAMP TO BOAT (1")
    SCREW, HARNESS CLAMP TO BOAT (1")
  • 60
    11-68219 NUT, HARNESS CLAMP SCREW
    NUT, HARNESS CLAMP SCREW
  • 61
    45551 BATTERY LEAD (POSITIVE)-18" (15 1/2" "U" JOINT COUPLING YOKE)
    BATTERY LEAD (POSITIVE)-18" (15 1/2" "U" JOINT COUPLING YOKE)
  • 61
    52957 BATTERY LEAD (POSITIVE)-31" (11 1/2" "U" JOINT COUPLING YOKE)
    BATTERY LEAD (POSITIVE)-31" (11 1/2" "U" JOINT COUPLING YOKE)
  • 61
    53891 BATTERY LEAD (POSITIVE)-14" (TRANSOM MOUNTED ENGINE)
    BATTERY LEAD (POSITIVE)-14" (TRANSOM MOUNTED ENGINE)
  • 62
    45552 BATTERY LEAD (NEGATIVE)
    BATTERY LEAD (NEGATIVE)
