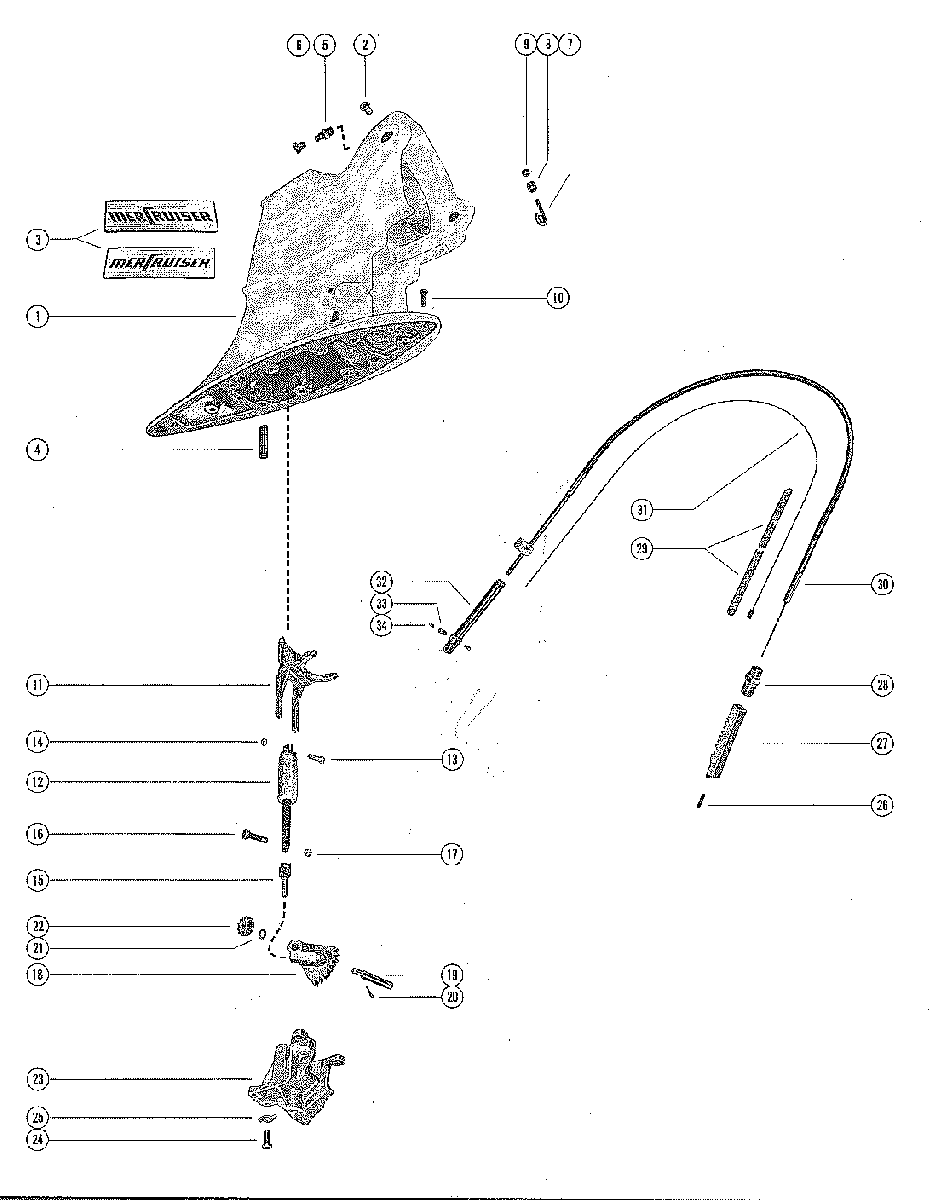

DRIVE SHAFT HOUSING ASSEMBLY AND SHIFT CABLE для Mercruiser - II (1.78:1) 1968-1969 2398798 THRU 2671321

  • №
    Артикул
    Название
  • 1
    1544-3442A1 DRIVE SHAFT HOUSING ASSEMBLY
    DRIVE SHAFT HOUSING ASSEMBLY
  • 2
    23-38335 BUSHING, SYNTHANE - DRIVE SHAFT HOUSING
    BUSHING, SYNTHANE - DRIVE SHAFT HOUSING
  • 3
    37-56036A2 DECAL SET, DRIVE SHAFT HOUSING
    DECAL SET, DRIVE SHAFT HOUSING
  • 4
    16-32129 STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING
    STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING
  • 5
    22-74036 FITTING, GREASE - DRIVE SHAFT HOUSING
    FITTING, GREASE - DRIVE SHAFT HOUSING
  • 6
    19-77633Q LUBRICAP, DRIVE SHAFT HOUSING GREASE FITTING
    LUBRICAP, DRIVE SHAFT HOUSING GREASE FITTING
  • 7
    34057A1 EYE ASSEMBLY, SHIFT ACTUATING CABLE GUIDE
    EYE ASSEMBLY, SHIFT ACTUATING CABLE GUIDE
  • 8
    23-34058 SPACER, SHIFT ACTUATING CABLE GUIDE EYE
    SPACER, SHIFT ACTUATING CABLE GUIDE EYE
  • 9
    11-8267096 NUT, SHIFT ACTUATING CABLE GUIDE EYE
    NUT, SHIFT ACTUATING CABLE GUIDE EYE
  • 10
    10-28668 SCREW, DRIVE SHAFT HOUSING TO GEAR HOUSING
    SCREW, DRIVE SHAFT HOUSING TO GEAR HOUSING
  • 11
    49286 FORK, SHIFT - SLIDING CLUTCH ACTUATING
    FORK, SHIFT - SLIDING CLUTCH ACTUATING
  • 12
    35181A1 SHIFT LINK ASSEMBLY, DRIVE SHAFT HOUSING
    SHIFT LINK ASSEMBLY, DRIVE SHAFT HOUSING
  • 13
    10-31856 SCREW, SHIFT LINK TO SHIFT FORK (1")
    SCREW, SHIFT LINK TO SHIFT FORK (1")
  • 14
    11-826709109 NUT, SHIFT LINK SCREW
    NUT, SHIFT LINK SCREW
  • 15
    35180 YOKE, SHIFT LINKER TO SECTOR GEAR
    YOKE, SHIFT LINKER TO SECTOR GEAR
  • 16
    10-36285 SCREW, SHIFT LINK TO YOKE (3/4)
    SCREW, SHIFT LINK TO YOKE (3/4)
  • 17
    11-20061 NUT, SHIFT LINK SCREW
    NUT, SHIFT LINK SCREW
  • 18
    43-35178 GEAR, SECTOR - GEAR RACK GUIDE
    GEAR, SECTOR - GEAR RACK GUIDE
  • 19
    31722 SHAFT, SPLINED - SECTOR GEAR PIVOT
    SHAFT, SPLINED - SECTOR GEAR PIVOT
  • 20
    18-210711 COTTER PIN, SECTOR GEAR PIVOT SHAFT
    COTTER PIN, SECTOR GEAR PIVOT SHAFT
  • 21
    12-30283 WASHER,SECTOR GEAR PIVOT SHAFT
    WASHER,SECTOR GEAR PIVOT SHAFT
  • 22
    43-31719 GEAR, REVERSE LOCK - SECTOR GEAR PIVOT SHAFT
    GEAR, REVERSE LOCK - SECTOR GEAR PIVOT SHAFT
  • 23
    31655 GUIDE, GEAR RACK - DRIVE SHAFT HOUSING
    GUIDE, GEAR RACK - DRIVE SHAFT HOUSING
  • 24
    10-28668 SCREW, GEAR RACK TO DRIVE SHAFT HOUSING (7/8")
    SCREW, GEAR RACK TO DRIVE SHAFT HOUSING (7/8")
  • 25
    14-31651 TAB WASHER, GEAR RACK GUIDE SCREW
    TAB WASHER, GEAR RACK GUIDE SCREW
  • 26
    10-31700 SCREW, SET-SHIFT ACTUATING CABLE TO GEAR RACK
    SCREW, SET-SHIFT ACTUATING CABLE TO GEAR RACK
  • 27
    31573 RACK, GEAR-SHIFT ACTUATING CABLE
    RACK, GEAR-SHIFT ACTUATING CABLE
  • 28
    22-32125 CONNECTOR, SHIFT ACTUATING CABLE
    CONNECTOR, SHIFT ACTUATING CABLE
  • 29
    52922 WRAPPING, SHIFT ACTUATING CABLE
    11 1/2" "U" JOINT COUPLING YOKE
    WRAPPING, SHIFT ACTUATING CABLE
    11 1/2" "U" JOINT COUPLING YOKE
  • 30
    31720A1 CABLE ASSEMBLY, SHIFT ACTUATING (NON-TRANSOM MOUNTED ENGINE)
    CABLE ASSEMBLY, SHIFT ACTUATING (NON-TRANSOM MOUNTED ENGINE)
  • 30
    53764A1 CABLE ASSEMBLY, SHIFT ACTUATING (TRANSOM MOUNTED ENGINE)
    CABLE ASSEMBLY, SHIFT ACTUATING (TRANSOM MOUNTED ENGINE)
  • --
    12-39279 WASHER, LEATHER-SHIFT ACTUATING CABLE
    WASHER, LEATHER-SHIFT ACTUATING CABLE
  • 31
    33075A2 CORE WIRE AND ANCHOR ASSEMBLY, INNER
    CORE WIRE AND ANCHOR ASSEMBLY, INNER
  • 32
    43433 GUIDE, SHIFT ACTUATING CABLE END
    GUIDE, SHIFT ACTUATING CABLE END
  • 33
    20007 ANCHOR, SHIFT ACTUATING CABLE END
    ANCHOR, SHIFT ACTUATING CABLE END
  • 34
    10-20518 SCREW, SET-ANCHOR TO SHIFT ACTUATING CABLE END
    SCREW, SET-ANCHOR TO SHIFT ACTUATING CABLE END
