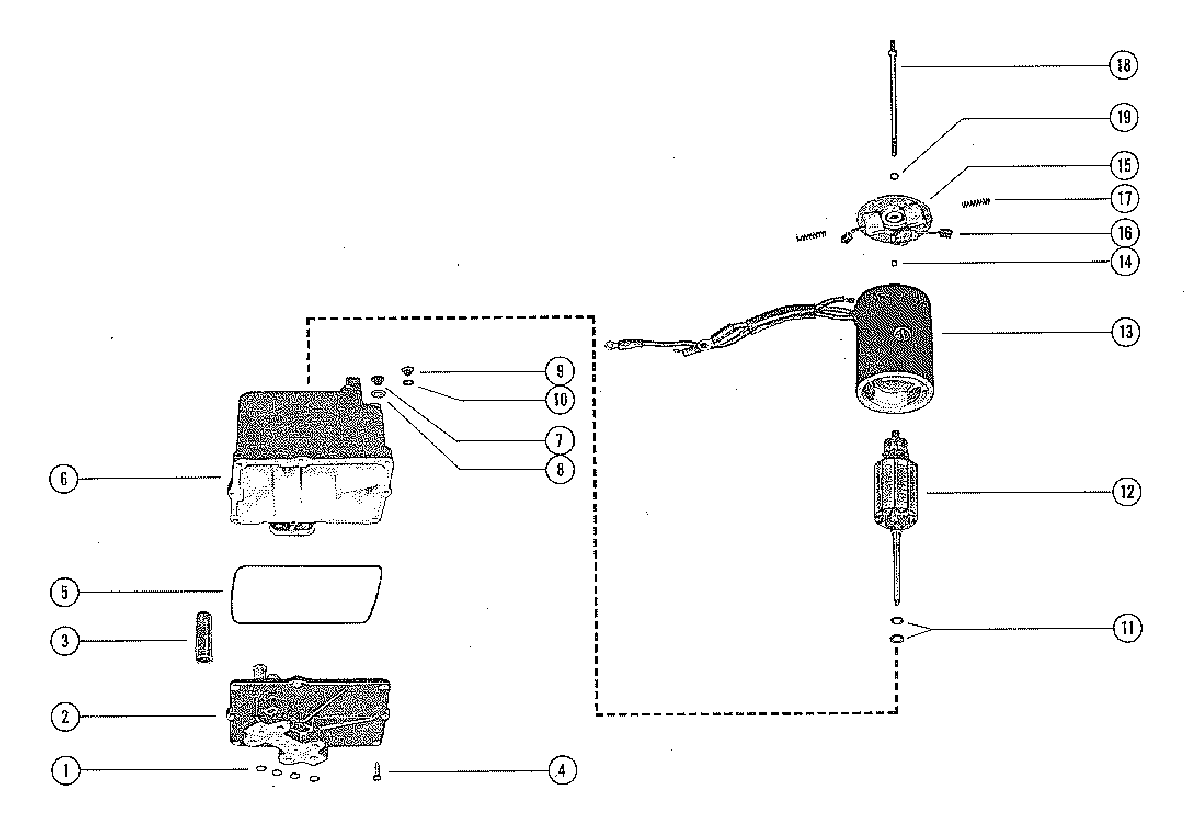

HYDRAULIC PUMP ASSEMBLY, COMPLETE для Mercruiser - II (1.78:1) 1968-1969 2398798 THRU 2671321

  • №
    Артикул
    Название
  • -
    45060A7 HYDRAULIC PUMP ASSEMBLY, COMPLETE
    HYDRAULIC PUMP ASSEMBLY, COMPLETE
  • 1
    25-48171 "O" RING, HYDRAULIC PUMP
    "O" RING, HYDRAULIC PUMP
  • 2
    392-7734 VALVE BODY AND GEAR ASSEMBLY
    VALVE BODY AND GEAR ASSEMBLY
  • 3
    392-2618 CAM, VALVE BODY
    CAM, VALVE BODY
  • 4
    10-20411 SCREW, VALVE BODY TO RESERVIOR (5/8")
    SCREW, VALVE BODY TO RESERVIOR (5/8")
  • 5
    392-7735 SEAL, RESERVIOR TO VALVE BODY AND GEAR
    SEAL, RESERVIOR TO VALVE BODY AND GEAR
  • 6
    392-2939 RESERVIOR ASSEMBLY
    RESERVIOR ASSEMBLY
  • 7
    10-22028 SCREW, VENT-HYDRAULIC PUMP
    SCREW, VENT-HYDRAULIC PUMP
  • 8
    13-46917 LOCKWASHER, SEALING-VENT SCREW
    LOCKWASHER, SEALING-VENT SCREW
  • 9
    10-79953Q04 SCREW, FILLER-HYDRAULIC PUMP
    SCREW, FILLER-HYDRAULIC PUMP
  • 10
    12-191833 WASHER, SEALING-FILLER SCREW
    WASHER, SEALING-FILLER SCREW
  • 11
    392-2623 WASHER, THRUST-ARMATURE
    WASHER, THRUST-ARMATURE
  • 12
    392-2943 ARMATURE, FIELD AND FRAME
    ARMATURE, FIELD AND FRAME
  • 13
    392-2942 FIELD AND FRAME ASSEMBLY
    FIELD AND FRAME ASSEMBLY
  • 14
    392-2944 BALL, COMMUTATOR END PLATE
    BALL, COMMUTATOR END PLATE
  • 15
    392-2940 PLATE ASSEMBLY, COMMUTATOR END
    PLATE ASSEMBLY, COMMUTATOR END
  • 16
    392-8989 BRUSH SET, COMMUTATOR END PLATE
    BRUSH SET, COMMUTATOR END PLATE
  • 17
    392-2529 SPRING SET, BRUSH TENSION
    SPRING SET, BRUSH TENSION
  • 18
    392-2938 BOLT SET, THRU-PLATE AND FRAME TO RESERVIOR
    BOLT SET, THRU-PLATE AND FRAME TO RESERVIOR
  • 19
    13-26996 LOCKWASHER, THRU BOLT
    LOCKWASHER, THRU BOLT
