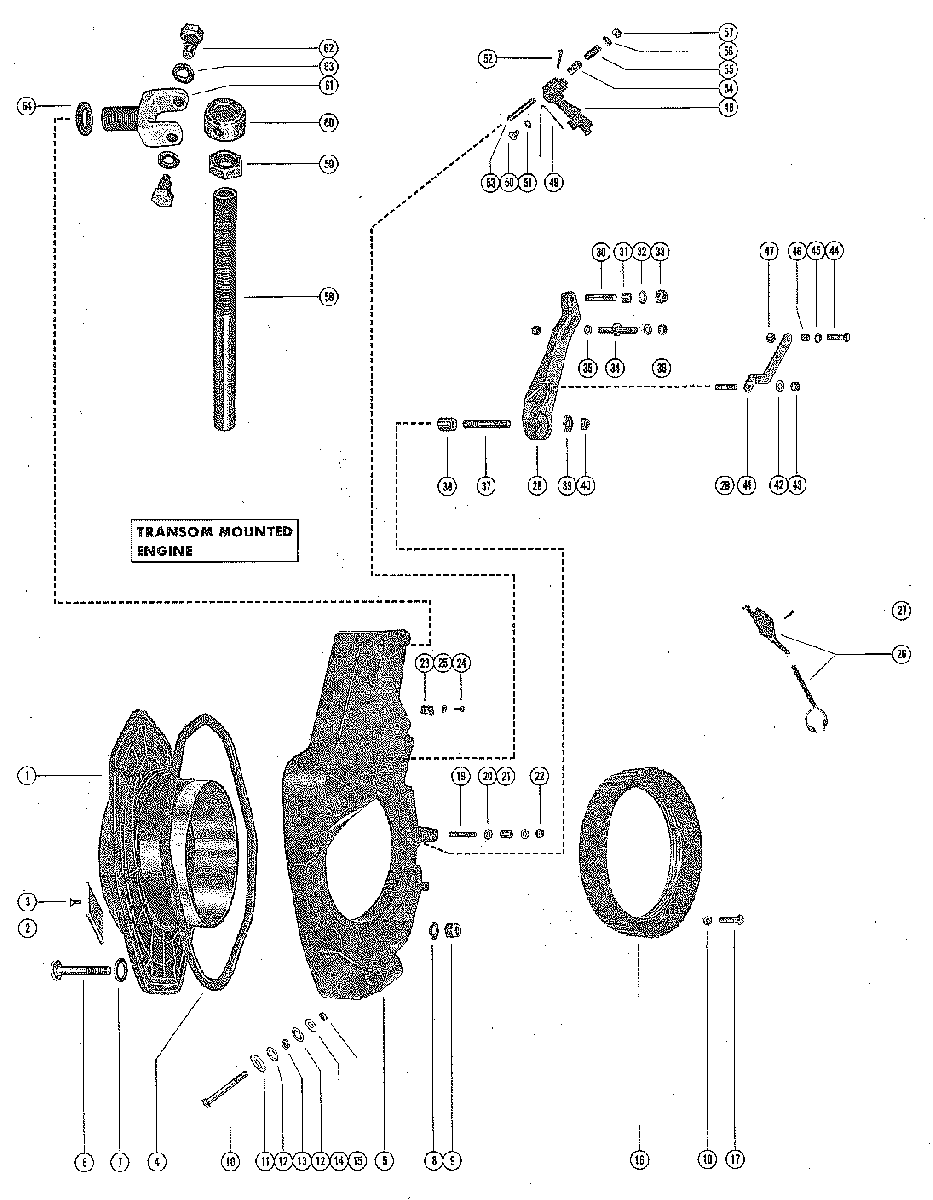

INNER AND OUTER TRANSOM PLATE AND SHIFT ARM(TRANSOM MOUNTED) для Mercruiser - II (1.78:1) 1968-1969 2398798 THRU 2671321

  • №
    Артикул
    Название
  • 1
    53042A2 PLATE ASSEMBLY, TRANSOM - OUTER
    PLATE ASSEMBLY, TRANSOM - OUTER
  • 2
    34762A1 PLATE ASSEMBLY, INHIBITOR - OUTER TRANSOM PLATE
    PLATE ASSEMBLY, INHIBITOR - OUTER TRANSOM PLATE
  • 3
    10-34763 SCREW, INHIBITOR PLATE TO OUTER TRANSOM PLATE
    SCREW, INHIBITOR PLATE TO OUTER TRANSOM PLATE
  • 4
    31636 SEAL, RUBBER - OUTER TRANSOM PLATE TO TRANSOM
    SEAL, RUBBER - OUTER TRANSOM PLATE TO TRANSOM
  • 5
    53723 PLATE, TRANSOM - INNER
    PLATE, TRANSOM - INNER
  • 6
    10-43691 SCREW, OUTER TRANSOM PLATE TO INNER TRANSOM PLATE (4")
    SCREW, OUTER TRANSOM PLATE TO INNER TRANSOM PLATE (4")
  • 7
    24-36102 WASHER, RUBBER - OUTER TRANSOM PLATE SCREW
    WASHER, RUBBER - OUTER TRANSOM PLATE SCREW
  • 8
    12-21900 WASHER, OUTER TRANSOM PLATE SCREW
    WASHER, OUTER TRANSOM PLATE SCREW
  • 9
    11-34087 NUT, OUTER TRANSOM PLATE SCREW
    NUT, OUTER TRANSOM PLATE SCREW
  • 10
    10-47467 SCREW, INNER TRANSOM PLATE TO ENGINE (5 1/2")
    SCREW, INNER TRANSOM PLATE TO ENGINE (5 1/2")
  • 11
    12-47475 WASHER, INNER TRANSOM PLATE SCREW
    WASHER, INNER TRANSOM PLATE SCREW
  • 12
    12-47466 WASHER, FIBER - INNER TRANSOM PLATE SCREW
    WASHER, FIBER - INNER TRANSOM PLATE SCREW
  • 13
    13-34846 LOCKWASHER, INNER TRANSOM PLATE SCREW
    LOCKWASHER, INNER TRANSOM PLATE SCREW
  • 14
    12-33171 WASHER, INNER TRANSOM PLATE SCREW
    WASHER, INNER TRANSOM PLATE SCREW
  • 15
    11-22339 NUT, INNER TRANSOM PLATE SCREW
    NUT, INNER TRANSOM PLATE SCREW
  • 16
    52757 CLAMP NUT, STEERING LEVER HOUSING
    CLAMP NUT, STEERING LEVER HOUSING
  • 17
    10-53809 SCREW, LOCKING - CLAMP NUT
    SCREW, LOCKING - CLAMP NUT
  • 18
    11-21612 NUT, LOCKING SCREW
    NUT, LOCKING SCREW
  • 19
    16-79661 STUD, SHIFT CABLE TO TRANSOM PLATE
    STUD, SHIFT CABLE TO TRANSOM PLATE
  • 20
    12-39143 WASHER, SHIFT CABLE STUD
    WASHER, SHIFT CABLE STUD
  • 21
    23-31866 SLEEVE, SHIFT CABLE STUD
    SLEEVE, SHIFT CABLE STUD
  • 22
    11-8267089 NUT, SHIFT CABLE STUD
    NUT, SHIFT CABLE STUD
  • 23
    54-24836 CLIP, SWITCH HARNESS TO TRANSOM PLATE
    CLIP, SWITCH HARNESS TO TRANSOM PLATE
  • 24
    10-22794 SCREW, SWITCH HARNESS CLIP ATTACHING (1/2")
    SCREW, SWITCH HARNESS CLIP ATTACHING (1/2")
  • 25
    8M0084613 "D" WASHER, HARNESS CLIP SCREW
    "D" WASHER, HARNESS CLIP SCREW
  • 26
    49646A2 SWITCH ASSEMBLY, CUT-OUT - INNER TRANSOM PLATE
    SWITCH ASSEMBLY, CUT-OUT - INNER TRANSOM PLATE
  • 27
    10-30902 SCREW, CUT-OUT SWITCH TO INNER TRANSOM PLATE (3/4")
    SCREW, CUT-OUT SWITCH TO INNER TRANSOM PLATE (3/4")
  • 28
    53721A1 ARM ASSEMBLY, SHIFT CABLE MOUNTING
    ARM ASSEMBLY, SHIFT CABLE MOUNTING
  • 29
    16-25385 STUD, LINK ROD TO MOUNTING ARM
    STUD, LINK ROD TO MOUNTING ARM
  • 30
    16-79661 STUD, SHIFT CABLE TO MOUNTING ARM
    STUD, SHIFT CABLE TO MOUNTING ARM
  • 31
    23-53811 SPACER, SHIFT CABLE STUD
    SPACER, SHIFT CABLE STUD
  • 32
    12-39143 WASHER, SHIFT CABLE STUD
    WASHER, SHIFT CABLE STUD
  • 33
    11-8267089 NUT, SHIFT CABLE STUD
    NUT, SHIFT CABLE STUD
  • 34
    16-34069 STUD, SHIFT ACTUATING CABLE TO MOUNTING ARM
    STUD, SHIFT ACTUATING CABLE TO MOUNTING ARM
  • 35
    12-39143 WASHER, SHIFT ACTUATING CABLE STUD
    WASHER, SHIFT ACTUATING CABLE STUD
  • 36
    11-8267089 NUT, SHIFT ACTUATING CABLE STUD
    NUT, SHIFT ACTUATING CABLE STUD
  • 37
    16-32698 STUD, MOUNTING ARM TO INNER TRANSOM PLATE
    STUD, MOUNTING ARM TO INNER TRANSOM PLATE
  • 38
    23-31758 SPACER, MOUNTING ARM STUD
    SPACER, MOUNTING ARM STUD
  • 39
    12-26825 WASHER, MOUNTING ARM STUD
    WASHER, MOUNTING ARM STUD
  • 40
    11-82670911 NUT, MOUNTING ARM STUD
    NUT, MOUNTING ARM STUD
  • 41
    53808 LINK ROD
    LINK ROD
  • 42
    12-39143 WASHER, LINK ROD STUD
    WASHER, LINK ROD STUD
  • 43
    11-8267089 NUT, LINK ROD STUD
    NUT, LINK ROD STUD
  • 44
    10-20653 SCREW, LINK ROD TO REVERSE LOCK VALVE (1")
    SCREW, LINK ROD TO REVERSE LOCK VALVE (1")
  • 45
    12-35462 WASHER, LINK ROD SCREW
    WASHER, LINK ROD SCREW
  • 46
    23-53810 SLEEVE, LINK ROD SCREW
    SLEEVE, LINK ROD SCREW
  • 47
    11-8267089 NUT, LINK ROD SCREW
    NUT, LINK ROD SCREW
  • 48
    45517A3 ARM ASSEMBLY, SWITCH ACTUATING
    ARM ASSEMBLY, SWITCH ACTUATING
  • 49
    24-53812 SPRING, TENSION - SWITCH ACTUATING ARM
    SPRING, TENSION - SWITCH ACTUATING ARM
  • 50
    10-98257 SCREW, TENSION SPRING TO ARM (1/2)
    SCREW, TENSION SPRING TO ARM (1/2)
  • 51
    12-26825 WASHER, TENSION SPRING SCREW
    WASHER, TENSION SPRING SCREW
  • 52
    18-328571 COTTON PIN, SHIFT ACTUATING CABLE TO ARM
    COTTON PIN, SHIFT ACTUATING CABLE TO ARM
  • 53
    16-66373 STUD, SWITCH ACTUATING ARM TO INNER TRANSOM PLATE (2 5/16")
    STUD, SWITCH ACTUATING ARM TO INNER TRANSOM PLATE (2 5/16")
  • 54
    23-45600 SLEEVE, SWITCH ACTUATING ARM STUD
    SLEEVE, SWITCH ACTUATING ARM STUD
  • 55
    23-37981 SPACER, SWITCH ACTUATING ARM STUD
    SPACER, SWITCH ACTUATING ARM STUD
  • 56
    12-26825 WASHER, SWITCH ACTUATING ARM STUD
    WASHER, SWITCH ACTUATING ARM STUD
  • 57
    11-826709111 NUT, SWITCH ACTUATING ARM STUD
    NUT, SWITCH ACTUATING ARM STUD
  • 58
    71565A2 TUBE, STEERING CABLE GUIDE
    TUBE, STEERING CABLE GUIDE
  • 59
    11-8M0041651 NUT, JAM - STEERING CABLE GUIDE TUBE
    NUT, JAM - STEERING CABLE GUIDE TUBE
  • 60
    35221 RING, SWIVEL - CABLE GUIDE TUBE PIVOT YOKE
    RING, SWIVEL - CABLE GUIDE TUBE PIVOT YOKE
  • 61
    34125 YOKE, CABLE GUIDE PIVOT - STEERING CABLE BRACKET
    YOKE, CABLE GUIDE PIVOT - STEERING CABLE BRACKET
  • 62
    10-31832 BOLT, PIVOT - YOKE TO SWIVEL RING
    BOLT, PIVOT - YOKE TO SWIVEL RING
  • 63
    13-31848 LOCKWASHER, PIVOT BOLT
    LOCKWASHER, PIVOT BOLT
  • 64
    12-35683 WASHER, CABLE GUIDE PIVOT YOKE
    WASHER, CABLE GUIDE PIVOT YOKE
