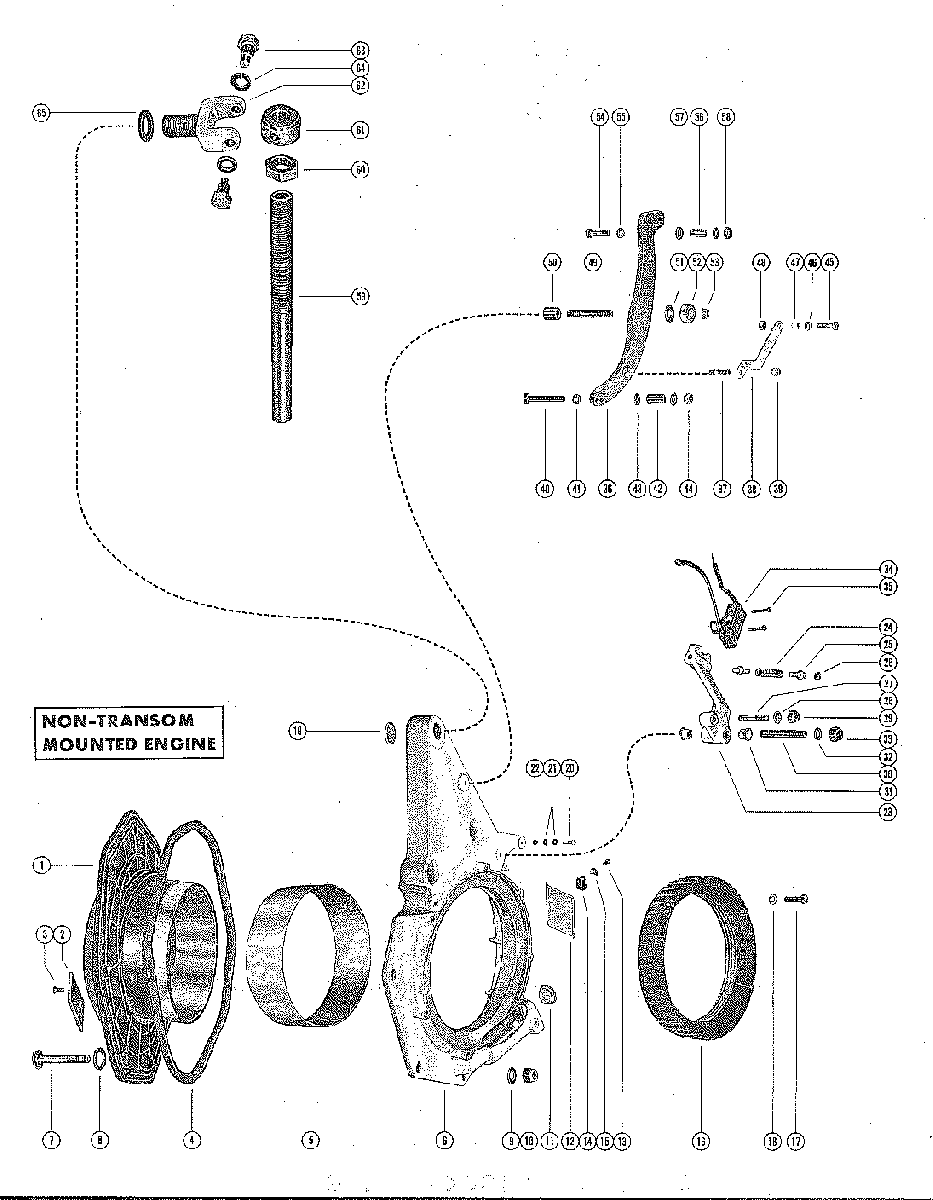

INNER AND OUTER TRANSOM PLATE AND SHIFT ARM для Mercruiser - II (1.78:1) 1968-1969 2398798 THRU 2671321

  • №
    Артикул
    Название
  • 1
    32276A2 PLATE ASSEMBLY, TRANSOM - OUTER (WITH B-32795 LINER)
    PLATE ASSEMBLY, TRANSOM - OUTER (WITH B-32795 LINER)
  • 1
    53042A2 PLATE ASSEMBLY, TRANSOM - OUTER (WITHOUT B-32795 LINER)
    PLATE ASSEMBLY, TRANSOM - OUTER (WITHOUT B-32795 LINER)
  • 2
    34762A1 PLATE ASSEMBLY, INHIBITOR - OUTER TRANSOM PLATE
    PLATE ASSEMBLY, INHIBITOR - OUTER TRANSOM PLATE
  • 3
    10-34763 SCREW, INHIBITOR PLATE TO OUTER TRANSOM PLATE
    SCREW, INHIBITOR PLATE TO OUTER TRANSOM PLATE
  • 4
    31636 SEAL, RUBBER - OUTER TRANSOM PLATE TO TRANSOM
    SEAL, RUBBER - OUTER TRANSOM PLATE TO TRANSOM
  • 5
    32795 LINER, OUTER TRANSOM PLATE(USE WITH B-32276A2 TRANSOM PLATE)
    LINER, OUTER TRANSOM PLATE(USE WITH B-32276A2 TRANSOM PLATE)
  • 6
    49282A4 PLATE ASSEMBLY, TRANSOM - INNER
    PLATE ASSEMBLY, TRANSOM - INNER
  • 7
    10-43691 BOLT, OUTER TRANSOM PLATE TO INNER TRANSOM PLATE (4")
    BOLT, OUTER TRANSOM PLATE TO INNER TRANSOM PLATE (4")
  • 8
    12-32620 WASHER, RUBBER - OUTER TRANSOM PLATE BOLT
    WASHER, RUBBER - OUTER TRANSOM PLATE BOLT
  • 9
    12-21900 WASHER, OUTER TRANSOM PLATE BOLT
    WASHER, OUTER TRANSOM PLATE BOLT
  • 10
    11-34087 NUT, OUTER TRANSOM PLATE BOLT
    NUT, OUTER TRANSOM PLATE BOLT
  • 11
    19-49434 CAP, TRANSOM PLATE
    CAP, TRANSOM PLATE
  • 12
    34056 COVER, LOCK-IN LIMIT SWITCH - INNER TRANSOM PLATE
    COVER, LOCK-IN LIMIT SWITCH - INNER TRANSOM PLATE
  • 13
    10-22794 SCREW, COVER TO INNER TRANSOM PLATE
    SCREW, COVER TO INNER TRANSOM PLATE
  • 14
    54-39788 CLAMP, CUT-OUT SWITCH LEADS ATTACHING SCREW
    CLAMP, CUT-OUT SWITCH LEADS ATTACHING SCREW
  • 15
    8M0084613 "D" WASHER, CUT-OUT SWITCH LEADS ATTACHING SCREW
    "D" WASHER, CUT-OUT SWITCH LEADS ATTACHING SCREW
  • 16
    52757 CLAMP NUT, STEERING LEVER HOUSING
    CLAMP NUT, STEERING LEVER HOUSING
  • 17
    10-47258 SCREW, LOCKING - CLAMP NUT
    SCREW, LOCKING - CLAMP NUT
  • 18
    12-26168 WASHER, CLAMP NUT LOCKING SCREW
    WASHER, CLAMP NUT LOCKING SCREW
  • 19
    19-35684 WELCH PLUG, INNER TRANSOM PLATE
    WELCH PLUG, INNER TRANSOM PLATE
  • 20
    10-24644 SCREW, SHIFT CABLE TO TRANSOM PLATE
    SCREW, SHIFT CABLE TO TRANSOM PLATE
  • 21
    12-29245 WASHER, SHIFT CABLE SCREW
    WASHER, SHIFT CABLE SCREW
  • 22
    11-8267089 NUT, SHIFT CABLE SCREW
    NUT, SHIFT CABLE SCREW
  • 23
    52853A1 ARM ASSEMBLY, CUT-OUT SWITCH ACTUATING - INNER TRANSOM PLATE
    ARM ASSEMBLY, CUT-OUT SWITCH ACTUATING - INNER TRANSOM PLATE
  • 24
    24-32922 SPRING, COMPRESSION - SWITCH ACTUATING ARM PLUNGER TENSION
    SPRING, COMPRESSION - SWITCH ACTUATING ARM PLUNGER TENSION
  • 25
    32464 PLUNGER, SWITCH ACTUATING ARM
    PLUNGER, SWITCH ACTUATING ARM
  • 26
    33501 RETAINER, SPRING AND PLUNGER TO SWITCH ACTUATING ARM
    RETAINER, SPRING AND PLUNGER TO SWITCH ACTUATING ARM
  • 27
    16-66021 STUD, SHIFT ACTUATING CABLE TO SWITCH ACTUATING ARM
    STUD, SHIFT ACTUATING CABLE TO SWITCH ACTUATING ARM
  • 28
    12-29245 WASHER, SWITCH ACTUATING ARM CABLE STUD
    WASHER, SWITCH ACTUATING ARM CABLE STUD
  • 29
    11-8267089 NUT, SWITCH ACTUATING ARM CABLE STUD
    NUT, SWITCH ACTUATING ARM CABLE STUD
  • 30
    16-66373 STUD, SWITCH ACTUATING ARM TO INNER TRANSOM PLATE (2 5/16")
    STUD, SWITCH ACTUATING ARM TO INNER TRANSOM PLATE (2 5/16")
  • 31
    23-26841 BUSHING, SWITCH ACTUATING ARM TO INNER TRANSOM PLATE STUD
    BUSHING, SWITCH ACTUATING ARM TO INNER TRANSOM PLATE STUD
  • 32
    12-20546 WASHER, SWITCH ACTUATING ARM TO INNER TRANSOM PLATE STUD
    WASHER, SWITCH ACTUATING ARM TO INNER TRANSOM PLATE STUD
  • 33
    11-82670911 NUT, SWITCH ACTUATING ARM TO INNER TRANSOM PLATE STUD
    NUT, SWITCH ACTUATING ARM TO INNER TRANSOM PLATE STUD
  • 34
    49646A2 SWITCH ASSEMBLY, CUT-OUT - INNER TRANSOM PLATE
    SWITCH ASSEMBLY, CUT-OUT - INNER TRANSOM PLATE
  • 35
    10-30902 SCREW, CUT-OUT SWITCH TO INNER TRANSOM PLATE
    SCREW, CUT-OUT SWITCH TO INNER TRANSOM PLATE
  • 36
    49406A1 ARM ASSEMBLY, SHIFT CABLE MOUNTING
    ARM ASSEMBLY, SHIFT CABLE MOUNTING
  • 37
    16-25385 STUD, MOUNTING ARM TO LINK ROD
    STUD, MOUNTING ARM TO LINK ROD
  • 38
    49414 LINK ROD
    LINK ROD
  • 39
    11-826709109 NUT, LINK ROD TO MOUNTING ARM STUD
    NUT, LINK ROD TO MOUNTING ARM STUD
  • 40
    10-69029 SCREW, SHIFT CABLE ASSEMBLY TO SHIFT CABLE MNTG ARM (1 3/4")
    SCREW, SHIFT CABLE ASSEMBLY TO SHIFT CABLE MNTG ARM (1 3/4")
  • 41
    12-29245 WASHER, SHIFT CABLE ASSEMBLY SCREW
    WASHER, SHIFT CABLE ASSEMBLY SCREW
  • 42
    23-31866 SPACER, SHIFT CABLE ASSEMBLY SCREW
    SPACER, SHIFT CABLE ASSEMBLY SCREW
  • 43
    12-39143 WASHER, SHIFT CABLE ASSEMBLY SCREW
    WASHER, SHIFT CABLE ASSEMBLY SCREW
  • 44
    11-8267089 NUT, SHIFT CABLE ASSEMBLY SCREW
    NUT, SHIFT CABLE ASSEMBLY SCREW
  • 45
    10-20653 SCREW, LINK ROD TO REVERSE LOCK VALVE
    SCREW, LINK ROD TO REVERSE LOCK VALVE
  • 46
    12-35462 WASHER, LINK ROD SCREW
    WASHER, LINK ROD SCREW
  • 47
    23-31866 SPACER, LINK ROD SCREW
    SPACER, LINK ROD SCREW
  • 48
    11-826709109 NUT, LINK ROD SCREW
    NUT, LINK ROD SCREW
  • 49
    16-68201 STUD, SHIFT CABLE MOUNTING ARM TO INNER TRANSOM PLATE
    STUD, SHIFT CABLE MOUNTING ARM TO INNER TRANSOM PLATE
  • 50
    23-31758 SPACER, SHIFT CABLE MOUNTING ARM STUD
    SPACER, SHIFT CABLE MOUNTING ARM STUD
  • 51
    12-26825 WASHER, SHIFT CABLE MOUNTING ARM STUD
    WASHER, SHIFT CABLE MOUNTING ARM STUD
  • 52
    23-27818 SPACER, SHIFT CABLE MOUNTING ARM STUD
    SPACER, SHIFT CABLE MOUNTING ARM STUD
  • 53
    11-82670911 NUT, SHIFT CABLE MOUNTING ARM STUD
    NUT, SHIFT CABLE MOUNTING ARM STUD
  • 54
    10-22659 SCREW, SHIFT ACTUATING CABLE TO SHIFT CABLE MNTG ARM (1 5/8")
    SCREW, SHIFT ACTUATING CABLE TO SHIFT CABLE MNTG ARM (1 5/8")
  • 55
    12-29245 WASHER, SHIFT ACTUATING CABLE SCEW
    WASHER, SHIFT ACTUATING CABLE SCEW
  • 56
    23-31866 SPACER, SHIFT ACTUATING CABLE SCEW
    SPACER, SHIFT ACTUATING CABLE SCEW
  • 57
    12-39143 WASHER, SHIFT ACTUATING CABLE SCEW
    WASHER, SHIFT ACTUATING CABLE SCEW
  • 58
    11-8267089 NUT, SHIFT ACTUATING CABLE SCEW
    NUT, SHIFT ACTUATING CABLE SCEW
  • 59
    71565A2 TUBE, STEERING CABLE GUIDE
    TUBE, STEERING CABLE GUIDE
  • 60
    11-8M0041651 NUT, JAM - STEERING CABLE GUIDE TUBE
    NUT, JAM - STEERING CABLE GUIDE TUBE
  • 61
    35221 RING, CABLE GUIDE TUBE PIVOT YOKE
    RING, CABLE GUIDE TUBE PIVOT YOKE
  • 62
    34125 YOKE, CABLE GUIDE TUBE PIVOT - STEERING CABLE BRACKET
    YOKE, CABLE GUIDE TUBE PIVOT - STEERING CABLE BRACKET
  • 63
    10-31832 BOLT, PIVOT - PIVOT YOKE TO SWING RING
    BOLT, PIVOT - PIVOT YOKE TO SWING RING
  • 64
    13-31848 LOCKWASHER, PIVOT YOKE TO SWIVEL RING PIVOT BOLT
    LOCKWASHER, PIVOT YOKE TO SWIVEL RING PIVOT BOLT
  • 65
    12-35683 WASHER, CABLE GUIDE PIVOT YOKE
    WASHER, CABLE GUIDE PIVOT YOKE
