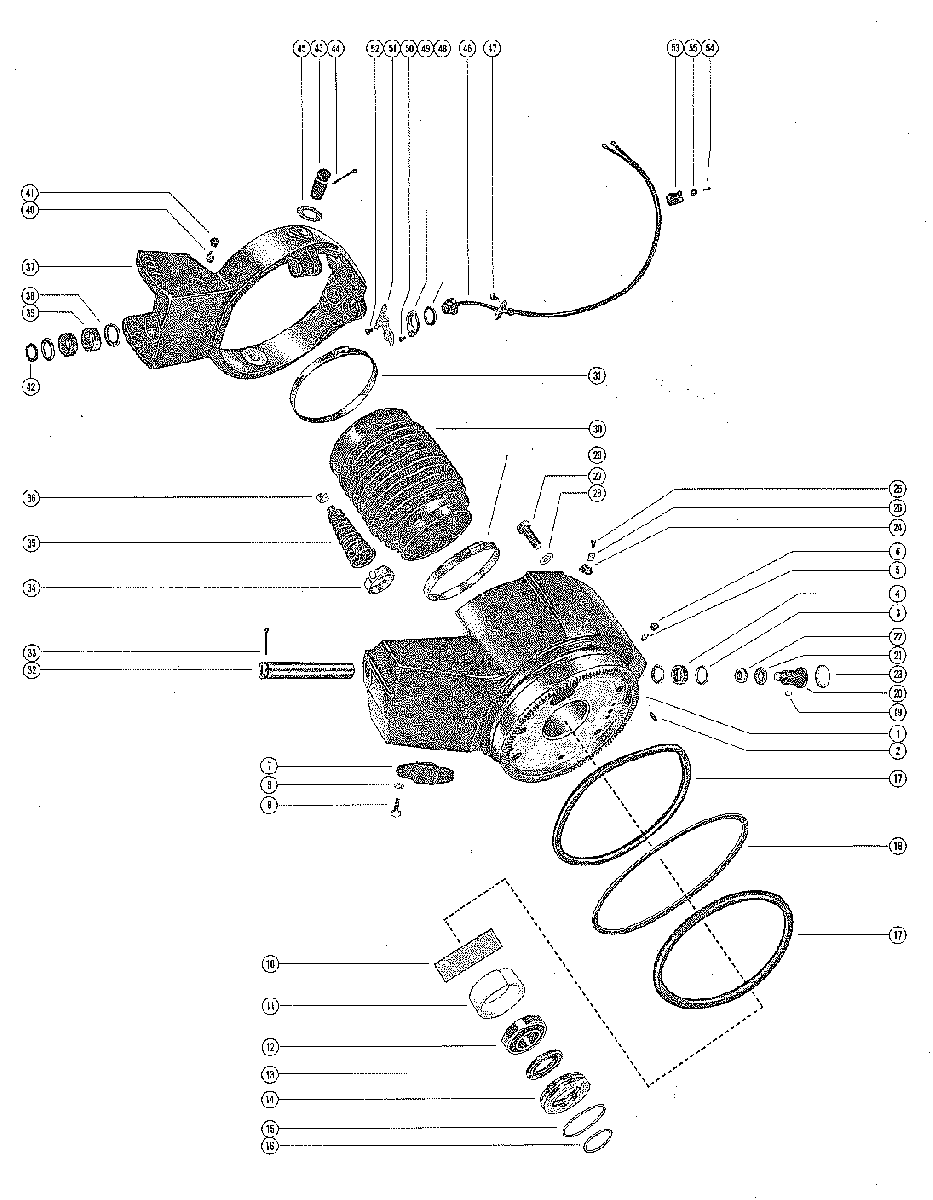

GIMBAL HOUSING AND GIMBAL RING для Mercruiser - II (1.78:1) 1968-1969 2398798 THRU 2671321

  • №
    Артикул
    Название
  • 1
    49280A1 GIMBAL HOUSING ASSEMBLY
    GIMBAL HOUSING ASSEMBLY
  • 2
    17-49546 PIN, DOWEL - GIMBAL HOUSING
    PIN, DOWEL - GIMBAL HOUSING
  • 3
    26-32911 OIL SEAL, GIMBAL HOUSING
    OIL SEAL, GIMBAL HOUSING
  • 4
    31-31559T BEARING, ROLLER - GIMBAL HOUSING
    BEARING, ROLLER - GIMBAL HOUSING
  • 5
    22-74036 FITTING, GREASE - GIMBAL HOUSING
    FITTING, GREASE - GIMBAL HOUSING
  • 6
    19-77633Q LUBRICAP, GIMBAL HOUSING GREASE FITTING
    LUBRICAP, GIMBAL HOUSING GREASE FITTING
  • 7
    47347 CONNECTOR, HYDRAULIC - GIMBAL HOUSING
    CONNECTOR, HYDRAULIC - GIMBAL HOUSING
  • 8
    32-36167 SCREW, HYDRAULIC CONNECTOR TO GIMBAL HOUSING
    SCREW, HYDRAULIC CONNECTOR TO GIMBAL HOUSING
  • 9
    13-26992 LOCKWASHER, HYDRALIC CONNECTOR SCREW
    LOCKWASHER, HYDRALIC CONNECTOR SCREW
  • 10
    15-35244A1 SHIM, GIMBAL HOUSING BALL BEARING (.002-3-4-5-6-7-8-10)
    SHIM, GIMBAL HOUSING BALL BEARING (.002-3-4-5-6-7-8-10)
  • 11
    23-35130 ADAPTOR, BALL BEARING
    ADAPTOR, BALL BEARING
  • 12
    30-36418 BEARING, BALL - GIMBAL HOUSING
    BEARING, BALL - GIMBAL HOUSING
  • 13
    26-88416 GREASE SEAL, GIMBAL HOUSING ADAPTOR
    GREASE SEAL, GIMBAL HOUSING ADAPTOR
  • 14
    37250T ADAPTOR, GIMBAL HOUSING
    ADAPTOR, GIMBAL HOUSING
  • 15
    25-31305 "O" RING, GIMBAL HOUSING ADAPTOR (LARGE)
    "O" RING, GIMBAL HOUSING ADAPTOR (LARGE)
  • 16
    25-33145 "O"RING, GIMBAL HOUSING ADAPTOR (SMALL)
    "O"RING, GIMBAL HOUSING ADAPTOR (SMALL)
  • 17
    31635 SEAL, RUBBER - GIMBAL HOUSING TO OUTER TRANSOM PLATE
    SEAL, RUBBER - GIMBAL HOUSING TO OUTER TRANSOM PLATE
  • 18
    12-31653 WASHER, SEPARATING - GIMBAL HOUSING TO OUTER TRANSOM PLATE
    WASHER, SEPARATING - GIMBAL HOUSING TO OUTER TRANSOM PLATE
  • 19
    17-31627 PIN, UPPER PIVOT BOLT LOCKING
    PIN, UPPER PIVOT BOLT LOCKING
  • 20
    10-31628 BOLT, PIVOT - GIMBAL HOUSING TO GIMBAL RING (UPPER)
    BOLT, PIVOT - GIMBAL HOUSING TO GIMBAL RING (UPPER)
  • 21
    12-36362 WASHER, UPPER PIVOT BOLT
    WASHER, UPPER PIVOT BOLT
  • 22
    11-22339 NUT, UPPER PIVOT BOLT
    NUT, UPPER PIVOT BOLT
  • 23
    19-31843 WELCH PLUG, UPPER PIVOT BOLT COVER - GIMBAL HOUSING
    WELCH PLUG, UPPER PIVOT BOLT COVER - GIMBAL HOUSING
  • 24
    54-24836 CLIP, TILT STOP SWITCH LEADS TO GIMBAL HOUSING
    CLIP, TILT STOP SWITCH LEADS TO GIMBAL HOUSING
  • 25
    10-62568 SCREW, TILT STOP SWITCH LEADS CLIP TO GIMBAL HOUSING (3/8")
    SCREW, TILT STOP SWITCH LEADS CLIP TO GIMBAL HOUSING (3/8")
  • 26
    8M0084613 "D" WASHER, TILT STOP SWITCH LEADS CLIP SCREW
    "D" WASHER, TILT STOP SWITCH LEADS CLIP SCREW
  • 27
    10-31877 SCREW, GIMBAL HOUSING TO STEERING LEVER HOUSING (1 1/2")
    SCREW, GIMBAL HOUSING TO STEERING LEVER HOUSING (1 1/2")
  • 28
    12-20959 WASHER, GIMBAL HOUSING SCREW
    WASHER, GIMBAL HOUSING SCREW
  • 29
    54-815504372 CLAMP, UNIVERSAL JOINT BELLOWS TO GIMBAL HOUSING (SMALL)
    CLAMP, UNIVERSAL JOINT BELLOWS TO GIMBAL HOUSING (SMALL)
  • 30
    34088A1 BELLOWS, UNIVERSAL JOINT COVERING
    BELLOWS, UNIVERSAL JOINT COVERING
  • 31
    54-815504396 CLAMP, , UNIVERSAL JOINT BELLOWS TO DRIVE SHAFT HOUSING (LARGE)
    CLAMP, , UNIVERSAL JOINT BELLOWS TO DRIVE SHAFT HOUSING (LARGE)
  • 32
    17-31634 PIN, SWIVEL - GIMBAL HOUSING TO GIMBAL RING (LOWER)
    PIN, SWIVEL - GIMBAL HOUSING TO GIMBAL RING (LOWER)
  • 33
    18-36377 COTTEN PIN, RETAINING - LOWER SWIVEL PIN
    COTTEN PIN, RETAINING - LOWER SWIVEL PIN
  • 34
    54-815504320 CLAMP, SHIFT ACTUATING CABLE BELLOWS TO GIMBAL HOUSING
    CLAMP, SHIFT ACTUATING CABLE BELLOWS TO GIMBAL HOUSING
  • 35
    74639A2 BELLOWS, SHIFT ACTUATING CABLE COVER
    BELLOWS, SHIFT ACTUATING CABLE COVER
  • 36
    54-8M0090424 CLAMP, SHIFT ACTUATING CABLE BELLOWS TO SHIFT ACTUATING CABL
    CLAMP, SHIFT ACTUATING CABLE BELLOWS TO SHIFT ACTUATING CABL
  • 37
    52466A3 GIMBAL RING ASSEMBLY
    GIMBAL RING ASSEMBLY
  • 38
    26-32911 OIL SEAL, GIMBAL RING
    OIL SEAL, GIMBAL RING
  • 39
    31-31559T BEARING, ROLLER - GIMBAL RING
    BEARING, ROLLER - GIMBAL RING
  • 40
    22-69059 FITTING, GREASE -GIMBAL RING
    FITTING, GREASE -GIMBAL RING
  • 41
    19-77633Q LUBRICAP, GIMBAL RING GREASE FITTING
    LUBRICAP, GIMBAL RING GREASE FITTING
  • 42
    12-31581 WASHER, GIMBAL RING TO GIMBAL HOUSING
    WASHER, GIMBAL RING TO GIMBAL HOUSING
  • 43
    17-35601 PIN, HINGE - GIMBAL RING TO DRIVE SHAFT HOUSING
    PIN, HINGE - GIMBAL RING TO DRIVE SHAFT HOUSING
  • 44
    18-34212 COTTEN PIN, HINGE PIN RETAINING - GIMBAL RING
    COTTEN PIN, HINGE PIN RETAINING - GIMBAL RING
  • 45
    12-38334 WASHER, SYNTHANE - GIMBAL RING HINGE PIN
    WASHER, SYNTHANE - GIMBAL RING HINGE PIN
  • 46
    52958A1 TILT SWITCH SWING ASSEMBLY, GIMBAL RING
    15 1/2" "U" JOINT COUPLING YOKE
    TILT SWITCH SWING ASSEMBLY, GIMBAL RING
    15 1/2" "U" JOINT COUPLING YOKE
  • 46
    52958A1 TILT SWITCH SWING ASSEMBLY, GIMBAL RING
    11 1/2" "U" JOINT COUPLING YOKE
    TILT SWITCH SWING ASSEMBLY, GIMBAL RING
    11 1/2" "U" JOINT COUPLING YOKE
  • 47
    10-98253 SCREW, TILT STOP SWITCH COVER TO GIMBAL HOUSING (1/2")
    SCREW, TILT STOP SWITCH COVER TO GIMBAL HOUSING (1/2")
  • 48
    23-31902 SPACER, TILT STOP SWITCH TO RETAINING PLATE
    SPACER, TILT STOP SWITCH TO RETAINING PLATE
  • 49
    31899 PLATE, RETAINING - TILT STOP SWITCH TO GIMBAL RING
    PLATE, RETAINING - TILT STOP SWITCH TO GIMBAL RING
  • 50
    10-31903 SCREW, RETAINING PLATE TO GIMBAL RING (3/8)
    SCREW, RETAINING PLATE TO GIMBAL RING (3/8)
  • 51
    49343 LEVER, TILT STOP SWITCH ACUTATING - GIMBAL RING
    LEVER, TILT STOP SWITCH ACUTATING - GIMBAL RING
  • 52
    10-31903 SCREW, TILT STOP SWITCH ACUTATING LEVER TO GIMBAL RING (3/8)
    SCREW, TILT STOP SWITCH ACUTATING LEVER TO GIMBAL RING (3/8)
  • 53
    54-22740 CLIP, TILT STOP SWITCH LEADS ATTACHING
    CLIP, TILT STOP SWITCH LEADS ATTACHING
  • 54
    10-31903 SCREW, TILT STOP SWITCH LEADS CLAMP
    SCREW, TILT STOP SWITCH LEADS CLAMP
  • 55
    8M0084613 "D" WASHER, TILT STOP SWITCH LEADS CLAMP SCREW
    "D" WASHER, TILT STOP SWITCH LEADS CLAMP SCREW
