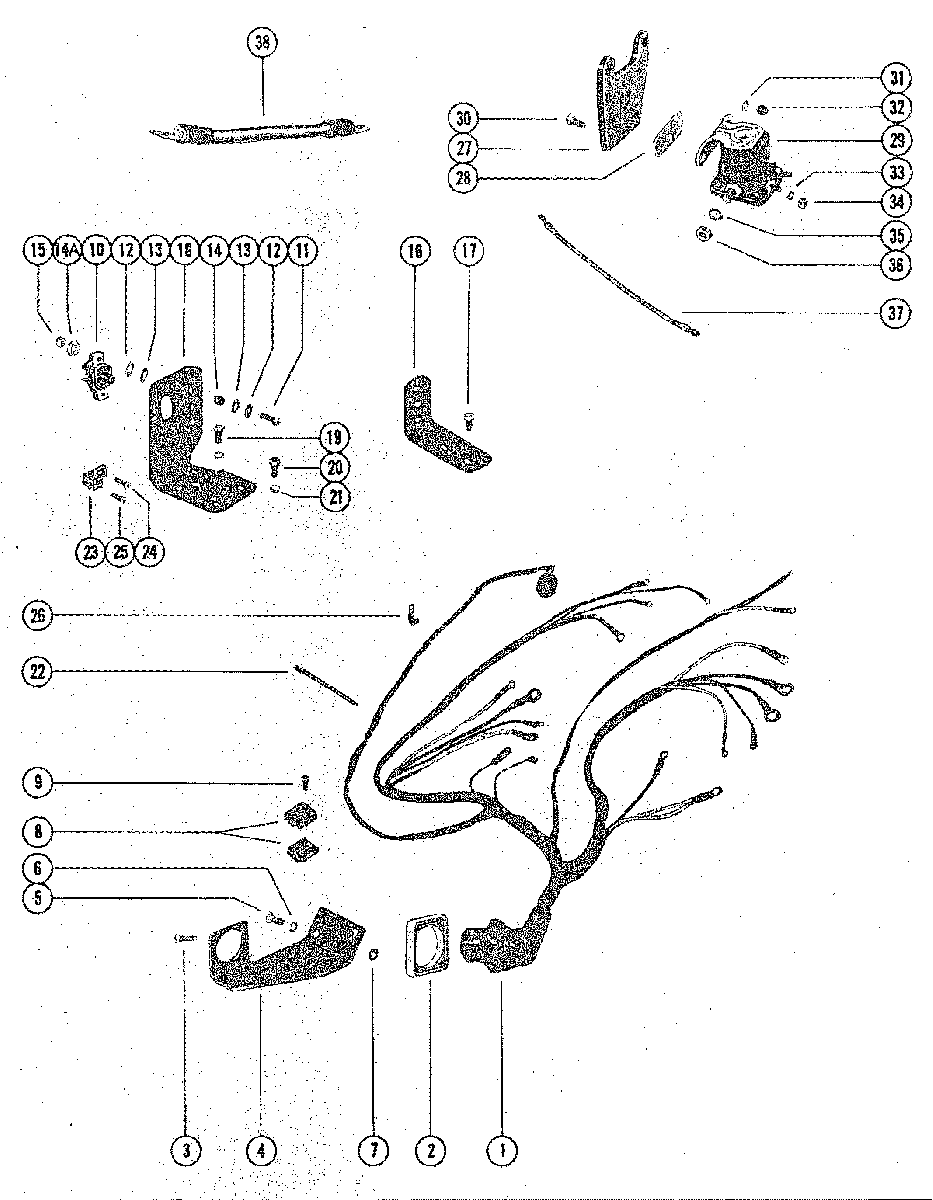

WIRING HARNESS AND STARTER SOLENOID для Mercruiser - 888 (2 BBL.) FORD 302 V-8 1971-1977 3108723 AND UP

  • №
    Артикул
    Название
  • 1
    60351 WIRING HARNESS
    (SERIAL 00000000-03245667)
    WIRING HARNESS
    (SERIAL 00000000-03245667)
  • 1
    84-62137A4 WIRING HARNESS
    (SERIAL 03245668-03465227)
    WIRING HARNESS
    (SERIAL 03245668-03465227)
  • 1
    84-64493A3 WIRING HARNESS
    (SERIAL 03465228-03777486)
    WIRING HARNESS
    (SERIAL 03465228-03777486)
  • 1
    84-71150A2 WIRING HARNESS
    (SERIAL 03777490-04166999)
    WIRING HARNESS
    (SERIAL 03777490-04166999)
  • 1
    84-71150A2 WIRING HARNESS
    (SERIAL 04167000-09999999)
    WIRING HARNESS
    (SERIAL 04167000-09999999)
  • 2
    26079A2 PLATE, WIRING HARNESS TO MOUNTING BRACKET
    PLATE, WIRING HARNESS TO MOUNTING BRACKET
  • 3
    10-46718 SCREW, WIRING HARNESS PLATE TO MOUNTING BRACKET (3/4")
    SCREW, WIRING HARNESS PLATE TO MOUNTING BRACKET (3/4")
  • 4
    60341 BRACKET, MOUNTING - WIRING HARNESS
    (SERIAL 00000000-03465227)
    BRACKET, MOUNTING - WIRING HARNESS
    (SERIAL 00000000-03465227)
  • 5
    10-35386 SCREW, MOUNTING BRACKET ATTACHING (1")
    (SERIAL 00000000-03465227)
    SCREW, MOUNTING BRACKET ATTACHING (1")
    (SERIAL 00000000-03465227)
  • 6
    13-39107 LOCKWASHER, MOUNTING BRACKET SCREW
    (SERIAL 00000000-03465227)
    LOCKWASHER, MOUNTING BRACKET SCREW
    (SERIAL 00000000-03465227)
  • 7
    23-55737 SPACER, BRACKET TO MANIFOLD
    (SERIAL 00000000-034652270)
    SPACER, BRACKET TO MANIFOLD
    (SERIAL 00000000-034652270)
  • 8
    39974 CONNECTOR, TRIM LEADS - MOUNTING BRACKET
    (SERIAL 00000000-03777489)
    CONNECTOR, TRIM LEADS - MOUNTING BRACKET
    (SERIAL 00000000-03777489)
  • 9
    10-24637 SCREW, CONNECTOR TO MOUNTING BRACKET (7/8")
    (SERIAL 00000000-03777489)
    SCREW, CONNECTOR TO MOUNTING BRACKET (7/8")
    (SERIAL 00000000-03777489)
  • 10
    59816 CIRCUIT BREAKER
    (SERIAL 00000000-03777489)
    CIRCUIT BREAKER
    (SERIAL 00000000-03777489)
  • 10
    88-65093 CIRCUIT BREAKER
    (SERIAL 03245668-09999999)
    CIRCUIT BREAKER
    (SERIAL 03245668-09999999)
  • 11
    10-47618 SCREW, CIRCUIT BREAKER TO BRACKET
    (SERIAL 03245668-09999999)
    SCREW, CIRCUIT BREAKER TO BRACKET
    (SERIAL 03245668-09999999)
  • 12
    12-47960 WASHER, CIRCUIT BREAKER SCREW
    (SERIAL 03245668-09999999)
    WASHER, CIRCUIT BREAKER SCREW
    (SERIAL 03245668-09999999)
  • 13
    25-61999 GROMMET, CIRCUIT BREAKER SCREW
    (SERIAL 03245668-09999999)
    GROMMET, CIRCUIT BREAKER SCREW
    (SERIAL 03245668-09999999)
  • 14
    23-61998 SPACER, CIRCUIT BREAKER GROMMET
    (SERIAL 03245668-09999999)
    SPACER, CIRCUIT BREAKER GROMMET
    (SERIAL 03245668-09999999)
  • 14A
    12-30164 WASHER, CIRCUIT BREAKER SCREW
    (SERIAL 03245668-09999999)
    WASHER, CIRCUIT BREAKER SCREW
    (SERIAL 03245668-09999999)
  • 15
    11-46438 NUT, CURCUIT BREAKER SCREW
    (SERIAL 03245668-09999999)
    NUT, CURCUIT BREAKER SCREW
    (SERIAL 03245668-09999999)
  • 16
    62093 BRACKET, CIRCUIT BREAKER
    (SERIAL 03245668-03465227)
    BRACKET, CIRCUIT BREAKER
    (SERIAL 03245668-03465227)
  • 17
    10-98261 SCREW, BRACKET TO EXHAUST MANIFOLD (3/4")
    (SERIAL 03245668-03465227)
    SCREW, BRACKET TO EXHAUST MANIFOLD (3/4")
    (SERIAL 03245668-03465227)
  • 18
    70649 BRACKET, CIRCUIT BREAKER
    (SERIAL 03245668-09999999)
    BRACKET, CIRCUIT BREAKER
    (SERIAL 03245668-09999999)
  • 18
    70649 BRACKET, CIRCUIT BREAKER/WIRING HARNESS
    (SERIAL 03245668-09999999)
    BRACKET, CIRCUIT BREAKER/WIRING HARNESS
    (SERIAL 03245668-09999999)
  • 19
    10-824941 SCREW, BRACKET TO INTAKE MANIFOLD (3/4")
    (SERIAL 03245668-09999999)
    SCREW, BRACKET TO INTAKE MANIFOLD (3/4")
    (SERIAL 03245668-09999999)
  • 20
    10-35386 SCREW, BRACKET TO INTAKE MANIFOLD (1")
    (SERIAL 03245668-09999999)
    SCREW, BRACKET TO INTAKE MANIFOLD (1")
    (SERIAL 03245668-09999999)
  • 21
    13-39107 LOCKWASHER, BRACKET SCREW
    (SERIAL 03245668-09999999)
    LOCKWASHER, BRACKET SCREW
    (SERIAL 03245668-09999999)
  • 22
    61990 STA-STRAP, WIRING HARNESS
    STA-STRAP, WIRING HARNESS
  • 23
    86-45915 TERMINAL BLOCK
    (SERIAL 04466390-09999999)
    TERMINAL BLOCK
    (SERIAL 04466390-09999999)
  • 24
    10-48591 SCREW, TERMINAL BLOCK TO WIRING HARNESS BRACKET
    (SERIAL 04466390-09999999)
    SCREW, TERMINAL BLOCK TO WIRING HARNESS BRACKET
    (SERIAL 04466390-09999999)
  • 25
    10-62568 SCREW, LEADS TO TERMINAL BLOCK
    SCREW, LEADS TO TERMINAL BLOCK
  • 26
    54-61001 "J" CLIP, WIRING HARNESS TO ROCKER COVER (FRONT)
    "J" CLIP, WIRING HARNESS TO ROCKER COVER (FRONT)
  • 27
    54869 BRACKET, MOUNTING - STARTER SOLENOID
    BRACKET, MOUNTING - STARTER SOLENOID
  • 28
    36177 INSULATOR, SOLENOID TO MOUNTING BRACKET
    (SERIAL 00000000-04612109)
    INSULATOR, SOLENOID TO MOUNTING BRACKET
    (SERIAL 00000000-04612109)
  • 29
    65057T1 STARTER SOLENOID
    (SERIAL 00000000-04612109)
    STARTER SOLENOID
    (SERIAL 00000000-04612109)
  • 30
    10-22956 SCREW, STARTER SOLENOID TO MOUNTING BRACKET
    (SERIAL 00000000-04612109)
    SCREW, STARTER SOLENOID TO MOUNTING BRACKET
    (SERIAL 00000000-04612109)
  • 29
    89-76416A1 STARTER SOLENOID
    (SERIAL 04612110-09999999)
    STARTER SOLENOID
    (SERIAL 04612110-09999999)
  • 30
    10-69028 SCREW,STARTER SOLENOID TO MOUNTING BRACKET
    (SERIAL 04612110-09999999)
    SCREW,STARTER SOLENOID TO MOUNTING BRACKET
    (SERIAL 04612110-09999999)
  • 31
    12-22937 WASHER, STARTER SOLENOID SCREW
    WASHER, STARTER SOLENOID SCREW
  • 32
    11-826709109 NUT, STARTER SOLENOID SCREW
    (SERIAL 00000000-04612109)
    NUT, STARTER SOLENOID SCREW
    (SERIAL 00000000-04612109)
  • 32
    11-8267089 NUT, STARTER SOLENOID SCREW
    (SERIAL 04612110-09999999)
    NUT, STARTER SOLENOID SCREW
    (SERIAL 04612110-09999999)
  • 33
    13-26996 LOCKWASHER, STARTER SOLENOID TERMINAL (#10)
    LOCKWASHER, STARTER SOLENOID TERMINAL (#10)
  • 34
    11-68219 NUT, STARTER SOLENOID TERMINAL (10-32)
    NUT, STARTER SOLENOID TERMINAL (10-32)
  • 35
    13-26993 LOCKWASHER, STARTER SOLENOID (5/16")
    LOCKWASHER, STARTER SOLENOID (5/16")
  • 36
    11-22053 NUT, STARTER SOLENOID TERMINAL (5/16")
    (SERIAL 00000000-04612109)
    NUT, STARTER SOLENOID TERMINAL (5/16")
    (SERIAL 00000000-04612109)
  • 36
    11-21908 NUT, STARTER SOLENOID TERMINAL (5/16")
    (SERIAL 04612110-09999999)
    NUT, STARTER SOLENOID TERMINAL (5/16")
    (SERIAL 04612110-09999999)
  • 37
    84-61600A3 CABLE ASS'Y, SOLENOID GROUND
    (SERIAL 03245668-03414835)
    CABLE ASS'Y, SOLENOID GROUND
    (SERIAL 03245668-03414835)
  • 38
    84-77042 CABLE, STARTER (YELLOW - 11")
    (SERIAL 00000000-04612109)
    CABLE, STARTER (YELLOW - 11")
    (SERIAL 00000000-04612109)
  • 38
    84-77042 CABLE, STARTER (YELLOW - 12 1/2")
    (SERIAL 04612110-09999999)
    CABLE, STARTER (YELLOW - 12 1/2")
    (SERIAL 04612110-09999999)
