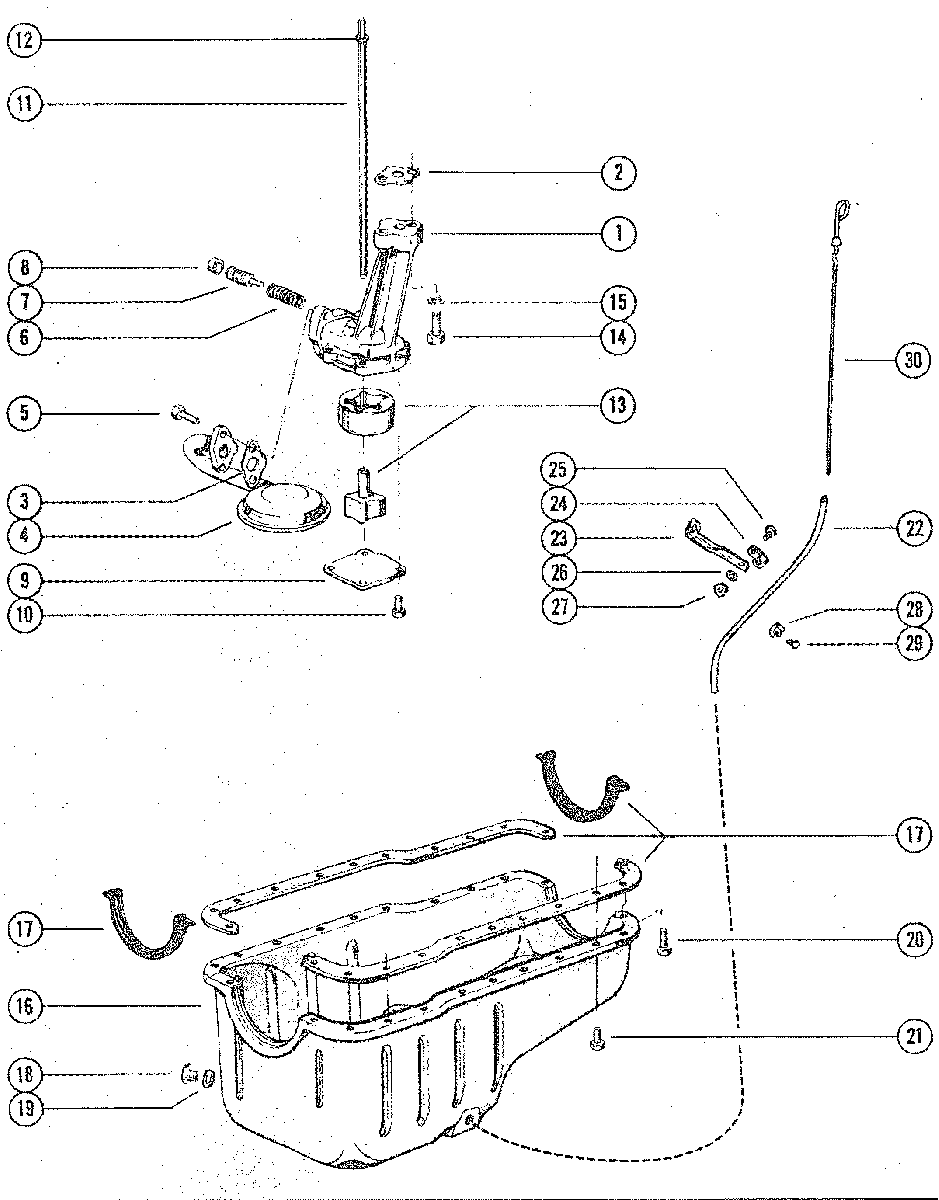

OIL PUMP AND OIL PAN для Mercruiser - 888 (2 BBL.) FORD 302 V-8 1971-1977 3108723 AND UP

  • №
    Артикул
    Название
  • 1
    56174 OIL PUMP ASSEMBLY
    OIL PUMP ASSEMBLY
  • 2
    27-56861 GASKET, OIL PUMP
    GASKET, OIL PUMP
  • 3
    27-56859 GASKET, OIL PUMP SCREEN
    GASKET, OIL PUMP SCREEN
  • 4
    56856 SCREEN, OIL PUMP
    SCREEN, OIL PUMP
  • 5
    10-56858 SCREW, SCREEN TO OIL PUMP (7/8")
    SCREW, SCREEN TO OIL PUMP (7/8")
  • 6
    24-56864 SPRING, OIL PUMP RELIEF VALVE
    SPRING, OIL PUMP RELIEF VALVE
  • 7
    56865 PLUNGER, OIL PUMP RELIEF VALVE
    PLUNGER, OIL PUMP RELIEF VALVE
  • 8
    19-56854 PLUG, OIL PUMP RELIEF VALVE
    PLUG, OIL PUMP RELIEF VALVE
  • 9
    56179 PLATE, OIL PUMP
    PLATE, OIL PUMP
  • 10
    10-56133 SCREW, PLATE TO OIL PUMP (5/8")
    SCREW, PLATE TO OIL PUMP (5/8")
  • 11
    56855 SHAFT ASSEMBLY, OIL PUMP
    SHAFT ASSEMBLY, OIL PUMP
  • 12
    53-56860 RING, RETAINING - OIL PUMP SHAFT
    RING, RETAINING - OIL PUMP SHAFT
  • 13
    56178 ROTOR AND SHAFT, OIL PUMP
    ROTOR AND SHAFT, OIL PUMP
  • 14
    10-56176 SCREW, OIL PUMP TO CYLINDER BLOCK (1 1/4")
    SCREW, OIL PUMP TO CYLINDER BLOCK (1 1/4")
  • 15
    13-56177 LOCKWASHER, OIL PUMP SCREW
    LOCKWASHER, OIL PUMP SCREW
  • 16
    60711 OIL PAN
    SERIAL 00000000-04170289
    OIL PAN
    SERIAL 00000000-04170289
  • 16
    75401 OIL PAN
    SERIAL 04170290-09999999
    OIL PAN
    SERIAL 04170290-09999999
  • 17
    27-64798 GASKET SET, OIL PAN
    GASKET SET, OIL PAN
  • 18
    22-60720 PLUG, DRAIN - OIL PAN
    PLUG, DRAIN - OIL PAN
  • 19
    27-8M0077608 GASKET, DRANIN PLUG
    GASKET, DRANIN PLUG
  • 20
    10-56858 SCREW, OIL PAN TO CYLINDER BLOCK (5/16-18 X 7/8")
    SCREW, OIL PAN TO CYLINDER BLOCK (5/16-18 X 7/8")
  • 21
    10-60708 SCREW, OIL PAN TO CYLINDER BLOCK (1/4-20 X 5/8")
    SCREW, OIL PAN TO CYLINDER BLOCK (1/4-20 X 5/8")
  • 22
    60416T TUBE, OIL LEVEL GAUGE
    SERIAL 00000000-04170289
    TUBE, OIL LEVEL GAUGE
    SERIAL 00000000-04170289
  • 22
    71907 TUBE, OIL LEVEL GAUGE
    SERIAL 04170290-09999999
    TUBE, OIL LEVEL GAUGE
    SERIAL 04170290-09999999
  • 23
    60606T BRACKET, OIL LEVEL GAUGE
    SERIAL 00000000-03975694
    BRACKET, OIL LEVEL GAUGE
    SERIAL 00000000-03975694
  • 23
    70717 BRACKET, OIL LEVEL GAUGE
    SERIAL 03975695-09999999
    BRACKET, OIL LEVEL GAUGE
    SERIAL 03975695-09999999
  • 24
    54-60517 CLAMP, OIL LEVEL GAUGE TUBE BRACKET
    SERIAL 00000000-03245667
    CLAMP, OIL LEVEL GAUGE TUBE BRACKET
    SERIAL 00000000-03245667
  • 25
    10-69022 SCREW, CLAMP ATTACHING
    SERIAL 00000000-03245667
    SCREW, CLAMP ATTACHING
    SERIAL 00000000-03245667
  • 26
    12-26014 WASHER, CLAMP ATTACHING SCREW
    SERIAL 00000000-03245667
    WASHER, CLAMP ATTACHING SCREW
    SERIAL 00000000-03245667
  • 27
    11-8267086 NUT, CLAMP ATTACHING SCREW
    SERIAL 00000000-03245667
    NUT, CLAMP ATTACHING SCREW
    SERIAL 00000000-03245667
  • 24
    54-61405 CLAMP, OIL LEVEL GAUGE TUBE BRACKET
    SERIAL 03245668-09999999
    CLAMP, OIL LEVEL GAUGE TUBE BRACKET
    SERIAL 03245668-09999999
  • 25
    10-32417 SCREW, CLAMP ATTACHING (5/8")
    SERIAL 03245668-09999999
    SCREW, CLAMP ATTACHING (5/8")
    SERIAL 03245668-09999999
  • 26
    12-29245 WASHER, CLAMP ATTACHING SCREW
    SERIAL 03245668-09999999
    WASHER, CLAMP ATTACHING SCREW
    SERIAL 03245668-09999999
  • 27
    11-8267089 NUT, CLAMP ATTACHING SCREW
    SERIAL 03245668-09999999
    NUT, CLAMP ATTACHING SCREW
    SERIAL 03245668-09999999
  • 28
    54-61405 CLIP, OIL LEVEL GAUGE TUBE
    CLIP, OIL LEVEL GAUGE TUBE
  • 29
    10-98256 SCREW, OIL LEVEL GAUGE TUBE CLIP TO BRACKET (1/2")
    SCREW, OIL LEVEL GAUGE TUBE CLIP TO BRACKET (1/2")
  • 30
    60599F1 GAUGE, OIL LEVEL (DIPSTICK)
    GAUGE, OIL LEVEL (DIPSTICK)
