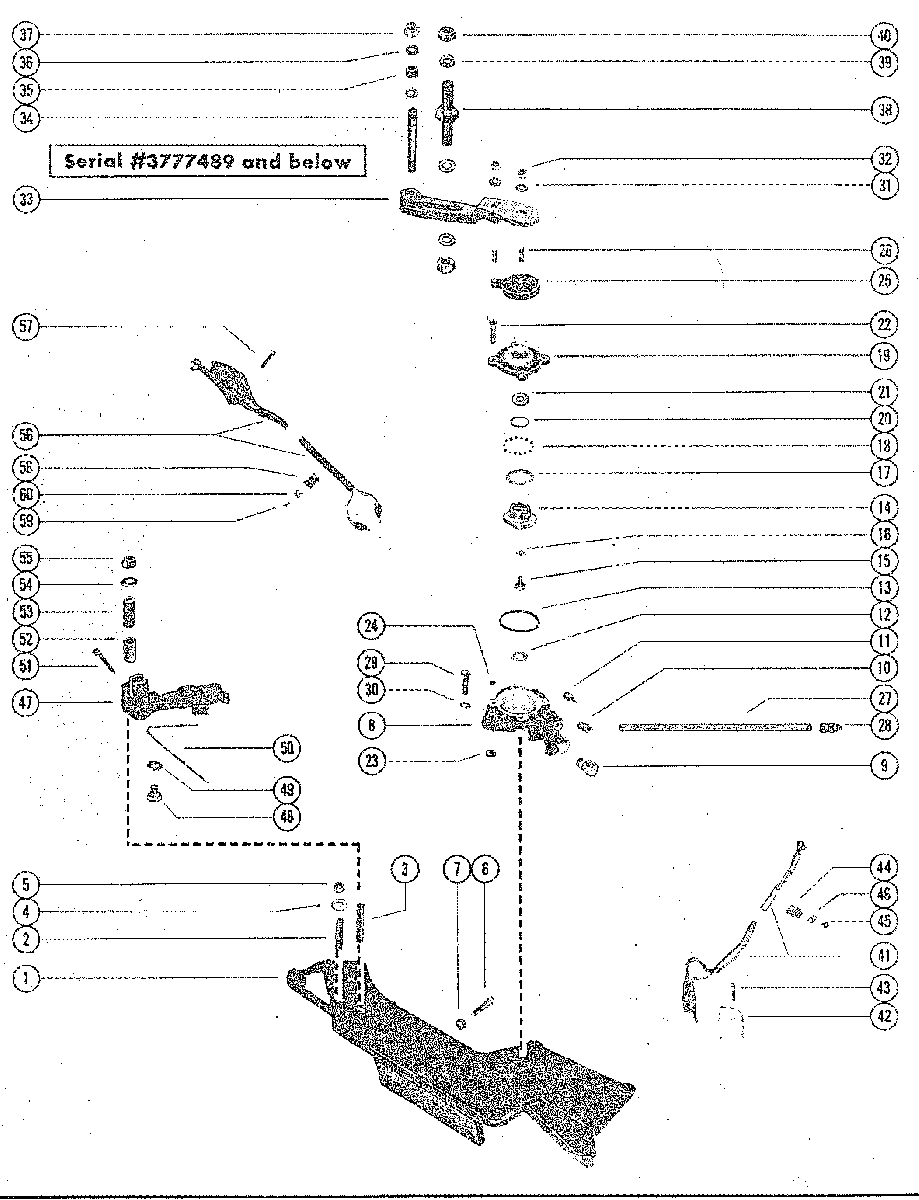

SHIFT BRACKET, REVERSE LOCK VALVE AND ARM ASSEMBLY для Mercruiser - 888 (2 BBL.) FORD 302 V-8 1971-1977 3108723 AND UP
-
№АртикулНазвание
-
160220A1 SHIFT BRACKET ASSEMBLY
(SERIAL # 3777489 AND BELOW)SHIFT BRACKET ASSEMBLY
(SERIAL # 3777489 AND BELOW) -
216-79661 STUD, SHIFT CABLE TO BRACKET (1 3/4")STUD, SHIFT CABLE TO BRACKET (1 3/4")
-
316-66373 STUD, SWITCH ACTUATING ARM TO SHIFT BRACKET (2 5/16")STUD, SWITCH ACTUATING ARM TO SHIFT BRACKET (2 5/16")
-
412-39143 WASHER, SHIFT CABLE TO LEVER STUDWASHER, SHIFT CABLE TO LEVER STUD
-
511-8267089 NUT, SHIFT BRCAKET STUDNUT, SHIFT BRCAKET STUD
-
610-47651 SCREW, SHIFT BRACKET TO FLYWHEEL HOUSING (1 1/2")SCREW, SHIFT BRACKET TO FLYWHEEL HOUSING (1 1/2")
-
713-32993 LOCKWASHER, SHIFT BRACKET ATTACHING SCREWLOCKWASHER, SHIFT BRACKET ATTACHING SCREW
-
847165A5 REVERSE LOCK VALVE ASSEMBLYREVERSE LOCK VALVE ASSEMBLY
-
922-48166 ELBOW, HYDRAULIC TRIM HOSE TO REVERSE LOCK VALVEELBOW, HYDRAULIC TRIM HOSE TO REVERSE LOCK VALVE
-
1022-48167 CONNECTOR, ELBOWCONNECTOR, ELBOW
-
1145709 FOLLOWER, CAMFOLLOWER, CAM
-
1213-25906 WASHER, WAVE - REVERSE LOCK VALEWASHER, WAVE - REVERSE LOCK VALE
-
1325-457101 "O" RING, REVERSE LOCK VALVE"O" RING, REVERSE LOCK VALVE
-
1445526 CAM, REVERSE LOCK VALVECAM, REVERSE LOCK VALVE
-
1510-46736 SCREW, CAM TO CAM LEVER (1/2")SCREW, CAM TO CAM LEVER (1/2")
-
1613-26996 LOCKWASHER, CAM SCREWLOCKWASHER, CAM SCREW
-
1712-45713 WASHER, RETAINING- BALL TO VALVE COVERWASHER, RETAINING- BALL TO VALVE COVER
-
1830-45712 BALL, VALVE COVERBALL, VALVE COVER
-
1945528A2 COVER ASSEMBLY, REVERSE LOCK VALVECOVER ASSEMBLY, REVERSE LOCK VALVE
-
202545711 "O" RING, VALVE COVER"O" RING, VALVE COVER
-
2112-59570 WASHER, VALVE COVERWASHER, VALVE COVER
-
221045716 SCREW, COVER TO REVERSE LOCK VALVE (15/16")SCREW, COVER TO REVERSE LOCK VALVE (15/16")
-
2311-20110 NUT, COVER SCRREWNUT, COVER SCRREW
-
2422-390721 PLUG, PIPE- REVERSE LOCK VALVEPLUG, PIPE- REVERSE LOCK VALVE
-
2546732A1 LEVER ASSEMBLY, CAMLEVER ASSEMBLY, CAM
-
2616-45715 STUD, SHIFT CONTROL LEVER TO CAM LEVER (23/32")STUD, SHIFT CONTROL LEVER TO CAM LEVER (23/32")
-
2732-52951A1 TUBING ASSEMBLY, REVERSE LOCK VALVE TO TRIM SENDERTUBING ASSEMBLY, REVERSE LOCK VALVE TO TRIM SENDER
-
2822-49718 NUT, TUBING ATTACHINGNUT, TUBING ATTACHING
-
2910-23703 SCREW, REVERSE LOCK VALVE TO SHIFT SUPPORT BRACKET (7/8")SCREW, REVERSE LOCK VALVE TO SHIFT SUPPORT BRACKET (7/8")
-
3013-35048 LOCKWASHER, REVERSE LOCK VALVE SCREWLOCKWASHER, REVERSE LOCK VALVE SCREW
-
3112-21273 WASHER, CAM LEVER STUDWASHER, CAM LEVER STUD
-
3211-20110 NUT, SHIFT CONTROL LEVER TO CAM LEVER STUDNUT, SHIFT CONTROL LEVER TO CAM LEVER STUD
-
33549702A2 LEVER ASSEMBLY, SHIFT CONTROL- CAM LEVER
SERIAL 00000000-03465227LEVER ASSEMBLY, SHIFT CONTROL- CAM LEVER
SERIAL 00000000-03465227 -
3416-79661 STUD, SHIFT CABLE LEVER
SERIAL 00000000-03465227STUD, SHIFT CABLE LEVER
SERIAL 00000000-03465227 -
3523-31866 SPACER, SHIFT LEVER STUD
SERIAL 00000000-03465227SPACER, SHIFT LEVER STUD
SERIAL 00000000-03465227 -
3612-39143 WASHER, SHIFT LEVER STUD
SERIAL 00000000-03465227WASHER, SHIFT LEVER STUD
SERIAL 00000000-03465227 -
3711-8267089 NUT, SHIFT CABLE TO LEVER STUD
SERIAL 00000000-03465227NUT, SHIFT CABLE TO LEVER STUD
SERIAL 00000000-03465227 -
3816-34069 STUD, SHIFT CABLE TO SHIFT LEVER (2 1/4")
SERIAL 00000000-03465227STUD, SHIFT CABLE TO SHIFT LEVER (2 1/4")
SERIAL 00000000-03465227 -
3912-39143 WASHER, SHIFT CABLE STUD
SERIAL 00000000-03465227WASHER, SHIFT CABLE STUD
SERIAL 00000000-03465227 -
4011020361 NUT, SHIFT CABLE STID
SERIAL 00000000-03465227NUT, SHIFT CABLE STID
SERIAL 00000000-03465227 -
3363333A2 LEVER ASSEMBLY, SHIFT CONTROL-CAM LEVER
SERIAL 03465228-09999999LEVER ASSEMBLY, SHIFT CONTROL-CAM LEVER
SERIAL 03465228-09999999 -
3416-63081 STUD, SHIFT CABLE LEVER
SERIAL 03465228-09999999STUD, SHIFT CABLE LEVER
SERIAL 03465228-09999999 -
3523-31866 SPACER, SHIFT LEVER STUD
SERIAL 03465228-09999999SPACER, SHIFT LEVER STUD
SERIAL 03465228-09999999 -
3612-39143 WASHER, SHIFT LEVER STUD
SERIAL 03465228-09999999WASHER, SHIFT LEVER STUD
SERIAL 03465228-09999999 -
3711-8267089 NUT, SHIFT CABLE TO LEVER STUD
SERIAL 03465228-09999999NUT, SHIFT CABLE TO LEVER STUD
SERIAL 03465228-09999999 -
3816-63335 STUD, SHIFT CABLE TO SHIFT LEVER
SERIAL 03465228-09999999STUD, SHIFT CABLE TO SHIFT LEVER
SERIAL 03465228-09999999 -
4011-63341 TEE NUT, SHIFT CABLE STUD
SERIAL 03465228-09999999TEE NUT, SHIFT CABLE STUD
SERIAL 03465228-09999999 -
4160556A3 SWITCH ASSEMBLY, REVERSE INTERLOCKSWITCH ASSEMBLY, REVERSE INTERLOCK
-
4245717 SHIELD, REVERSE INTERLOCK SWITCHSHIELD, REVERSE INTERLOCK SWITCH
-
4310-36003 SCREW, SHIELD AND SWITCH TO REVERSE LOCK VALVE (3/4")SCREW, SHIELD AND SWITCH TO REVERSE LOCK VALVE (3/4")
-
4454-24836 "J" CLAMP, REVERSE INTERLOCK SWITCH LEAD"J" CLAMP, REVERSE INTERLOCK SWITCH LEAD
-
4510-21643 SCREW, REVERSE NITERLOCK SWITCH LEAD CLIP ATTACHING (1/2")SCREW, REVERSE NITERLOCK SWITCH LEAD CLIP ATTACHING (1/2")
-
468M0084613 "D" WASHER, CLIP ATTACHING SCREW"D" WASHER, CLIP ATTACHING SCREW
-
4713051A4 ARM ASSEMBLY, SWITCH ACTUATINGARM ASSEMBLY, SWITCH ACTUATING
-
4810-98257 SCREW, TENSION SPRING TO ARMSCREW, TENSION SPRING TO ARM
-
4912-26825 WASHER, TENSION SPRING SCREWWASHER, TENSION SPRING SCREW
-
5024-862850 SPRING, TENION- SWITCH ACTUATING ARMSPRING, TENION- SWITCH ACTUATING ARM
-
5118-328571 COTTER PIN, SHIFT ACTUATING CABLE TO ACTUATING ARMCOTTER PIN, SHIFT ACTUATING CABLE TO ACTUATING ARM
-
5223-45600 SLEEVE, SWITCH ACTUATING STUDSLEEVE, SWITCH ACTUATING STUD
-
5323-37981 SPACER, SWITCH ACTUATING ARM TO TRANSOM PLATESPACER, SWITCH ACTUATING ARM TO TRANSOM PLATE
-
5412-26825 WASHER, SWITCH ACTUATING ARM STUDWASHER, SWITCH ACTUATING ARM STUD
-
5511-82670911 NUT, SWITCH ACTUATING ARM STUDNUT, SWITCH ACTUATING ARM STUD
-
5649646A2 SWITCH ASSEMBLY, CUT-OUT- TRANSOM PLATESWITCH ASSEMBLY, CUT-OUT- TRANSOM PLATE
-
5710-30902 SCREW, SWITCH ASSEMBLY TO TRANSOM PLATE (3/4")SCREW, SWITCH ASSEMBLY TO TRANSOM PLATE (3/4")
-
5854-24836 CLIP, SWITCH LEADS TO TRANSOM PLATECLIP, SWITCH LEADS TO TRANSOM PLATE
-
5910-21643 SCREW, SWITCH LEADS CLIP TO TRANSOM PLATE (1/2")SCREW, SWITCH LEADS CLIP TO TRANSOM PLATE (1/2")
-
608M0084613 "D" WASHER, SWITCH LEADS CLIP SCREW"D" WASHER, SWITCH LEADS CLIP SCREW
