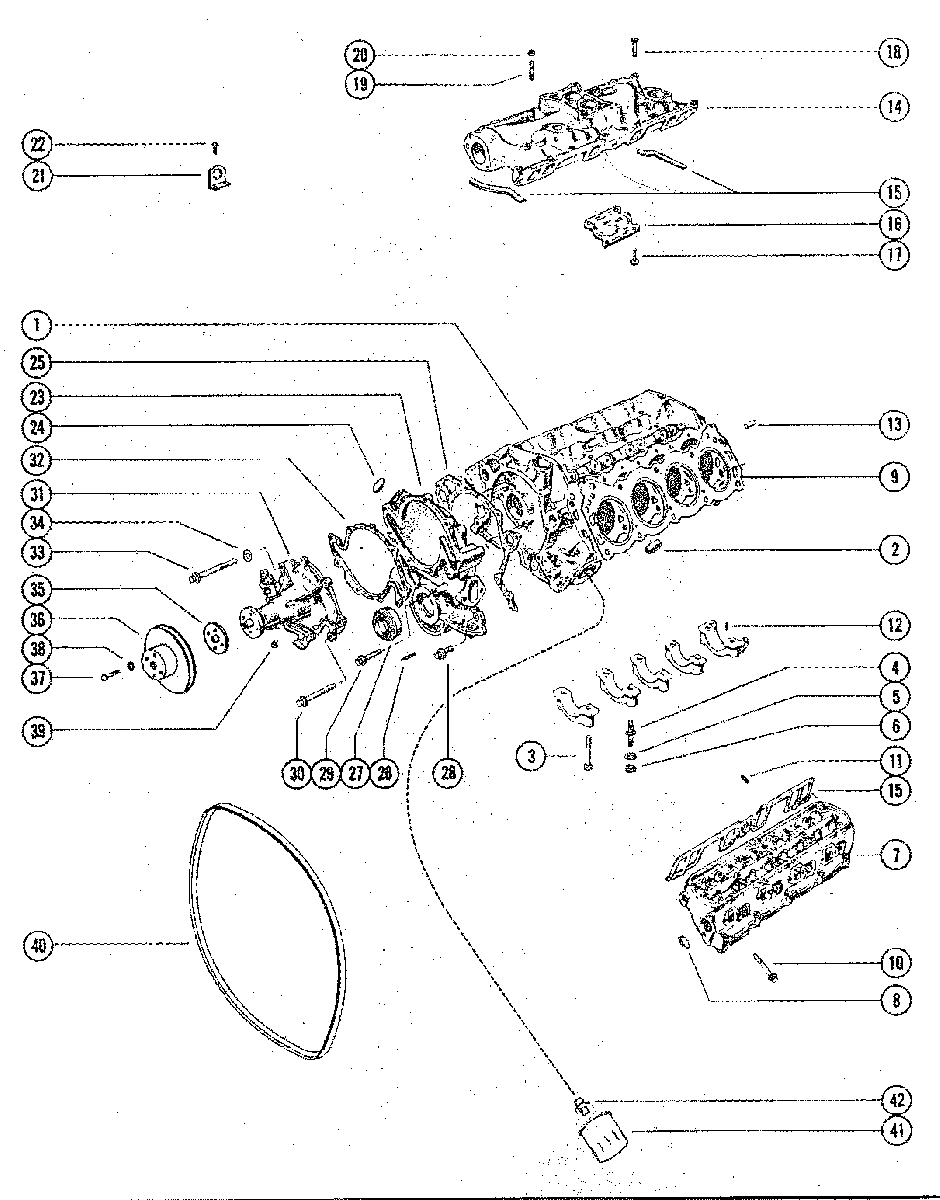

CYLINDER BLOCK, CYLINDER HEAD AND WATER PUMP для Mercruiser - 888 (2 BBL.) FORD 302 V-8 1971-1977 3108723 AND UP

  • №
    Артикул
    Название
  • 1
    853-4056 CYLINDER BLOCK ASSEMBLY(INCLUDES BEARING CAPS)
    SERIAL 00000000-04615129
    CYLINDER BLOCK ASSEMBLY(INCLUDES BEARING CAPS)
    SERIAL 00000000-04615129
  • 1
    8536554 CYLINDER BLOCK ASSEMBLY(INCLUDES BEARING CAPS)
    SERIAL 04615130-09999999
    CYLINDER BLOCK ASSEMBLY(INCLUDES BEARING CAPS)
    SERIAL 04615130-09999999
  • 2
    19-56102 PLUG, EXPANSION-CYLINDER BLOCK (1 1/2" BRASS)
    PLUG, EXPANSION-CYLINDER BLOCK (1 1/2" BRASS)
  • -
    22-16951Q1 PETCOCK, DRAIN-CYLINDER BLOCK
    PETCOCK, DRAIN-CYLINDER BLOCK
  • -
    22-88517A1 ADAPTOR, STARBOARD PETCOCK
    ADAPTOR, STARBOARD PETCOCK
  • -
    22-32561 PLUG, MAIN GALLERY BLOCK (1/4-18 PIPE)
    PLUG, MAIN GALLERY BLOCK (1/4-18 PIPE)
  • -
    22-32561 PLUG, DRAIN-CYLINDER BLOCK (1/4")
    PLUG, DRAIN-CYLINDER BLOCK (1/4")
  • -
    19-60722 PLUG, CLEAN OUT HOLES (3/4-14 PIPE)
    PLUG, CLEAN OUT HOLES (3/4-14 PIPE)
  • -
    19-45670 PLUG, CUP-MAIN OIL GALLERY (FRONT)
    PLUG, CUP-MAIN OIL GALLERY (FRONT)
  • -
    19-60668 PLUG, OIL PASSAGE-REAR (3/4"CUP)
    PLUG, OIL PASSAGE-REAR (3/4"CUP)
  • 3
    10-56146 BOLT, BEARING CAP TO CYL. BLK. (3 5/32")
    BOLT, BEARING CAP TO CYL. BLK. (3 5/32")
  • 4
    16-56147 STUD, BEARING CAP TO BLK. (OIL PUMP SCREEN)
    STUD, BEARING CAP TO BLK. (OIL PUMP SCREEN)
  • 5
    13-56177 LOCKWASHER, OIL PUMP SCREEN
    LOCKWASHER, OIL PUMP SCREEN
  • 6
    11-32219 NUT, OIL PUMP SCREEN STUD
    NUT, OIL PUMP SCREEN STUD
  • 7
    949-4057 CYLINDER HEAD ASSEMBLY)
    SERIAL 00000000-03833159
    CYLINDER HEAD ASSEMBLY)
    SERIAL 00000000-03833159
  • 7
    949-5798 CYLINDER HEAD ASSEMBLY
    SERIAL 03833160-04166999
    CYLINDER HEAD ASSEMBLY
    SERIAL 03833160-04166999
  • 7
    9496358 CYLINDER HEAD ASSEMBLY
    SERIAL 04167000-04615129
    CYLINDER HEAD ASSEMBLY
    SERIAL 04167000-04615129
  • 7
    949-6555 CYLINDER HEAD ASSEMBLY
    SERIAL 04615130-09999999
    CYLINDER HEAD ASSEMBLY
    SERIAL 04615130-09999999
  • 8
    19-56102 PLUG, EXPANSION-CYLINDER HEAD (1 1/2" BRASS)
    PLUG, EXPANSION-CYLINDER HEAD (1 1/2" BRASS)
  • 8
    22-63028 PLUG, CYLINDER HEAD(3/4")
    PLUG, CYLINDER HEAD(3/4")
  • -
    19-73030 PLUG, EXHAUST EMISSION HOLE
    SERIAL 04167000-09999999
    PLUG, EXHAUST EMISSION HOLE
    SERIAL 04167000-09999999
  • 9
    27-75647 GASKET, CYLINDER HEAD
    SERIAL 00000000-04615129
    GASKET, CYLINDER HEAD
    SERIAL 00000000-04615129
  • 9
    27-75647 GASKET, CYLINDER HEAD
    SERIAL 04615130-09999999
    GASKET, CYLINDER HEAD
    SERIAL 04615130-09999999
  • 10
    10-56112 BOLT, CYLINDER HEAD TO CYLINDER BLOCK(3 7/8")
    SERIAL 00000000-03833159
    BOLT, CYLINDER HEAD TO CYLINDER BLOCK(3 7/8")
    SERIAL 00000000-03833159
  • 10
    10-56113 BOLT, CYLINDER HEAD TO CYLINDER BLOCK(2 1/4")
    SERIAL 00000000-03833159
    BOLT, CYLINDER HEAD TO CYLINDER BLOCK(2 1/4")
    SERIAL 00000000-03833159
  • 10
    10-75616 BOLT, CYLINDER HEAD TO CYLINDER BLOCK(3 15/16")
    SERIAL 03833160-04615129
    BOLT, CYLINDER HEAD TO CYLINDER BLOCK(3 15/16")
    SERIAL 03833160-04615129
  • 10
    10-75617 BOLT, CYLINDER HEAD TO CYLINDER BLOCK(2 15/16")
    SERIAL 03833160-04615129
    BOLT, CYLINDER HEAD TO CYLINDER BLOCK(2 15/16")
    SERIAL 03833160-04615129
  • 10
    10-75616 BOLT, CYLINDER HEAD TO CYLINDER BLOCK(3 15/16")
    SERIAL 04615130-09999999
    BOLT, CYLINDER HEAD TO CYLINDER BLOCK(3 15/16")
    SERIAL 04615130-09999999
  • 10
    10-75617 BOLT, CYLINDER HEAD TO CYLINDER BLOCK(2 15/16")
    SERIAL 04615130-09999999
    BOLT, CYLINDER HEAD TO CYLINDER BLOCK(2 15/16")
    SERIAL 04615130-09999999
  • 11
    17-60670 PIN, DOWELL-CYLINDER HEAD TO CYLINDER BLOCK
    PIN, DOWELL-CYLINDER HEAD TO CYLINDER BLOCK
  • 12
    1756139 PIN, REAR BEARING CAP
    PIN, REAR BEARING CAP
  • 13
    1756151 PIN, DOWELL- CYLINDER BLOCK
    PIN, DOWELL- CYLINDER BLOCK
  • 14
    60712 INTAKE
    INTAKE
  • 15
    27-73042 GASKET SET, INT. MANIFOLD
    SERIAL 00000000-04466389
    GASKET SET, INT. MANIFOLD
    SERIAL 00000000-04466389
  • 15
    27-73042 GASKET SET, INT. MANIFOLD)
    SERIAL 04466390-04615129
    GASKET SET, INT. MANIFOLD)
    SERIAL 04466390-04615129
  • 15
    27-75648 GASKET SET, INT. MANIFOLD
    SERIAL 04615130-09999999
    GASKET SET, INT. MANIFOLD
    SERIAL 04615130-09999999
  • 16
    56163 BAFFLE, INTAKE MANIFOLD
    BAFFLE, INTAKE MANIFOLD
  • 17
    10-60707 SCREW, BAFFLE TO INTAKE MANIFOLD
    SCREW, BAFFLE TO INTAKE MANIFOLD
  • 18
    10-58261 BOLT, INTAKE MANIFOLD TO CYL. HEAD(2")
    BOLT, INTAKE MANIFOLD TO CYL. HEAD(2")
  • 19
    16-58262 STUD, INTAKE MANIFOLD TO CYL. HEAD(2 3/8")
    STUD, INTAKE MANIFOLD TO CYL. HEAD(2 3/8")
  • 20
    11-58263 NUT, INTAKE MANIFOLD STUD
    NUT, INTAKE MANIFOLD STUD
  • 21
    54-54555 EYE, LIFTING-INTAKE MANIFOLD
    EYE, LIFTING-INTAKE MANIFOLD
  • 22
    10-824941 SCREW, LIFTING EYE TO INTAKE MANIFOLD(3/4")
    SERIAL 00000000-03465227
    SCREW, LIFTING EYE TO INTAKE MANIFOLD(3/4")
    SERIAL 00000000-03465227
  • 22
    10-35386 SCREW, LIFTING EYE TO INTAKE MANIFOLD(1")
    SERIAL 03465228-09999999
    SCREW, LIFTING EYE TO INTAKE MANIFOLD(1")
    SERIAL 03465228-09999999
  • 23
    56103 COVER, TIMING
    COVER, TIMING
  • 24
    19-45670 WELCH PLUG, TIMING COVER
    WELCH PLUG, TIMING COVER
  • 25
    27-56108 GASKET, TIMING COVER
    GASKET, TIMING COVER
  • 26
    56109 POINTER, TIMING COVER
    POINTER, TIMING COVER
  • 27
    26-56866 OIL SEAL, TIMING COVER
    OIL SEAL, TIMING COVER
  • 28
    10-55511 SCREW, TIMING COVER TO CYLINDER BLOCK (1 1/2")
    SCREW, TIMING COVER TO CYLINDER BLOCK (1 1/2")
  • 28
    10-28782 SCREW, TIMING COVER TO CYLINDER BLOCK (7/8")
    SCREW, TIMING COVER TO CYLINDER BLOCK (7/8")
  • 29
    10-815549 SCREW, TIMING COVER TO CYLINDER BLOCK (2")
    SCREW, TIMING COVER TO CYLINDER BLOCK (2")
  • 30
    10-52743 SCREW, WATER PUMP AND TIMING COVER TO CYLINDER BLOCK (3 3/4")
    SCREW, WATER PUMP AND TIMING COVER TO CYLINDER BLOCK (3 3/4")
  • 30
    10-55300 SCREW, WATER PUMP AND TIMING COVER TO CYLINDER BLOCK (5 1/4")
    SCREW, WATER PUMP AND TIMING COVER TO CYLINDER BLOCK (5 1/4")
  • 31
    883885 WATER PUMP(IDENTIFICATION- CASTING PART #C80E-D)
    WATER PUMP(IDENTIFICATION- CASTING PART #C80E-D)
  • 31
    883885 WATER PUMP(IDENTIFICATION- CASTING PART #D3JE-AA)
    WATER PUMP(IDENTIFICATION- CASTING PART #D3JE-AA)
  • 32
    27-56880 GASKET, WATER PUMP
    GASKET, WATER PUMP
  • 33
    10-574841 SCREW, WATER PUMP AND TIMING COVER(1 1/2")
    SCREW, WATER PUMP AND TIMING COVER(1 1/2")
  • 33
    10-57841 SCREW, WATER PUMP AND TIMING COVER(2 5/8")
    SCREW, WATER PUMP AND TIMING COVER(2 5/8")
  • 34
    13-39107 LOCKWASHER, WATER PUMP SCREW
    LOCKWASHER, WATER PUMP SCREW
  • 35
    58265 REINFORCEMENT, WATER PUMP PULLEY
    REINFORCEMENT, WATER PUMP PULLEY
  • 36
    56881 PULLEY, WATER PUMP(USE WITH B-58086 PUMP - SEE REF .#31)
    PULLEY, WATER PUMP(USE WITH B-58086 PUMP - SEE REF .#31)
  • 36
    71281 PULLEY, WATER PUMP(USE WITH B-71683 PUMP - SEE REF. #31)
    PULLEY, WATER PUMP(USE WITH B-71683 PUMP - SEE REF. #31)
  • 37
    10-47277 SCREW, PULLEY TO WATER PUMP(3/4")
    SCREW, PULLEY TO WATER PUMP(3/4")
  • 38
    1339107 LOCKWASHER, PULLEY SCREW
    LOCKWASHER, PULLEY SCREW
  • 39
    22-36373 PLUG, PIAPE- WATER PUMP (3/8-14)
    PLUG, PIAPE- WATER PUMP (3/8-14)
  • 40
    57-93658Q BELT, DRIVE- ALTERNATOR AND WATER PUMP
    BELT, DRIVE- ALTERNATOR AND WATER PUMP
  • 41
    35-8M0116378 OIL FILTER
    OIL FILTER
  • 42
    22-56876 CONNECTOR, OIL FILTER TO CYLINDER BLOCK
    CONNECTOR, OIL FILTER TO CYLINDER BLOCK
