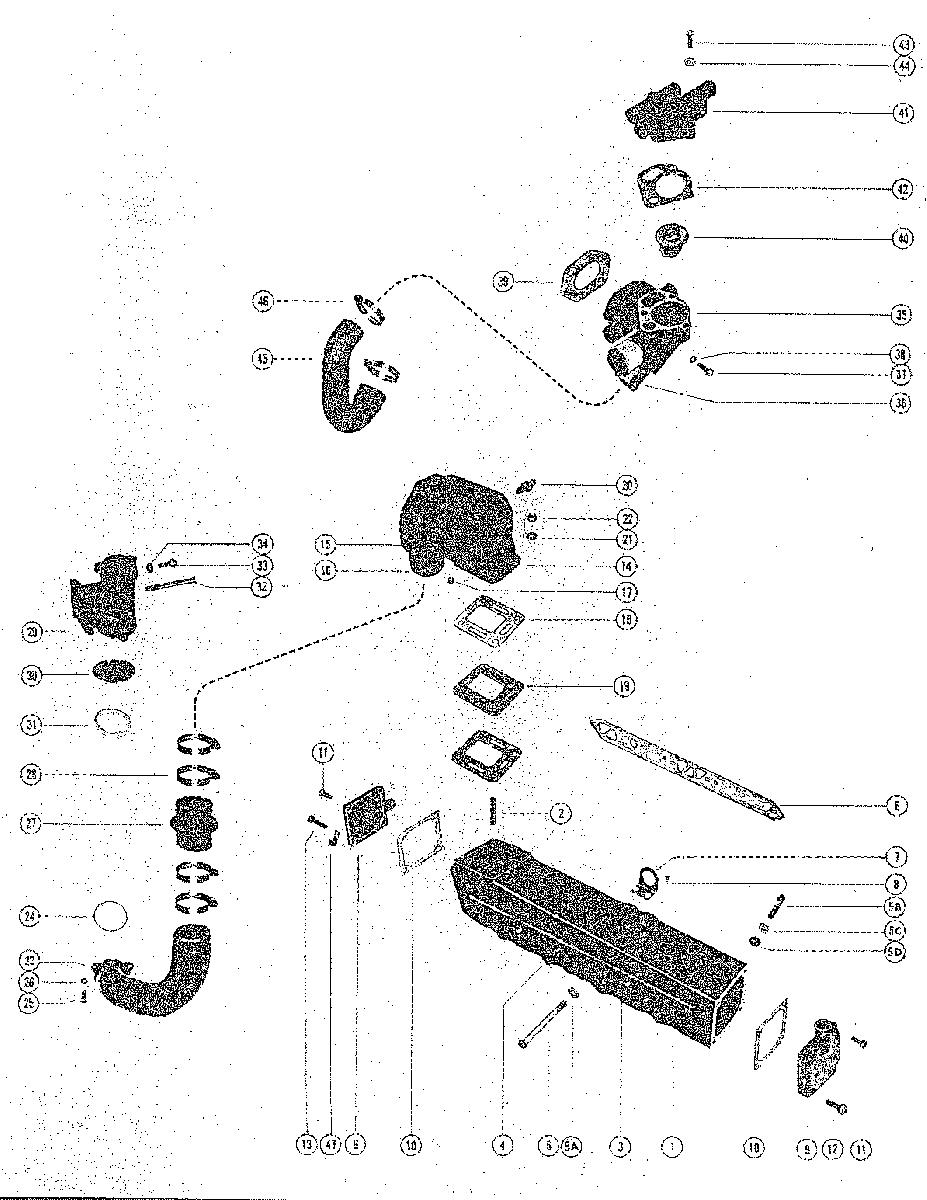

EXHAUST MANIFOLD AND EXHAUST ELBOW для Mercruiser - 888 (2 BBL.) FORD 302 V-8 1971-1977 3108723 AND UP

  • №
    Артикул
    Название
  • 1
    65604A12 EXHAUST MANIFOLD ASSEMBLY, PORT
    SERIAL 00000000-03975694
    EXHAUST MANIFOLD ASSEMBLY, PORT
    SERIAL 00000000-03975694
  • 1
    65603A12 EXHAUST MANIFOLD ASSEMBLY, STARBOARD
    SERIAL 00000000-03975694
    EXHAUST MANIFOLD ASSEMBLY, STARBOARD
    SERIAL 00000000-03975694
  • 2
    16-49545 STUD, EXHAUST MANIFOLD TO EXHAUST ELBOW (1 3/4")
    SERIAL 00000000-03975694
    STUD, EXHAUST MANIFOLD TO EXHAUST ELBOW (1 3/4")
    SERIAL 00000000-03975694
  • 3
    22-48118 PLUG, EXHAUST MANIFOLD
    SERIAL 00000000-03975694
    PLUG, EXHAUST MANIFOLD
    SERIAL 00000000-03975694
  • 4
    22-328022 PLUG, PIPE - EXHAUST MANIFOLD
    SERIAL 00000000-03975694
    PLUG, PIPE - EXHAUST MANIFOLD
    SERIAL 00000000-03975694
  • 5
    10-37612 SCREW, EXHAUST MANIFOLD TO CYL. HEAD (1 1/4")
    SERIAL 00000000-03975694
    SCREW, EXHAUST MANIFOLD TO CYL. HEAD (1 1/4")
    SERIAL 00000000-03975694
  • 5A
    13-35048 WASHER, EXHAUST MANIFOLD SCREW
    SERIAL 00000000-03975694
    WASHER, EXHAUST MANIFOLD SCREW
    SERIAL 00000000-03975694
  • 1
    65604A12 EXHAUST MANIFOLD ASSEMBLY, PORT
    SERIAL 03975695-09999999
    EXHAUST MANIFOLD ASSEMBLY, PORT
    SERIAL 03975695-09999999
  • 1
    65603A12 EXHAUST MANIFOLD ASSEMBLY, STARBOARD
    SERIAL 03975695-09999999
    EXHAUST MANIFOLD ASSEMBLY, STARBOARD
    SERIAL 03975695-09999999
  • 2
    16-49545 STUD, EXHAUST MANIFOLD TO EXHAUST ELBOW (1 3/4")
    SERIAL 03975695-09999999
    STUD, EXHAUST MANIFOLD TO EXHAUST ELBOW (1 3/4")
    SERIAL 03975695-09999999
  • 4
    22-328022 PLUG, PIPE - EXHAUST MANIFOLD
    SERIAL 03975695-09999999
    PLUG, PIPE - EXHAUST MANIFOLD
    SERIAL 03975695-09999999
  • 5B
    16-49545 STUD, EXHAUST MANIFOLD TO CYL. HEAD (1 3/4")
    SERIAL 03975695-09999999
    STUD, EXHAUST MANIFOLD TO CYL. HEAD (1 3/4")
    SERIAL 03975695-09999999
  • 5B
    1395-6547 STUD, EXHAUST MANIFOLD TO CYL. HEAD (3 1/16")
    SERIAL 03975695-09999999
    STUD, EXHAUST MANIFOLD TO CYL. HEAD (3 1/16")
    SERIAL 03975695-09999999
  • 5C
    13-35048 WASHER, EXHAUST MANIFOLD STUD
    SERIAL 03975695-09999999
    WASHER, EXHAUST MANIFOLD STUD
    SERIAL 03975695-09999999
  • 5D
    11-49838 NUT, EXHAUST MANIFOLD STUD
    SERIAL 03975695-09999999
    NUT, EXHAUST MANIFOLD STUD
    SERIAL 03975695-09999999
  • 6
    27-73866 GASKET, EXHAUST MANIFOLD TO CYLINDER HEAD
    SERIAL 00000000-00166999
    GASKET, EXHAUST MANIFOLD TO CYLINDER HEAD
    SERIAL 00000000-00166999
  • 6
    27-73866 GASKET, EXHAUST MANIFOLD TO CYLINDER HEADD
    SERIAL 00467000-09999999
    GASKET, EXHAUST MANIFOLD TO CYLINDER HEADD
    SERIAL 00467000-09999999
  • 7
    54-54509 EYE, LIFTING - EXHAUST MANIFOLD
    EYE, LIFTING - EXHAUST MANIFOLD
  • 8
    10-98260 SCREW, LIFTING EYE ATTACHING (5/8")
    SERIAL 00000000-00324667
    SCREW, LIFTING EYE ATTACHING (5/8")
    SERIAL 00000000-00324667
  • 8
    10-98260 SCREW, LIFTING EYE ATTACHING (5/8")
    SERIAL 03245668-03465227
    SCREW, LIFTING EYE ATTACHING (5/8")
    SERIAL 03245668-03465227
  • 8
    10-98261 SCREW, LIFTING EYE ATTACHING (3/4")
    SERIAL 03245668-03465227
    SCREW, LIFTING EYE ATTACHING (3/4")
    SERIAL 03245668-03465227
  • 8
    1026801 SCREW, LIFTING EYE ATTACHING (5/8")
    SERIAL 03465228-09999999
    SCREW, LIFTING EYE ATTACHING (5/8")
    SERIAL 03465228-09999999
  • 9
    60252A2 END CAP/CONNECTOR, EXHAUST MANIFOLD
    END CAP/CONNECTOR, EXHAUST MANIFOLD
  • 10
    27-480431 GASKET, END CAP/CONNECTOR TO EXHAUST MANIFOLD
    GASKET, END CAP/CONNECTOR TO EXHAUST MANIFOLD
  • 11
    10-35386 SCREW, END CAP/CONNECTOR TO EXHAUST MANIFOLD (1")
    SCREW, END CAP/CONNECTOR TO EXHAUST MANIFOLD (1")
  • 12
    10-74824 SCREW, END CAP/CONNECTOR TO EXHAUST MANIFOLD (1 1/4")
    SCREW, END CAP/CONNECTOR TO EXHAUST MANIFOLD (1 1/4")
  • 13
    10-31984 SCREW, END CAP/CONNECTOR TO EXHAUST MANIFOLD (1 3/8")
    SCREW, END CAP/CONNECTOR TO EXHAUST MANIFOLD (1 3/8")
  • 14
    76351A04 EXHAUST ELBOW ASSEMBLY
    SERIAL 00000000-04612109
    EXHAUST ELBOW ASSEMBLY
    SERIAL 00000000-04612109
  • 14
    76351A04 EXHAUST ELBOW ASSEMBLY
    SERIAL 04612110-09999999
    EXHAUST ELBOW ASSEMBLY
    SERIAL 04612110-09999999
  • 15
    22-416223 PLUG, EXHAUST ELBOW
    PLUG, EXHAUST ELBOW
  • 16
    32-58616A2 TUBE ASSEMBLY, WATER SEPARATION
    SERIAL 00000000-04612109
    TUBE ASSEMBLY, WATER SEPARATION
    SERIAL 00000000-04612109
  • 17
    22-328022 PLUG, PIPE - EXHAUST ELBOW
    PLUG, PIPE - EXHAUST ELBOW
  • 18
    27-997772 GASKET, EXHAUST ELBOW TO EXHAUST MANIFOLD
    GASKET, EXHAUST ELBOW TO EXHAUST MANIFOLD
  • 19
    60207 PLATE, EXHAUST ELBOW TO EXHAUST MANIFOLD
    PLATE, EXHAUST ELBOW TO EXHAUST MANIFOLD
  • 20
    22-866725 FITTING, HOSE - EXHAUST ELBOW
    FITTING, HOSE - EXHAUST ELBOW
  • 21
    13-35048 LOCKWASHER, EXHASUT ELBOW TO EXHAUST MANIFOLD STUD
    LOCKWASHER, EXHASUT ELBOW TO EXHAUST MANIFOLD STUD
  • 22
    11-49838 NUT, EXHAUST ELBOW TO EXHAUST MANIFOLD STUD
    NUT, EXHAUST ELBOW TO EXHAUST MANIFOLD STUD
  • 23
    73738A4 ELBOW, EXHAUST
    SERIAL 00000000-04166999
    ELBOW, EXHAUST
    SERIAL 00000000-04166999
  • 23
    73738A4 ELBOW, EXHAUST
    SERIAL 04167000-09999999
    ELBOW, EXHAUST
    SERIAL 04167000-09999999
  • 24
    25-35029 "O" RING, EXHAUST ELBOW TO TRANSOM PLATE
    "O" RING, EXHAUST ELBOW TO TRANSOM PLATE
  • 25
    10-60992 SCREW, EXHAUST ELBOW TO EXHAUST SEPARATOR (1 1/4")
    SCREW, EXHAUST ELBOW TO EXHAUST SEPARATOR (1 1/4")
  • 26
    13-35048 LOCKWASHER, EXHAUST ELBOW SCREW
    LOCKWASHER, EXHAUST ELBOW SCREW
  • 27
    53821T BELLOWS, EXHAUST ELBOW
    SERIAL 00000000-04166999
    BELLOWS, EXHAUST ELBOW
    SERIAL 00000000-04166999
  • 28
    54-815504456 CLAMP, BELLOWS TO EXHAUST ELBOW
    SERIAL 00000000-04166999
    CLAMP, BELLOWS TO EXHAUST ELBOW
    SERIAL 00000000-04166999
  • 27
    70981A3 BELLOWS, EXHAUST ELBOW - TAPERED
    SERIAL 04167000-09999999
    BELLOWS, EXHAUST ELBOW - TAPERED
    SERIAL 04167000-09999999
  • 28
    54-815504372 CLAMP, BELLOW TO EXHAUST ELBOW (5")
    SERIAL 04167000-09999999
    CLAMP, BELLOW TO EXHAUST ELBOW (5")
    SERIAL 04167000-09999999
  • 28
    54-815504456 CLAMP, BELLOW TO EXHAUST (4")
    SERIAL 04167000-09999999
    CLAMP, BELLOW TO EXHAUST (4")
    SERIAL 04167000-09999999
  • 29
    59825A9 SEPARATOR, EXHAUST
    SEPARATOR, EXHAUST
  • 30
    60930 SHUTTER, WATER EXHAUST SEPARATOR
    SHUTTER, WATER EXHAUST SEPARATOR
  • 31
    60931 RETAINER, WATER SHUTTER
    RETAINER, WATER SHUTTER
  • 32
    10-60835 SCREW, EXHAUST SEPARATOR TO GIMBAL HOUSING (5")
    SCREW, EXHAUST SEPARATOR TO GIMBAL HOUSING (5")
  • 33
    10-37612 SCREW, EXHAUST SEPARATOR TO GIMBAL HOUSING (1 1/4")
    SCREW, EXHAUST SEPARATOR TO GIMBAL HOUSING (1 1/4")
  • 34
    13-35048 LOCKWASHER, EXHAUST SEPARATOR SCREW
    LOCKWASHER, EXHAUST SEPARATOR SCREW
  • 35
    60783A3 THERMOSTAT HOUSING ASSEMBLY
    SERIAL 00000000-03465227
    THERMOSTAT HOUSING ASSEMBLY
    SERIAL 00000000-03465227
  • 35
    889333 THERMOSTAT HOUSING ASSEMBLY
    SERIAL 03465228-09999999
    THERMOSTAT HOUSING ASSEMBLY
    SERIAL 03465228-09999999
  • 36
    23-54476 SLEEVE, THERMOSTAT HOUSING
    SLEEVE, THERMOSTAT HOUSING
  • 37
    10-54523 SCREW, HOUSING TO INTAKE MANIFOLD (1") - ALLEN HEAD
    SCREW, HOUSING TO INTAKE MANIFOLD (1") - ALLEN HEAD
  • 37
    10-35386 SCREW, HOUSING TO INTAKE MANIFOLD (1")
    SCREW, HOUSING TO INTAKE MANIFOLD (1")
  • 38
    12-20084 WASHER, THERMOSTAT HOUSING SCREW
    WASHER, THERMOSTAT HOUSING SCREW
  • 39
    27-54506 GASKET, THERMOSTAT HOUSING
    GASKET, THERMOSTAT HOUSING
  • 40
    8M0089715 THERMOSTAT
    THERMOSTAT
  • 41
    59498A1 COVER, THERMOSTAT
    SERIAL 00000000-03245667
    COVER, THERMOSTAT
    SERIAL 00000000-03245667
  • 41
    62898A1 COVER, THERMOSTAT
    SERIAL 03245668-09999999
    COVER, THERMOSTAT
    SERIAL 03245668-09999999
  • 42
    27-60208 GASKET, THERMOSTAT COVER
    GASKET, THERMOSTAT COVER
  • 43
    10-35386 SCREW, THERMOSTAT COVER TO THERMOSTAT HOUSING (1")
    SCREW, THERMOSTAT COVER TO THERMOSTAT HOUSING (1")
  • 44
    1339107 LOCKWASHER, THERMOSTAT HOUSING SCREW
    LOCKWASHER, THERMOSTAT HOUSING SCREW
  • 45
    32-54570 HOSE, THERMOSTAT HOUSING TO WATER PUMP
    HOSE, THERMOSTAT HOUSING TO WATER PUMP
  • 46
    54-815504228 CLAMP, HOSE TO THERMOSTAT HOUSING AND WATER PUMP
    CLAMP, HOSE TO THERMOSTAT HOUSING AND WATER PUMP
  • 47
    54-47483 CLIP, HOSE TO MANIFOLD
    SERIAL 03465228-09999999
    CLIP, HOSE TO MANIFOLD
    SERIAL 03465228-09999999
