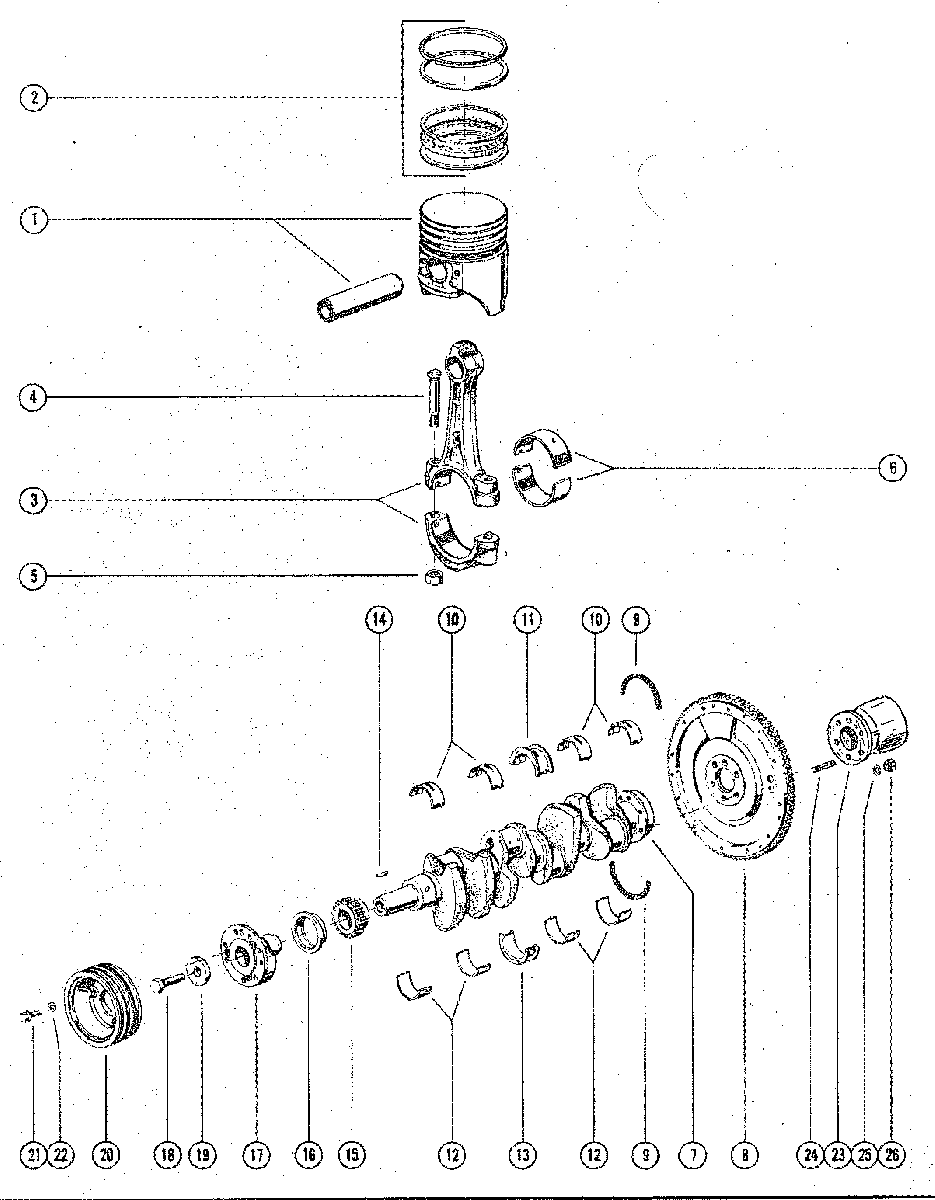

CRANKSHAFT, PISTON AND CONNECTING ROD для Mercruiser - 888 (2 BBL.) FORD 302 V-8 1971-1977 3108723 AND UP

№

Артикул

Название
1

749-4058 PISTON ASSEMBLY (STANDARD)
USE STANDARD RING SERIAL 00000000-03833159

PISTON ASSEMBLY (STANDARD)
USE STANDARD RING SERIAL 00000000-03833159
1

749-4059 PISTON ASSEMBLY (.003 O.S.)
USE STANDARD RING SERIAL 00000000-03833159

PISTON ASSEMBLY (.003 O.S.)
USE STANDARD RING SERIAL 00000000-03833159
1

749-4060 PISTON ASSEMBLY (.020 O.S.)
USE STANDARD RING SERIAL 00000000-03833159

PISTON ASSEMBLY (.020 O.S.)
USE STANDARD RING SERIAL 00000000-03833159
1

749-5792 PISTON ASSEMBLY (STANDARD)
USE STANDARD RING SERIAL 03833160-04615129

PISTON ASSEMBLY (STANDARD)
USE STANDARD RING SERIAL 03833160-04615129
1

749-5793 PISTON ASSEMBLY (.003 O.S.)
USE STANDARD RING SERIAL 03833160-04615129

PISTON ASSEMBLY (.003 O.S.)
USE STANDARD RING SERIAL 03833160-04615129
1

749-5794 PISTON ASSEMBLY (.020 O.S.)
USE STANDARD RING SERIAL 03833160-04615129

PISTON ASSEMBLY (.020 O.S.)
USE STANDARD RING SERIAL 03833160-04615129
1

749-6556 PISTON ASSEMBLY (STANDARD)
USE STANDARD RING SERIAL 04615130-09999999

PISTON ASSEMBLY (STANDARD)
USE STANDARD RING SERIAL 04615130-09999999
1

749-6557 PISTON ASSEMBLY (.003 O.S.)
USE STANDARD RING SERIAL 04615130-09999999

PISTON ASSEMBLY (.003 O.S.)
USE STANDARD RING SERIAL 04615130-09999999
1

749-6558 PISTON ASSEMBLY (.020 O.S.)
USE STANDARD RING SERIAL 04615130-09999999

PISTON ASSEMBLY (.020 O.S.)
USE STANDARD RING SERIAL 04615130-09999999
2

39-56114 RING ASSEMBLY, PISTON (STANDARD)

RING ASSEMBLY, PISTON (STANDARD)
2

39-56115 RING ASSEMBLY, PISTON (.020 O.S.)

RING ASSEMBLY, PISTON (.020 O.S.)
3

623-4679 CONNECTING ROD ASSEMBLY

CONNECTING ROD ASSEMBLY
4

10-56123 BOLT, CONNECTING ROD

BOLT, CONNECTING ROD
5

11-56122 NUT, CONNECTING ROD BOLT

NUT, CONNECTING ROD BOLT
6

23-56116 BEARING UNIT, CONNECTING ROD(STANDARD)

BEARING UNIT, CONNECTING ROD(STANDARD)
6

23-85730 BEARING UNIT, CONNECTING ROD(.001 U.S.)

BEARING UNIT, CONNECTING ROD(.001 U.S.)
6

23-85731 BEARING UNIT, CONNECTING ROD(.002 U.S.)

BEARING UNIT, CONNECTING ROD(.002 U.S.)
6

23-85732 BEARING UNIT, CONNECTING ROD(.010 U.S.)

BEARING UNIT, CONNECTING ROD(.010 U.S.)
6

23-85733 BEARING UNIT, CONNECTING ROD(.020 U.S.)

BEARING UNIT, CONNECTING ROD(.020 U.S.)
7

446-4064 CRANKSHAFT

CRANKSHAFT
8

238-4428 FLYWHEEL ASSEMBLY

FLYWHEEL ASSEMBLY
9

26-56868 OIL SEAL, CRANKSHAFT RAER

OIL SEAL, CRANKSHAFT RAER
10

23-85734 BEARING, CRANKSHAFT MAIN - UPPER (STANDARD)

BEARING, CRANKSHAFT MAIN - UPPER (STANDARD)
10

23-85736 BEARING, CRANKSHAFT MAIN - UPPER (.001 U.S.)

BEARING, CRANKSHAFT MAIN - UPPER (.001 U.S.)
10

23-56894 BEARING, CRANKSHAFT MAIN - UPPER (.002 U.S.)

BEARING, CRANKSHAFT MAIN - UPPER (.002 U.S.)
10

23-85741 BEARING, CRANKSHAFT MAIN - UPPER (.010 U.S.)

BEARING, CRANKSHAFT MAIN - UPPER (.010 U.S.)
10

23-56898 BEARING, CRANKSHAFT MAIN - UPPER (.020 U.S.)

BEARING, CRANKSHAFT MAIN - UPPER (.020 U.S.)
11

23-56891 BEARING, CRANKSHAFT MAIN - UPPER - CENTER (STANDARD)

BEARING, CRANKSHAFT MAIN - UPPER - CENTER (STANDARD)
11

23-85738 BEARING, CRANKSHAFT MAIN - UPPER - CENTER (.001 U.S.)

BEARING, CRANKSHAFT MAIN - UPPER - CENTER (.001 U.S.)
11

23-56895 BEARING, CRANKSHAFT MAIN - UPPER - CENTER (.002 U.S.)

BEARING, CRANKSHAFT MAIN - UPPER - CENTER (.002 U.S.)
11

23-85743 BEARING, CRANKSHAFT MAIN - UPPER - CENTER (.010 U.S.)

BEARING, CRANKSHAFT MAIN - UPPER - CENTER (.010 U.S.)
11

23-56899 BEARING, CRANKSHAFT MAIN - UPPER - CENTER (.020 U.S.)

BEARING, CRANKSHAFT MAIN - UPPER - CENTER (.020 U.S.)
12

23-56900 BEARING, CRANKSHAFT MAIN - LOWER (STANDARD)

BEARING, CRANKSHAFT MAIN - LOWER (STANDARD)
12

23-56902 BEARING, CRANKSHAFT MAIN - LOWER (.001 U.S.)

BEARING, CRANKSHAFT MAIN - LOWER (.001 U.S.)
12

23-85739 BEARING, CRANKSHAFT MAIN - LOWER (.002 U.S.)

BEARING, CRANKSHAFT MAIN - LOWER (.002 U.S.)
12

23-56906 BEARING, CRANKSHAFT MAIN - LOWER (.010 U.S.)

BEARING, CRANKSHAFT MAIN - LOWER (.010 U.S.)
12

23-85737 BEARING, CRANKSHAFT MAIN - LOWER (.020 U.S.)

BEARING, CRANKSHAFT MAIN - LOWER (.020 U.S.)
13

23-85735 BEARING, CRANKSHAFT MAIN - LOWER - CENTER (STANDARD)

BEARING, CRANKSHAFT MAIN - LOWER - CENTER (STANDARD)
13

23-56903 BEARING, CRANKSHAFT MAIN - LOWER - CENTER (.001 U.S.)

BEARING, CRANKSHAFT MAIN - LOWER - CENTER (.001 U.S.)
13

23-85740 BEARING, CRANKSHAFT MAIN - LOWER - CENTER (.002 U.S.)

BEARING, CRANKSHAFT MAIN - LOWER - CENTER (.002 U.S.)
13

23-56907 BEARING, CRANKSHAFT MAIN - LOWER - CENTER (.010 U.S.)

BEARING, CRANKSHAFT MAIN - LOWER - CENTER (.010 U.S.)
13

23-85742 BEARING, CRANKSHAFT MAIN - LOWER - CENTER (.020 U.S.)

BEARING, CRANKSHAFT MAIN - LOWER - CENTER (.020 U.S.)
14

28-568142 KEY, TIMING SPROCKET TO CRANKSHAFT

KEY, TIMING SPROCKET TO CRANKSHAFT
15

43-56141 SPROCKET, CRANKSHAFT TIMING (21 TEETH)

SPROCKET, CRANKSHAFT TIMING (21 TEETH)
16

56143 SLINGER, OIL- CRANKSHAFT

SLINGER, OIL- CRANKSHAFT
17

56145 DAMPER ASSEMBLY, CRANKSHAFT
SERIAL 00000000-03833159

DAMPER ASSEMBLY, CRANKSHAFT
SERIAL 00000000-03833159
17

71685 DAMPER ASSEMBLY, CRANKSHAFT
SERIAL 03833160-09999999

DAMPER ASSEMBLY, CRANKSHAFT
SERIAL 03833160-09999999
18

10-60709 BOLT, DAMPER TO CRANKSHAFT (1 3/4")

BOLT, DAMPER TO CRANKSHAFT (1 3/4")
19

12-56148 WASHER, DAMPER TO CRANKSHAFT BOLT

WASHER, DAMPER TO CRANKSHAFT BOLT
20

56144 PULLEY, CRANKSHAFT

PULLEY, CRANKSHAFT
21

10-21077 SCREW, PULLEY TO DAMPER (7/8")

SCREW, PULLEY TO DAMPER (7/8")
22

13-35048 LOCKWASHER, PULLEY SCREW

LOCKWASHER, PULLEY SCREW
23

59826A3 ENGINE COUPLING ASSEMBLY
SERIAL 00000000-#4466389

ENGINE COUPLING ASSEMBLY
SERIAL 00000000-#4466389
23

59826A3 ENGINE COUPLING ASSEMBLY
SERIAL 00446390-09999999

ENGINE COUPLING ASSEMBLY
SERIAL 00446390-09999999
24

16-60993 STUD, FLYWHEEL AND COUPLING ATTACHING

STUD, FLYWHEEL AND COUPLING ATTACHING
25

12-32648 WASHER, FLYWHEEL AND COUPLING STUDS

WASHER, FLYWHEEL AND COUPLING STUDS
26

11-56407 NUT, FLYWHEEL AND COUPLING STUDS

NUT, FLYWHEEL AND COUPLING STUDS
